Horizontal "L" Brackets for EI112 (1-1/8")

Bahrs Metal Forming LLC

Horizontal "L" Brackets for EI112 (1-1/8")

Sale price$3.06 USD

Shipping calculated at checkout

SKU: BR112-00-0H

Stock:
loading..
Quantity:

Get shipping cost estimate in cart.

Mounting Brackets

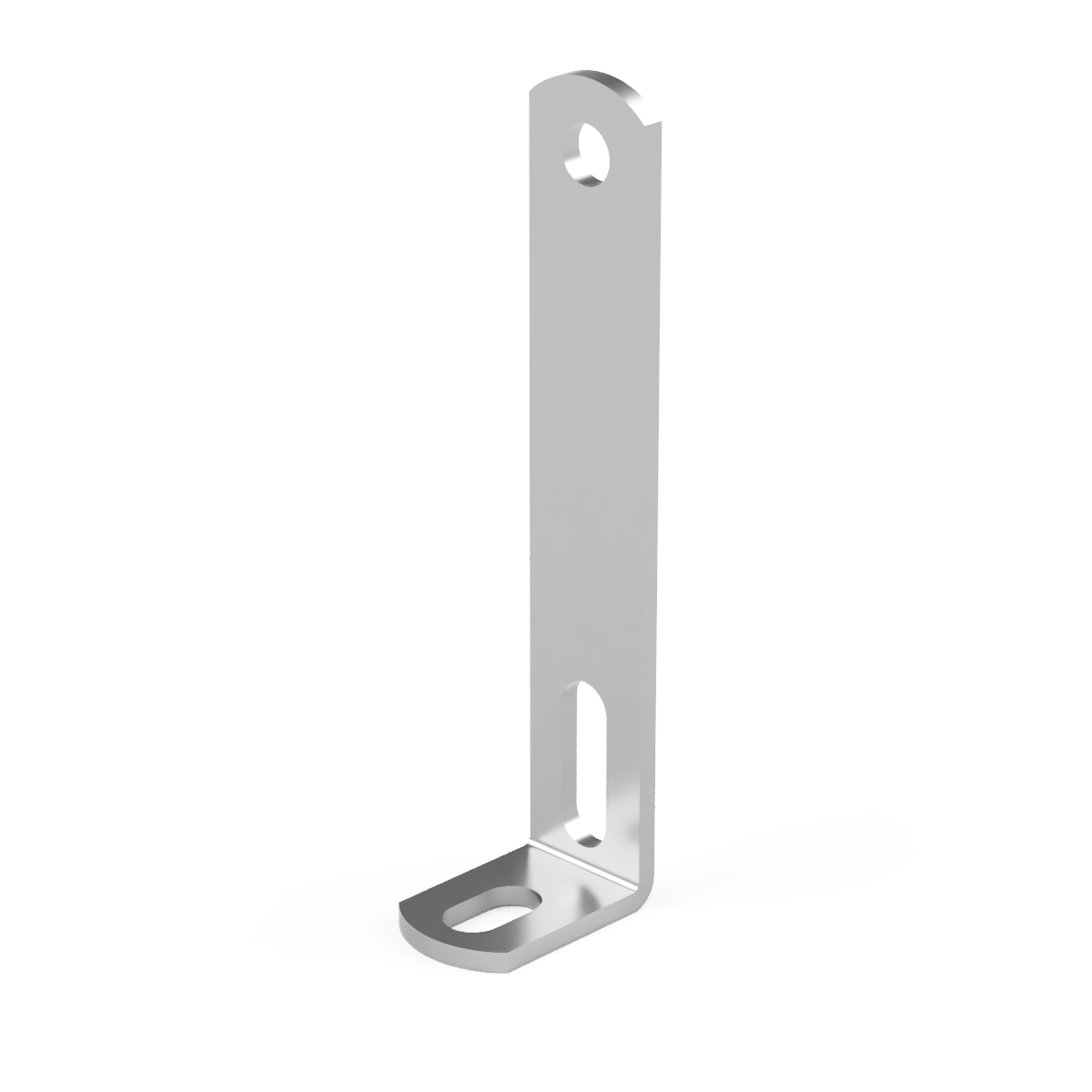

A set of 4 of high quality rolled steel zinc plated "L" brackets for horizontal mounting of EI112 (1-1/8") transformer lamination. These brackets are used on many EDCOR's pro audio and power transformers.

Specifications

Set 4 pcs.
Core Size
EI112 (1-1/8")
Material
Cold rolled steel
Material Thickness
14 ga.
Core Width 3.375" [85.73mm]
Core Height 2.813" [71.44mm]
Feet Mounting Holes Distance 2.813" [71.44mm]
Feet Mounting Hole Size 0.203" [5.16mm] x 0.375" [9.53mm]
Core Mounting Holes Vertical Distance 2.25" [57.15mm]
Core Mounting Holes Horizontal Distance 2.813" [71.44mm]
Core Mounting Hole Size 0.203" dia. [5.16mm]
Base Plating
Zinc
Mounting Orientation Horizontal
Weight (pcs) 0.49 oz.
Compliance RoHS REACH
Dimensional Drawing 20000-BR112-00-0H
