Princeton 5E2 & 5F2 (1955-1956)


Sale price$0.00

Shipping calculated at checkout

Quantity Discounts
10~24 pcs 5% off
25~99 pcs 10% off
100~499 pcs 15% off
500+ pcs 20% off
Orders over 25 pcs may take longer. Please contact us for scheduling and dates.


Replacement power and audio output transformers for Fender Princeton 5E2 and 5F2 guitar amplifier from 1955 to 1956.

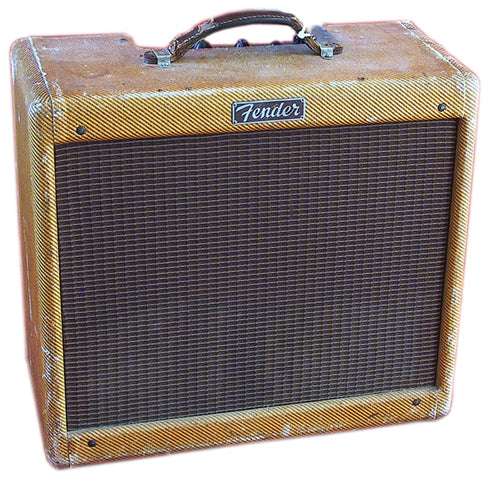

Fender Princeton 5E2 and 5F2
The Fender Princeton 5E2 and 5F2 are a 3 watt single ended class "A" guitar amplifier.


  • Fender Princeton 5E2
  • Fender Princeton 5F2

    Power Transformer
    The XPWR283 power transformers were specially designed and built for this amplifier. It come in a 120V 60 Hz., 230V 50/60Hz., or 240V50/60Hz. to 650V (325-0-325) at 100mA center tapped, 6.3V at 2.25A, and 5V at 3A.

    Power Choke
    The XC50-4H-50mA is a 4H at 50mA DC power choke.

    Audio Output Transformer
    The CXSE5-7K is a 5W, single ended tube output transformer for 7K Ohms to 4, 8 or 16 Ohms.
