Tube Amplifier Power Transformers - EDCOR Electronics Corporation

Tube Plate/Filament Power Transformer

EDCOR has a great selection of power transformers designed for replacement or a new design of tube amplifiers.

Filters

Filters
290 products
Sort by
Sort by
EDCOR EI150 x 2 in. vertical transformer with blue end bells - Reference image EDCOR Tube Power Transformer XPWR020-117 - 117V 60Hz. to 740V@270mA CT w/50V bias, 6.3V@4A, 6.3V@4A, & 5V@2A - Schematic
XPWR020 - 740V@270mA CT w/50V bias, 6.3V@4A, 6.3V@4A, & 5V@2A
$241.28 USD
EDCOR EI075 x 0.875 in. 12 pin printed circuit board (PCB) through hold mounted transformer - Reference image EDCOR Tube Power Transformer XPWR274-120/240 - 200V@40mA & 7.5V@1.5A - 120V/240V, 50/60Hz. Schematic
XPWR274 - 200V@40mA & 7.5V@1.5A
$51.54 USD
EDCOR EI150 x 2.5 in. vertical transformer with blue end bells - Reference image EDCOR Tube Power Transformer XPWR297-120 - 720V@300mA CT w/55V bias, Dual 6.3V@5A CT, & 5V@4A - 120V, 60Hz. Schematic
XPWR297 - 720V@300mA CT w/55V bias, 6.3V@5A, 6.3V@5A CT, & 5V@4A
From $276.53 USD
EDCOR transformer reference image EDCOR Tube Power Transformer XPWR296-120 - 235V@50mA & 6.3V@1.5A - 120V, 60Hz. Schematic
XPWR296 - 235V@50mA & 6.3V@1.5A
$67.52 USD
EDCOR EI150 x 2 in. vertical transformer with blue end bells - Reference image EDCOR Tube Power Transformer XPWR295-240 - 600V@300mA CT, 12.6V@4A CT, & 5V@3A - 240V, 50/60Hz. Schematic
XPWR295 - 600V@300mA CT, 12.6V@4A CT, & 5V@3A
$233.39 USD

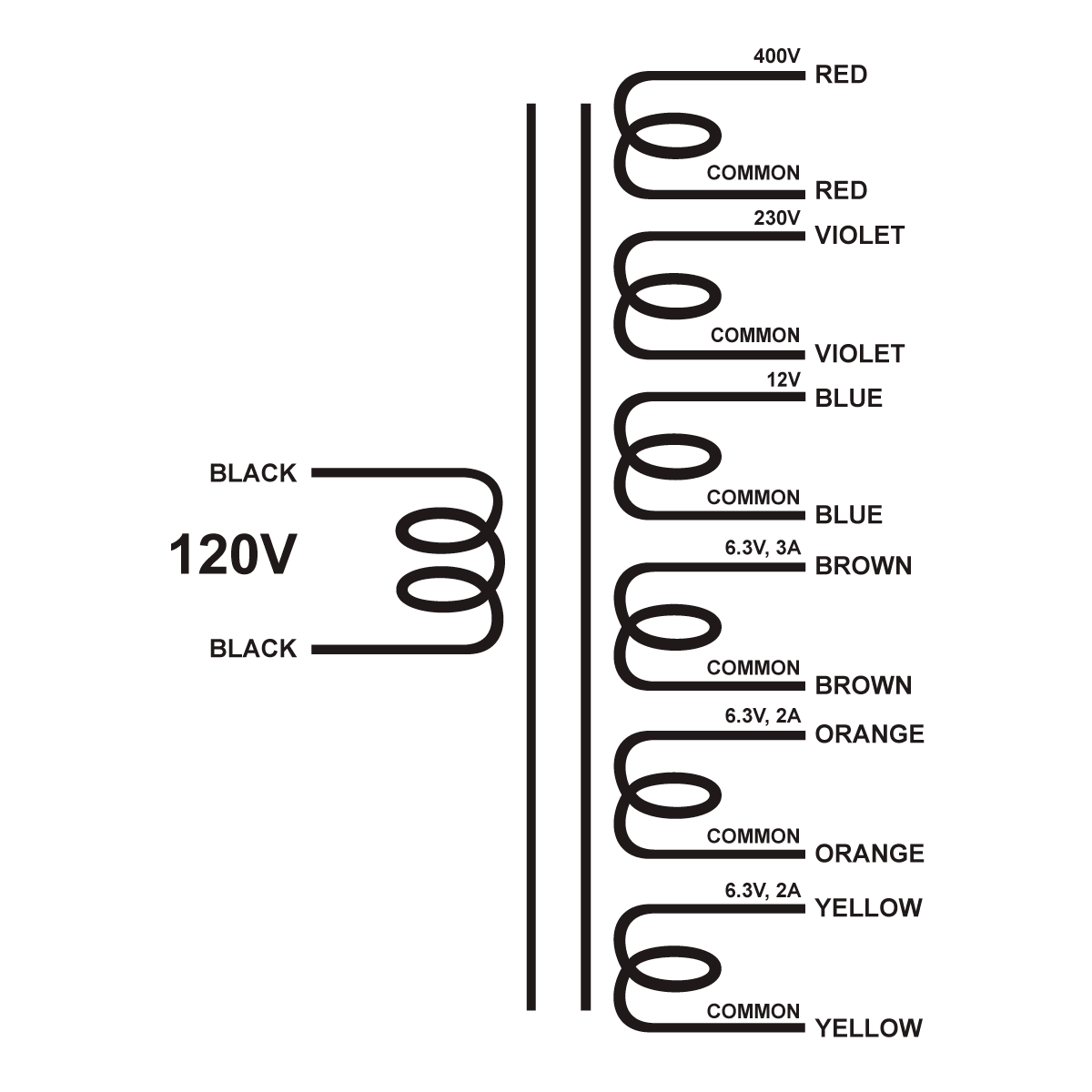

EDCOR EI150 x 1.5 in. vertical transformer with blue end bells - Reference image EDCOR Tube Power Transformer XPWR294-120 - 400V@300mA, 230V@100mA, 12V@120mA, 6.3V@3A, 6.3V@2A, & 6.3V@2A - 120V, 60Hz. Schematic
XPWR294 - 400V@300mA, 230V@100mA, 12V@120mA, 6.3V@3A, 6.3V@2A, & 6.3V@2A
$224.47 USD

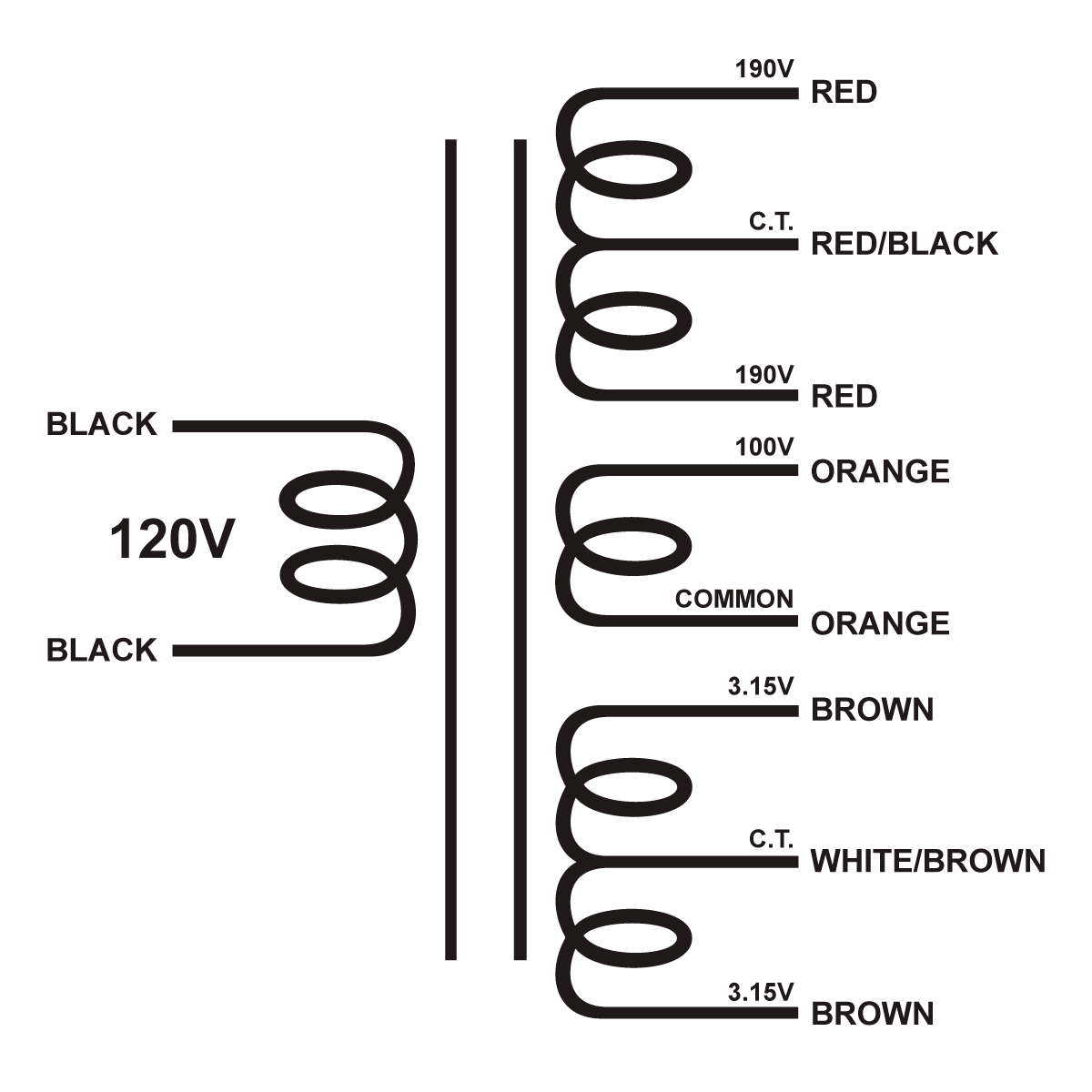

EDCOR EI150 x 2 in. vertical transformer with blue end bells - Reference image EDCOR Tube Power Transformer XPWR293-120 - 380V@450mA CT, 100V@50mA, & 6.3V@7.5A. - 120V, 60Hz. Schematic
XPWR293 - 380V@450mA CT, 100V@50mA, & 6.3V@7.5A
$223.58 USD

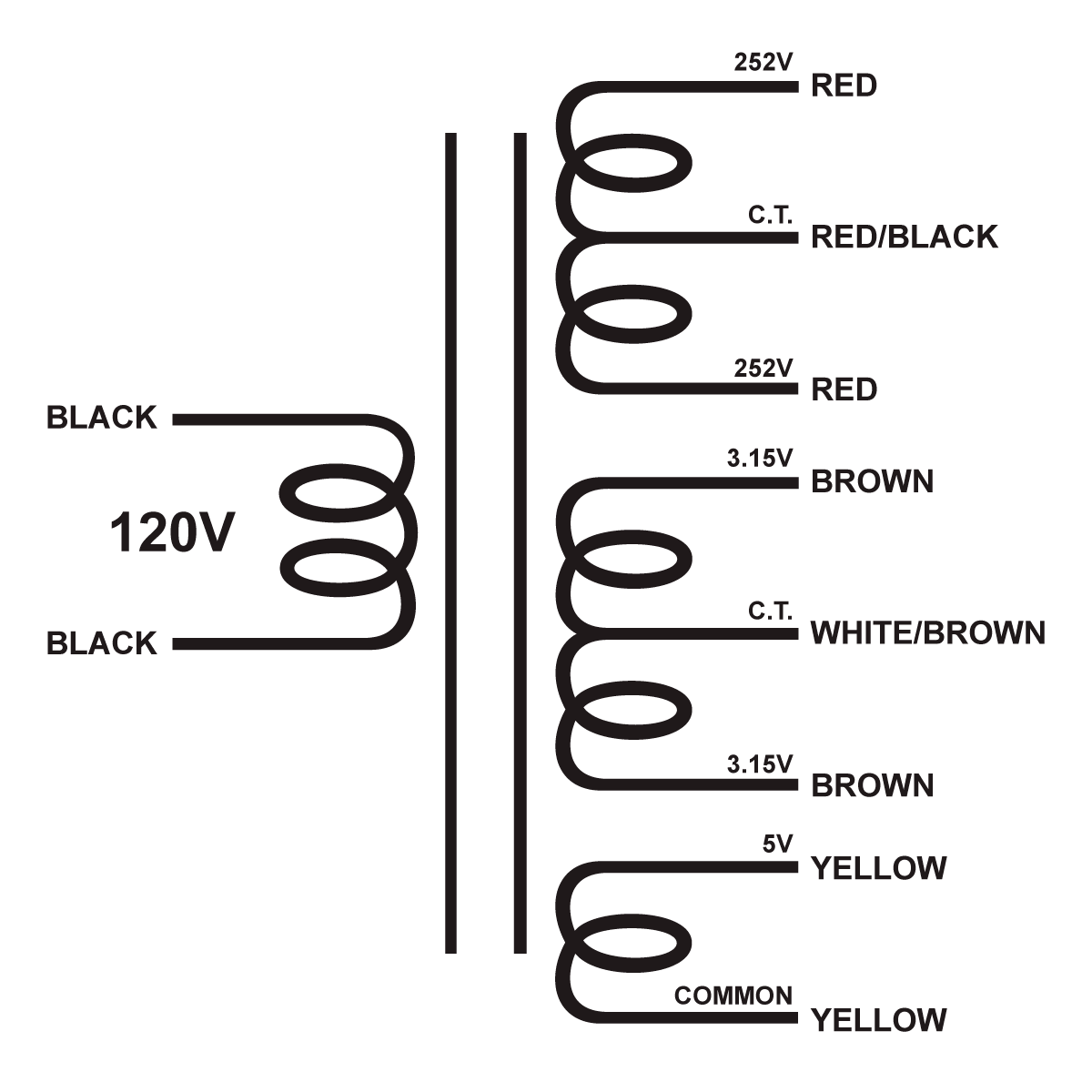

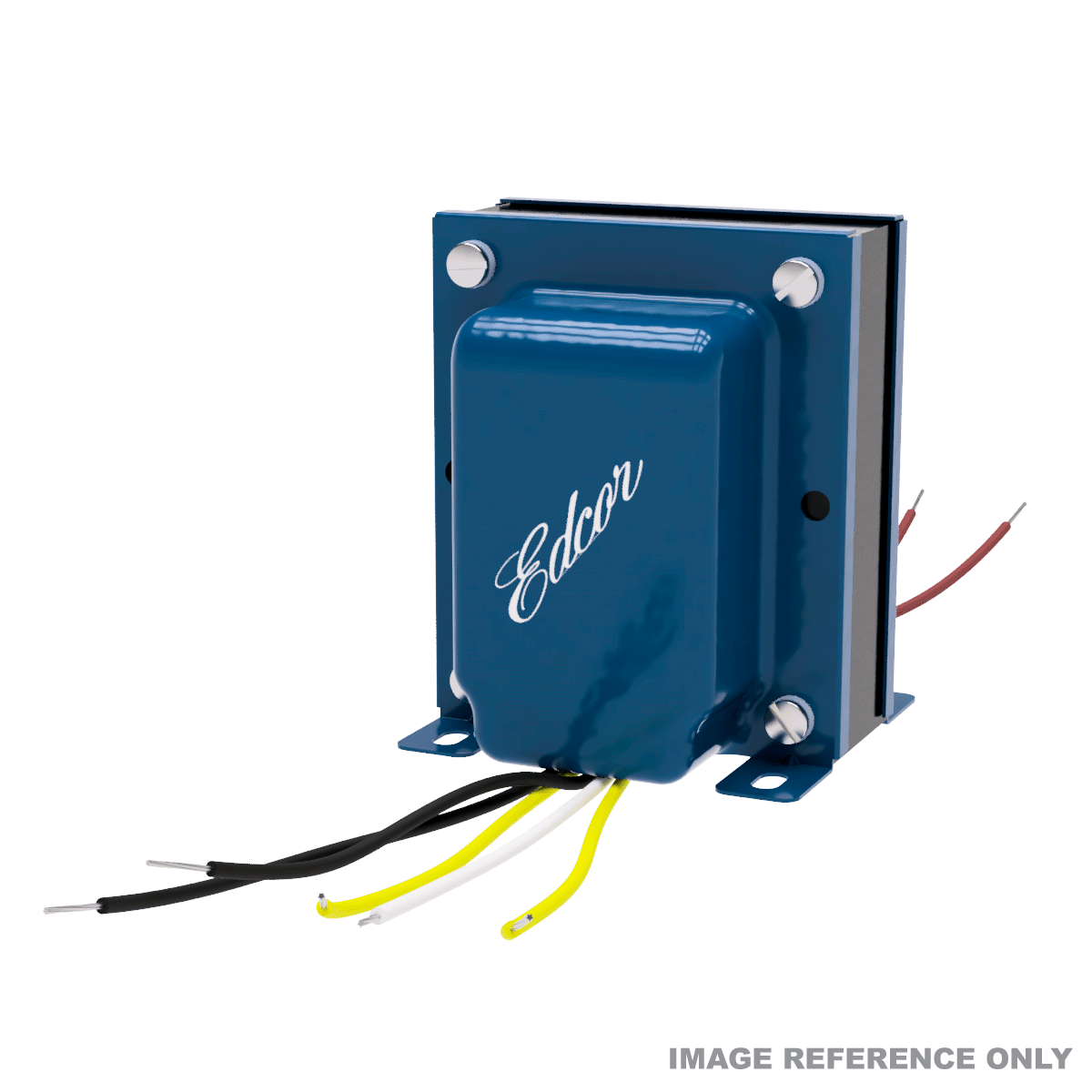

EDCOR EI125 x 1.25" vertical transformer with end bells reference image EDCOR Tube Power Transformer XPWR298-120 (EM0881) - 504V@250mA CT, 6.3V@4A CT, & 5V@3A. - 120V, 60Hz. Schematic
XPWR292 (EM0881) - 504V@250mA CT, 6.3V@4A CT, & 5V@3A
From $198.10 USD
EDCOR transformer reference image EDCOR Tube Power Transformer XPWR291-120 - 560V@250mA CT, 6.3V@4.8A CT, & 5V@3A. - 120V, 60Hz. Schematic
XPWR291 - 560V@250mA CT, 6.3V@4.8A CT, & 5V@3A
From $192.74 USD

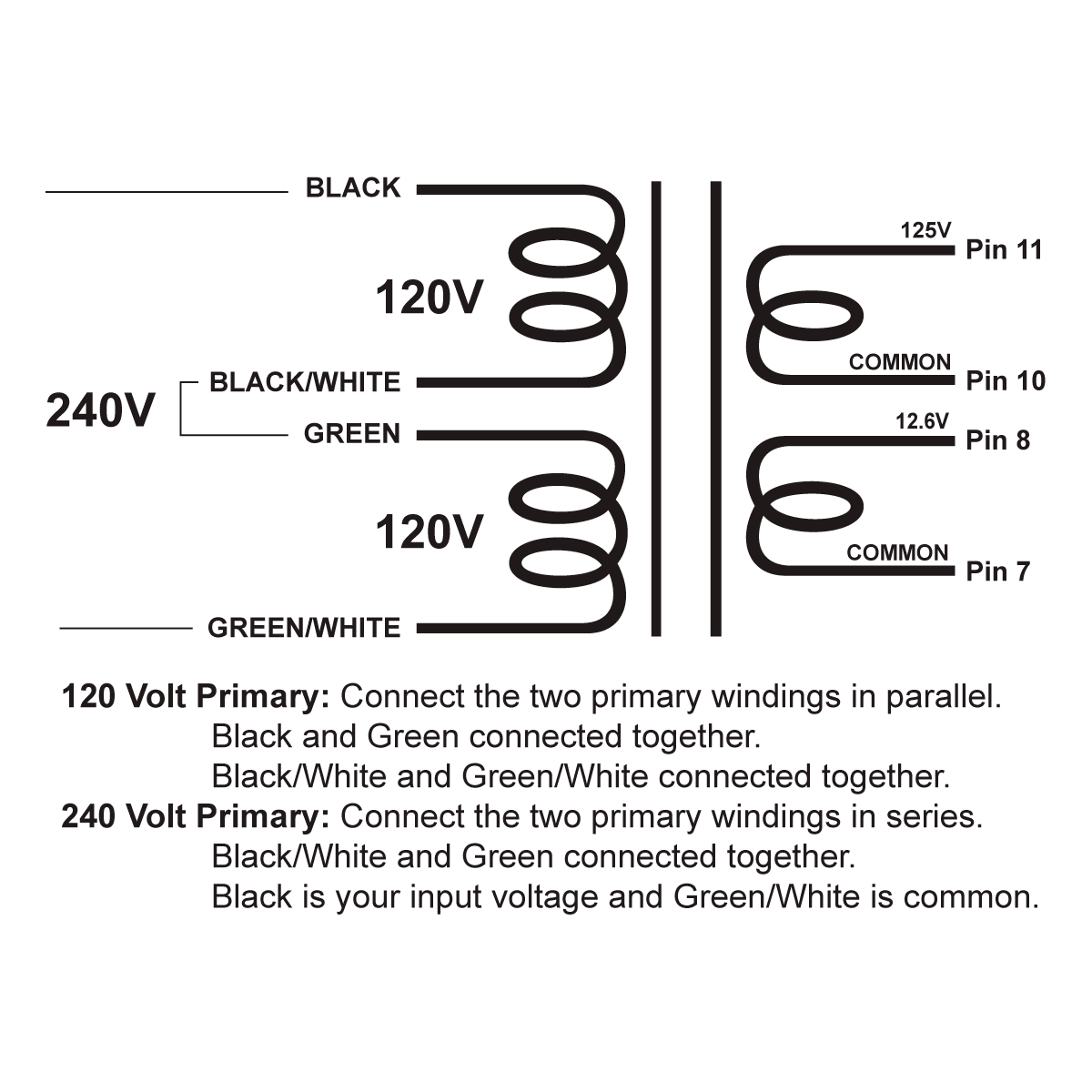

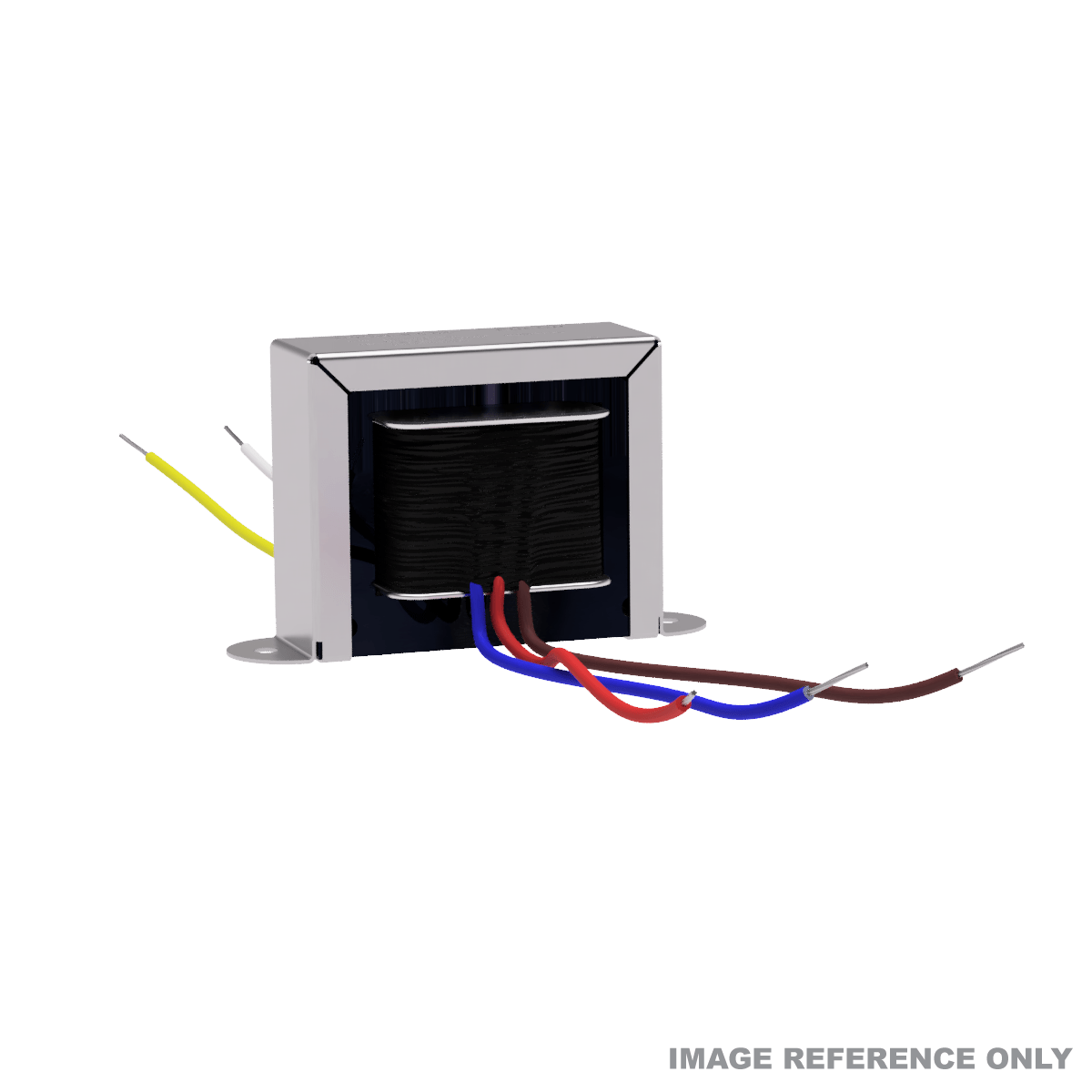

EDCOR EI075 x 1 in. horizontal transformer with zinc plated channel/frame and leads out bottom - Reference image EDCOR Tube Power Transformer XPWR290-120/240 (EM0705) - 125V@20mA & 12.6V@300mA - 120V/240V, 50/60Hz. Schematic
XPWR290 (EM0705) - 125V@20mA & 12.6V@300mA
$67.18 USD

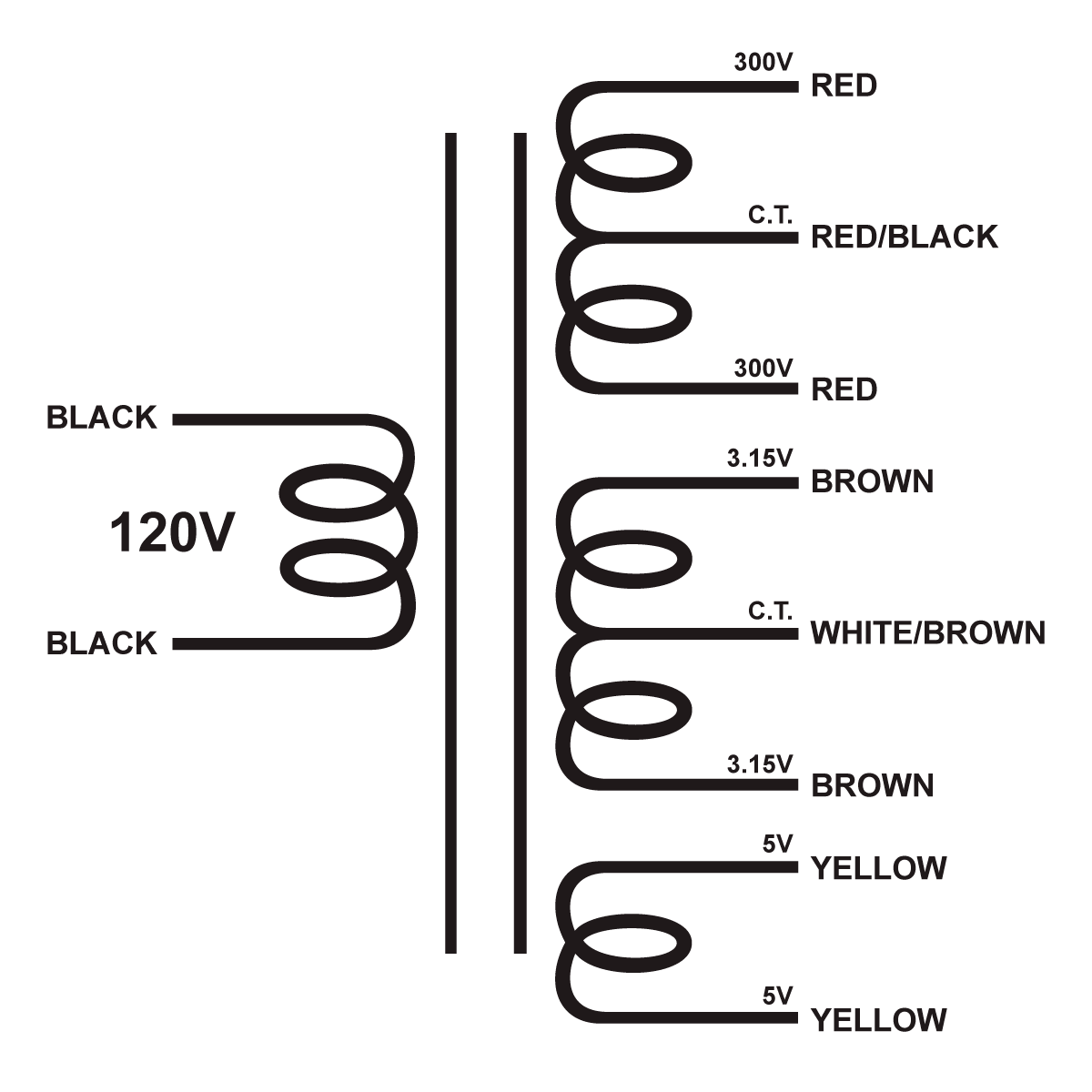

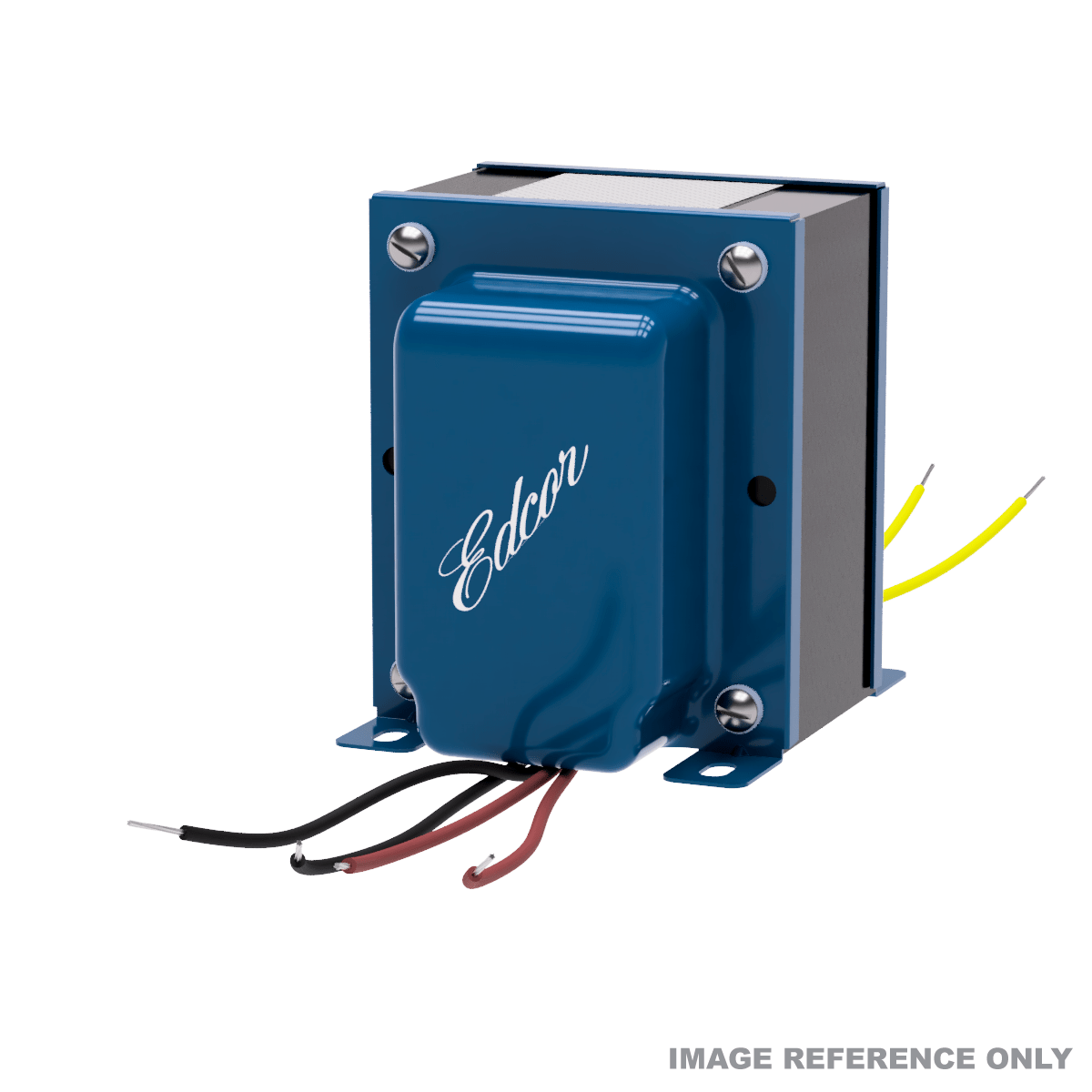

EDCOR EI125 x 2" vertical transformer with blue end bells and copper shield - Reference image EDCOR Tube Power Transformer XPWR284-120 - 600V@250mA CT, 6.3V@4.8A CT, & 5V@3A - 120V, 60Hz. Schematic
XPWR284 - 600V@250mA CT, 6.3V@4.8A CT, & 5V@3A
From $215.20 USD

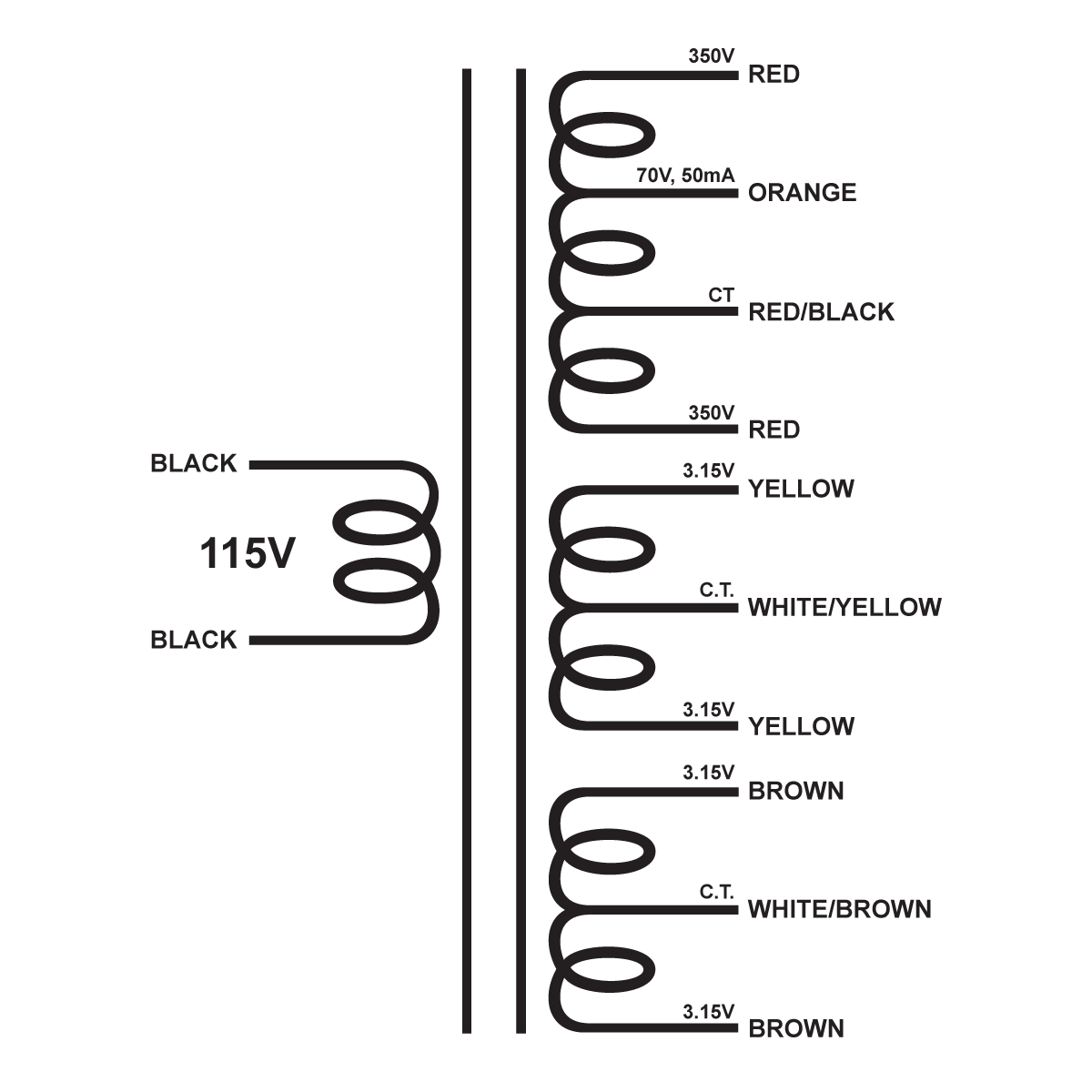

EDCOR EI150 x 3 in. vertical transformer with blue end bells - Reference image EDCOR Tube Power Transformer XPWR016-115 - 120V, 60Hz. to 700V@450mA CT w/70V bias, 6.3V@5A CT, & 6.3V@5A CT - Schematic
XPWR016 - 700V@450mA CT w/70V bias, 6.3V@5A CT, & 6.3V@5A CT
$309.11 USD
EDCOR EI150 x 2 in. vertical transformer with blue end bells - Reference image EDCOR Tube Power Transformer XPWR127-120 - 690V@400mA CT w/60V bias, 12V@500mA, 6.3V@7.5A CT - 120V, 60Hz. Schematic
XPWR127 - 690V@400mA CT w/60V bias, 12V@500mA, 6.3V@7.5A CT
$231.50 USD

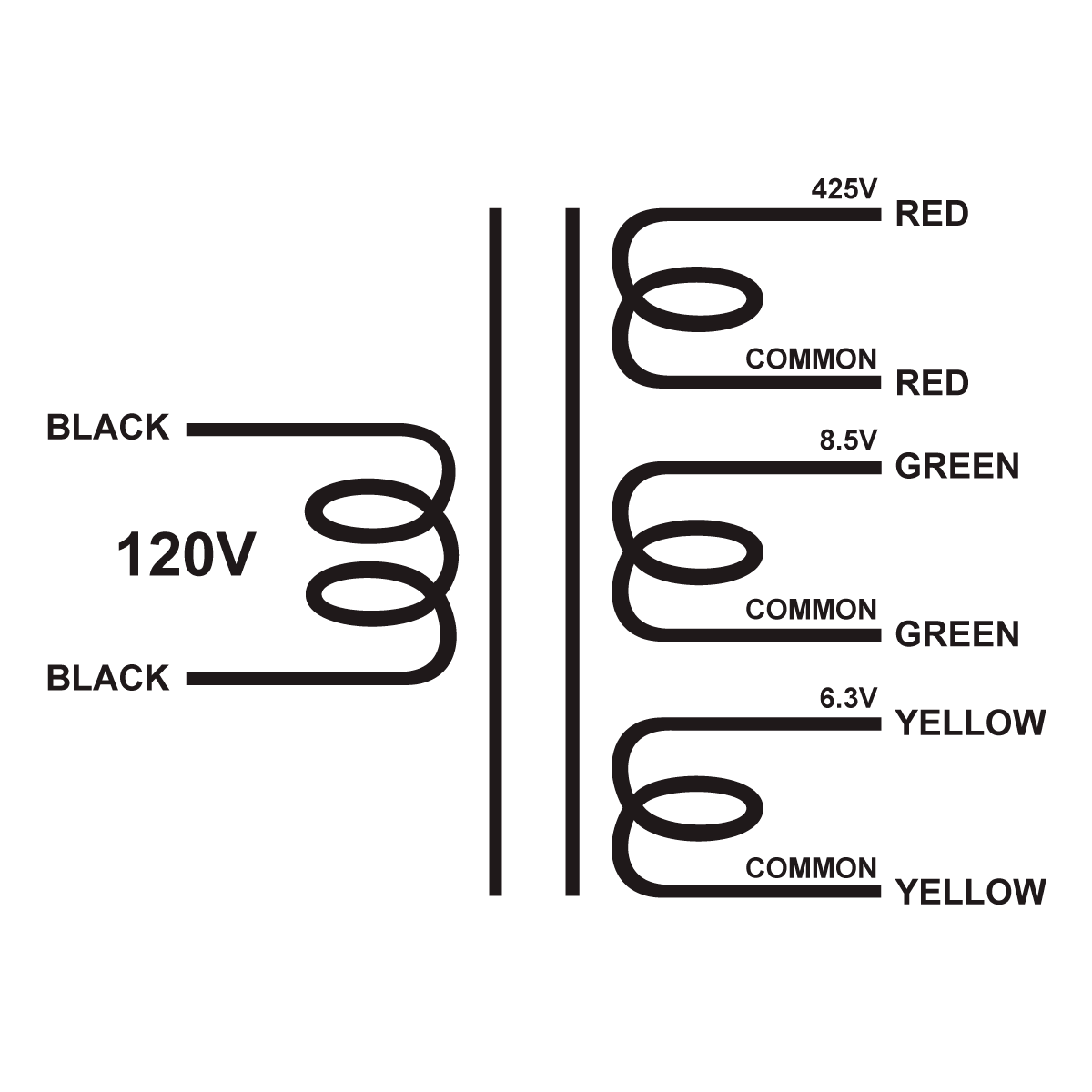

EDCOR transformer reference image EDCOR Tube Power Transformer XPWR288-120 - 425V@180mA, 8.5V@6A, & 6.3V@1A - 120V, 60Hz. Schematic
XPWR288 - 425V@180mA, 8.5V@6A, & 6.3V@1A
$183.24 USD

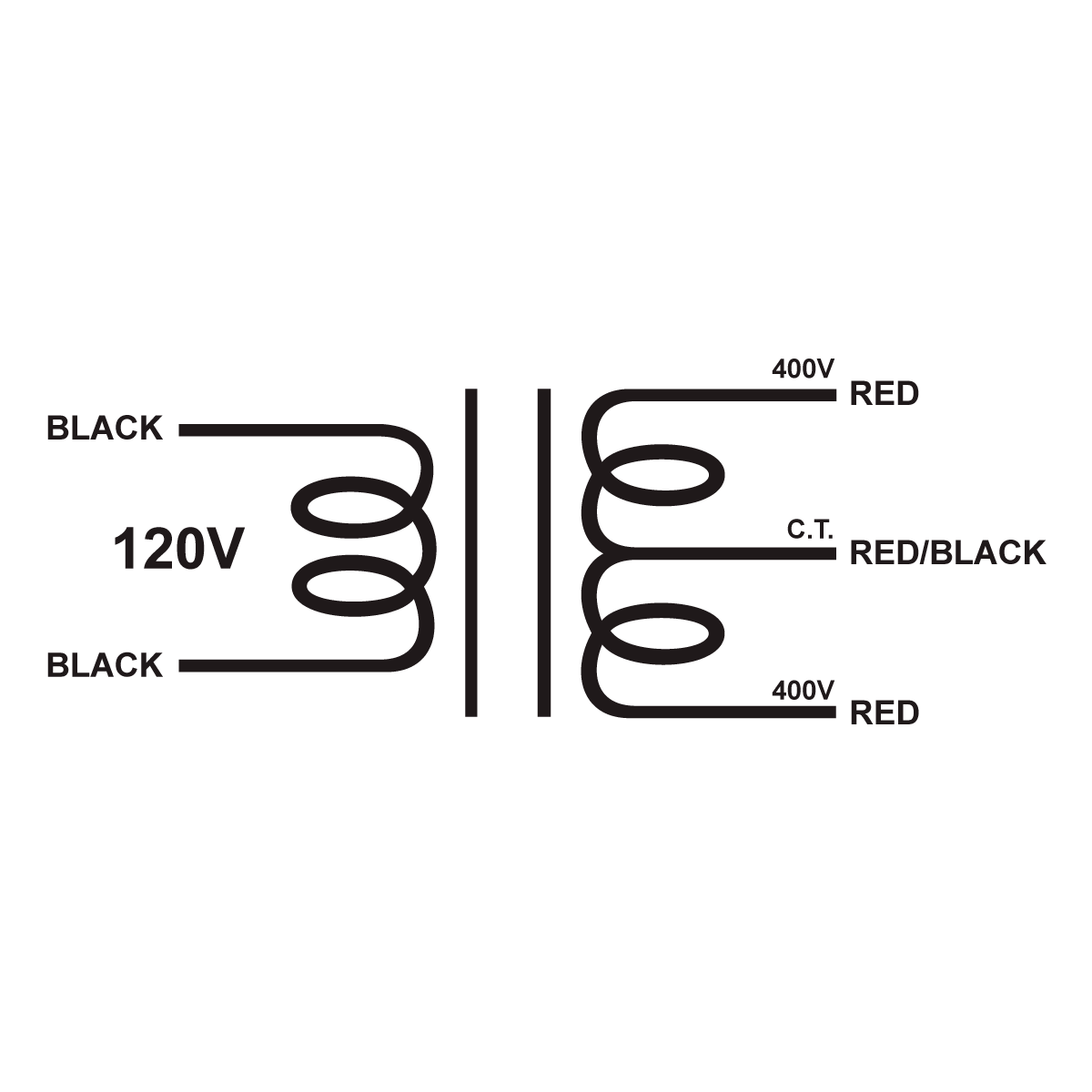

EDCOR EI150 x 2 in. vertical transformer with blue end bells - Reference image EDCOR Tube Power Transformer XPWR287-120 - 800V@300mA CT. - 120V 60Hz. Schematic
XPWR287 - 800V@300mA CT
$210.83 USD

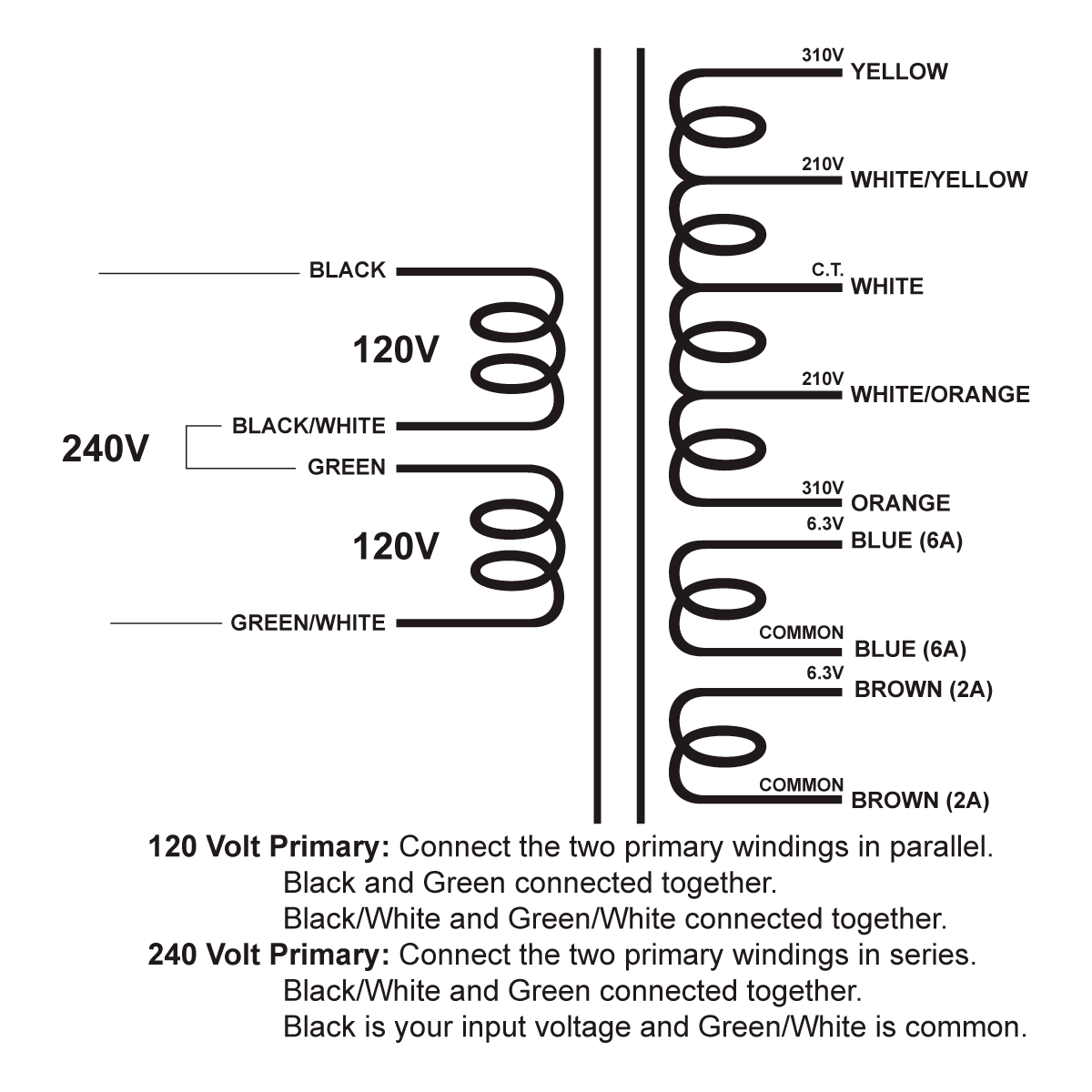

EDCOR EI125 x 2" vertical transformer with blue end bells - Reference image EDCOR Tube Power Transformer XPWR286-120 - 620V/420V@200mA CT, 6.3V@6A, & 6.2V@2A - 120V/240V, 50/60Hz. Schematic
XPWR286 - 620V/420V@200mA CT, 6.3V@6A, & 6.2V@2A
$216.61 USD

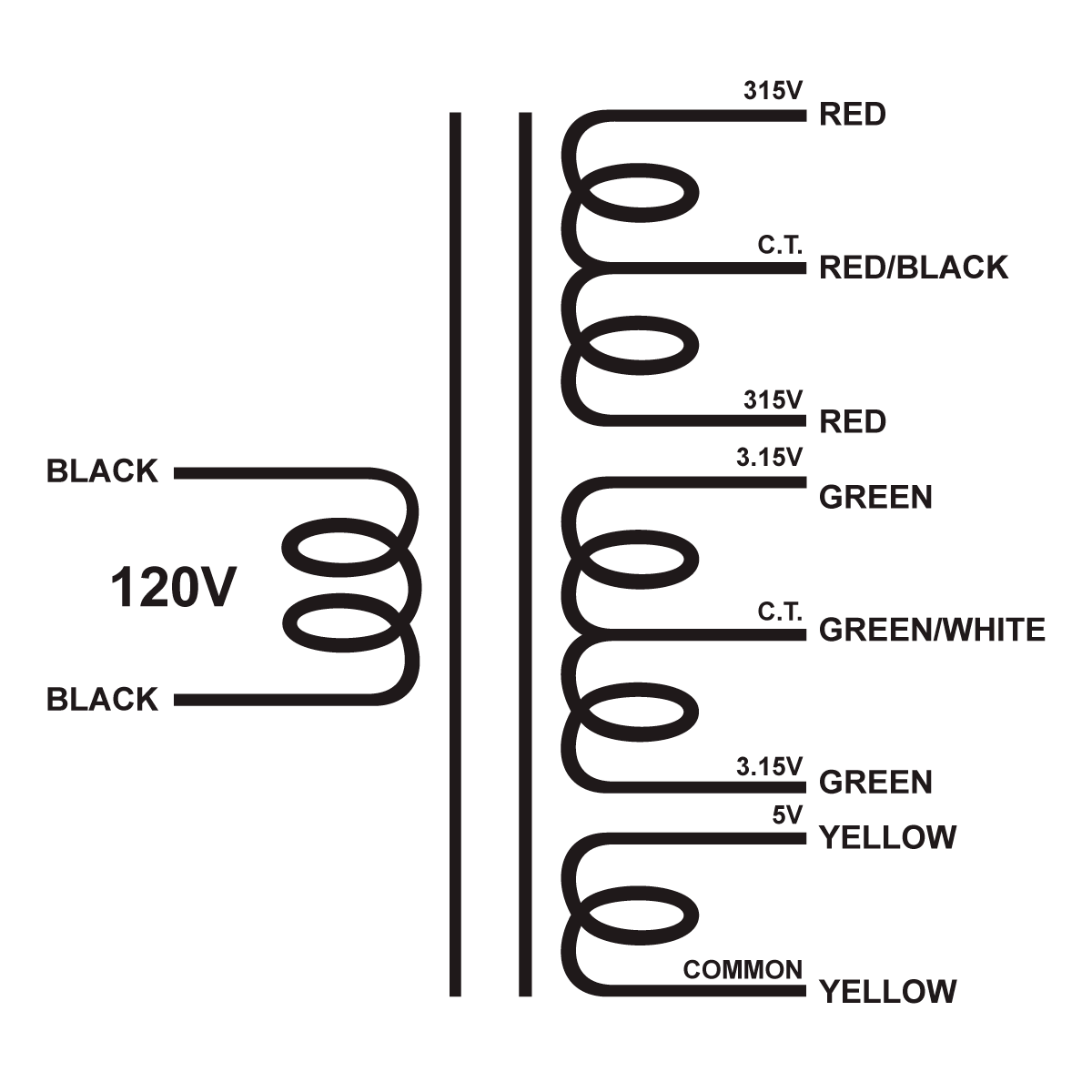

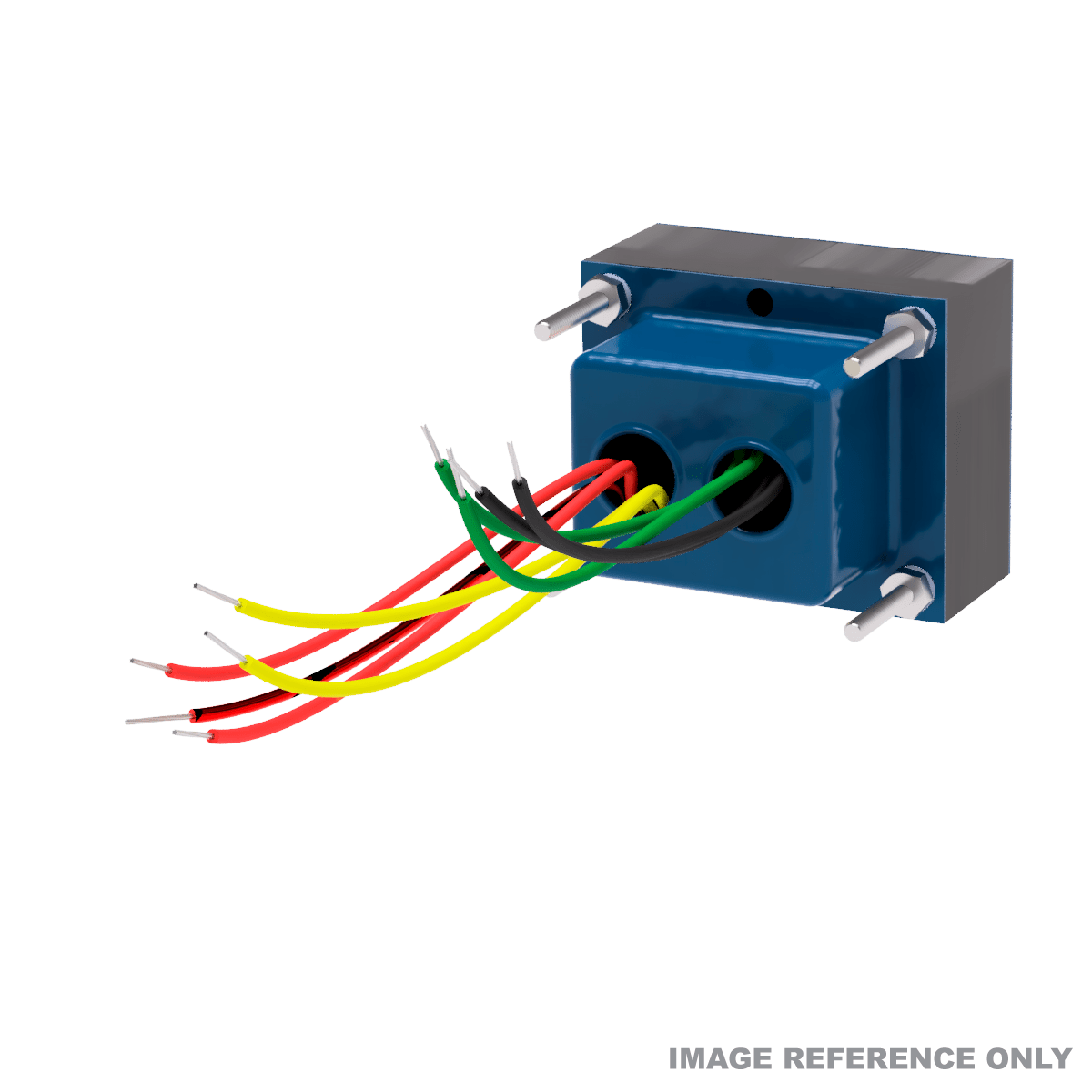

EDCOR EI100 x 1.50" laydown transformer with blue end bells - Reference image EDCOR Tube Power Transformer XPWR285-120 - 630V@100mA CT, 6.3V@2.25A CT, & 5V@3A. - 120V, 60Hz. Schematic
XPWR285 - 630V@100mA CT, 6.3V@2.25A CT, & 5V@3A
$152.66 USD

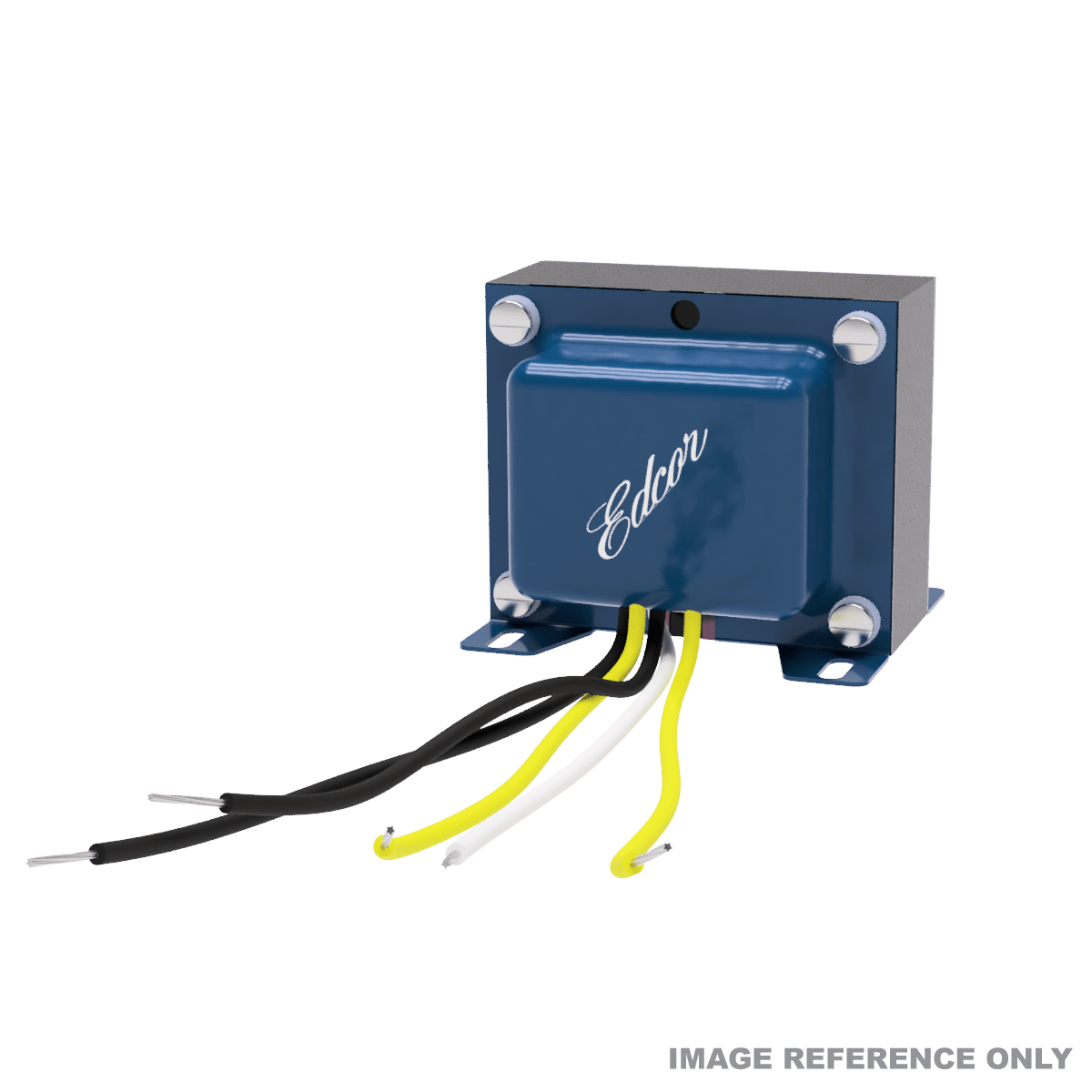

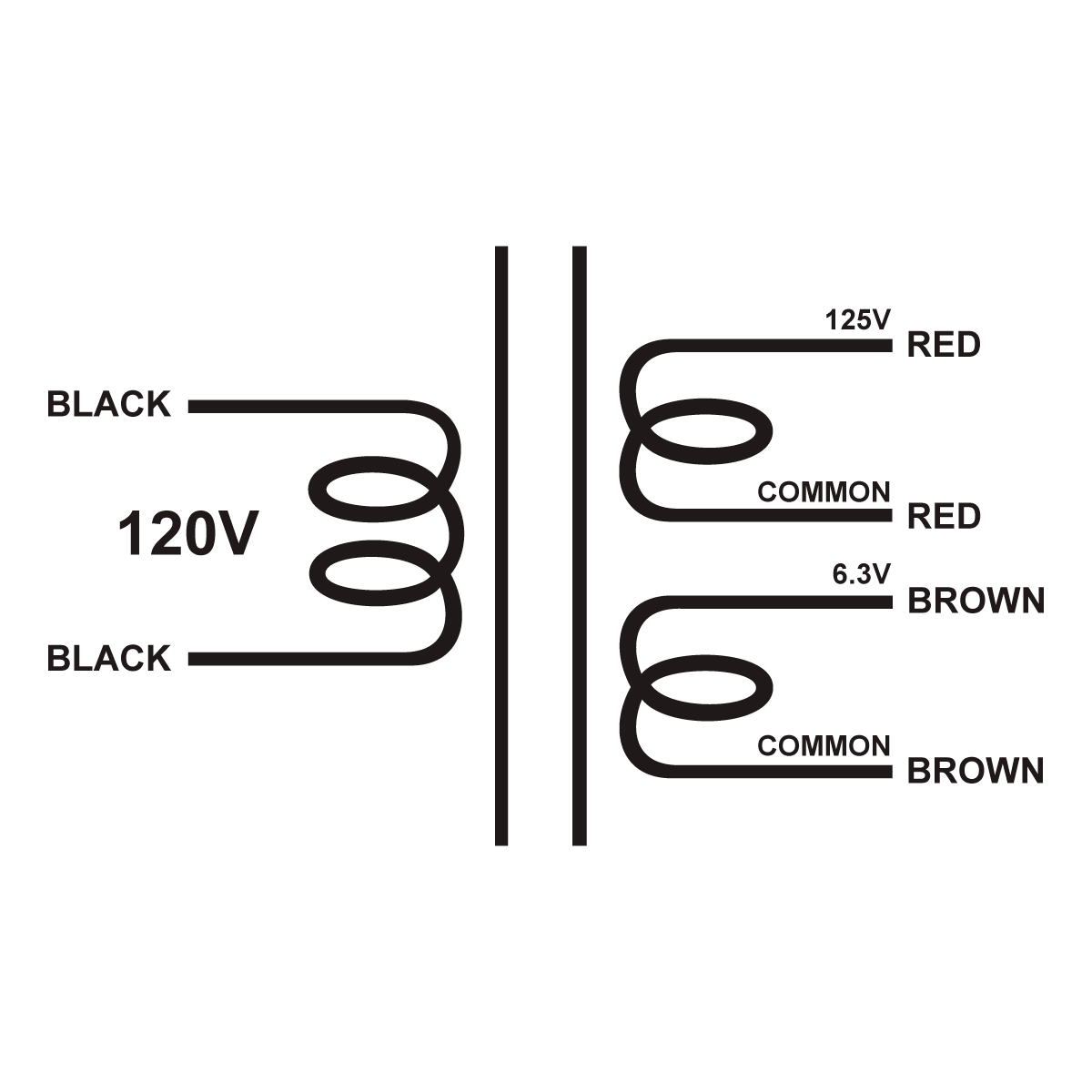

EDCOR transformer reference image EDCOR Tube Power Transformer XPWR269-120 - 125V@40mA & 6.3V@2A - 120V, 60Hz. Shematic
XPWR269 - 125V@40mA & 6.3V@2A
$108.95 USD

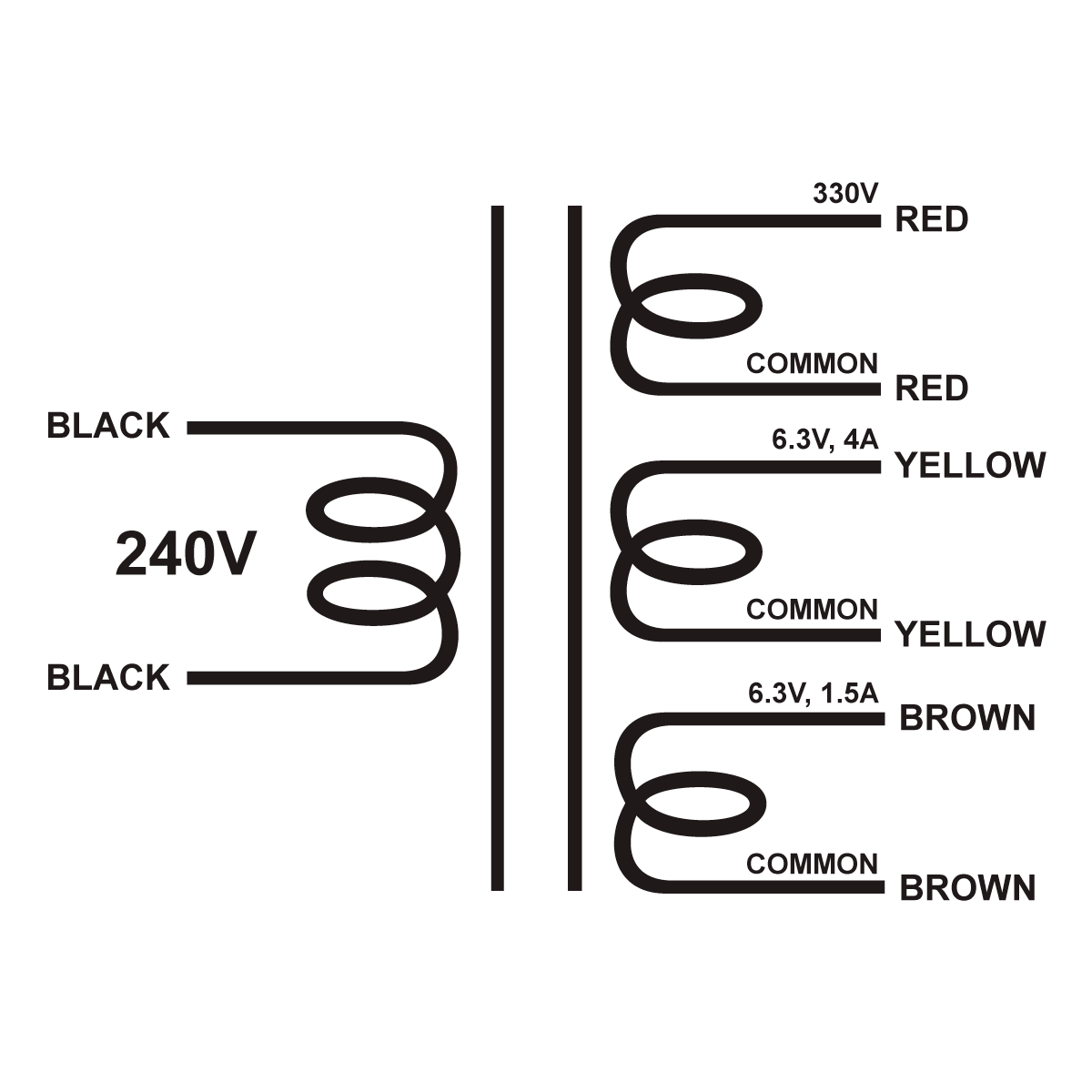

EDCOR transformer reference image EDCOR Tube Power Transformer XPWR272-240 - 330V@300mA, 6.3V@4A, & 6.3V@1.5A - 240V, 50?60Hz.
XPWR272 - 330V@300mA, 6.3V@4A, & 6.3V@1.5A
$181.52 USD
EDCOR transformer reference image EDCOR Tube Power Transformer XPWR271-120/240 - 600V@150mA CT, 6.3V@5A CT, & 5V@3.5A CT - 120V/240V, 50/60Hz. Schematic
XPWR271 - 600V@150mA CT, 6.3V@5A CT, & 5V@3.5A CT
$204.17 USD

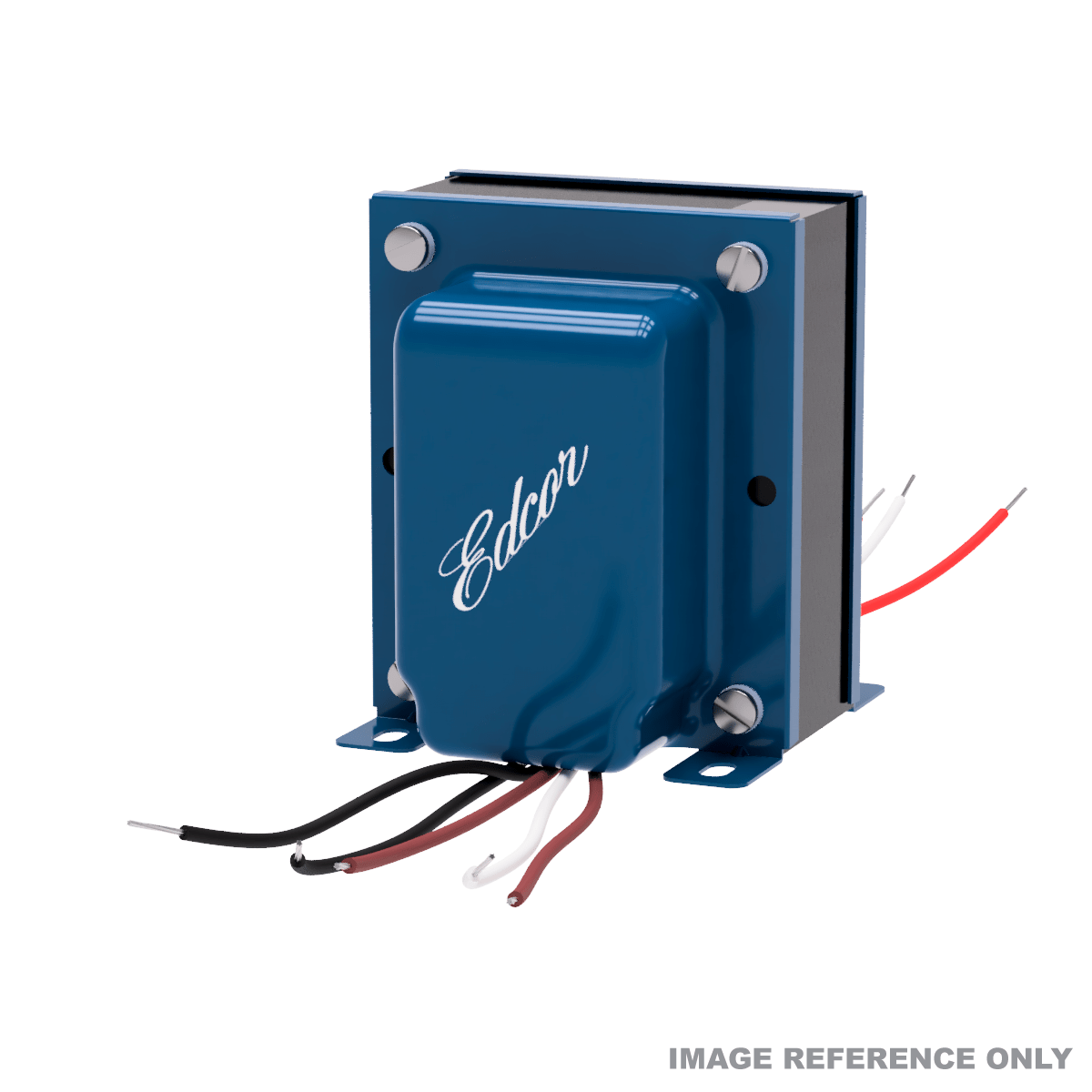

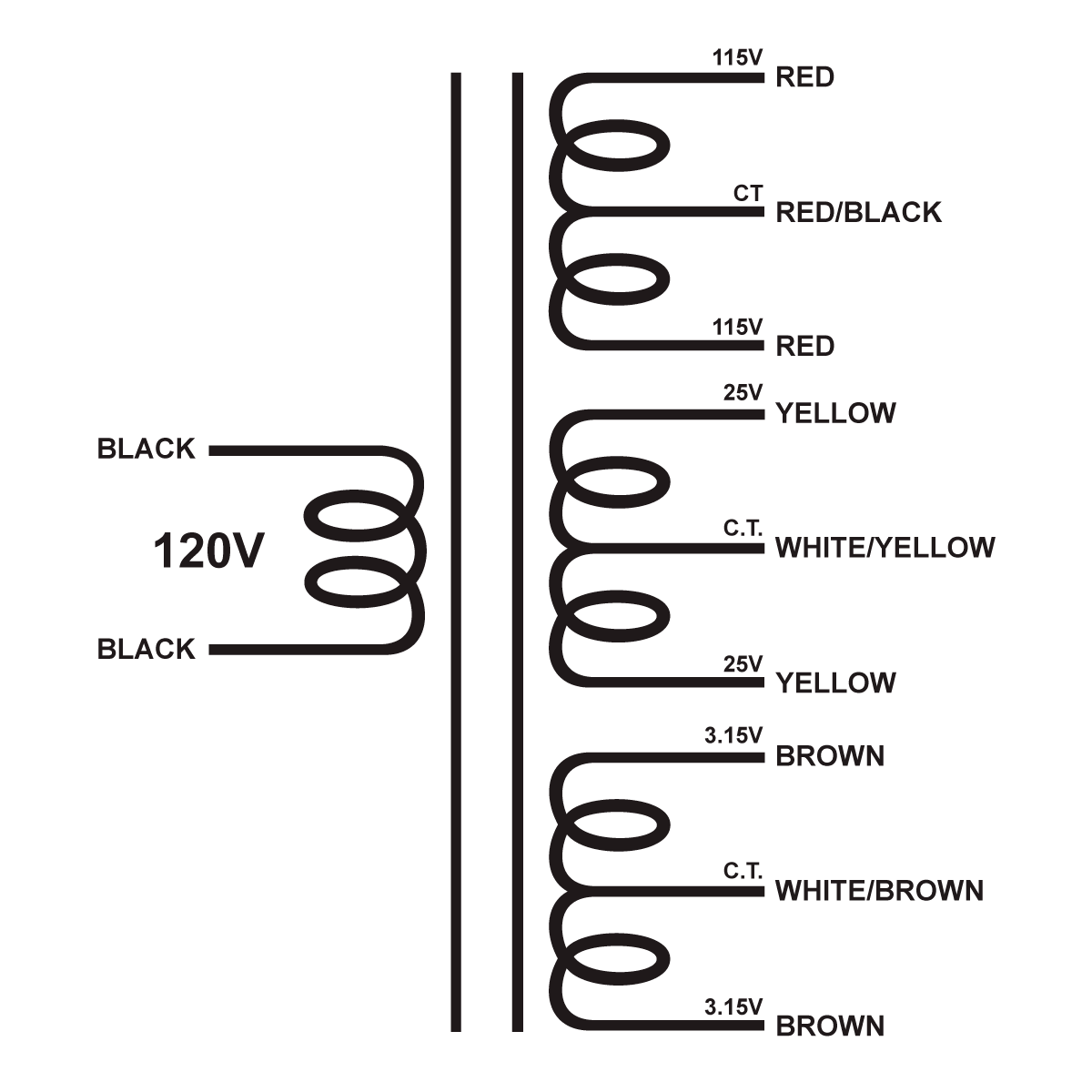

EDCOR transformer reference image EDCOR Tube Power Transformer XPWR270-120 - 230V@150mA CT, 50V@1A CT, & 6.3V@1A CT - 120V, 60Hz. Schematic
XPWR270 - 230V@150mA CT, 50V@1A CT, & 6.3V@1A CT
$178.61 USD

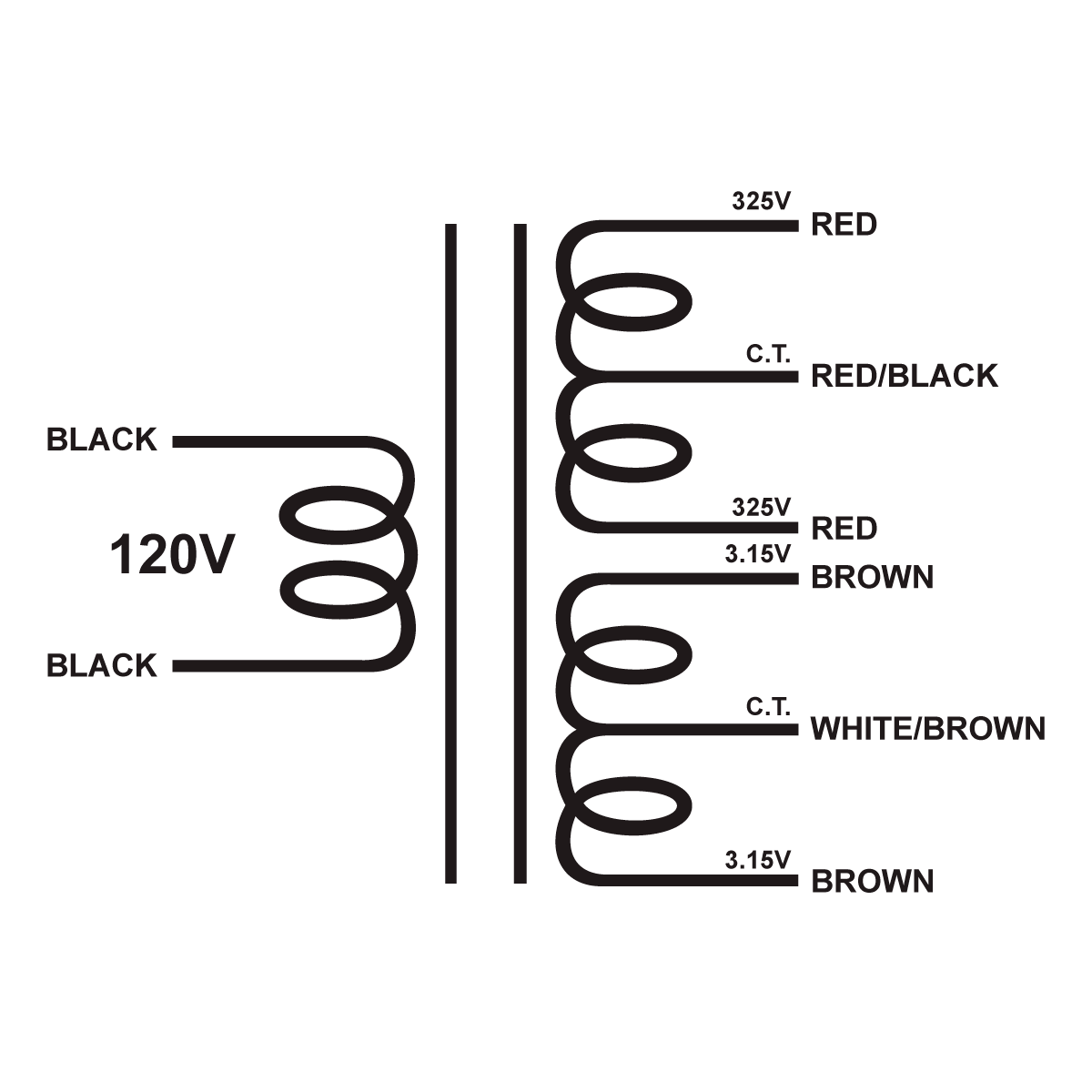

EDCOR transformer reference image EDCOR Tube Power Transformer XPWR268-120 - 650V@150mA CT & 6.3V@4.5A CT - 120V, 60Hz. Schematic
XPWR268 - 650V@150mA CT & 6.3V@4.5A CT
$171.19 USD

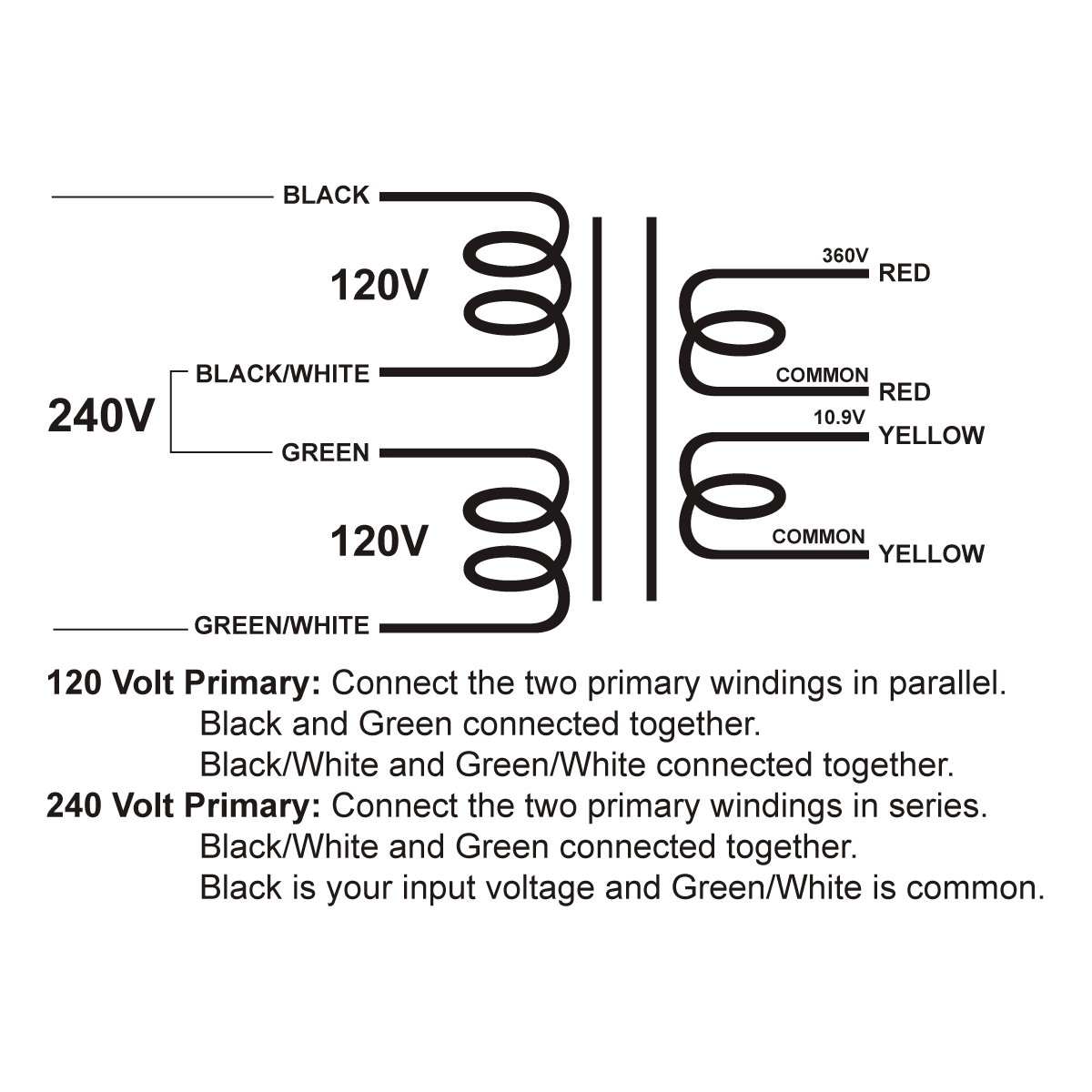

EDCOR EI150 x 1.5 in. vertical transformer with blue end bells - Reference image EDCOR Tube Power Transformer XPWR267-120/240 - 360V@450mA & 10.9V@4A - 120V/240V, 50/60Hz. Schematic
XPWR267 - 360V@450mA & 10.9V@4A
$192.83 USD

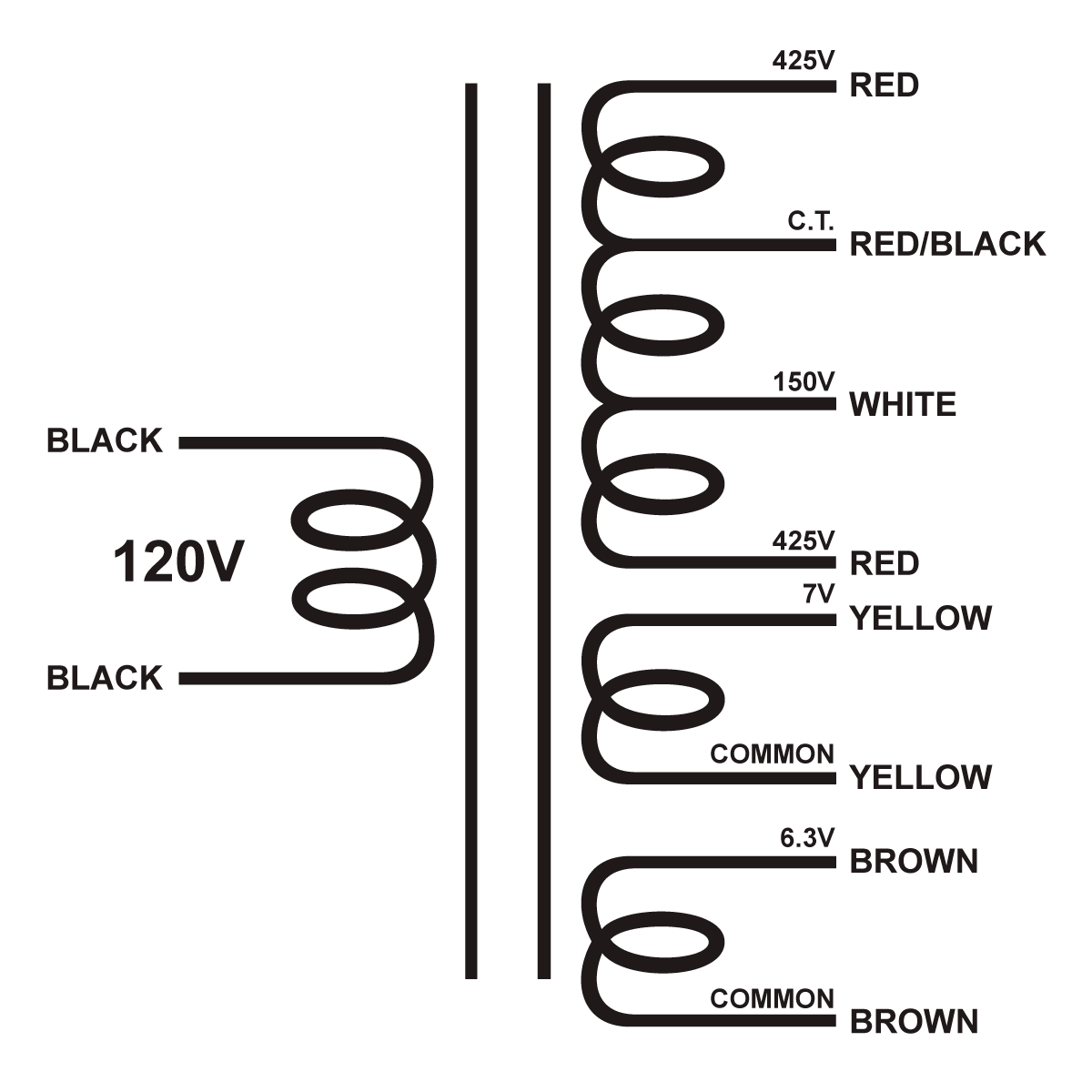

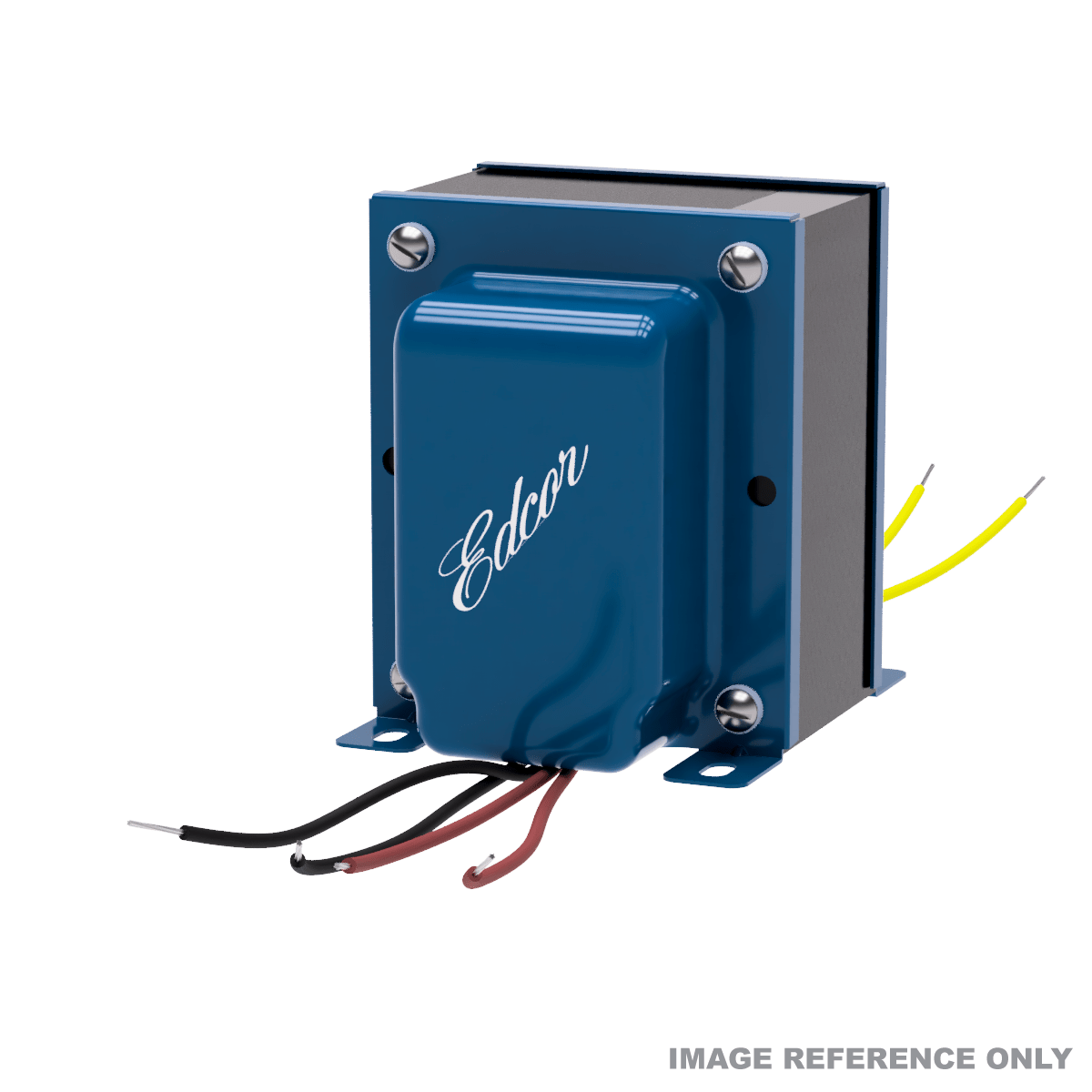

EDCOR EI125 x 2" vertical transformer with blue end bells - Reference image EDCOR Tube Power Transformer XPWR266-120 - 850V@150mA CT w/150V bias, 7V@1.5A, & 6.3V@1.5A - 120V, 60Hz. Schematic
XPWR266 - 850V@150mA CT w/150V bias, 7V@1.5A, & 6.3V@1.5A
$194.12 USD
