The "Engineer's Amplifier"

SKU: PM-100
filler

Price:
Sale price$0.00

Shipping calculated at checkout

Stock:
Quantity Discounts
10~24 pcs 5% off
25~99 pcs 10% off
100~499 pcs 15% off
500+ pcs 20% off
Orders over 25 pcs may take longer. Please contact us for scheduling and dates.

Description

Power and audio output transformers for Pete Millett's "Engineer's Amplifier".

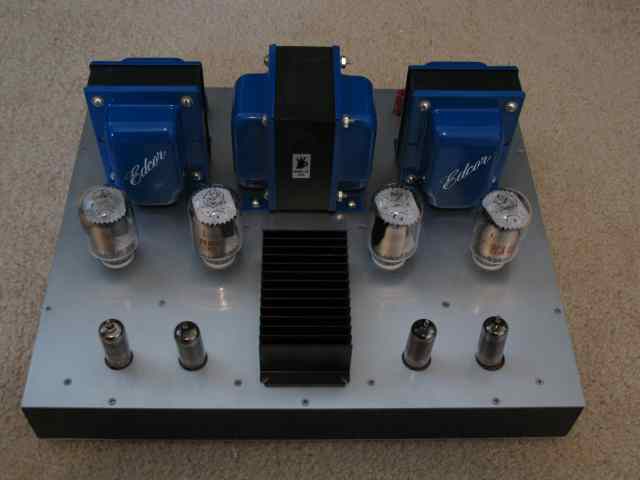

The "Engineer's Amplifier"
>A distortion canceling push-pull amp using cheap TV tubes designed by Pete Millett. For more information, schematics and circuit boards see Pete Millett's DIY Audio pages on the "Engineer's Amplifier". Circuit boards for this project can be found on Pete Millett's ebay store.

Power Transformer
The XPWR139 power transformer was specially designed and built for this amplifier. It is a 120V/240V, 50/60Hz. or 220V, 50/60Hz. line to 560V and 100V (280-50-0-50-280) at 200mA center tapped and 6.3V (3.15-0-3.15) at 6A center tapped.

Audio Output Transformers
There are two CXPP25-MS-8K, 25W, push-pull tube output transformer for 8K Ohms to 4, 8 or 16 Ohms.
