Description
Recording Quality Sound
These isolation boxes use high quality low noise components to deliver broadcast and recording quality sound.
Design
Each unit is designed to operate continuously. It is a bi-filer wound matching transformer, to provide full isolation, broad frequency range, and excellent coupling.
Continuous Quality Sound
Each unit is a designed passive unit that can be used to operate continuously without degradation of sound.
Unbalanced Line Input
This is an unbalanced line input designed for instruments. The connector is an unbalanced standard 1/4" phono jack. This input is ideal for instruments such as electric guitars, acoustic guitars with pickups, or electric bass guitars.
Unbalanced Line Output
This is an unbalanced line output. The connector is an unbalanced standard 1/4" phono jack.

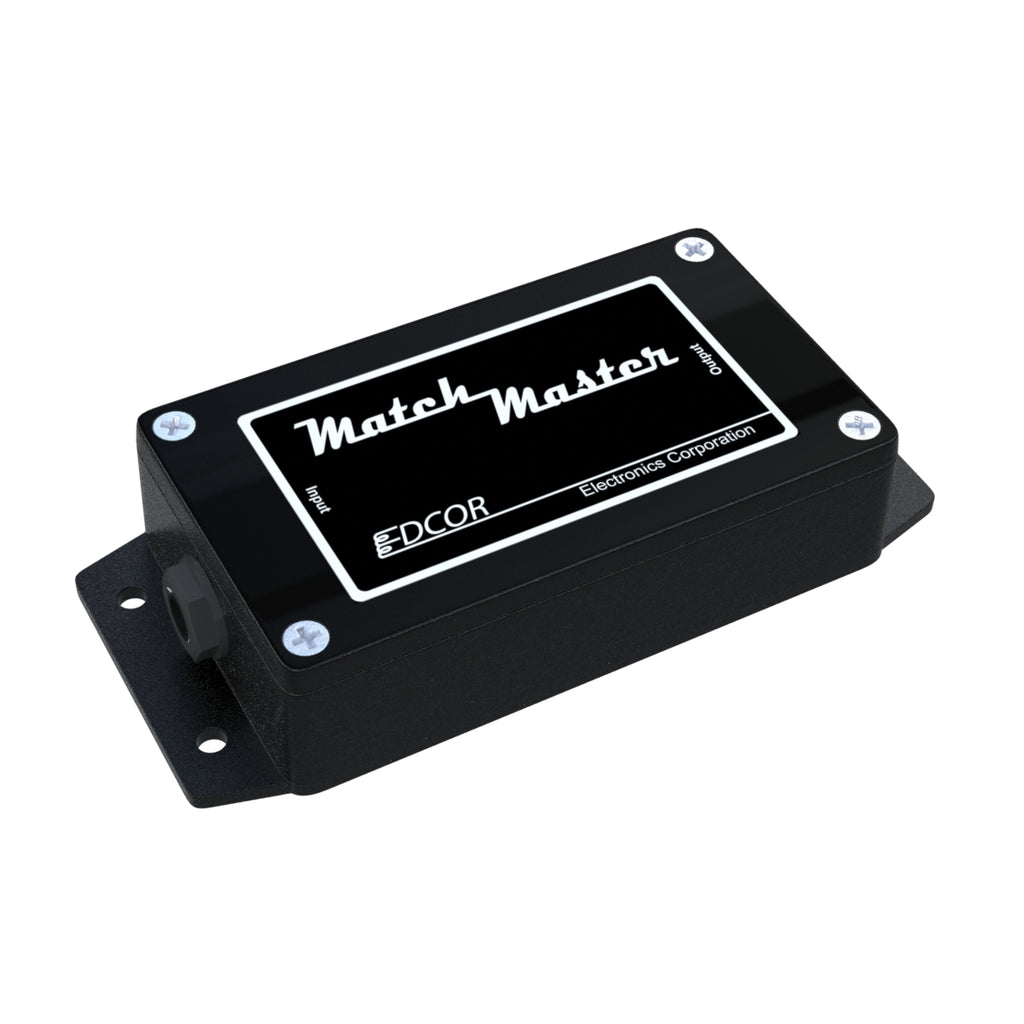

Enclosure
The enclosure is a rugged cast aluminum box. It is powder coated black for a clean look and to hide away on stage.
Surface Mounting
The unit is designed for surface mounting with the use of four screws or with double back tape (not provided). See dimensional drawing.
Specifications
| Input Maximum Voltage | 10Vrms |
| Input | Unbalanced line (Instrument) level |
| Output | Unbalanced line (Instrument) level |
| Turns Ratio | 1:1 |
| Winding Configuration | Bi-filer Winding |
| Frequency Response | 20~20K Hz., <1dBu |
| THD+Noise | <0.05% @ 1K Hz. |
| Frequency Response/THD+Noise Plot | BZ-100 |
| Enclosure | Black Powder Coated Cast Aluminum |
| Termination | 1/4" phono jacks |
| Mounting |
Surface Mounted |
| Weight | 0.75 lbs. |
| Compliance | RoHS & REACH |
| User Manual | BZ Series |
| Dimensional Drawing | 12000-BZ00-00 |
