Vertical End Bells for EI100 (1")
Color:
Color
Quantity:
Get shipping cost estimate in cart.
Fully Mounted Covers with Flanges

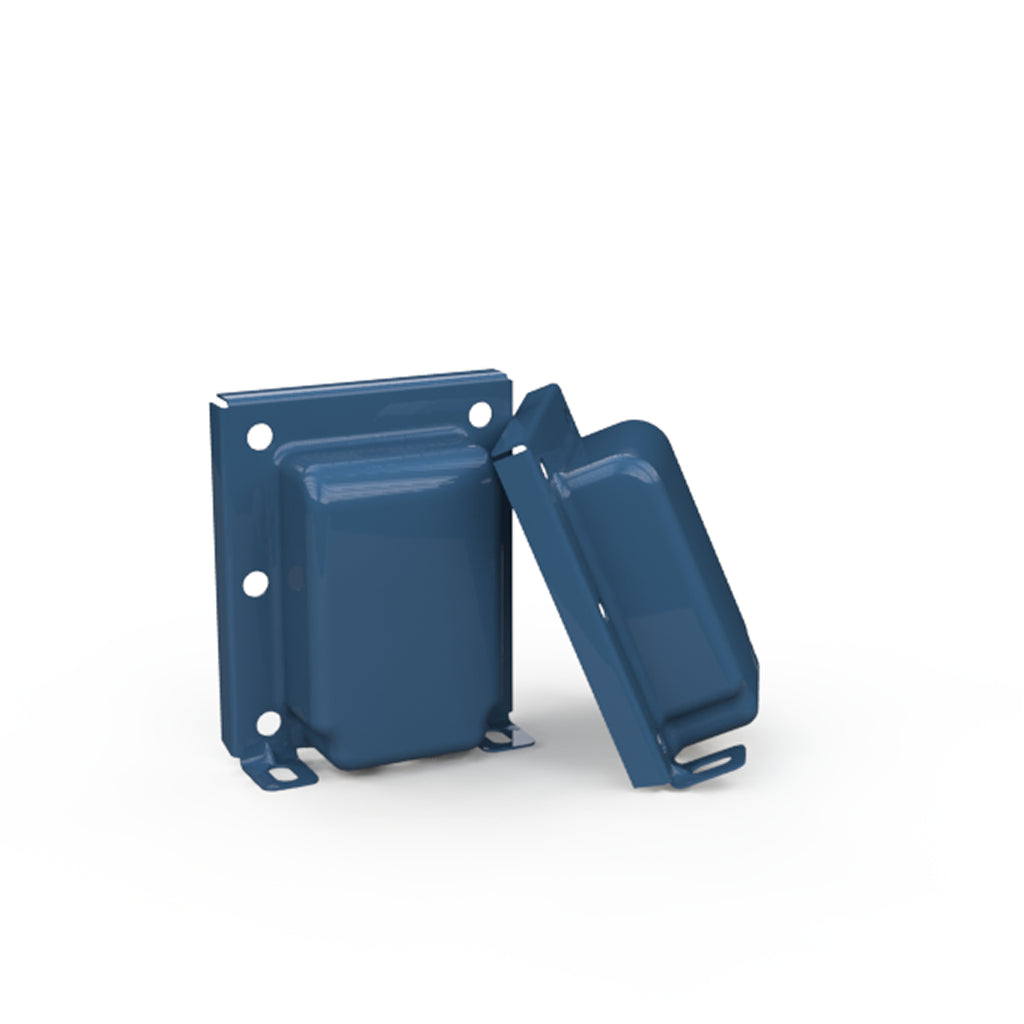

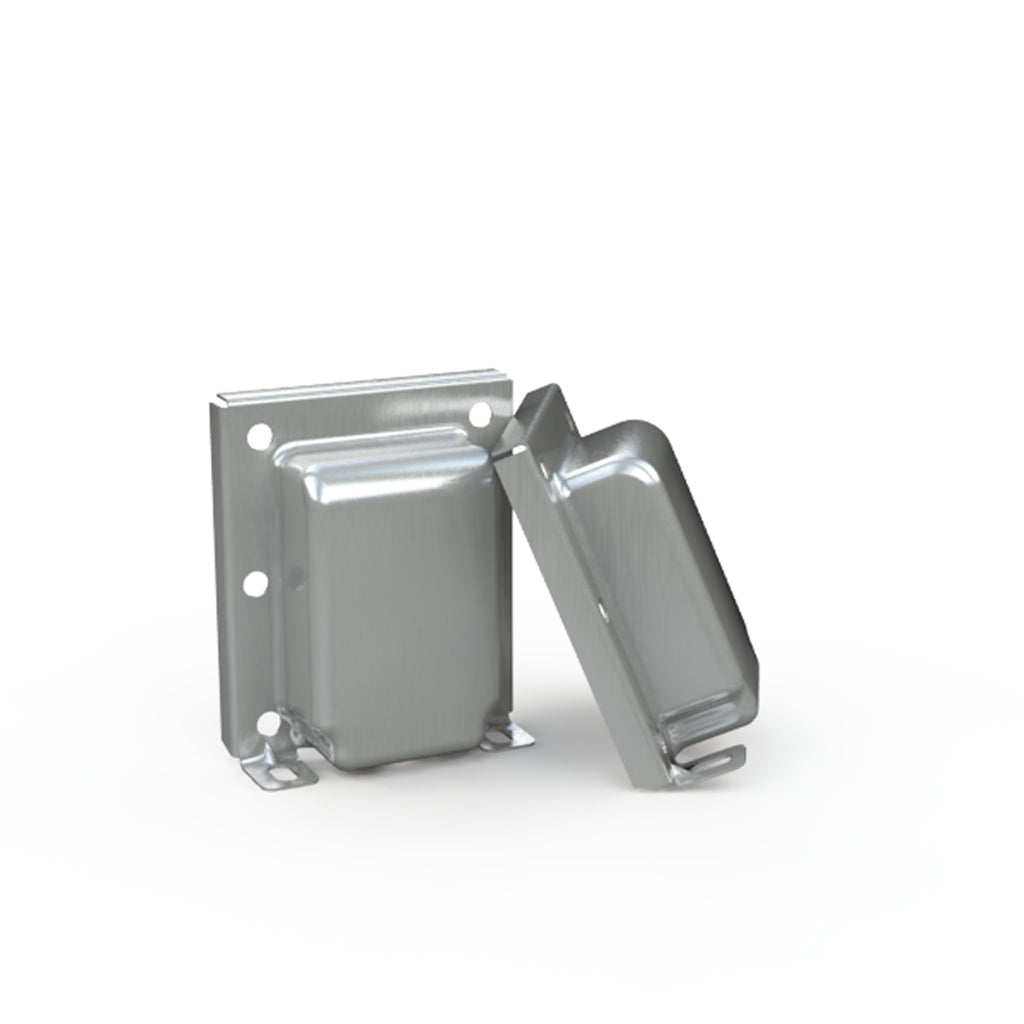

Pair of high quality rolled steel and punched casing vertical mounted end bells for EI100 (1") transformer lamination. These end bells are used on EDCOR's classic tube amplifier power, output, and choke transformers and Inductors. The EDCOR's standard end bells are powder coated in the standard RAL 5010 Gentian Blue. End bells that are not powder coated are zinc plated.
Specifications
| Core Size |
EI100 (1") |
| Material |
Cold rolled steel |
| Material Thickness |
22 ga. |
| Core Width | 2.531" [64.29mm] |
| Core Height | 3.031" [76.99mm] |
| Bell Height | 2.625" [66.68mm] |
| Bell Width | 1.688" [42.86mm] |
| Bell Depth | 0.813" [20.64mm] |
| Feet Mounting Holes Distance | 2" [50.80mm] |
| Feet Mounting Hole Size | 0.203" [5.16mm] x 0.375" [9.53mm] |
| Core Mounting Holes Vertical Distance | 2.5" [63.50mm] |
| Core Mounting Holes Horizontal Distance | 2" [50.80mm] |
| Core Mounting Center Hole Distance | 2.156" [54.77mm] |
| Core Mounting Hole Size | 0.219" dia. [5.56mm] |
| Flange Depth | 0,25" [6.35mm] |
|
Base Plating |
Zinc |
| Mounting Orientation | Vertical |
| Weight (each) | 0.12 lbs. |
| Compliance | RoHS & REACH |
| Dimensional Drawing | 20000-EB100-V |
