Horizontal "L" Brackets for EI175 (1-3/4")

Bahrs Metal Forming LLC

Horizontal "L" Brackets for EI175 (1-3/4")

Sale price$3.90 USD
Sold out

Shipping calculated at checkout

SKU: BR175-475-0H

Stock:
loading..

Get shipping cost estimate in cart.

Mounting Brackets

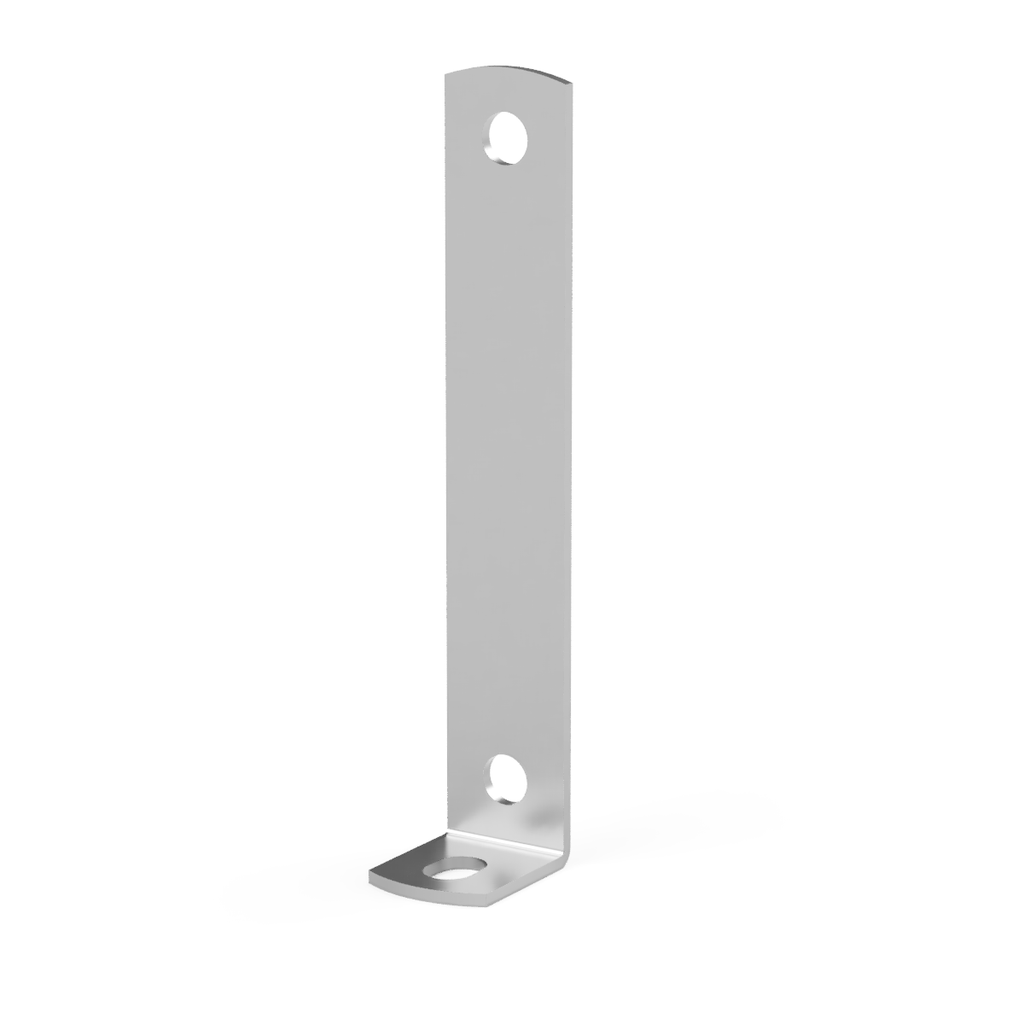

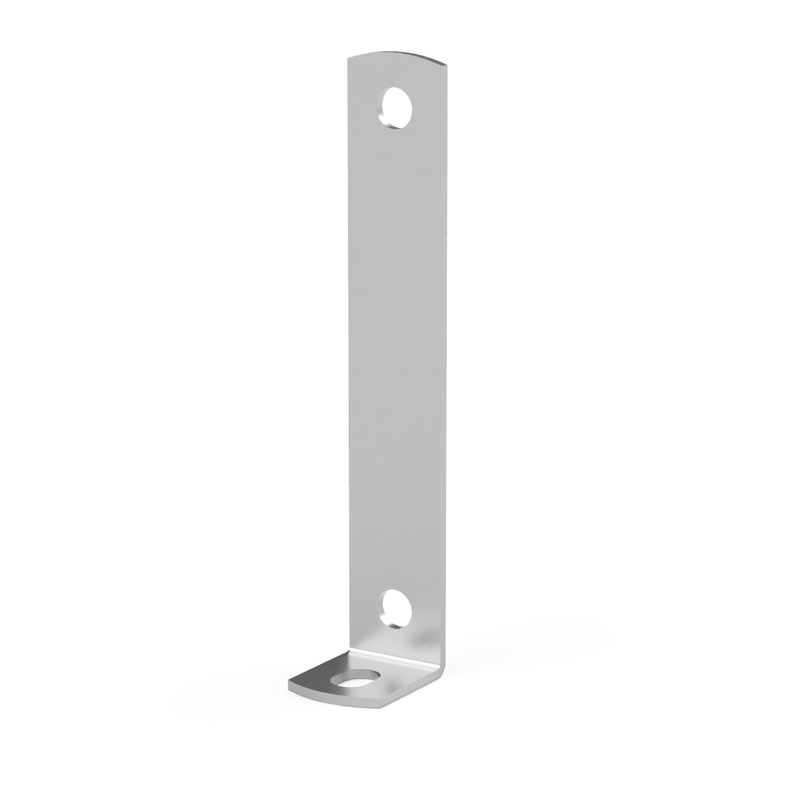

A set of 4 of high quality rolled steel zinc plated "L" brackets for horizontal mounting of EI175 (1-3/4") transformer lamination.

Specifications

Set 4 pcs.
Core Size
EI175 (1-3/4")
Material
Cold rolled steel
Material Thickness
14 ga.
Core Width 5.25" [133.35mm]
Core Height 4.375" [111.13mm]
Feet Mounting Holes Distance 4.375" [111.13mm]
Feet Mounting Hole Size 0.281" [7.14mm] x 0.406" [10.32mm]
Core Mounting Holes Vertical Distance 3.5" [88.9mm]
Core Mounting Holes Horizontal Distance 4.375" [111.13mm]
Core Mounting Hole Size 0.281" [7.14mm]
Base Plating
Zinc
Mounting Orientation Horizontal
Weight (pcs) 1.17 oz.
Compliance RoHS REACH
Dimensional Drawing 20000-BR175-475-0H
