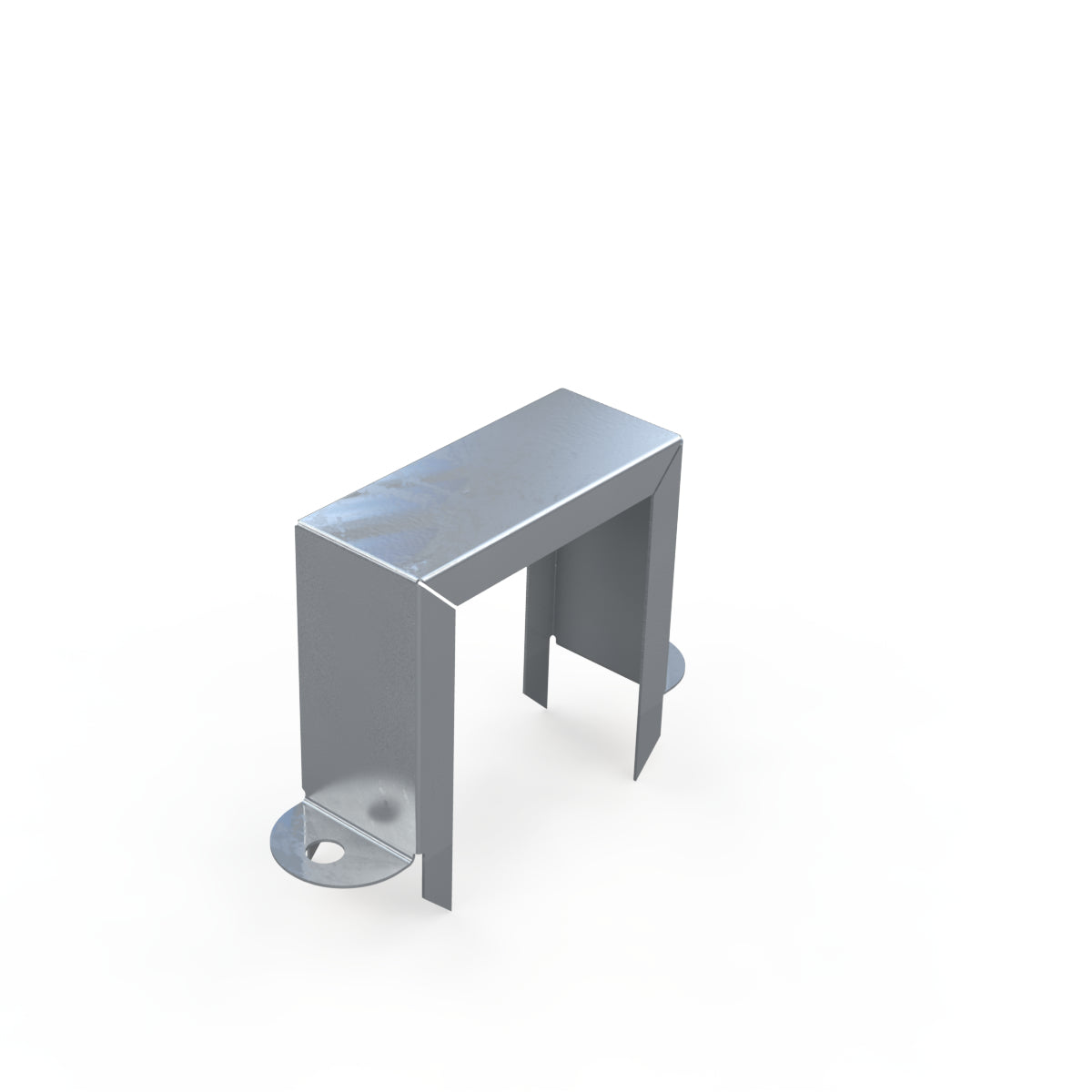

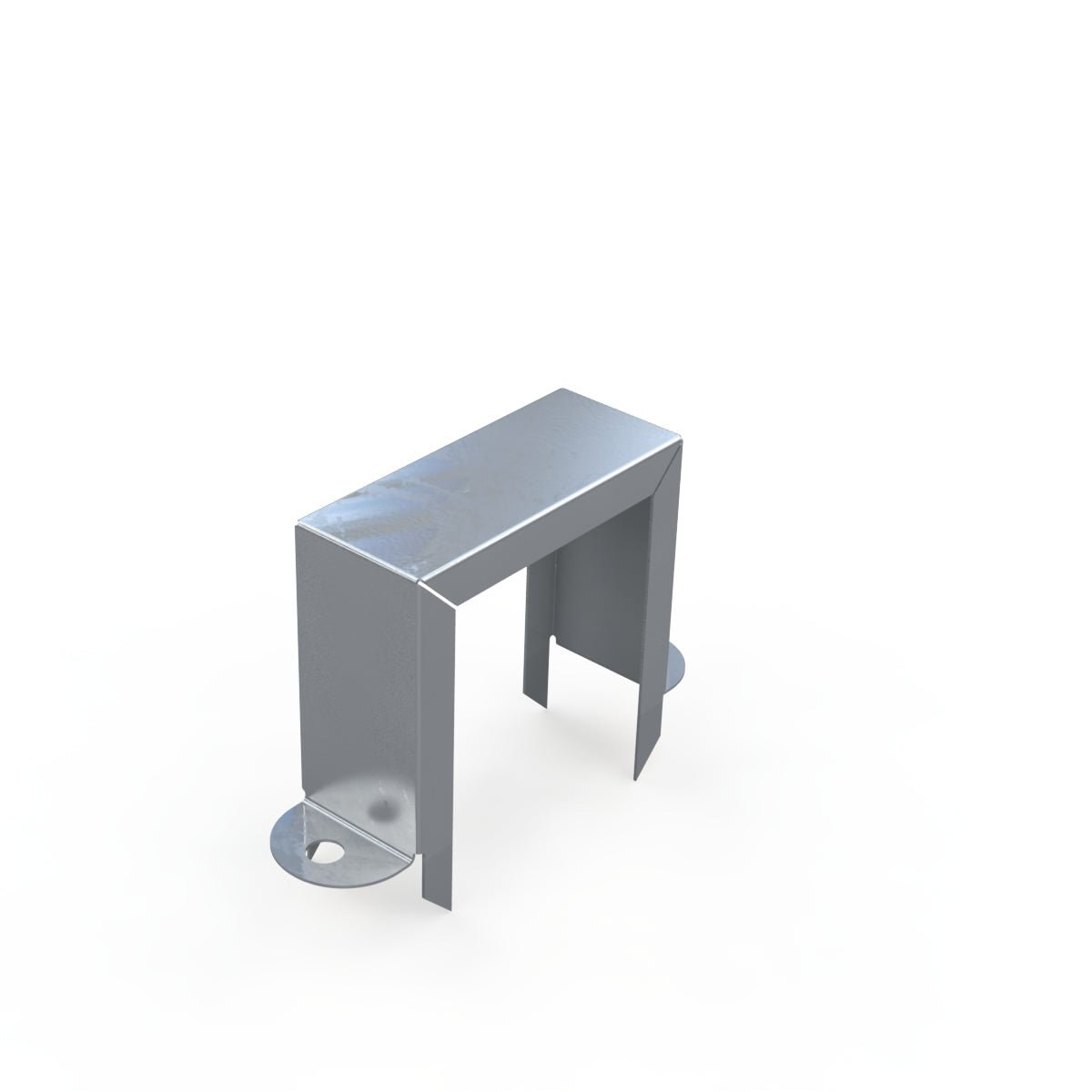

Horizontal Channel/Frame for EI 625 (5/8 in.) x 3/4 in. stack.
Quantity:
Mounting Channel/Frame
A high quality rolled steel zinc plated channel/frame for horizontal mounting of EI 625 (5/8 in.) by 3/4 in. stack transformer lamination. These brackets are used on many EDCOR's transformers.
Specifications
| Core Size | EI62 (5/8 in.) |
| Stack Hight |
3/4 in. [19.05mm] |
| Material |
Cold rolled steel |
| Material Thickness |
14 ga. |
| Core Width | 1.875 in. [47.625mm] |
| Core Height | 1.5625" [39.6875mm] |
| Feet Mounting Holes Distance | 2.375 in. [60.325mm] |
| Feet Mounting Hole Size | 0.1875 in. [4.7625mm] |
|
Base Plating |
Zinc |
| Mounting Orientation | Horizontal |
| Weight (pcs) | 0.86 oz. |
| Compliance | RoHS & REACH |
| Dimensional Drawing | 20000-C075-100-H01 |
