Horizontal Channel/Frame for EI 75 (3/4 in.) x 1 in. stack.
Quantity:
Mounting Channel/Frame

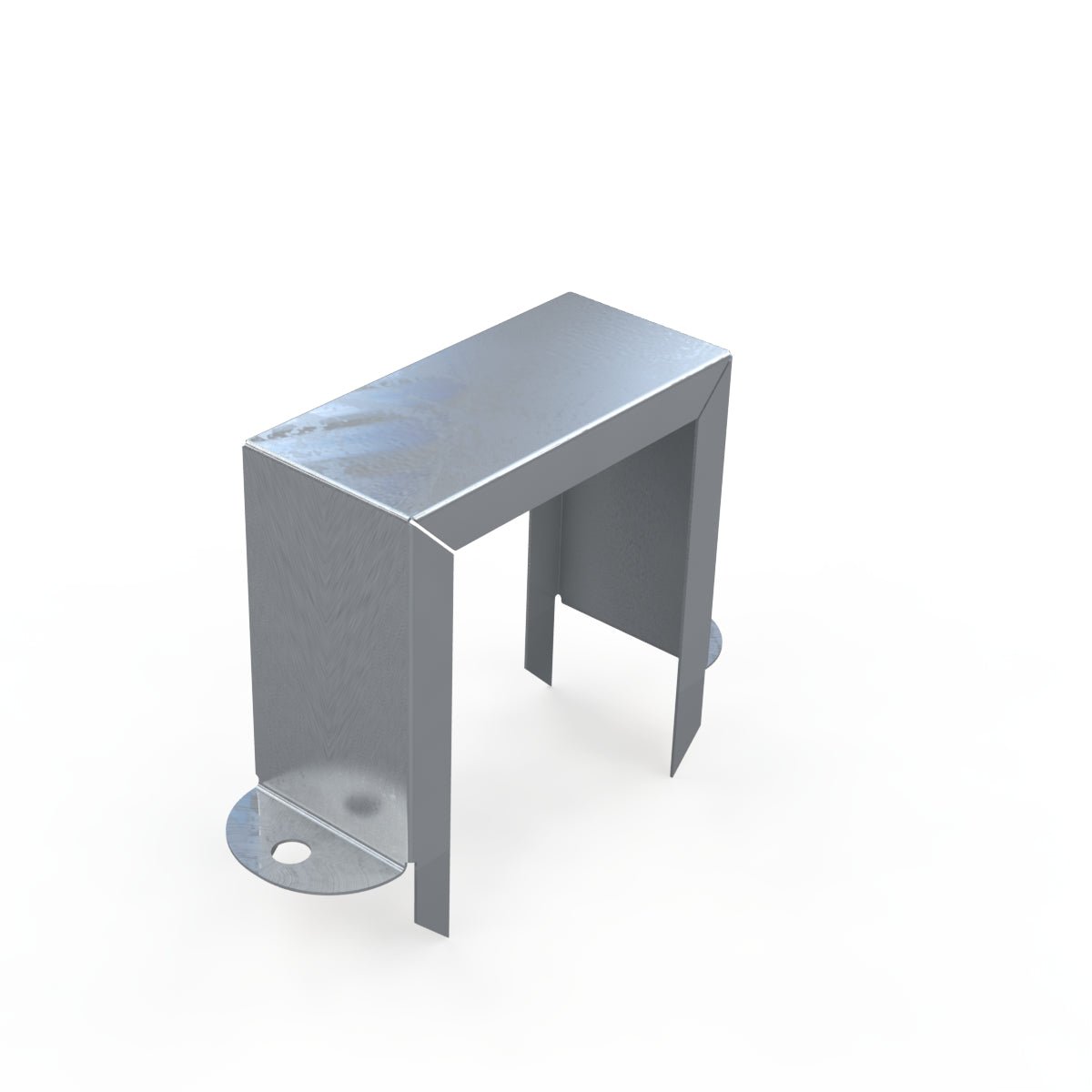

A high quality rolled steel zinc plated channel/frame for horizontal mounting of EI 75 (3/4 in.) by 1 in. stack transformer lamination. These brackets are used on many EDCOR's transformers.
Specifications
| Core Size | EI75 (3/4 in.) |
| Stack Hight |
1 in. [25.4mm] |
| Material |
Cold rolled steel |
| Material Thickness |
14 ga. |
| Core Width | 2.25in. [57.15mm] |
| Core Height | 1.875" [47.625mm] |
| Feet Mounting Holes Distance | 2.8125 in. [71.4375mm] |
| Feet Mounting Hole Size | 0.1875 in. [4.7625mm] |
|
Base Plating |
Zinc |
| Mounting Orientation | Horizontal |
| Weight (pcs) | 1.4 oz. |
| Compliance | RoHS & REACH |
| Dimensional Drawing | 20000-C075-100-H01 |
