M6 29 Gauge - 0.014" (0.355 mm) Grain Orientated Electrical Transformer Steel Lamination, RoHS compliant. This steel is used in audio amplifiers, current, output, power transformers; chokes and saturable reactors; and ferro-resonant regulators. The squared hysteresis loop iron-silicon alloy was expressly developed to provide lower core loss with higher permeability in the rolling direction. Grain oriented laminations are supplied in the stress relief annealed condition. The elementary patterns of the crystals in the material are "oriented", or so arranged that the axis of easiest magnetization is nearly parallel and aligned in the direction of rolling. The alignment is accomplished by special cold-rolling and annealing processes. This allows the product to withstand more severe vibration and shock and enables the following:
Lower core losses as a consequence of design.
Higher initial permeability.
Higher permeability at higher inductions.
- More stable VA/Temperature relationship over a wide range of ambient temperatures.
|Strings||≅ Weight (lbs.)||≅ Weight (Kg)||≅ "EI" Sets|
|in.||mm||lb./1000 pcs||Kg/1000 pcs||"EI"s/lb.||"EI"s/Kg|
Characteristics of a Square Core Stack

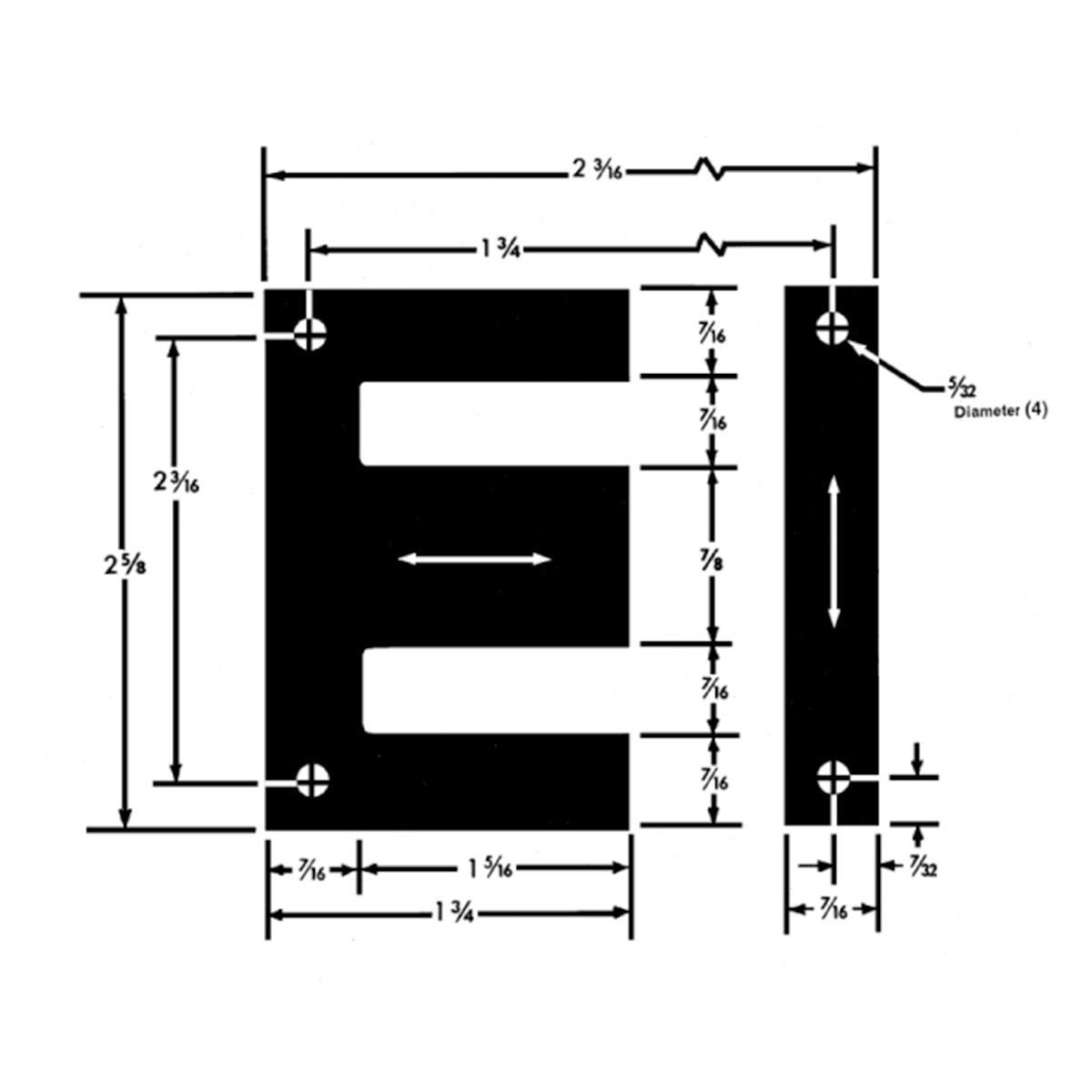

|Window Dimensions||1.313 in. x 0.438 in.||0.574 in.2||3.705 cm.2|
|Volume, Solid||3.952 in.3||64.769 cm.3|
|Cross Section Area, Solid||0.766 in.2||4.940 cm.2|
|Weight||1.087 lbs.||0.493 Kg|
|Length of Magnetic Path||5.250 in.||13.335 cm.|
|Specific Gravity - Grams per cu. cm. (A.S.T.M.)||7.65|
|Vol. Resistively - Microhms per cm. cube||45|
|Saturation Induction (Gauss)||20,300|
|Max. aging - Core Loss %||5|
|Coercive Force - (Oersteds) Annealed||0.12|
|Hysteresis Loss at 10 Kilogauss (Ergs/cycle/cm.3)||260|
Typical D.C. Permeability Value (Max)
|BMAX = (76 x 103) / K1N = Gauss per volt|
|HO = (0.094 x 10-3) = Oersteds per milliampere of direct current|
|La = (0.49 x 10-8) K1 N2 μAC = Henrys|
60 Hz. Reactance (N = number of turns)
