EB125-V1 - Vertical End Bells for EI125 (1-1/4")

SKU: EB125-V1-B
filler

Price:
Sale price$21.28

Shipping calculated at checkout

Description

Fully Mounted Covers with Flanges

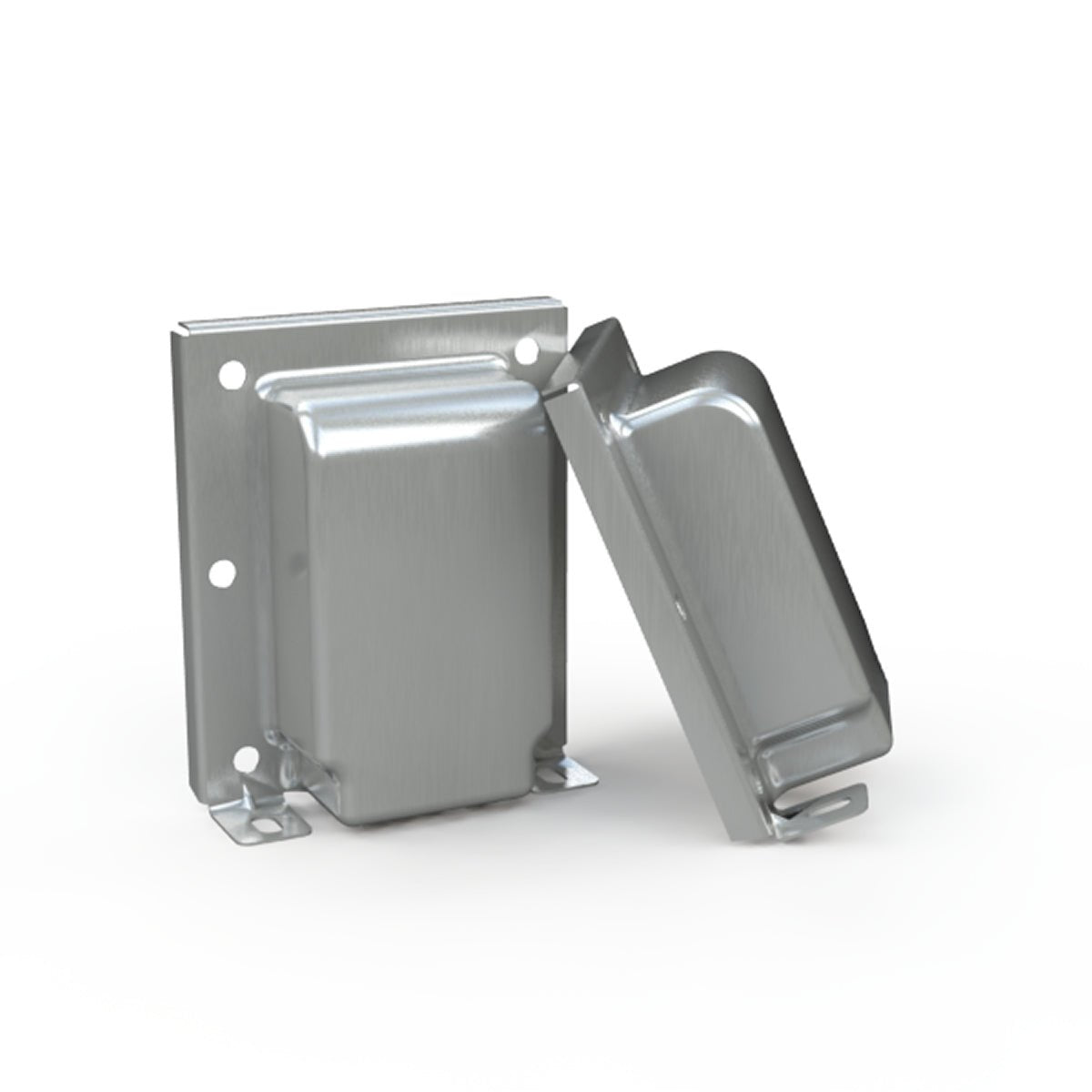

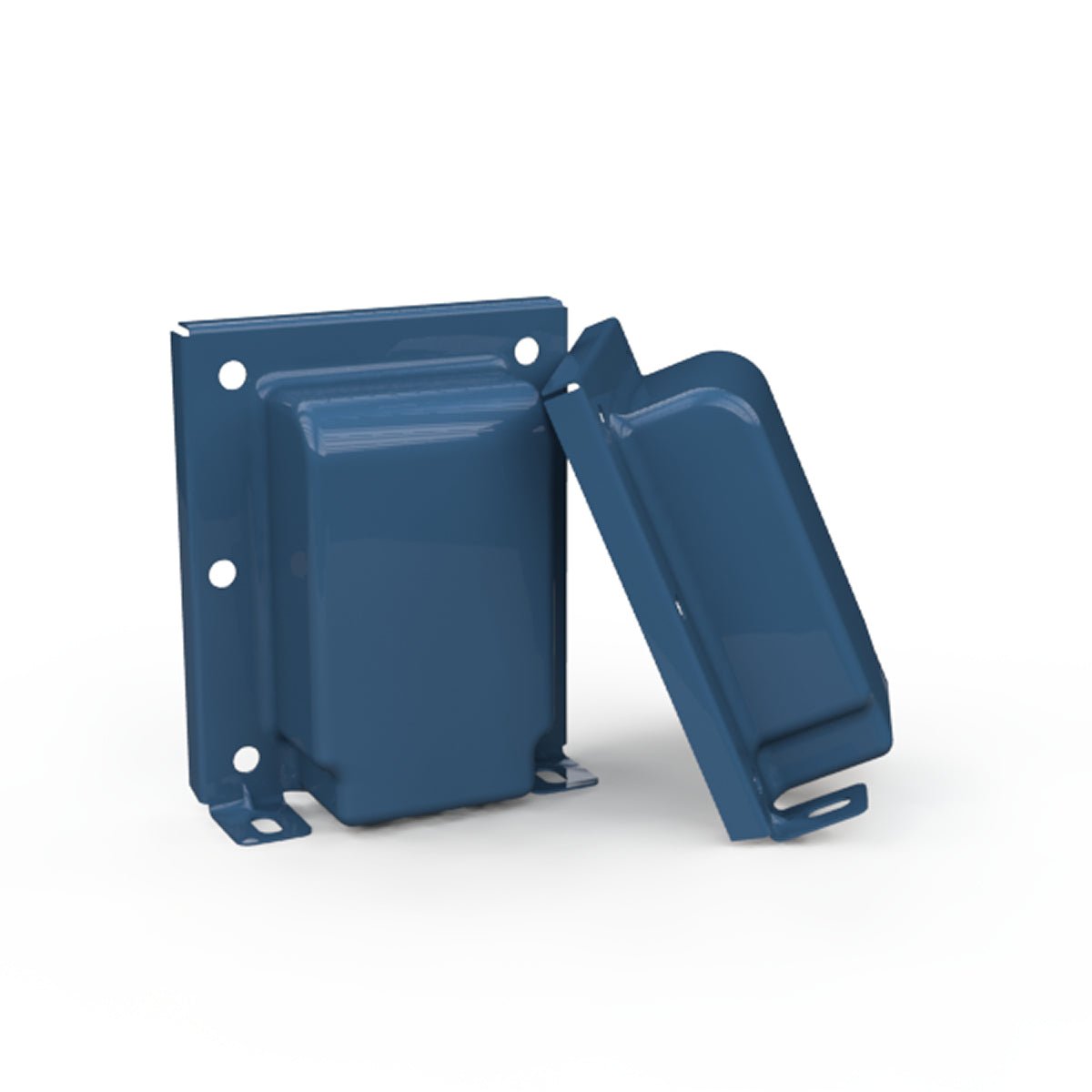

Pair of high quality rolled steel and punched casing vertical mounted end bells for EI125 (1-1/4") transformer lamination. These end bells are used on EDCOR's classic tube amplifier power, output, and choke transformers and Inductors. The EDCOR's standard end bells are powder coated in the standard RAL 5010 Gentian Blue. End bells that are not powder coated are zinc plated.

Specifications

Core Size
EI125 (1-1/4")
Material
Cold rolled steel
Material Thickness
22 ga.
Core Width 3.156" [80.17mm]
Core Height 3.781" [96.04mm]
Bell Height 3.25" [82.56mm]
Bell Width 2" [50.8mm]
Bell Depth 1.063" [26.99mm]
Feet Mounting Holes Distance 2.5" [63.50mm]
Feet Mounting Hole Size 0.203" [5.16mm] x 0.375" [9.53mm]
Core Mounting Holes Vertical Distance 3.125" [79.38mm]
Core Mounting Holes Horizontal Distance 2.5" [63.50mm]
Core Mounting Center Hole Distance 2.781" [70.64mm]
Core Mounting Hole Size 0.219" dia. [5.56mm]
Flange Depth 0,25" [6.35mm]
Base Plating
Zinc
Mounting Orientation Vertical
Weight (pcs) 0.18 lbs.
Compliance RoHS REACH
Dimensional Drawing 20000-EB125-V
