Replacement power and audio output transformers for Fender Champ 5C1 guitar amplifier from 1948 to 1953.

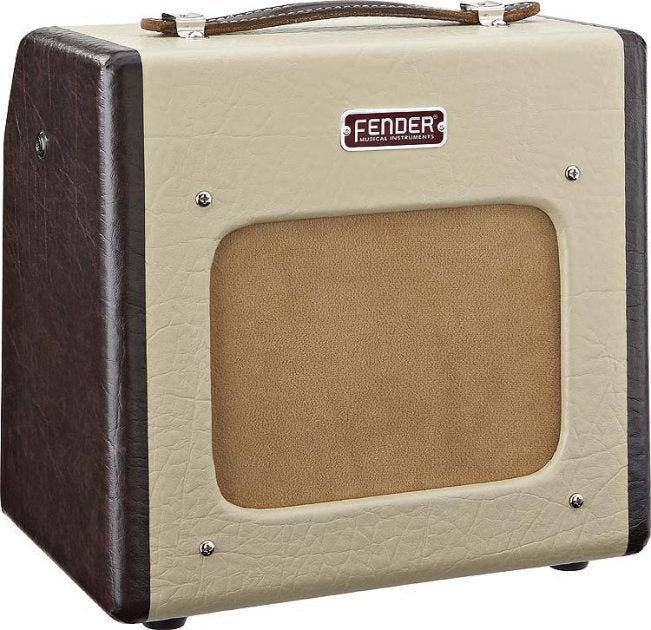

Fender Champion 800/600 5C1
The Fender Champion 800/600 is a 5 watt single ended class "A" guitar amplifier.
The XPWR283 power transformers were specially designed and built for this amplifier. It come in a 120V 60 Hz., 230V 50/60Hz., or 240V50/60Hz. to 650V (325-0-325) at 100mA center tapped, 6.3V at 2.25A, and 5V at 3A.
Audio Output Transformer
The CXSE5-7K is a 5W, single ended tube output transformer for 7K Ohms to 4, 8 or 16 Ohms.
All units are wound with the finest virgin copper magnet wire. All windings use heavy insulated wire to provide excellent manufacturing yield, lower customer cost and superior life.
EDCOR uses the finest M6 line grain oriented steel cores. Each unit is hand stacked to assure at least 92% stack.
Injection molded Nylon 6/6 with the addition of 30%-35% glass fibers. The addition of glass fibers allows a higher heat deflection temperature and it brings the mateFenderrial to a class HB UL temperature classification.
The terminations are UL1015 color coded lead wire.
These transformers are designed to replace the original stock transformers. You should still check to make sure that the dimensions of the transformers will fit in the space in your amplifier. Please see dimensional drawings on product pages.
