Horizontal "L" Brackets for EI138 (1-3/8")

Bahrs Metal Forming LLC

Horizontal "L" Brackets for EI138 (1-3/8")

Sale price$3.35 USD

Shipping calculated at checkout

SKU: BR138-00-0H


Get shipping cost estimate in cart.

Mounting Brackets

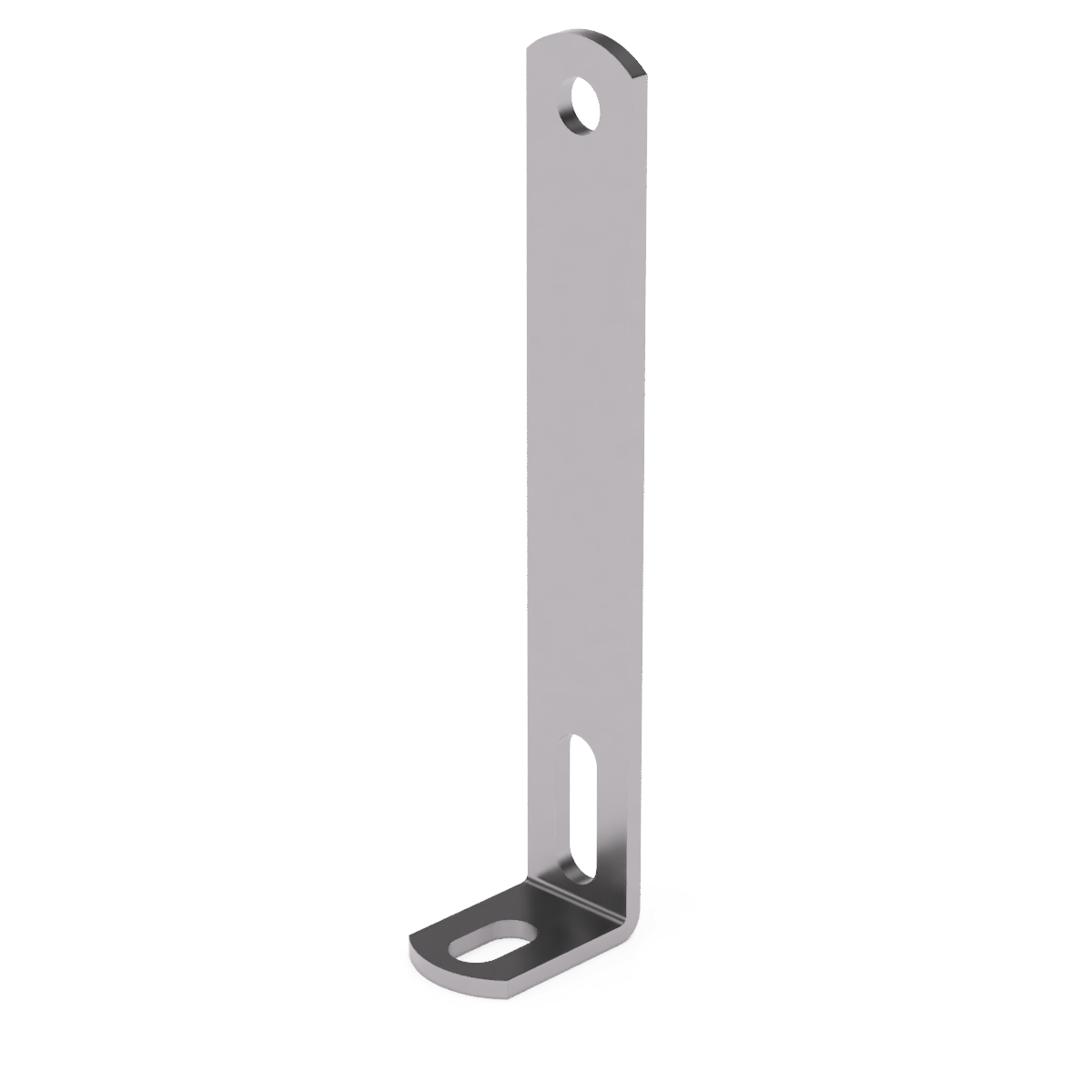

A set of 4 of high quality rolled steel zinc plated "L" brackets for horizontal mounting of EI138 (1-3/8") transformer lamination. These brackets are used on many EDCOR's pro audio and power transformers.


Set 4 pcs
Core Size
EI138 (1-3/8")
Cold rolled steel
Material Thickness
14 ga.
Core Width 4.50" [114.30mm]
Core Height 3.4375" [87.32mm]
Feet Mounting Holes Distance 4.50" [114.30mm]
Feet Mounting Hole Size 0.203" [5.16mm] x 0.375" [9.53mm]
Core Mounting Holes Vertical Distance 2.75" [69.85mm]
Core Mounting Holes Horizontal Distance 3.4375" [87.32mm]
Core Mounting Hole Size 0.203" dia. [5.16mm]
Base Plating
Mounting Orientation Horizontal
Weight (pcs) 0.59 oz.
Compliance RoHS REACH
Dimensional Drawing 20000-BR138-00-0H
