Horizontal "L" Brackets for EI175 (1-3/4")
Stock:
loading..
loading..
Get shipping cost estimate in cart.
Mounting Brackets

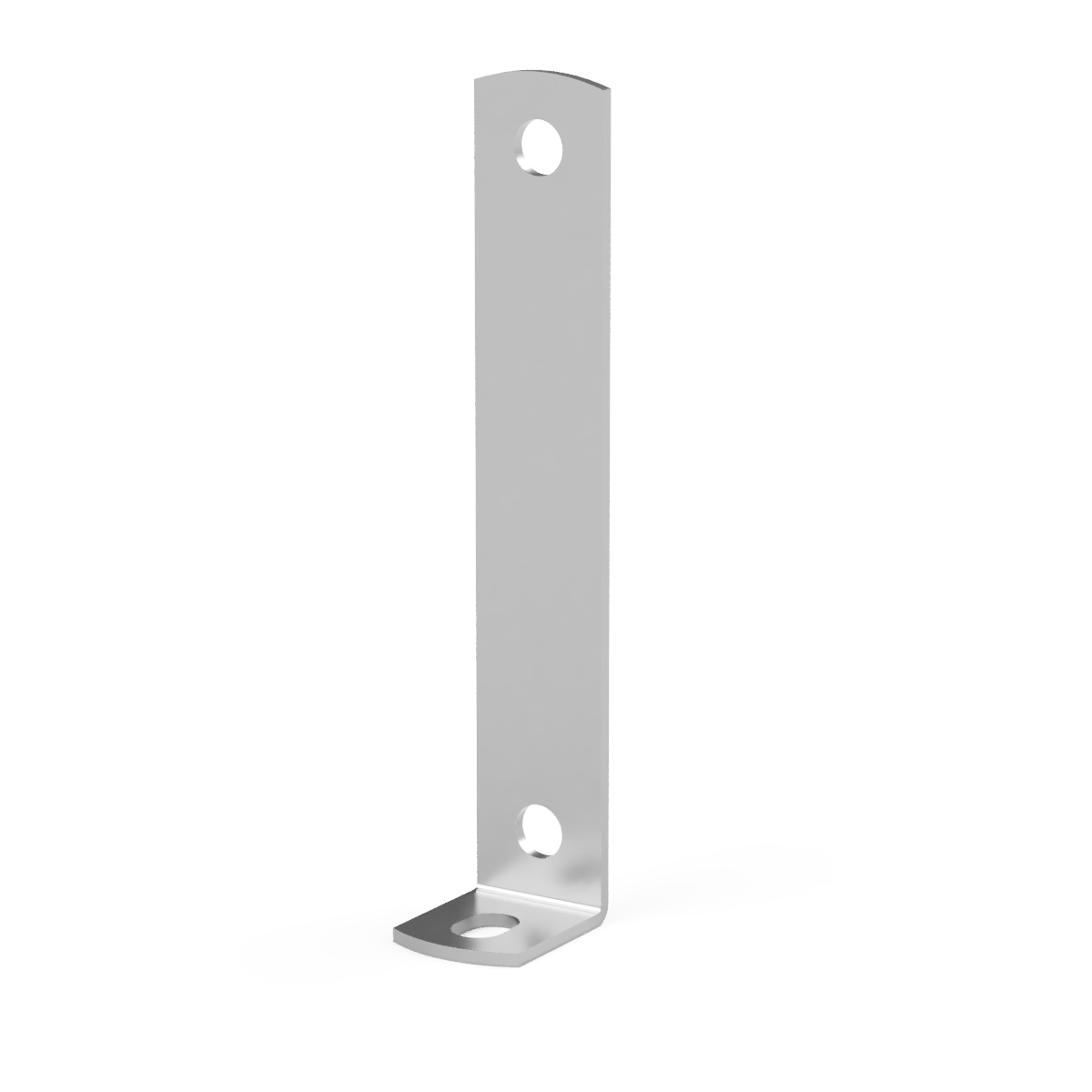

A set of 4 of high quality rolled steel zinc plated "L" brackets for horizontal mounting of EI175 (1-3/4") transformer lamination.
Specifications
| Set | 4 pcs. |
| Core Size |
EI175 (1-3/4") |
| Material |
Cold rolled steel |
| Material Thickness |
14 ga. |
| Core Width | 5.25" [133.35mm] |
| Core Height | 4.375" [111.13mm] |
| Feet Mounting Holes Distance | 4.375" [111.13mm] |
| Feet Mounting Hole Size | 0.281" [7.14mm] x 0.406" [10.32mm] |
| Core Mounting Holes Vertical Distance | 3.5" [88.9mm] |
| Core Mounting Holes Horizontal Distance | 4.375" [111.13mm] |
| Core Mounting Hole Size | 0.281" [7.14mm] |
|
Base Plating |
Zinc |
| Mounting Orientation | Horizontal |
| Weight (pcs) | 1.17 oz. |
| Compliance | RoHS & REACH |
| Dimensional Drawing | 20000-BR175-475-0H |
