EDCOR Electronics Corporation

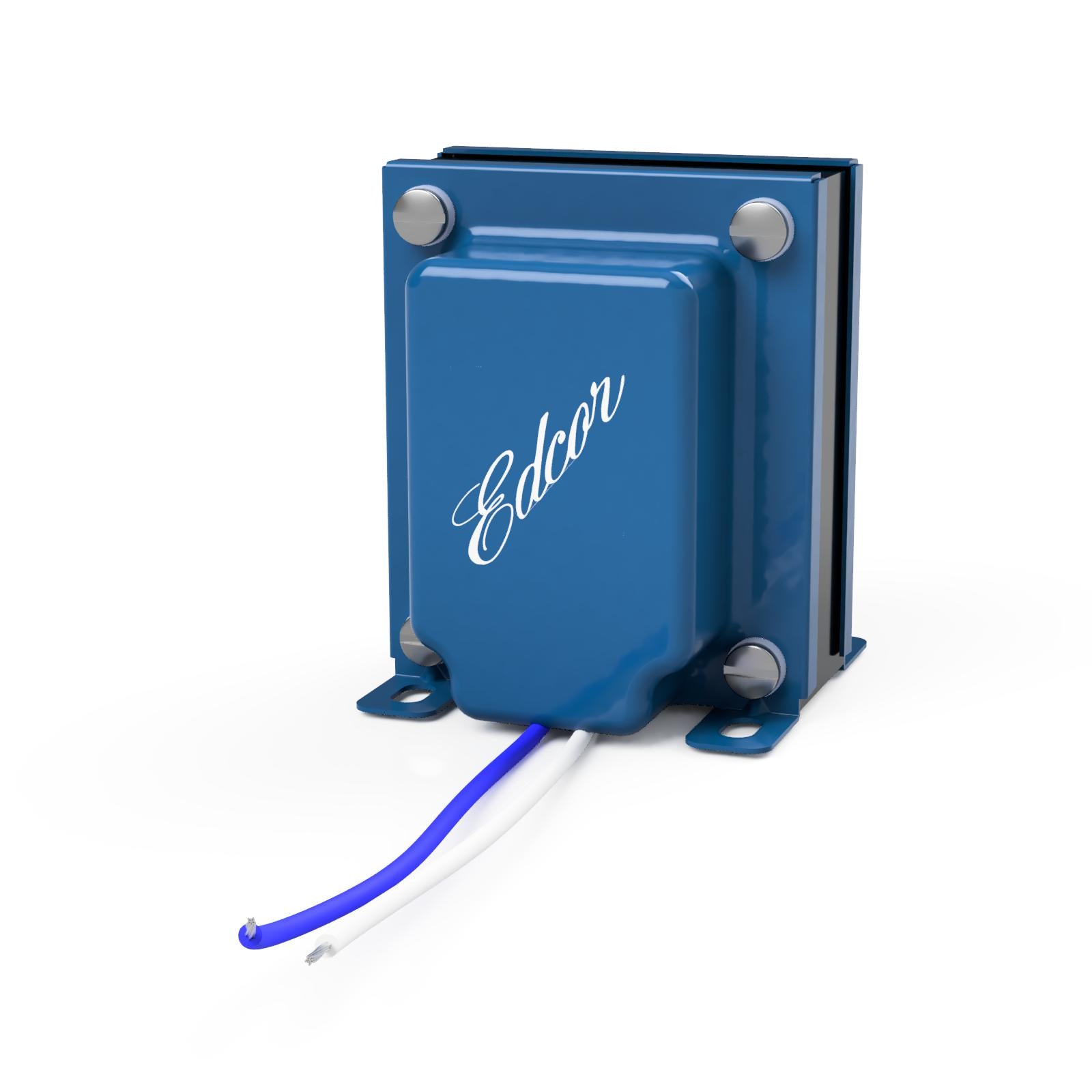

IMT5K/20K-SE - 4W, 5K Ohms to 20K Ohms Tube Driver - Single Ended Interstage Matching Transformer

$108.55 USD

Duties, taxes, and shipping calculated at checkout.

SKU: IMT5K/20K-SE

Quantity:
Quantity Discounts
10 pcs 25 pcs 100 pcs 500+ pcs
5% off 10% off 15% off 20% off
Orders over 25 pcs may take longer. Please contact us for scheduling and dates.

Specifications

Wattage 4W
Type/Configuration Single Ended
Maximum Current 20mA

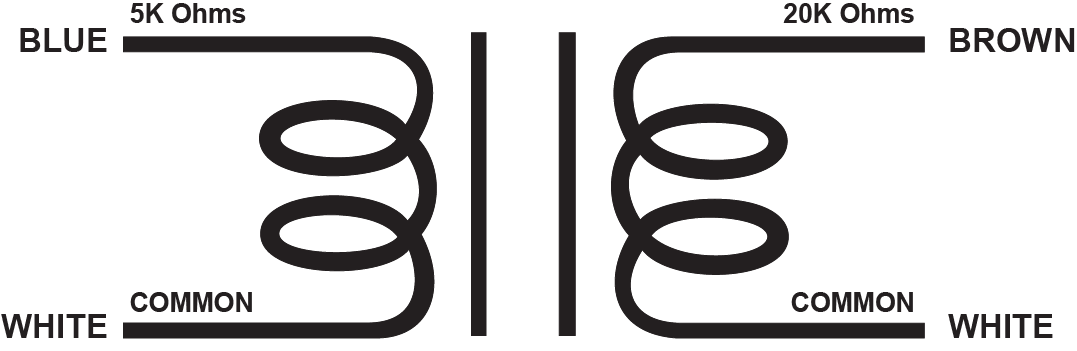

Primary (input) Impedance 5K Ω
Secondary (output) Impedance 20K Ω
Turns Ratio 1:2
Winding Configuration Interleave Winding
Frequency Response 20~20K Hz., <1dBu
THD+Noise <0.1% @ 1K Hz.
Bobbin Material Nylon 6/6 GF-30
Flammability Rating Class HB
Coil Finish Wrapping Polyester Film Electrical Insulating Tape
Core Size
 EI100 (1" x 1")
Core Material M-6 29 ga. grain oriented lamination steel
Secondary Insulation Clear air dry polyester varnish
Termination 15" (38cm) UL1015, 18 ga. lead wire
Mounting Steel end bell covers
Mounting Orientation Vertical
Weight 2.45 lbs.
Compliance RoHS & REACH
Dimensional Drawing 15000-EI100-100-0XV.pdf

Please note that some specification values are calculation and may vary from the actual values

⚠ WARNING ⚠

These electronic components are designed exclusively for indoor or enclosed environments. It is crucial to keep them away from water and moisture to prevent damage. Transformers can generate hazardous voltages and currents, so technical electrical expertise is essential for safe use.
