EDCOR Electronics Corporation
IMT5K/5K-SE - 4W, 5K Ohms to 5K Ohms Tube Driver - Single Ended Interstage Matching Transformer
Quantity:
| Quantity Discounts | ||||
|---|---|---|---|---|
| 10 pcs | 25 pcs | 100 pcs | 500+ pcs | |
| 5% off | 10% off | 15% off | 20% off | |
| Orders over 25 pcs may take longer. Please contact us for scheduling and dates. | ||||

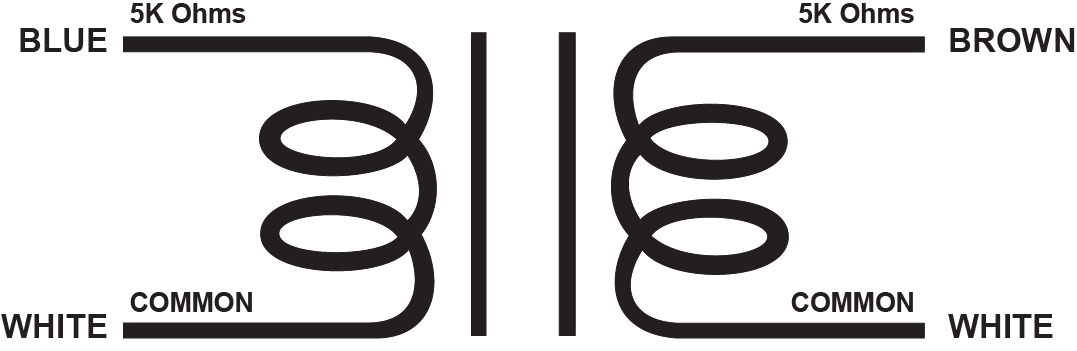

Specifications
| Wattage | 4W |
| Type/Configuration | Single Ended |
| Maximum Current | 30mA |
| Primary (input) Impedance | 5K Ω |
| Primary (input) DC Resistance | 170 Ω |
| Secondary (output) Impedance | 5K Ω |
| Secondary (output) DC Resistance | 170 Ω |
| Turns Ratio | 1:1 |
| Winding Configuration | Bi-Filar |
| Frequency Response | 20~20K Hz., <1dBu |
| THD+Noise | <0.1% @ 1K Hz. |
| Bobbin Material | Nylon 6/6 GF-30 |
| Flammability Rating | Class HB |
| Coil Finish Wrapping | Polyester Film Electrical Insulating Tape |
| Core Size |
EI100 (1" x 1.25") |
| Core Material | M-6 29 ga. grain oriented lamination steel |
| Secondary Insulation | Clear air dry polyester varnish |
| Termination | 15" (38cm) UL1015, 18 ga. lead wire |
| Mounting | Steel end bell covers |
| Mounting Orientation | Vertical |
| Weight | 2.75 lbs. |
| Compliance | RoHS & REACH |
| Dimensional Drawing | 15000-EI100-125-0X |
Please note that some specification values are calculation and may vary from the actual values
⚠ WARNING ⚠
These electronic components are designed exclusively for indoor or enclosed environments. It is crucial to keep them away from water and moisture to prevent damage. Transformers can generate hazardous voltages and currents, so technical electrical expertise is essential for safe use.
