Vertical "L" Brackets for EI150 (1-1/2")

Bahrs Metal Forming LLC

Vertical "L" Brackets for EI150 (1-1/2")

Sale price$3.93 USD

Shipping calculated at checkout

SKU: BR150-00-0V

Stock:
loading..
Quantity:

Get shipping cost estimate in cart.

Mounting Brackets

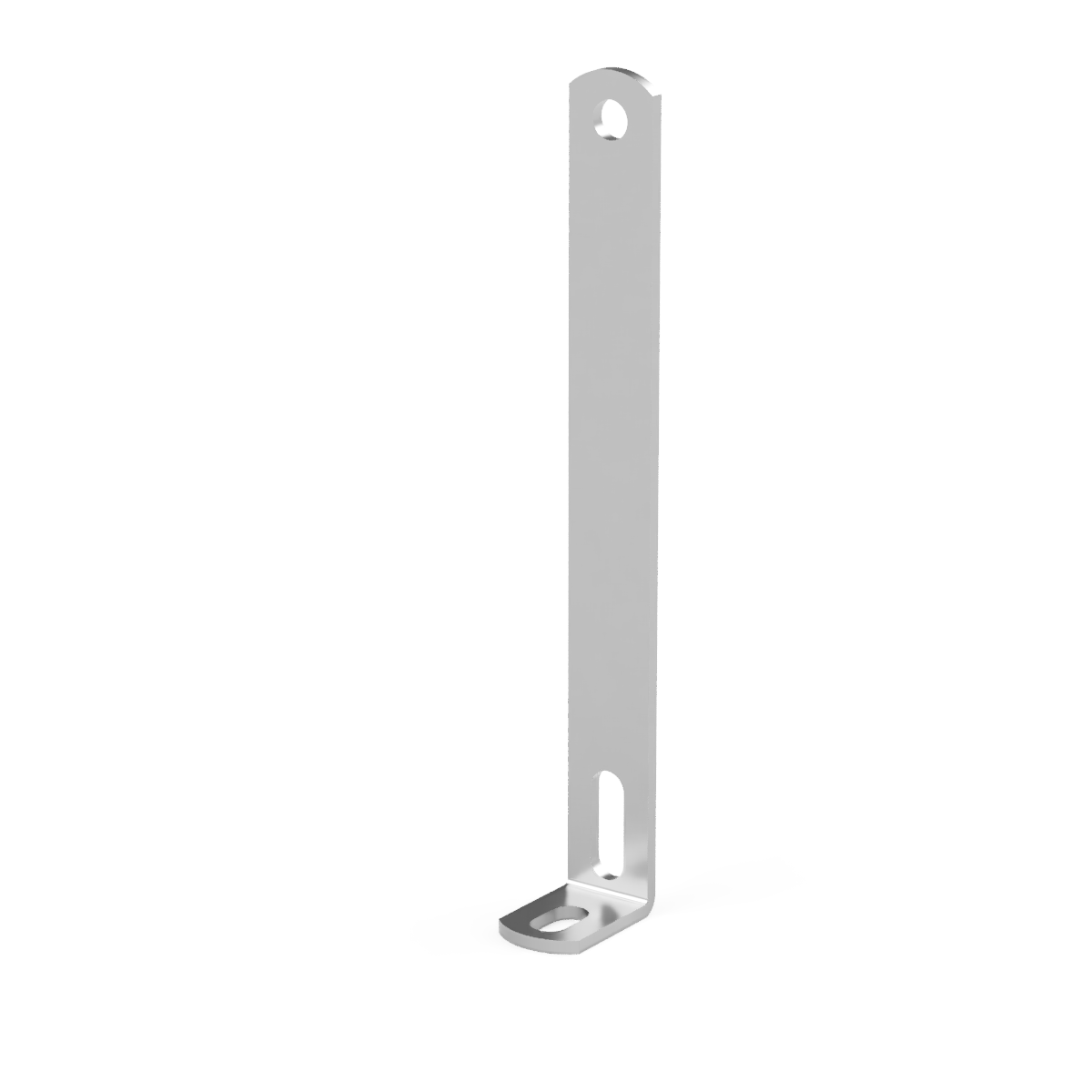

A set of 4 of high quality rolled steel zinc plated "L" brackets for vertical mounting of EI150 (1-1/2") transformer lamination.

Specifications

Set 4 pcs.
Core Size
EI150 (1-1/2")
Material
Cold rolled steel
Material Thickness
14 ga.
Core Width 3.75" [95.25mm]
Core Height 4.5" [114.30mm]
Feet Mounting Holes Distance 3.0" [76.2mm]
Feet Mounting Hole Size 0.203" [5.16mm] x 0.375" [9.53mm]
Core Mounting Holes Vertical Distance 3.75" [95.25mm]
Core Mounting Holes Horizontal Distance 3.0" [76.2mm]
Core Mounting Hole Size 0.203" dia. [5.16mm]
Base Plating
Zinc
Mounting Orientation Vertical
Weight (pcs) 0.75 oz.
Compliance RoHS REACH
Dimensional Drawing 20000-BR150-00-0V
