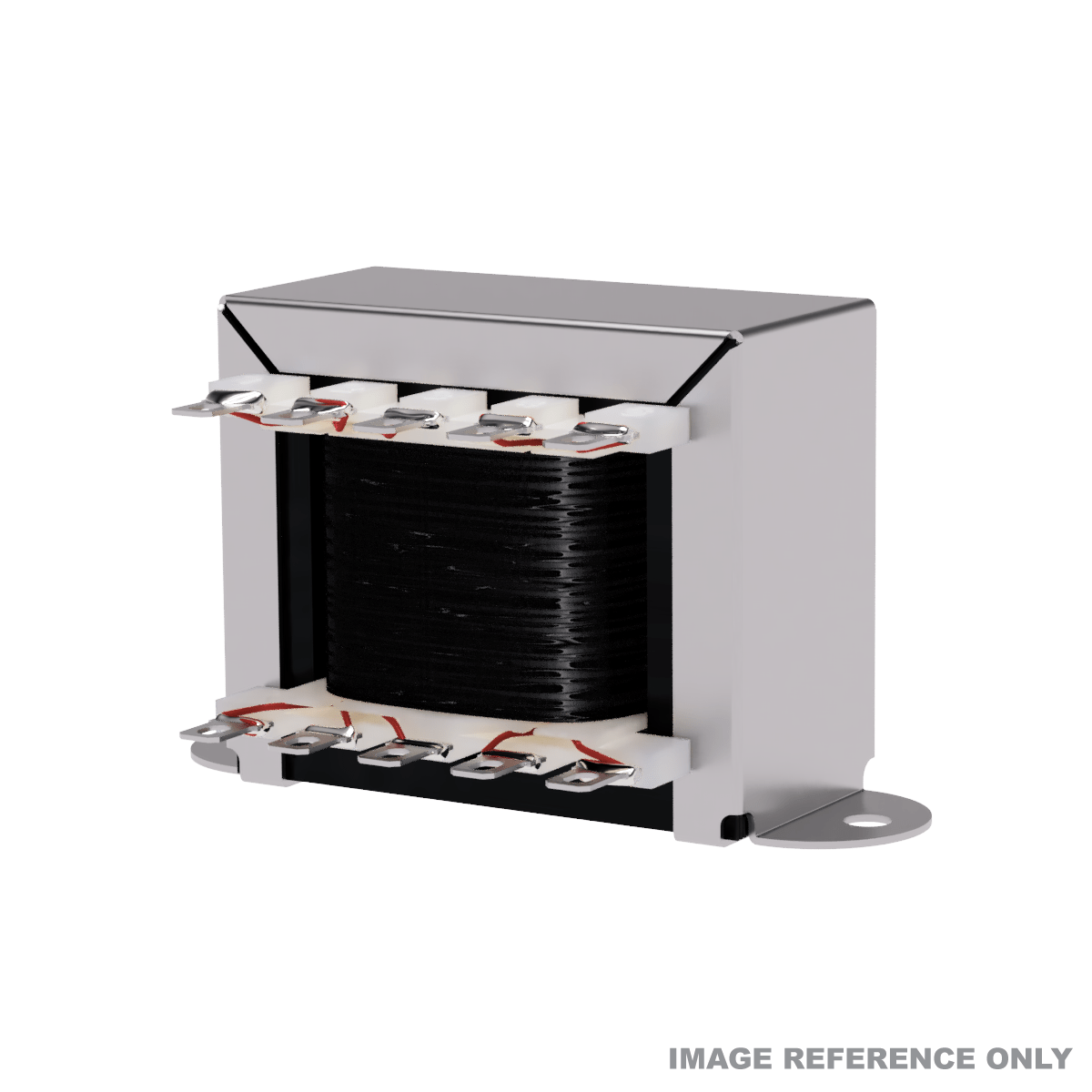

EDCOR transformer reference image

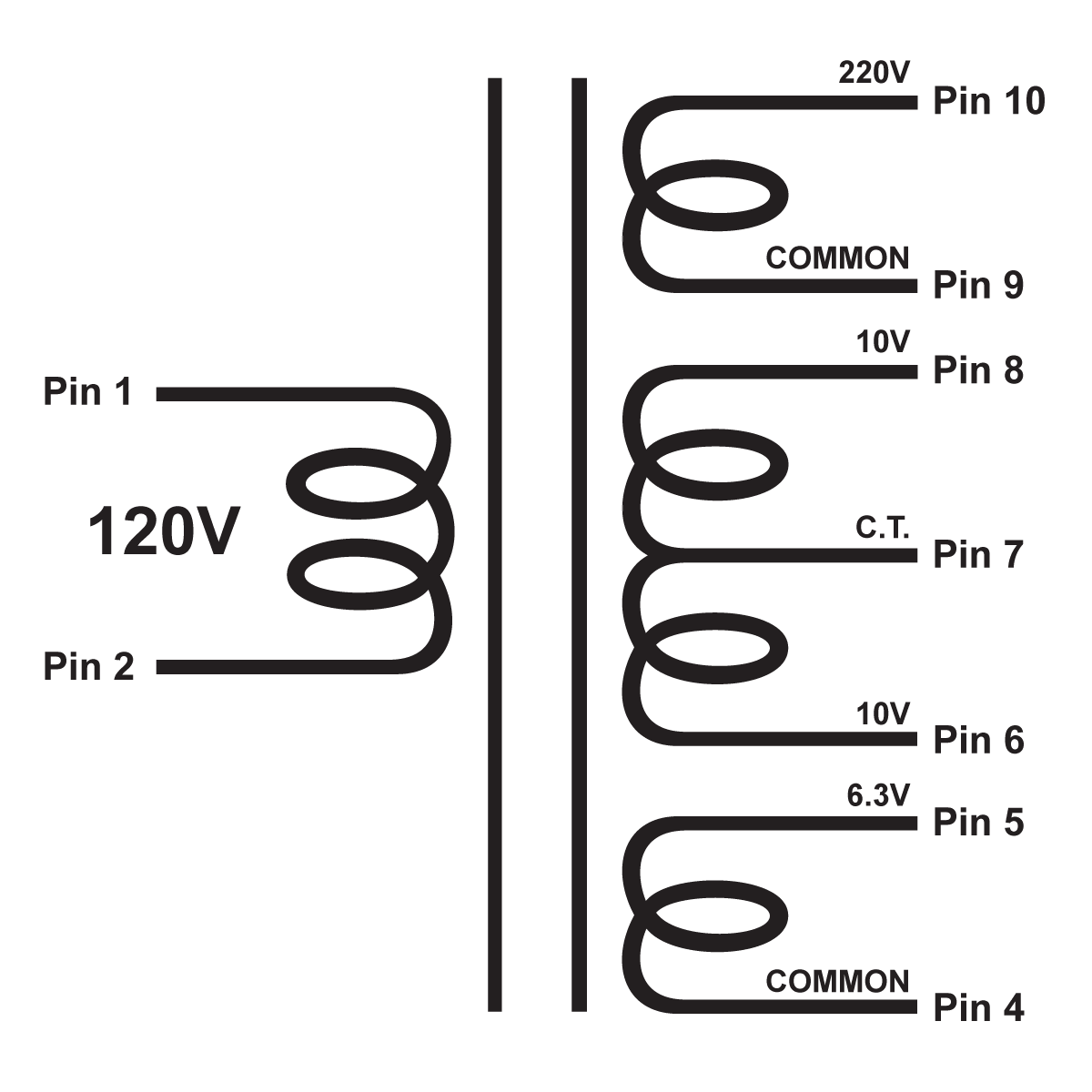

EDCOR Tube Power Transformer XPWR082-120 - 220V@20mA, 20V@150mA CT, & 6.3V@300mA - 120V, 60Hz. Schematic

EDCOR Electronics Corporation

XPWR082 - 220V@20mA, 20V@150mA CT, & 6.3V@300mA

$50.58 USD

Duties, taxes, and shipping calculated at checkout.

SKU: XPWR082-120

Quantity:
Quantity Discounts
10 pcs 25 pcs 100 pcs 500+ pcs
5% off 10% off 15% off 20% off
Orders over 25 pcs may take longer. Please contact us for scheduling and dates.

Specifications

Primary (input) Voltage Depends on model
Secondary (output) Voltage 220V@20mA, 20V(10-0-10)@150mA & 6.3V@300mA
Winding Configuration Primary-Secondary
Bobbin Material Nylon 6/6 GF-30
Flammability Rating Class HB
Coil Finish Wrapping Polyester Film Electrical Insulating Tape
Core Size
 EI75 (0.75" x 1")
Core Material M-6 29 ga. grain oriented lamination steel
Secondary Insulation Clear air dry polyester varnish
Termination 0.187" (3/16") quick disconnects spade terminals
Mounting Zinc plated channel/frame
Mounting Orientation Horizontal
Weight 1.2 lbs.
Compliance RoHS & REACH
Dimensional Drawing 15000-EI075-100-18H

Please note that some specification values are calculation and may vary from the actual values

⚠ WARNING ⚠

These electronic components are designed exclusively for indoor or enclosed environments. It is crucial to keep them away from water and moisture to prevent damage. Transformers can generate hazardous voltages and currents, so technical electrical expertise is essential for safe use.
