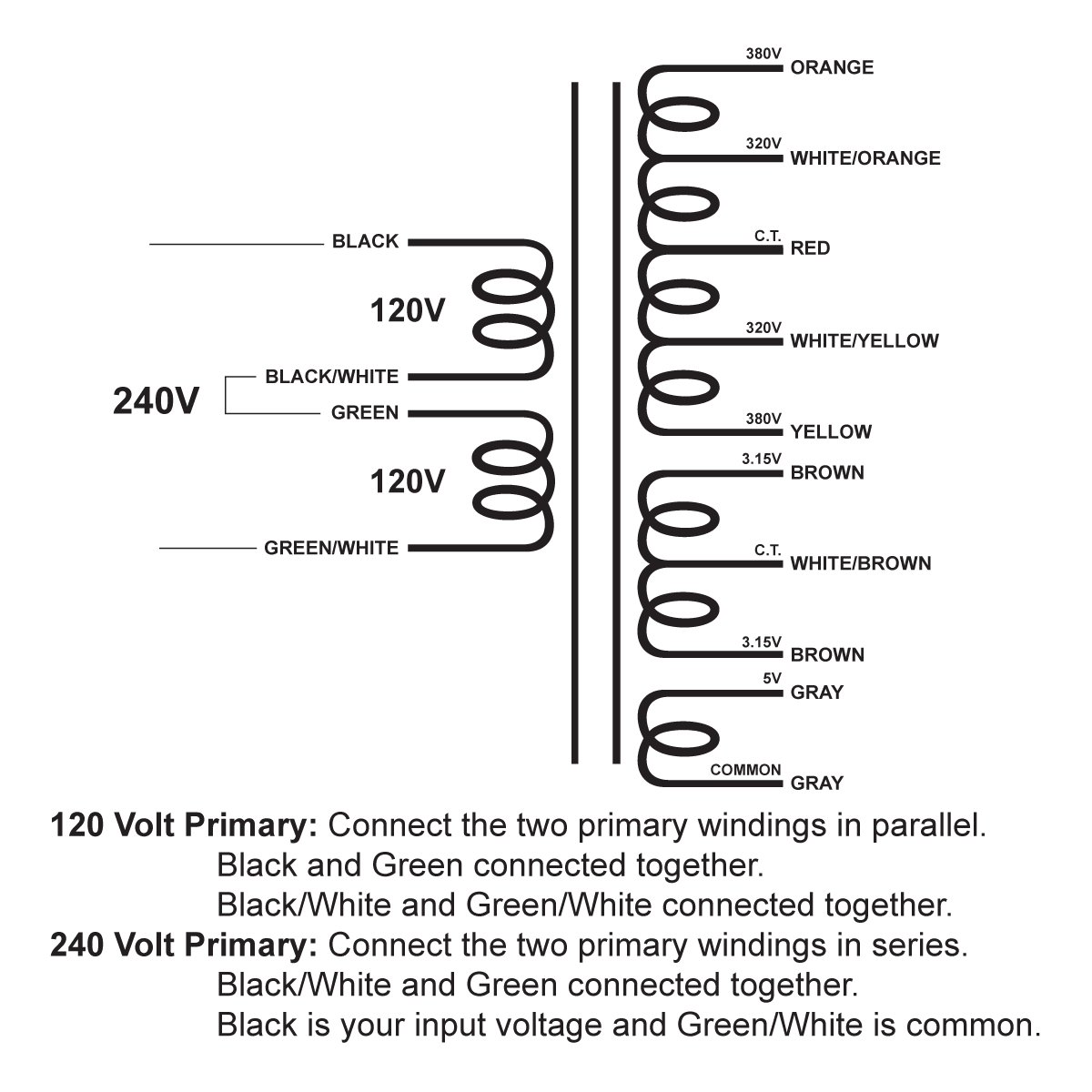

EDCOR Tube Power Transformer XPWR144-120/240 - 760V/640V@200mA CT, 6.3V@3.5A CT, & 5V@3A - 120V/240V, 50/60Hz. Schematic

EDCOR Electronics Corporation

XPWR144 - 760V/640V@200mA CT, 6.3V@3.5A CT, & 5V@3A

$189.88 USD

Duties, taxes, and shipping calculated at checkout.

SKU: XPWR144-120/240

Quantity:
Quantity Discounts
10 pcs 25 pcs 100 pcs 500+ pcs
5% off 10% off 15% off 20% off
Orders over 25 pcs may take longer. Please contact us for scheduling and dates.

Specifications

Primary (input) Voltage 120V/240V 50/60Hz.
Secondary (output) Voltage 760V/640V(380-320-0-320-380)@200mA, 6.3V(3.15-0-3.15)@3.5A, & 5V@3A
Winding Configuration Primary-Secondary
Bobbin Material Nylon 6/6 GF-30
Flammability Rating Class HB
Coil Finish Wrapping Polyester Film Electrical Insulating Tape
Core Size
 EI125 (1.25" x 2")
Core Material M-6 29 ga. grain oriented lamination steel
Secondary Insulation Clear air dry polyester varnish
Termination 15" (38cm) UL1015, 18 ga. lead wire
Mounting
 Steel end bell covers
Mounting Orientation Vertical
Weight 6.75 lbs.
Compliance RoHS & REACH
Dimensional Drawing 15000-EI125-200-0XV.pdf

Please note that some specification values are calculation and may vary from the actual values

⚠ WARNING ⚠

These electronic components are designed exclusively for indoor or enclosed environments. It is crucial to keep them away from water and moisture to prevent damage. Transformers can generate hazardous voltages and currents, so technical electrical expertise is essential for safe use.
