EDCOR Tube Power Transformer XPWR186-120 - 370V@200mA CT, 6.3V@4A & 5V @2A - 120V, 60Hz. Schematic

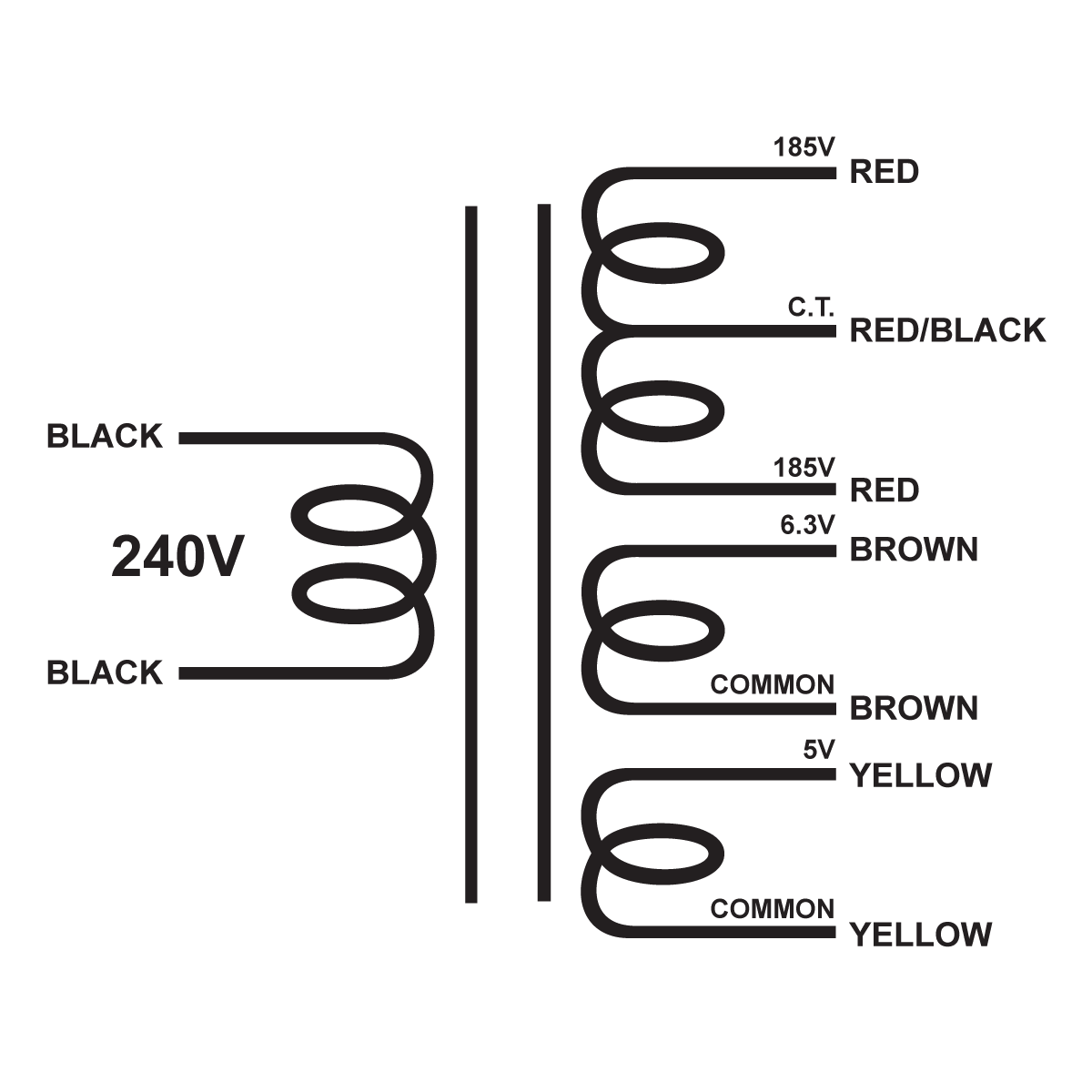

EDCOR Tube Power Transformer XPWR186-240 - 370V@200mA CT, 6.3V@4A & 5V @2A - 240V, 50/60Hz. Schematic

EDCOR Electronics Corporation

XPWR186 - 370V@200mA CT, 6.3V@4A & 5V @2A

$142.17 USD

Duties, taxes, and shipping calculated at checkout.

SKU: XPWR186-120

Primary Voltage:

Primary Voltage
Quantity:
Quantity Discounts
10 pcs 25 pcs 100 pcs 500+ pcs
5% off 10% off 15% off 20% off
Orders over 25 pcs may take longer. Please contact us for scheduling and dates.

Specifications

Primary (input) Voltage 120V 60Hz. or 240V 50/60Hz.
Secondary (output) Voltage 370V(185-0-185)@200mA, 6.3V@4A & 5V @2A
Winding Configuration Primary-Secondary
Bobbin Material Nylon 6/6 GF-30
Flammability Rating Class HB
Coil Finish Wrapping Polyester Film Electrical Insulating Tape
Core Size
 EI125 (1.25" x 1.5")
Core Material M-6 29 ga. grain oriented lamination steel
Secondary Insulation Clear air dry polyester varnish
Termination 15" (38cm) UL1015, 18 ga. lead wire
Mounting
 Steel end bell covers
Mounting Orientation Vertical
Weight 6 lbs.
Compliance RoHS & REACH
Dimensional Drawing 15000-EI125-150-0X

Please note that some specification values are calculation and may vary from the actual values
