Mathematically designed to produce the specified voltage(s) when loaded.

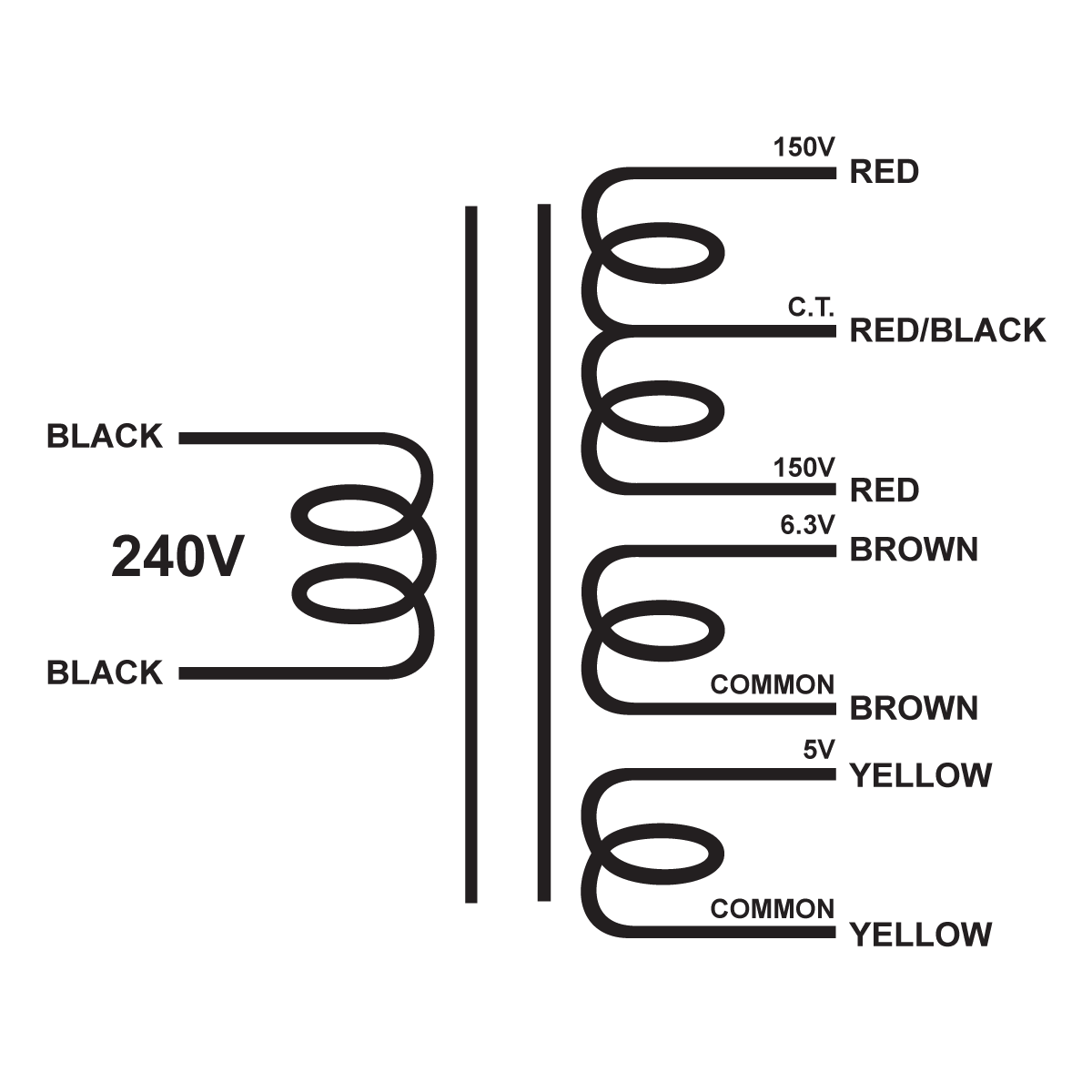

Designed for 120V at 60Hz. or 240V at 50/60Hz.

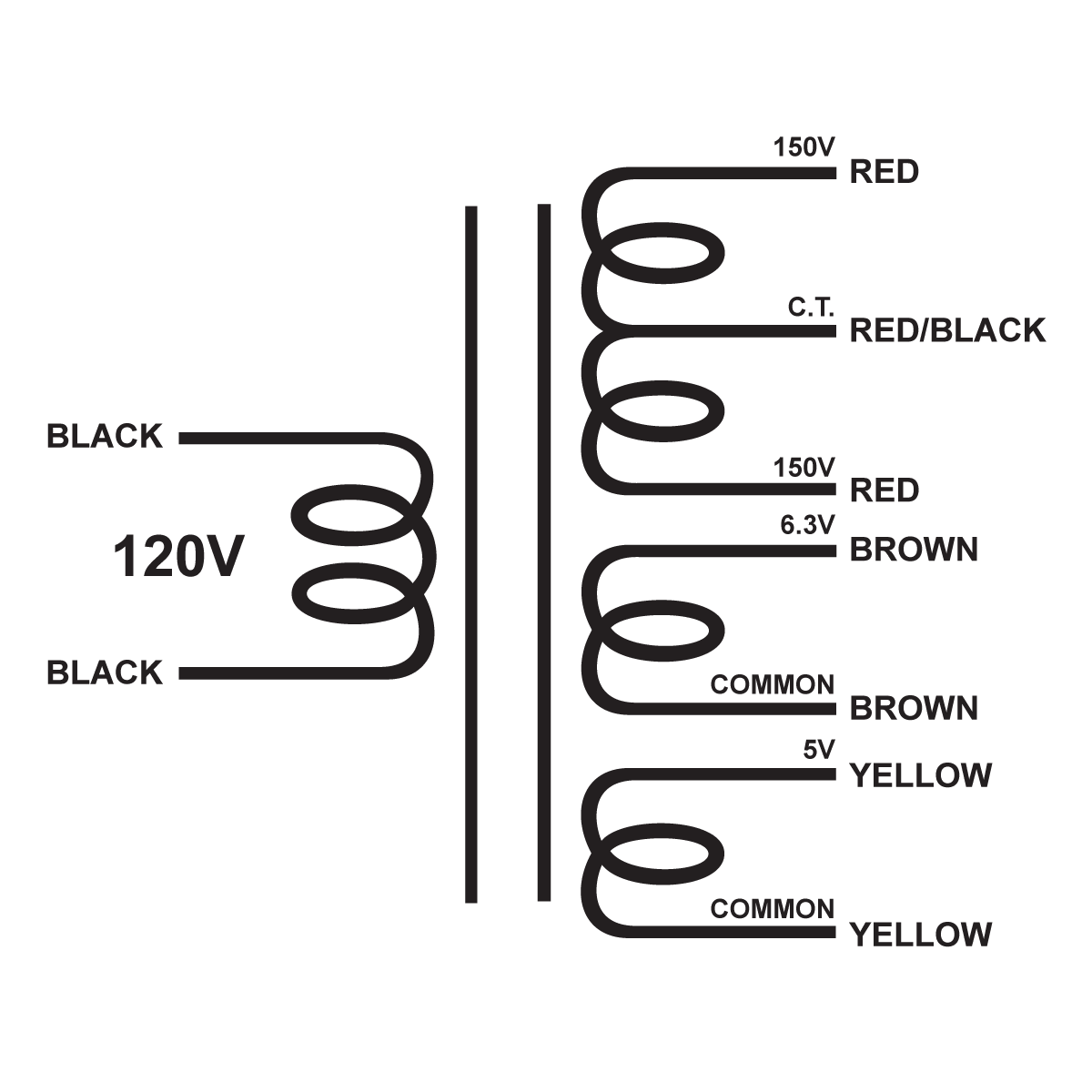

This transformer has multiple voltage windings, 300V (150-0-150) at 120mA center tapped, 6.3V at 4A and 5V at 2A
All units are wound with the finest virgin copper magnet wire. All windings use heavy insulated wire to provide excellent manufacturing yield, lower customer cost and superior life.
EDCOR uses the finest M6 line grain oriented steel cores. Each unit is hand stacked to assure at least 92% stack.
Injection molded Nylon 6/6 with the addition of 30%-35% glass fibers. The addition of glass fibers allows a higher heat deflection temperature and it brings the material to a class HB UL temperature classification.
The terminations are UL1015 18 ga. color coded lead wire around 15 inches (38cm) long.

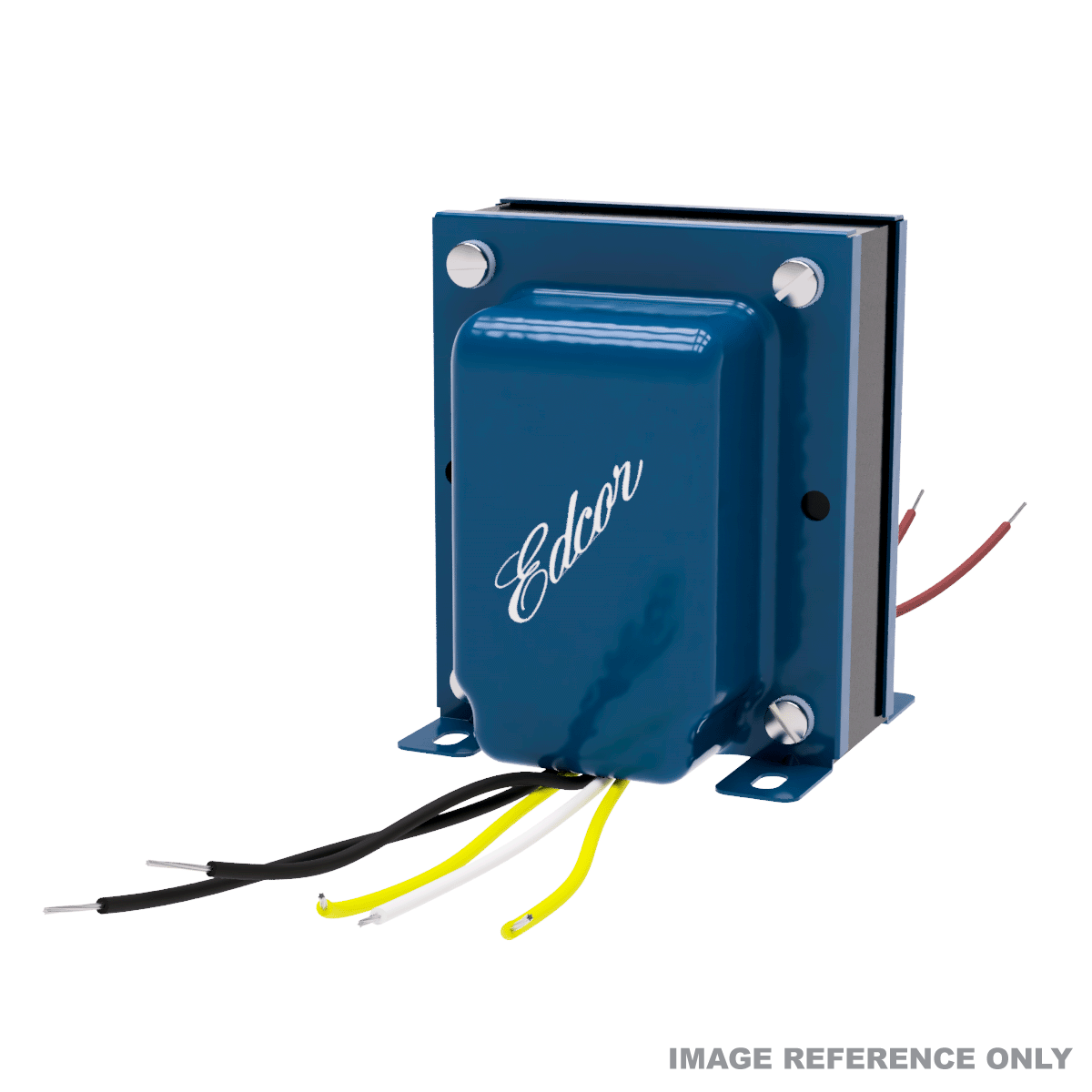

This unit comes with steel end bells for mounting with the use of four screws. See dimensional drawing.
|Primary (input) Voltage||Depends on model|
|Secondary (output) Voltage||300V(150-0-150)@120mA, 6.3V@4A & 5V@2A|
|Bobbin Material||Nylon 6/6 GF-30|
|Flammability Rating||Class HB|
|Coil Finish Wrapping||Polyester Film Electrical Insulating Tape|
||EI125 (1.25" x 1..25")|
|Core Material||M-6 29 ga. grain oriented lamination steel|
|Secondary Insulation||Clear air dry polyester varnish|
|Termination||15" (38cm) UL1015, 18 ga. lead wire|
||Steel end bell covers|
|Compliance||RoHS & REACH|
