CXSE25-5K

Previous productCXSE25-10K

Next productCXSE25-600

25W, single ended tube output transformer for 5K Ohms to a specified output.

Availability: Product is built to order.

Ship date: 8 weeks

2 review(s) | Add your review

Secondary (Output) Impedance *

$94.11

Qty:

Design
Mathematically designed to produce exact plate and screen voltages. These transformers are precision gapped to adjust for unbalanced DC current.

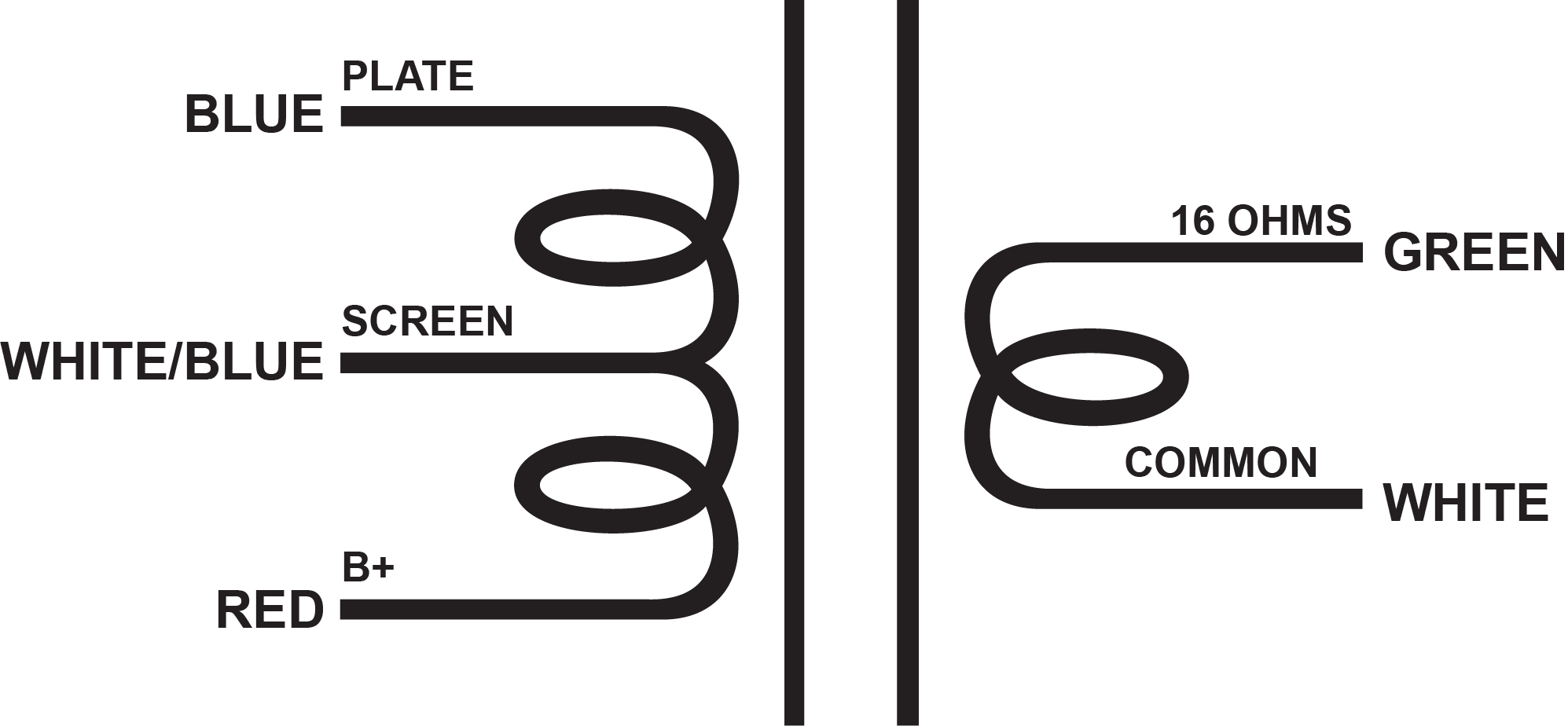

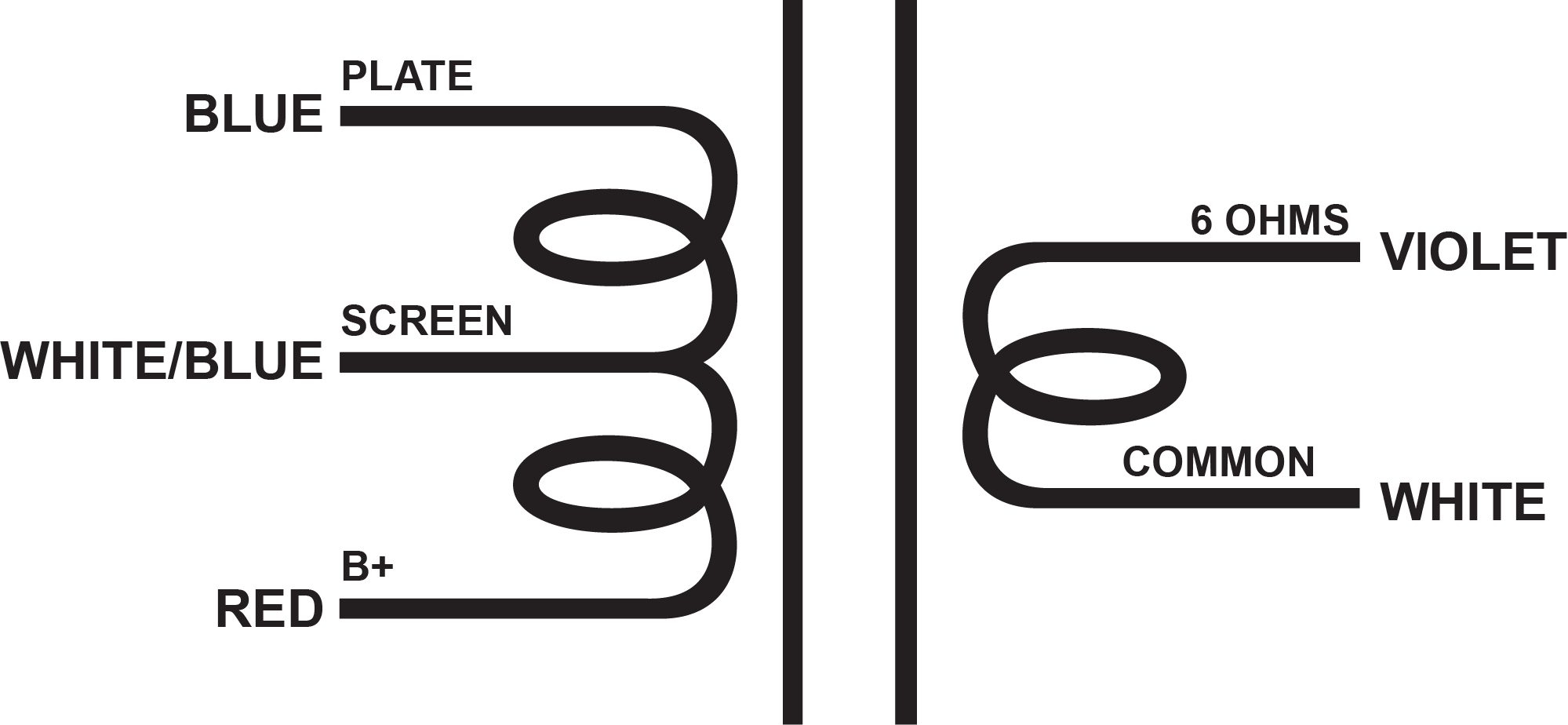

Primary (Input)
The input is designed for a 5K Ohms impedance source.

Secondary (Output)
The output is designed for a specified speaker impedance.

Magnet Wire
All units are wound with the finest virgin copper magnet wire. All windings use heavy insulated wire to provide excellent manufacturing yield, lower customer cost and superior life.

The Core
EDCOR uses the finest M6 line grain oriented steel cores. Each unit is hand stacked to assure at least 92% stack.

The Bobbin
EDCOR's standard bobbin with black finishing tape.

Termination
The terminations are UL1015 20 and 18 ga. lead wire.

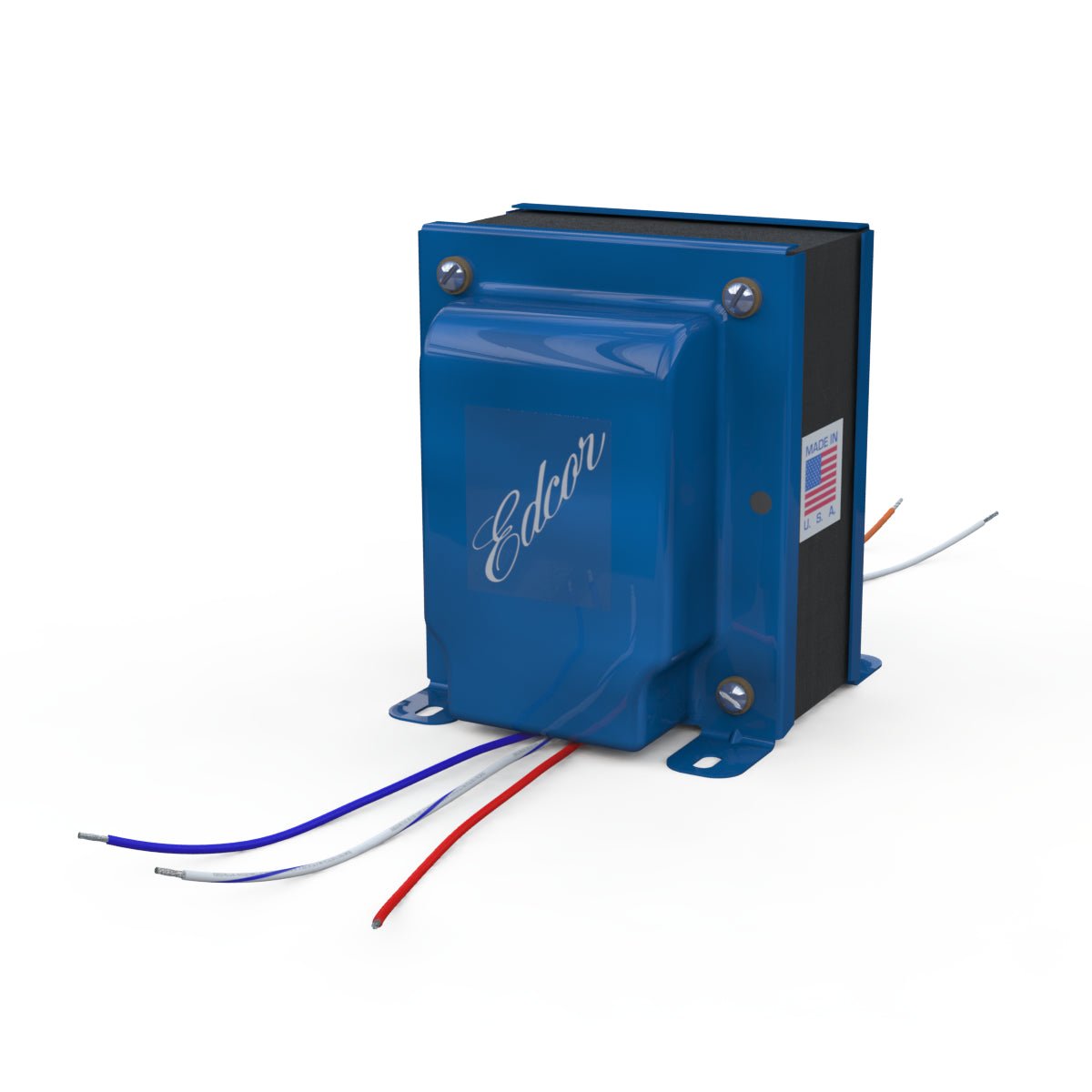

Mounting
This unit comes with steel end bells for mounting with the use of four screws. The end bells are powder coated Gentian Blue (RAL 5010) to add to your tube display and overall appearance.

Overview
Specifications
Reviews
Product Files

Design
Mathematically designed to produce exact plate and screen voltages. These transformers are precision gapped to adjust for unbalanced DC current.

Primary (Input)
The input is designed for a 5K Ohms impedance source.

Secondary (Output)
The output is designed for a specified speaker impedance.

Magnet Wire
All units are wound with the finest virgin copper magnet wire. All windings use heavy insulated wire to provide excellent manufacturing yield, lower customer cost and superior life.

The Core
EDCOR uses the finest M6 line grain oriented steel cores. Each unit is hand stacked to assure at least 92% stack.

The Bobbin
EDCOR's standard bobbin with black finishing tape.

Termination
The terminations are UL1015 20 and 18 ga. lead wire.

Mounting
This unit comes with steel end bells for mounting with the use of four screws. The end bells are powder coated Gentian Blue (RAL 5010) to add to your tube display and overall appearance.

Products specifications

Wattage	25W
Max. Current	200mA
Primary (input) Impedance	5K Ohms
Primary (input) DCR	85 Ohms
Primary (input) Inductance	50H
Screen/Grid Tap	40%
Secondary (output) Impedance	Depends on model.
Frequency Response	20~20K Hz., <1dBu
THD+Noise	<0.1% @ 1K Hz.
Bobbin Material	Nylon 6/6 GF-30
Flamability Rating	Class B 130°C
Core Material	M-6 29 ga. grain oriented lamination steel
Secondary Insulation (transformer)	Clear air dry polyester varnish
Termination	UL1015, 20 ga. lead wire
Mounting	Powder coated steel end bells
Color	RAL 5010 Gentian Blue
Weight	9.75 lbs.
Compliance	RoHS & REACH

Write your own review

Only registered users can write reviews

Review title:

Review text:

Rating:

Bad
Excellent

Existing reviews

Delicious sound

Used them in a RL12T15 stereo amp with 500volts at plate. Driver is D3a (german Post and WWII tube mix) The sound is incredible!!! Rich details, lots of bass and clear and transparent voice reproduction. Sometimes my amps take place in competitions and shows. They always win...
I am just ordering more of this stuff now.
Thanks Edcore :-)

(You can view my amps on www.goldstrom.de)

From: Joerg Lassahn | Date: 11/25/2013 6:31 AM

Was this review helpful? Yes No (4/0)

Highly Recommended!

I think Edcor transformers are the best value in terms of cost and performance. I am never disappointed in their products. The CXSE transformer paired with the 45 power triode produces amazing sound. You can check out some of my DIY projects at https://www.vacuumtubeaudio.design/

From: David Gallagher | Date: 11/28/2017 7:24 PM

Was this review helpful? Yes No (1/0)

Product Files

Dimensional Drawings

Products specifications

Wattage	25W
Max. Current	200mA
Primary (input) Impedance	5K Ohms
Primary (input) DCR	85 Ohms
Primary (input) Inductance	50H
Screen/Grid Tap	40%
Secondary (output) Impedance	Depends on model.
Frequency Response	20~20K Hz., <1dBu
THD+Noise	<0.1% @ 1K Hz.
Bobbin Material	Nylon 6/6 GF-30
Flamability Rating	Class B 130°C
Core Material	M-6 29 ga. grain oriented lamination steel
Secondary Insulation (transformer)	Clear air dry polyester varnish
Termination	UL1015, 20 ga. lead wire
Mounting	Powder coated steel end bells
Color	RAL 5010 Gentian Blue
Weight	9.75 lbs.
Compliance	RoHS & REACH
