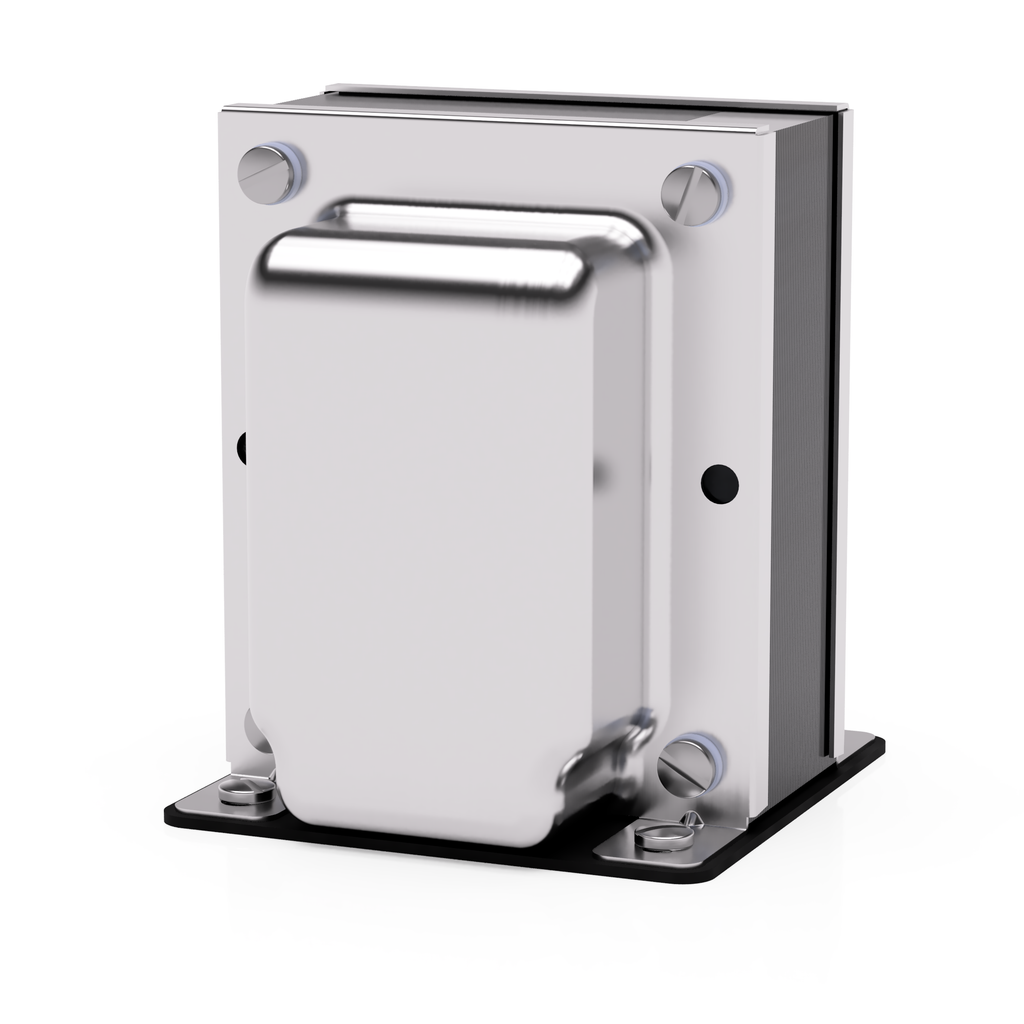

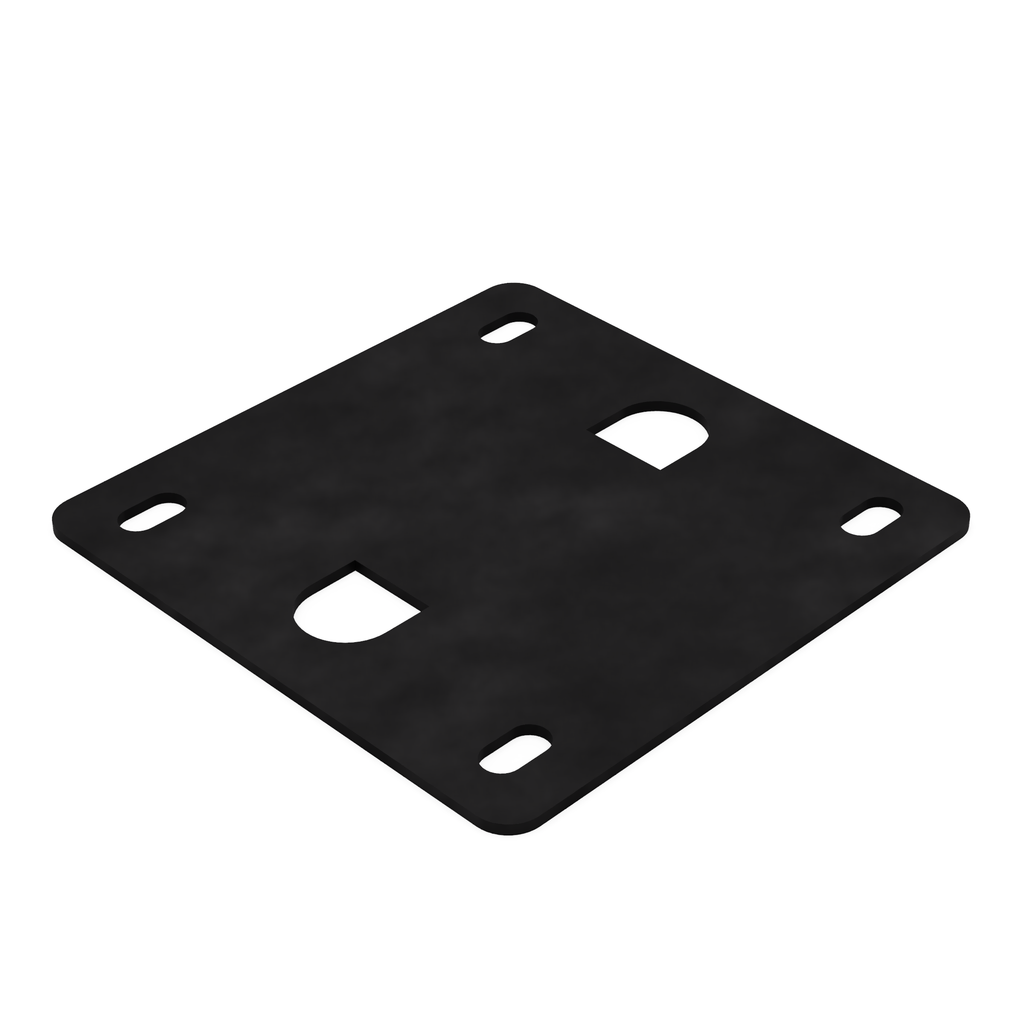

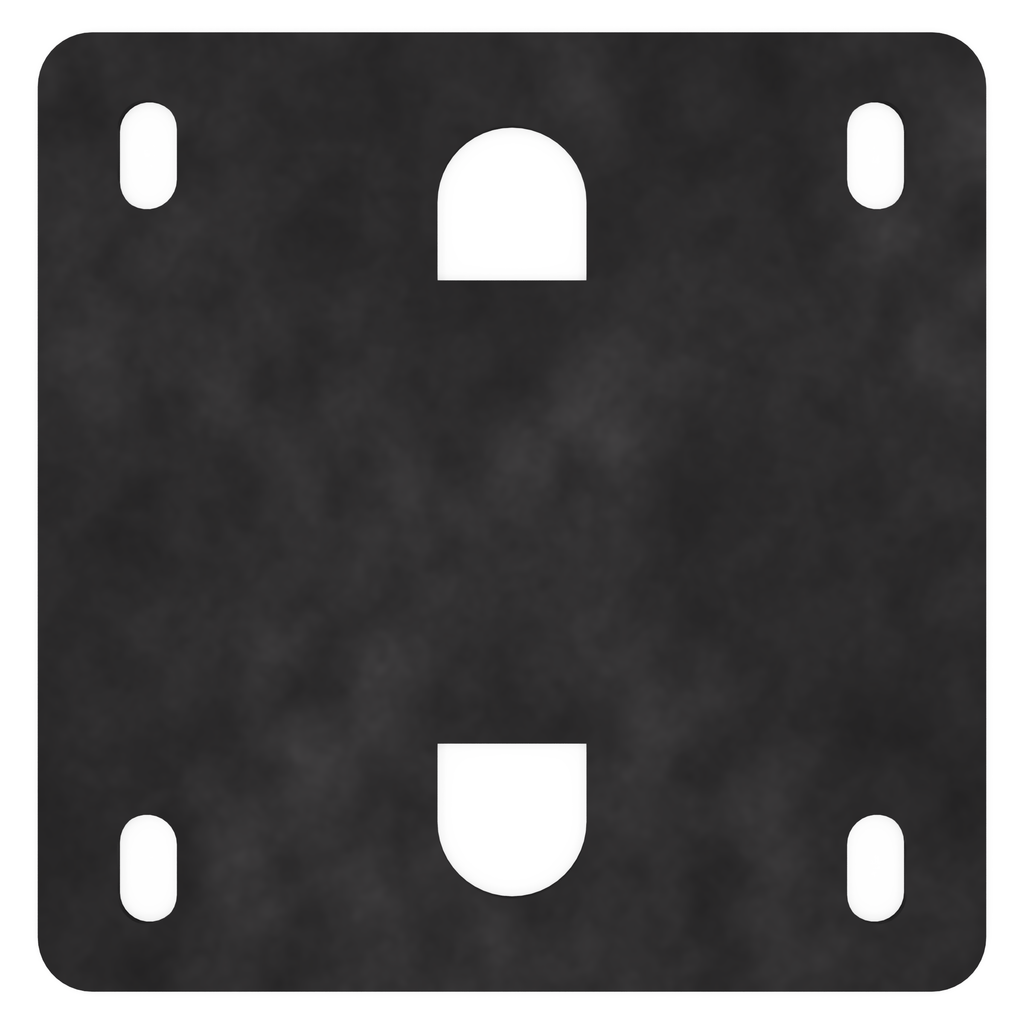

Specially designed for EDCOR transformers with a dimensional drawing of 15000-EI125-150-0X. This pad/insulator is custom laser cut to size. It fit between the transformer and chassis. It helps to mitigate the vibration a transformer might produce at certain times.
Silicone is a specialty elastomer that is known for its serviceability over a wide temperature range. Silicone compounds can show excellent resistance to ozone, weathering, oxidation, compression set and moderate chemical resistance. Its high degree of biocompatibility makes Silicone ideal for the medical industry. Silicone generally has good vibration dampening properties and overall good dynamic properties at elevated temperatures.
- Low Compression Set
- Outstanding Resistance to UV, Ozone, Oxidation and Weathering
- Resistance at Extreme High and Low Temperatures
- Good Chemical Resistance
|Designed for Transformer Size:||15000-EI125-150-0X|
||EI125 (1 1/4")
||Steel end bell covers|
|Insulator Material||Commercial Grade Silicone|
|Shore "A" Durometer||60 +/-5|
|Tensile Strength||700 psi|
|Tear Strength||100 ppi Die “B”|
|Temperature Range||-76°F to +450°F
|Compliance||RoHS & REACH|
The information supplied herein is based upon information currently available on the subject. The above values are typical properties and should be used only as a guide. There are no warranties, either expressed or implied, including the warranty for fitness of use or of merchantability.
