EDCOR Electronics Corporation

GXPP10-10K - 10W, 10K Ohms push-pull tube output transformer.

Sale price$80.48 USD

Shipping calculated at checkout

SKU: GXPP10-4-10K

Secondary (output) Impedance:

Secondary (output) Impedance

Stock:
loading..
Quantity:
Quantity Discounts
10 pcs 25 pcs 100 pcs 500+ pcs
5% off 10% off 15% off 20% off
Orders over 25 pcs may take longer. Please contact us for scheduling and dates.

Get shipping cost estimate in cart.

Design
The GXPP series was designed originally for guitar tube amplifiers. This makes it well suited for other type of push-pull tube amplifier.

Primary (Input)
The input is designed for a 10K Ohms impedance source.

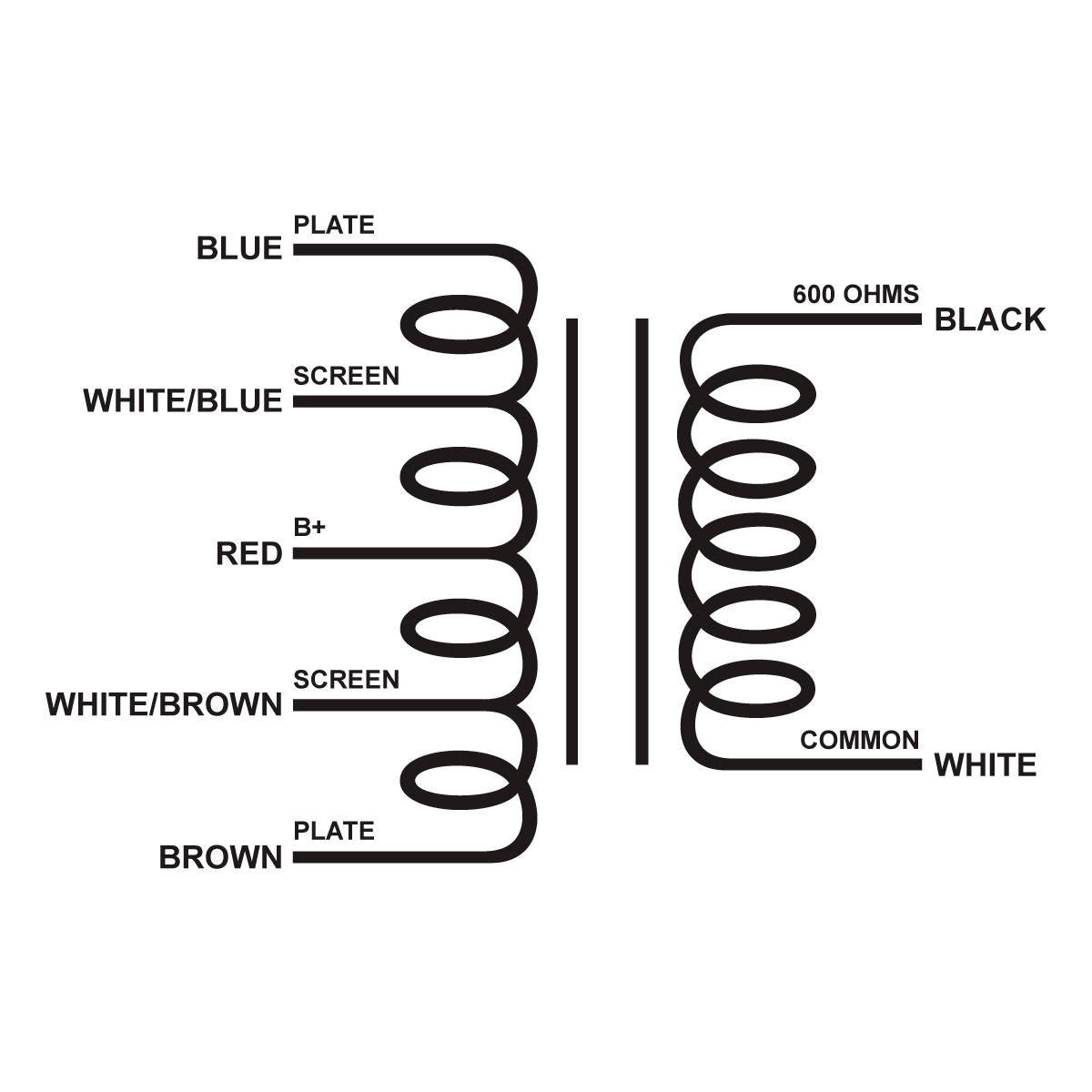

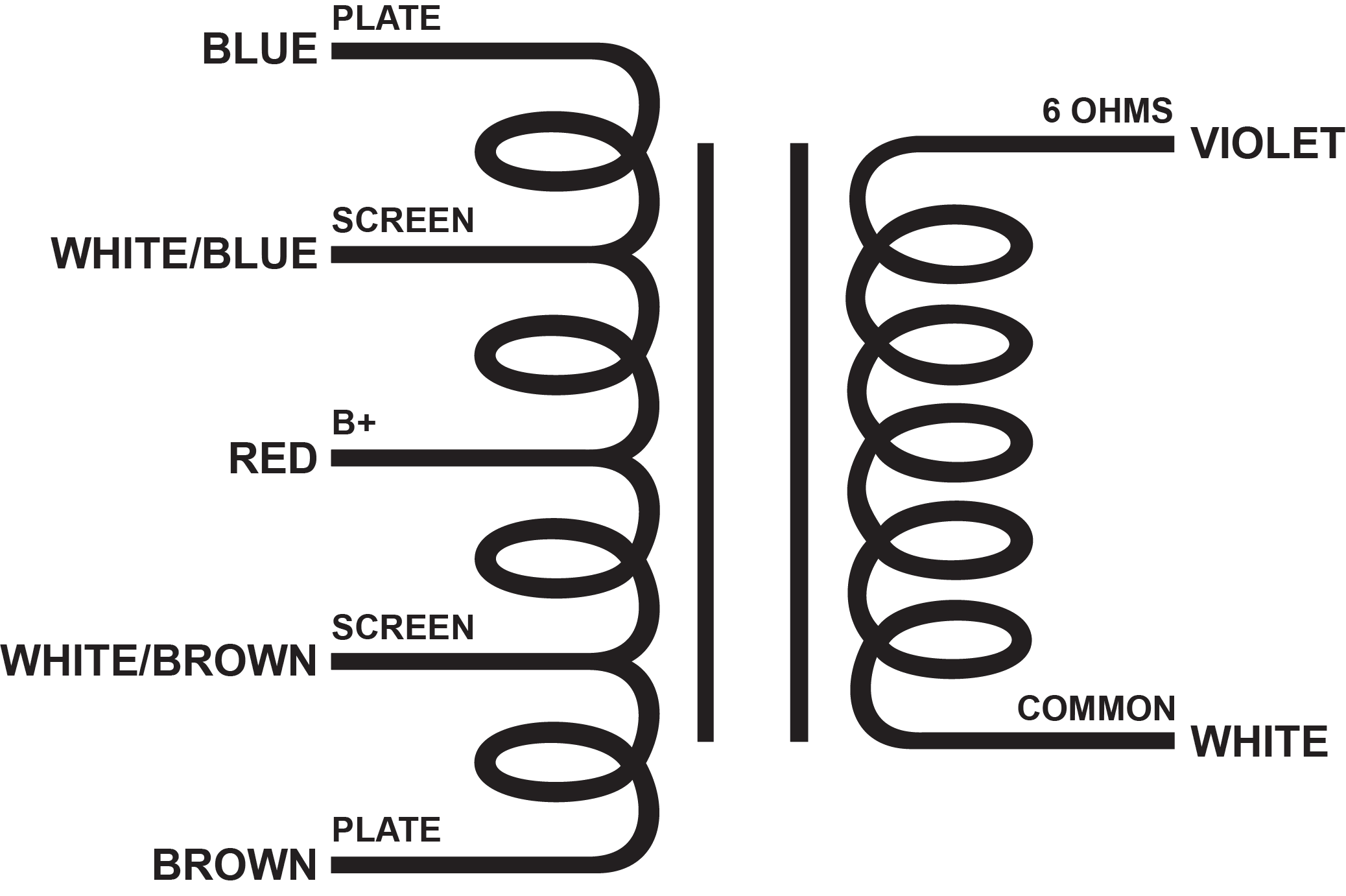

Screen/Grid Tap
This unit has a 40% screen/grid tap.

Secondary (Output)
The output impedance is designed for speakers.

Magnet Wire
All units are wound with the finest virgin copper magnet wire. All windings use heavy insulated wire to provide excellent manufacturing yield, lower customer cost and superior life.

The Core
EDCOR uses the finest M6 line grain oriented steel cores. Each unit is hand stacked to assure at least 92% stack.

The Bobbin
Injection molded Nylon 6/6 with the addition of 30%-35% glass fibers. The addition of glass fibers allows a higher heat deflection temperature and it brings the material to a class HB UL temperature classification.

Termination

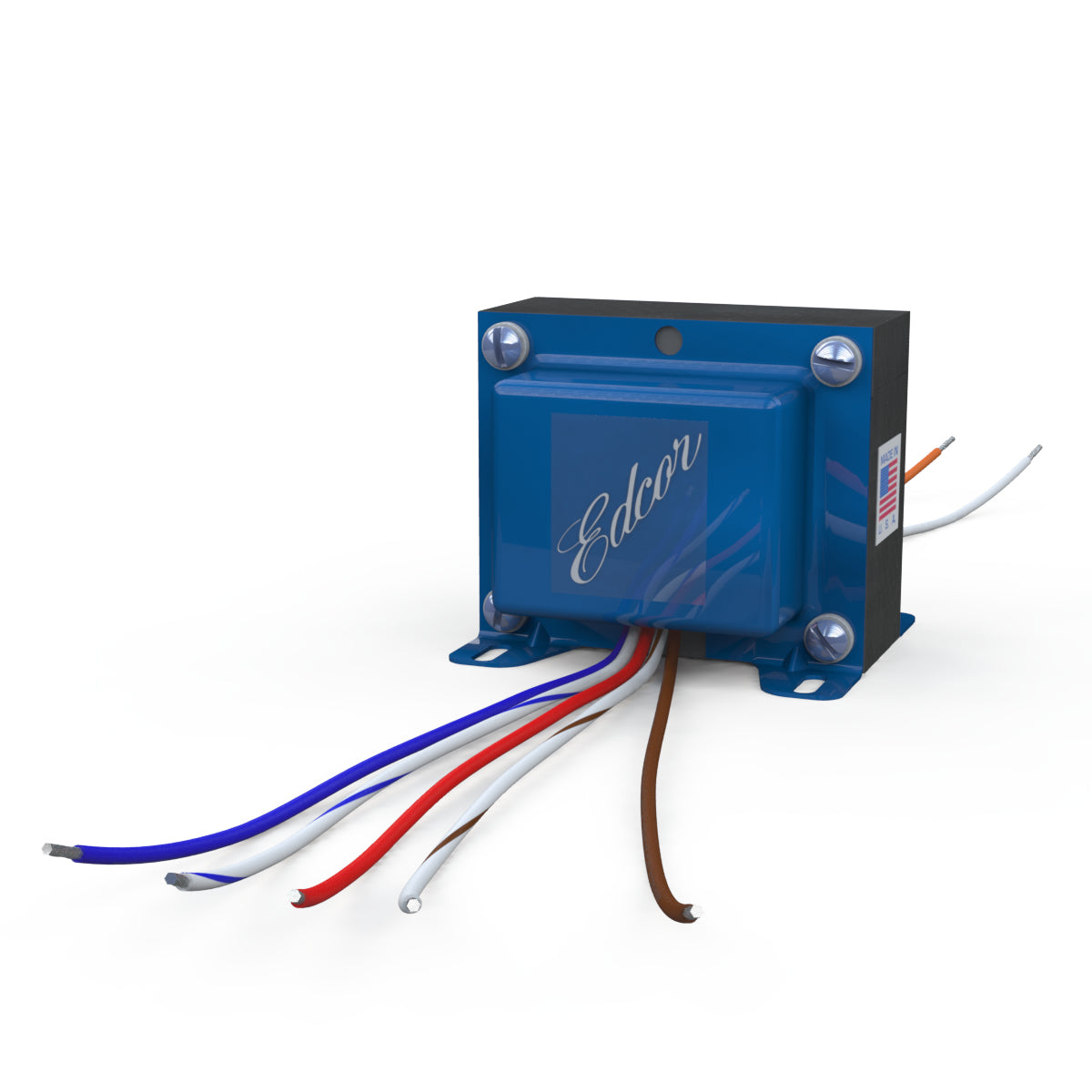

The terminations are UL1015 20 ga. color coded lead wire around 15 inches (38cm) long.

Mounting
This unit comes with steel end bells for mounting with the use of four screws. See dimensional drawing.

Specifications

Wattage 10W
Primary (input) Impedance 10K Ω
Screen/Grid Tap 40%
Secondary (output) Impedance Depends on model.
Winding Configuration Interleave Winding
Frequency Response 40~18K Hz., <1dBu
THD+Noise <0.1% @ 1K Hz.
Insertion Loss <1 dB
Bobbin Material Nylon 6/6 GF-30
Flammability Rating Class HB
Coil Finish Wrapping Polyester Film Electrical Insulating Tape
Core Size
EI87 (0.875" x 1")
Core Material M-6 29 ga. grain oriented lamination steel
Secondary Insulation Clear air dry polyester varnish
Termination 15" (38cm) UL1015, 20 ga. lead wire
Mounting Steel end bell covers
Mounting Orientation Horizontal
Weight 1.75 lbs.
Compliance RoHS & REACH
Dimensional Drawing 15000-EI087-100-HX
