These audio matchers use high quality low noise components to deliver broadcast and recording quality sound. Mathematically designed and tri-filar wound to produce a turns ratio of 1:1:1 for line level signals.
Primary (Input)/Secondary (Output)

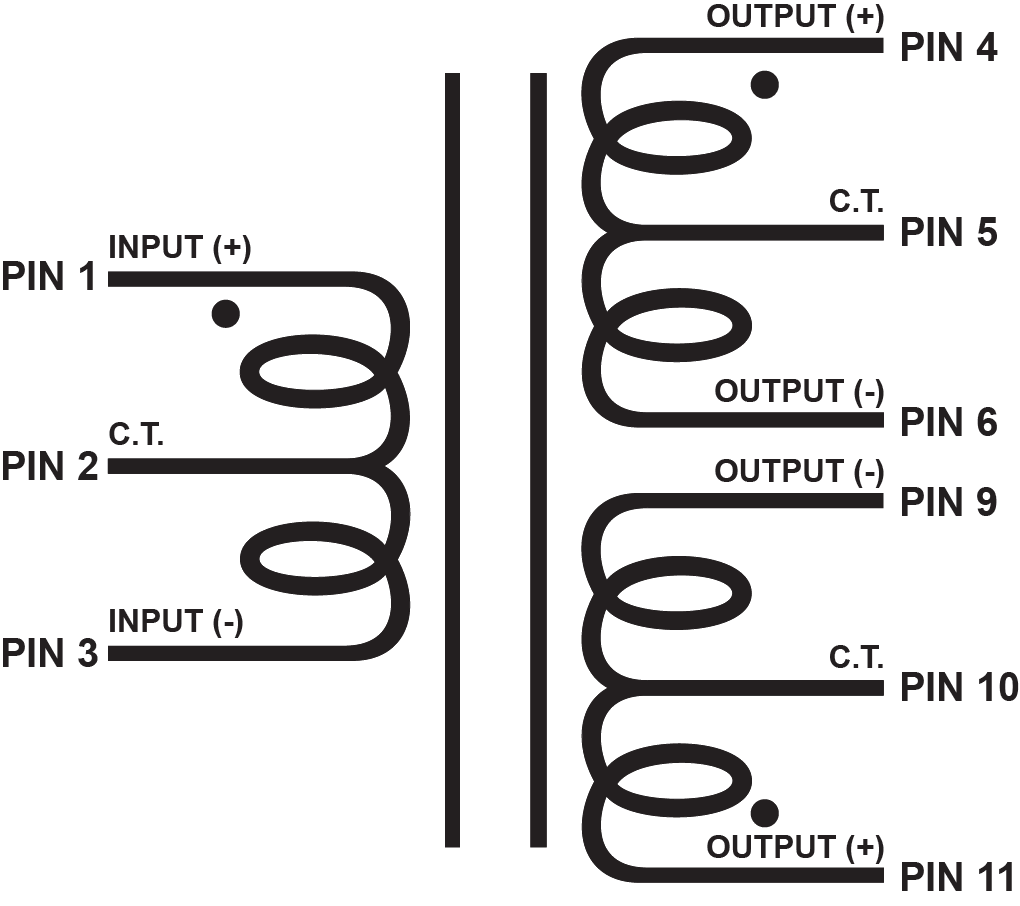

The transformer has three identical windings.
All units are wound with the finest virgin copper magnet wire. All windings use heavy insulated wire to provide excellent manufacturing yield, lower customer cost and superior life.

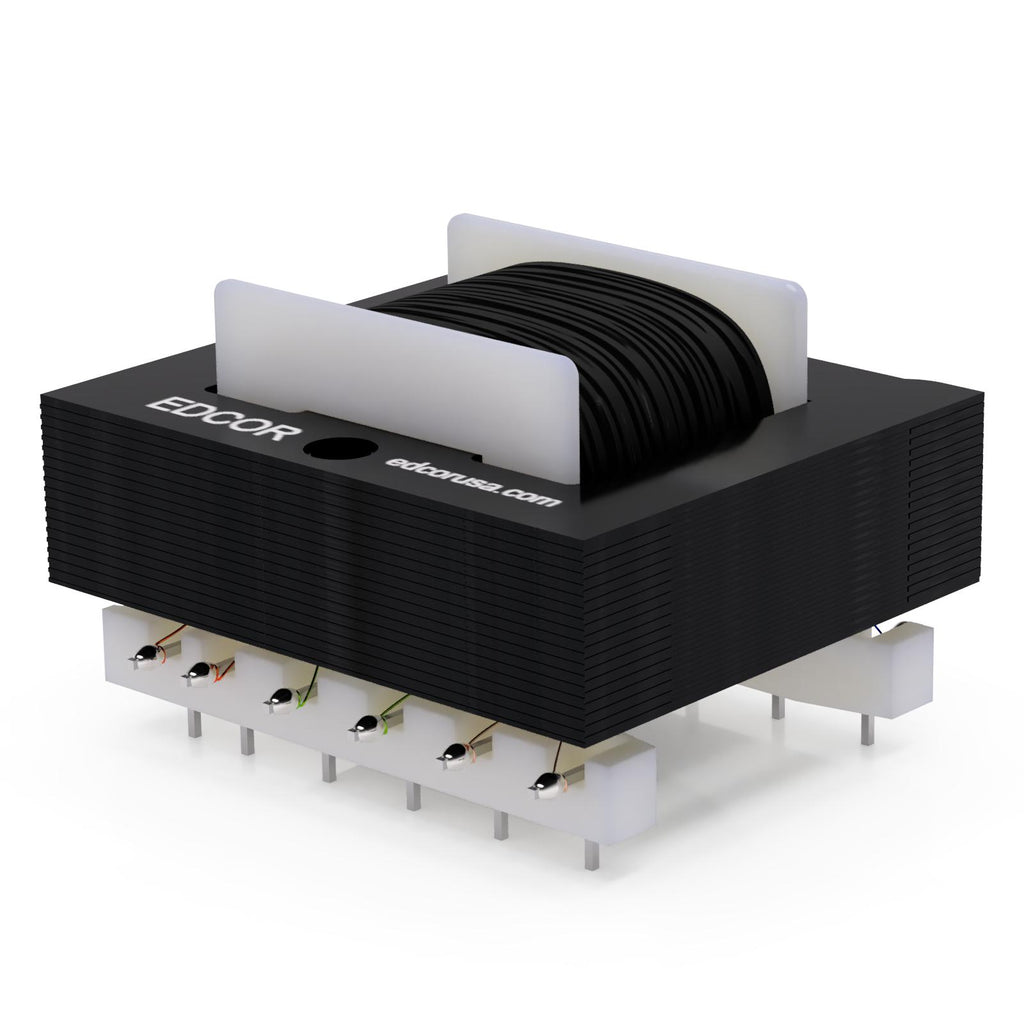

EDCOR uses the finest M6 line grain oriented steel cores. Each unit is hand stacked to assure at least 92% stack.
Injection molded Nylon 6/6 with the addition of 30%-35% glass fibers. The addition of glass fibers allows a higher heat deflection temperature and it brings the material to a class HB UL temperature classification.
This unit is designed for mounting on a printed circuit board. For footprint and suggested hole and pad size, see dimensional drawing.
|Input Maximum Voltage||20Vrms|
|Input||Balanced or Unbalanced
|Primary (input) Impedance||Depends on model.|
|Output||Balanced or Unbalanced
|Secondary (output) Impedance||Depends on model.|
|Turns Ratio||Depends on model.|
|Winding Configuration||Tri-Filar Winding|
|Frequency Response||20~20K Hz., <1dBu|
|THD+Noise||<0.05% @ 1K Hz.|
|Frequency Response/THD+Noise Plot||PCW150/150/150|
|Insertion Loss||<0.5 dB|
|Bobbin Material||Nylon 6/6 GF-30|
|Flammability Rating||Class HB|
|Coil Finish Wrapping||Polyester Film Electrical Insulating Tape|
||EI63 (0.625" x 0.5")|
|Core Material||M-6 29 ga. grain oriented lamination steel|
|Secondary Insulation||Clear air dry polyester varnish|
|Termination||12 pin PCB|
||Printed circuit board (PCB)|
|Compliance||RoHS & REACH|
|3D Model (STEP)
