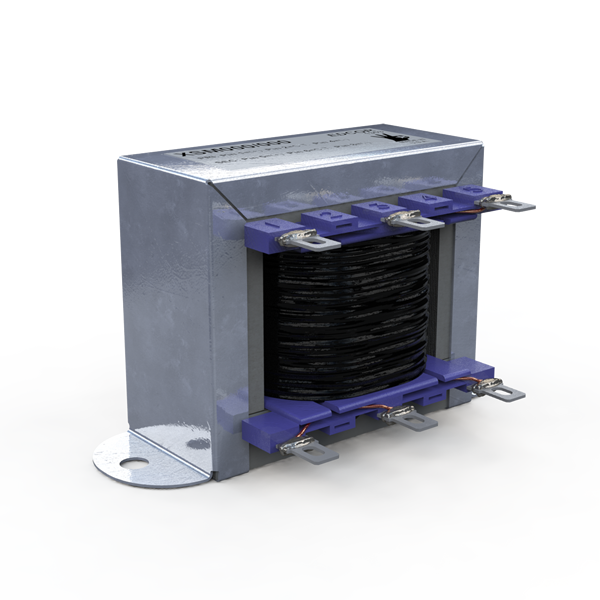

WSM7030 - 30W voltage distribution matching transformer.
loading..
| Quantity Discounts | ||||
|---|---|---|---|---|
| 10 pcs | 25 pcs | 100 pcs | 500+ pcs | |
| 5% off | 10% off | 15% off | 20% off | |
| Orders over 25 pcs may take longer. Please contact us for scheduling and dates. | ||||
Get shipping cost estimate in cart.
Design
The WSM7000 series audio distribution transformers are designed to match 25V or 70V to 25V or 70V speaker distribution systems.
Primary (Input)
The input is designed for a 25V or 70V speaker distribution line.
Secondary (Output)
The output is designed for a 25V or 70V speaker distribution line.
Magnet Wire
All units are wound with the finest virgin copper magnet wire. All windings use heavy insulated wire to provide excellent manufacturing yield, lower customer cost and superior life.
The Core
EDCOR uses the finest M6 line grain oriented steel cores. Each unit is hand stacked to assure at least 92% stack.
The Bobbin
Injection molded Nylon 6/6 with the addition of 30%-35% glass fibers. The addition of glass fibers allows a higher heat deflection temperature and it brings the material to a class HB UL temperature classification.
Termination
The terminations are 0.187" (3/16") spade terminals. These terminals can be connected with 0.187" (3/16") quick disconnects or can be soldered to.
Mounting
This unit comes with steel zinc plated channel/frame for mounting with the use of two screws. See dimensional drawing.
Specifications
| Wattage | 30W |
| Primary (input) Distribution Voltage | 25V & 70V |
| Secondary (output) Distribution Voltage | 25V & 70V |

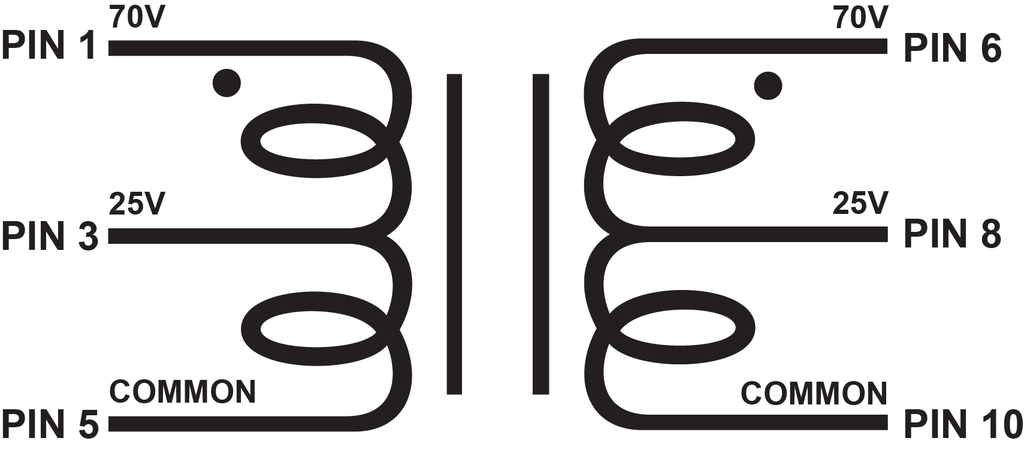

| Winding Configuration | Interleave Winding |
| Frequency Response | 50~15K Hz., <1dBu |
| THD+Noise | <0.1% @ 1K Hz. |
| Insertion Loss | <1 dB |
| Bobbin Material | Nylon 6/6 GF-30 |
| Flammability Rating | Class HB |
| Coil Finish Wrapping | Polyester Film Electrical Insulating Tape |
| Core Size |
EI75 (0.75" x 1") |
| Core Material | M-6 29 ga. grain oriented lamination steel |
| Secondary Insulation | Clear air dry polyester varnish |
| Termination | 0.187" (3/16") quick disconnects spade terminals |
| Mounting | Zinc plated channel/frame |
| Mounting Orientation | Horizontal |
| Weight | 1.2 lbs. |
| Compliance | RoHS & REACH |
| Dimensional Drawing | 15000-EI075-100-18 |
