EDCOR Custom

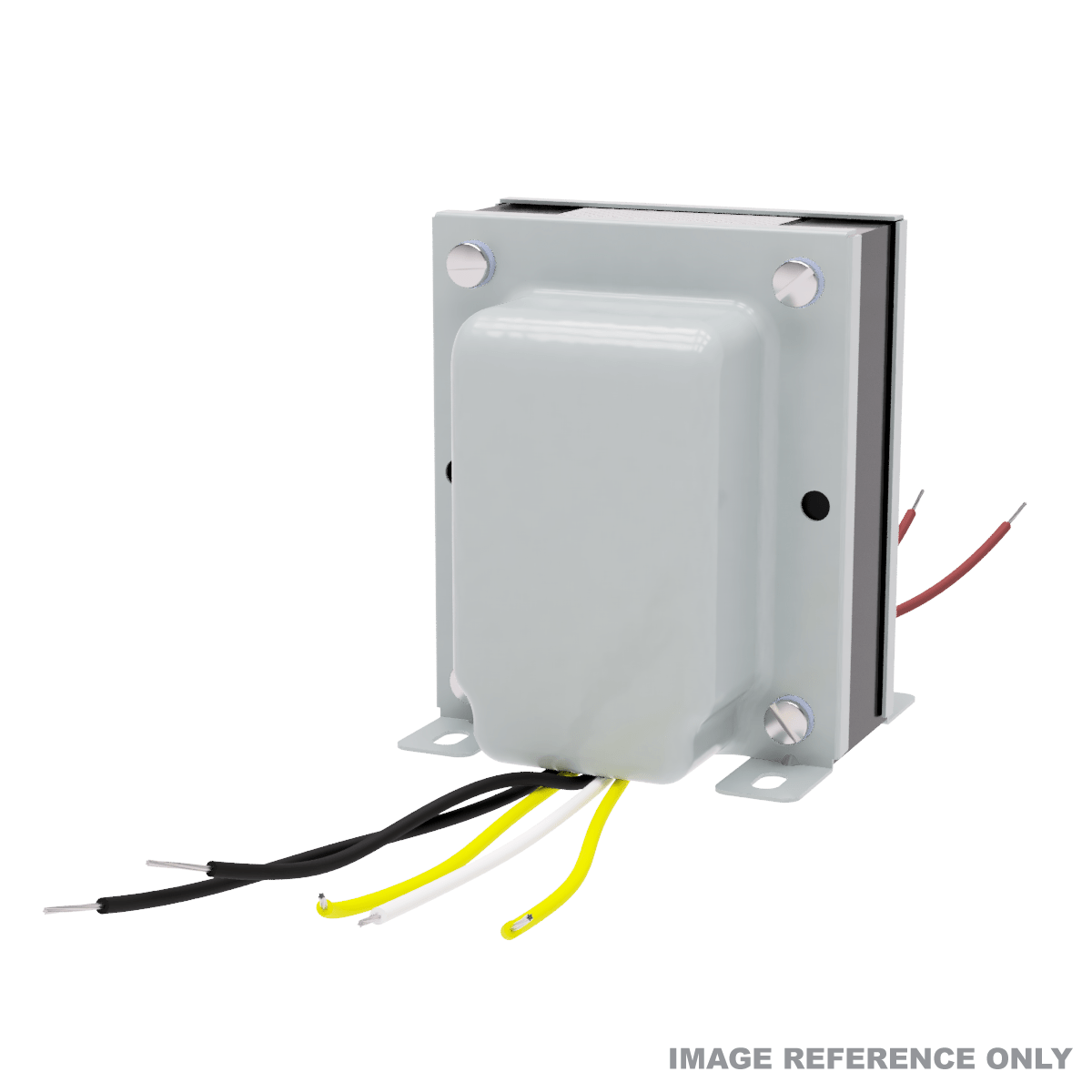

XPWR014-120/240cs - 600V@75mA CT, 6.3V@3A CT, & 5V@2A.
Quantity:
| Quantity Discounts | ||||
|---|---|---|---|---|
| 10 pcs | 25 pcs | 100 pcs | 500+ pcs | |
| 5% off | 10% off | 15% off | 20% off | |
| Orders over 25 pcs may take longer. Please contact us for scheduling and dates. | ||||
Designed for: Retro Instruments, Inc.
| Basic Specifications | |
|---|---|
Series |
|
SKU Model Number/Unit Name
|
XPWR014-120/240cs
|
 SchematicFree Adobe Acrobat Reader can be downloaded at Adobe.com.
|
|
 Spec SheetFree Adobe Acrobat Reader can be downloaded at Adobe.com.
|
|
Primary Input
|
|
Secondary Output
|
|
Static Shielding Symbol: cs
Copper external shielding
|
|
Termination Such as lead wires, terminals, PCB pins, etc.
|
|
Mounting |
|
Mounting Orientation Direction of mounting.
|
|
Mounting Hardware Coating |
|
Mounting Hardware Color |
#acb4b2
|
| Primary (p) | |
Voltage Symbol: Ep
|
120V and 240V
|
Impedance Symbol: Zp
AC resistance
|
120V - 1.241H and 240V - 4.962H
|
Operational Frequency Symbol: ƒop
|
|
Current Symbol: Ip
Maximum primary current
|
120V - 0.647A and 240V - 0.323A
|
DC Resistance Symbol: Rp
|
120V - 3.171Ω and 240V - 12.701Ω
|
Inductance Symbol: Lp
|
120V - 1.241H and 240V - 4.962H
|
| Secondary | |
Tube Voltage Symbol: Es
|
600V
|
Other Voltage(s) Symbol: Es
|
6.3V and 5V
|
Unloaded Voltage(s) Symbol: NL(Es)
Calculated voltage when no loaded is applied to the secondary.
|
629.306V, 6.787V, and 5.244V
|
Current(s) Symbol: Is
Maximum secondary current(s)
|
0.075A, 3A, and 2A
|
DC Resistance Symbol: Rs
DC Resistance
|
160.898Ω, 0.076Ω, and 0.096Ω
|
Inductance (Ls) Calculated value. Actual value may vary.
|
120V - 1.241H and 240V - 4.962H
|
| Other Specifications | |
Total Volt Amperes Symbol: VA
|
|
Winding Configuration Type of winding pattern.
|
|
Leakage Inductance Symbol: LI
Imperfect magnetic link of one winding to another.
|
|
Temperature Rise Symbol: Tr
The temperature rise above the ambient temperature at rated power.
|
120V - 61.97°F (16.65°C) and 240V - 61.98°F (16.65°C)
|
Efficiency Symbol: η
The efficiency of the transfer of energy from the primary to the secondary.
|
|
| Physical | |
Weight Symbol: Wt
|
4.4 lb
|
Dimensions (Width) X (Height) X (Depth)
|
|
Dimensional Drawing (#) |
|
Dimension Drawing (PDF) Free Adobe Acrobat Reader can be downloaded at Adobe.com.
|
|
3D Model (STEP) STEP (Standard for the Exchange of Product Data), an ISO standard exchange format.
|
|
| Material | |
Bobbin Material |
|
Bobbin Flammability Rating |
|
Magnet Wire |
|
Coil Finish Wrapper |
|
Termination |
|
Core Material |
|
Core Material Size |
|
Core Stack Size |
|
Core Stack Type |
|
Secondary Insulation |
|
Dielectric Strength |
|
Temperature Range |
|
HIPOT Primary-Secondary |
|
| Compliance | |
RoHS Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment.
|
|
REACH Registration, Evaluation, Authorization and Restriction of Chemicals in EU.
|
|
CMRT RMI Conflict Metals Reporting Template
|
|
GPSR The General Product Safety Regulation (GPSR) is a legislative framework established by the European Union.
|
|
| Other | |
Country of Origin Where the product was manufactured or assembled.
|
|
Harmonized System (HS) Code Standardized numerical system classifying traded products.
|
|
Please note that some specification values are calculation and may vary from the actual values
⚠ WARNING ⚠
These electronic components are designed exclusively for indoor or enclosed environments. It is crucial to keep them away from water and moisture to prevent damage. Transformers can generate hazardous voltages and currents, so technical electrical expertise is essential for safe use.
