EDCOR Electronics Corporation
XPWR031 - 540V@500mA CT, 60V@50mA, 12.6V@2.5A, & 12.6V@2.5A CT
Quantity:
| Quantity Discounts | ||||
|---|---|---|---|---|
| 10 pcs | 25 pcs | 100 pcs | 500+ pcs | |
| 5% off | 10% off | 15% off | 20% off | |
| Orders over 25 pcs may take longer. Please contact us for scheduling and dates. | ||||
Get shipping cost estimate in cart.
| Specifications | |
|---|---|
Series |
|
Model (SKU) Part/Model Number
|
XPWR031-120/240
|
Primary |
|
Secondary |
|
Total Volt Amperes |
|
Termination |
|
Mounting |
|
Mounting Orientation |
|
End Bell Color |
|

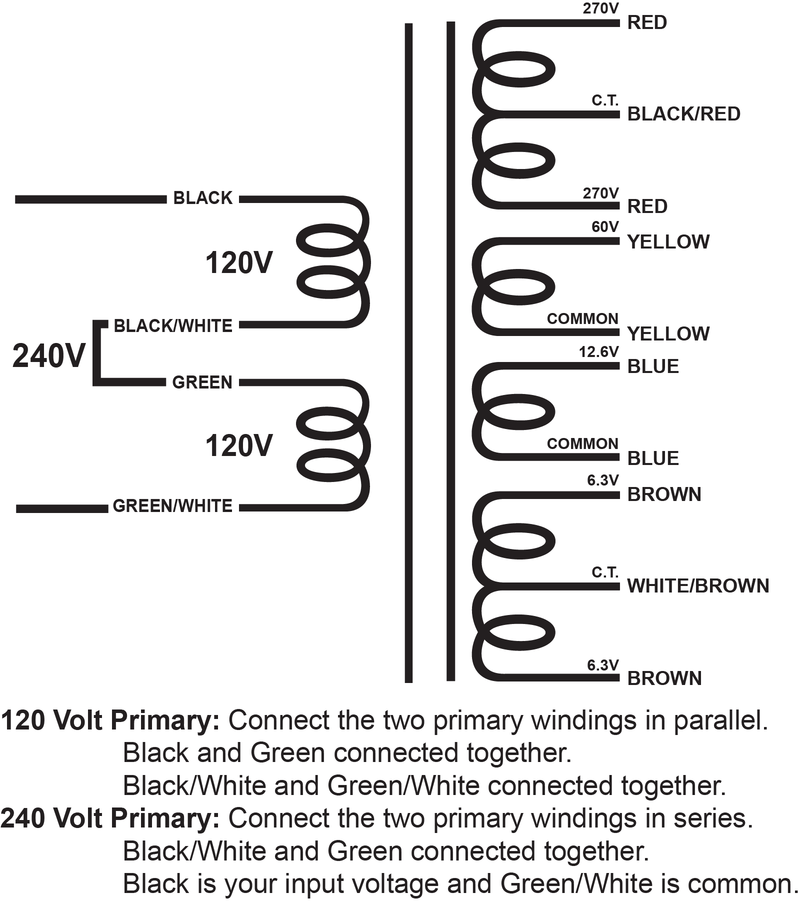

Winding Configuration |
|
Leakage Inductance Calculated value. Actual value may very.
|
|
Temperature Rise Calculated value. Actual value may very.
|
120V - 75.16°F (23.98°C) and 240V - 90.36°F (32.42°C)
|
| Primary | |
Voltage |
120V and 240V
|
Operational Frequency |
|
Current Maximum current.
|
120V - 2.938A and 240V - 1.469A
|
DC Resistance Calculated value. Actual value may very.
|
120V - 0.797Ω and 240V - 3.19Ω
|
Inductance Calculated value. Actual value may very.
|
120V - 0.273H and 240V - 1.092H
|
| Secondary | |
Tube Voltage |
540V
|
Other Voltage(s) |
60V, 12.6V, and 12.6V
|
Bias Voltage Voltage tapped off of the tube voltage.
|
60V
|
Unloaded Voltage(s) Calculated voltage when no loaded is applied to the secondary. Actual value may very.
|
567.407V,, 62.963V, 13.333V, and 13.333V
|
Current Maximum current for each secondary.
|
0.5A, 0.05A, 2.5A, and 2.5A
|
DC Resistance Calculated value. Actual value may very.
|
21.825Ω, 19.684Ω, 0.093Ω, and 0.095Ω
|
Inductance Calculated value. Actual value may very.
|
120V - 0.273H and 240V - 1.092H
|
| Physical | |
Weight |
11.5 lb
|
Dimensions (Width) X (Height) X (Depth)
|
|
Dimensional Drawing (#) |
|
Dimension Drawing (PDF) Free Adobe Acrobat Reader can be downloaded at Adobe.com.
|
|
3D Model (STEP) |
|
| Material | |
Bobbin Material |
|
Bobbin Flammability Rating |
|
Magnet Wire |
|
Coil Finish Wrapper |
|
Termination |
|
Core Material |
|
Core Material Size |
|
Core Stack Size |
|
Core Stack Type |
|
Secondary Insulation |
|
Dielectric Strength |
|
Temperature Range |
|
HIPOT Primary-Secondary |
|
| Compliance | |
RoHS Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment.
|
|
REACH Registration, Evaluation, Authorization and Restriction of Chemicals in EU.
|
|
CMRT RMI Conflict Metals Reporting Template
|
|
