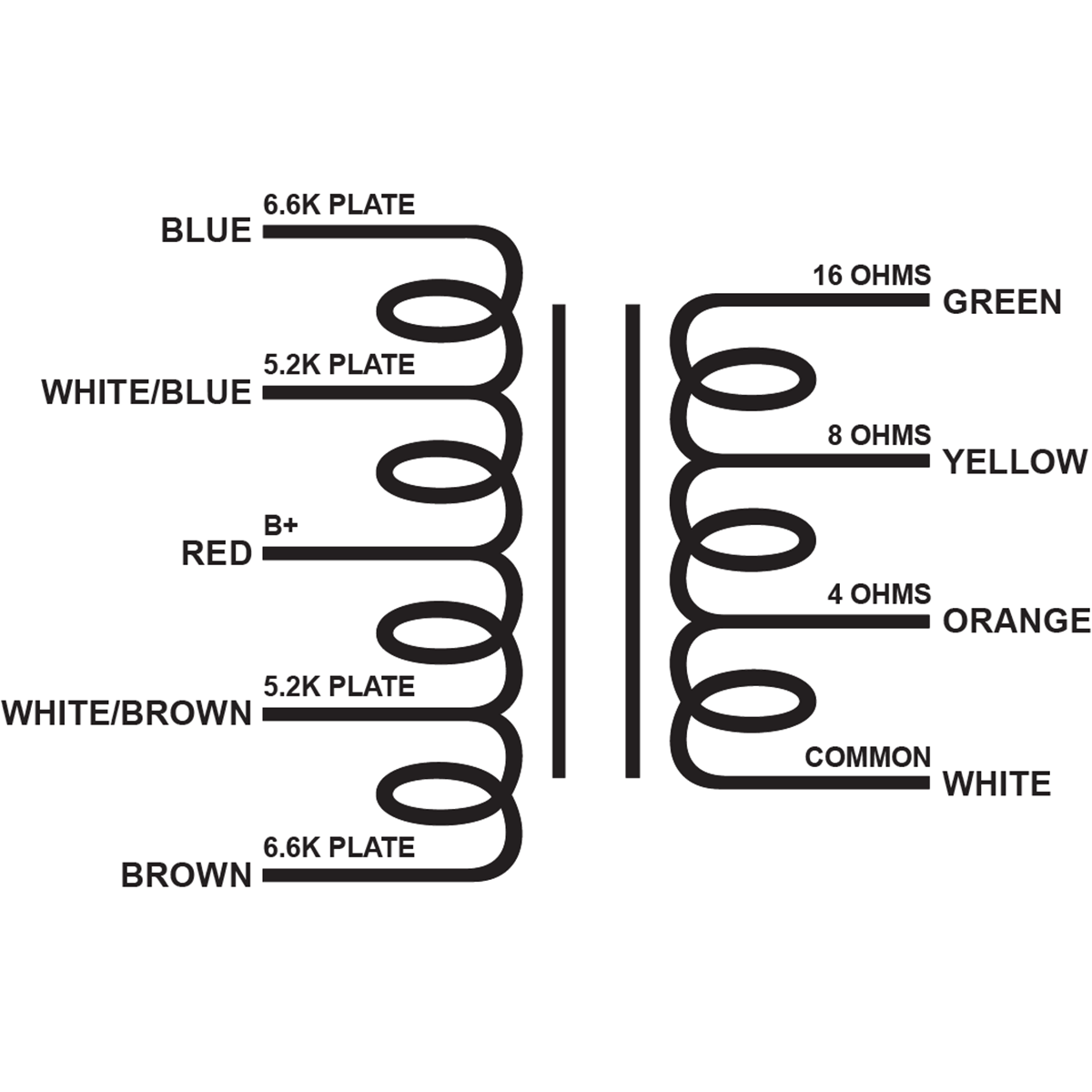

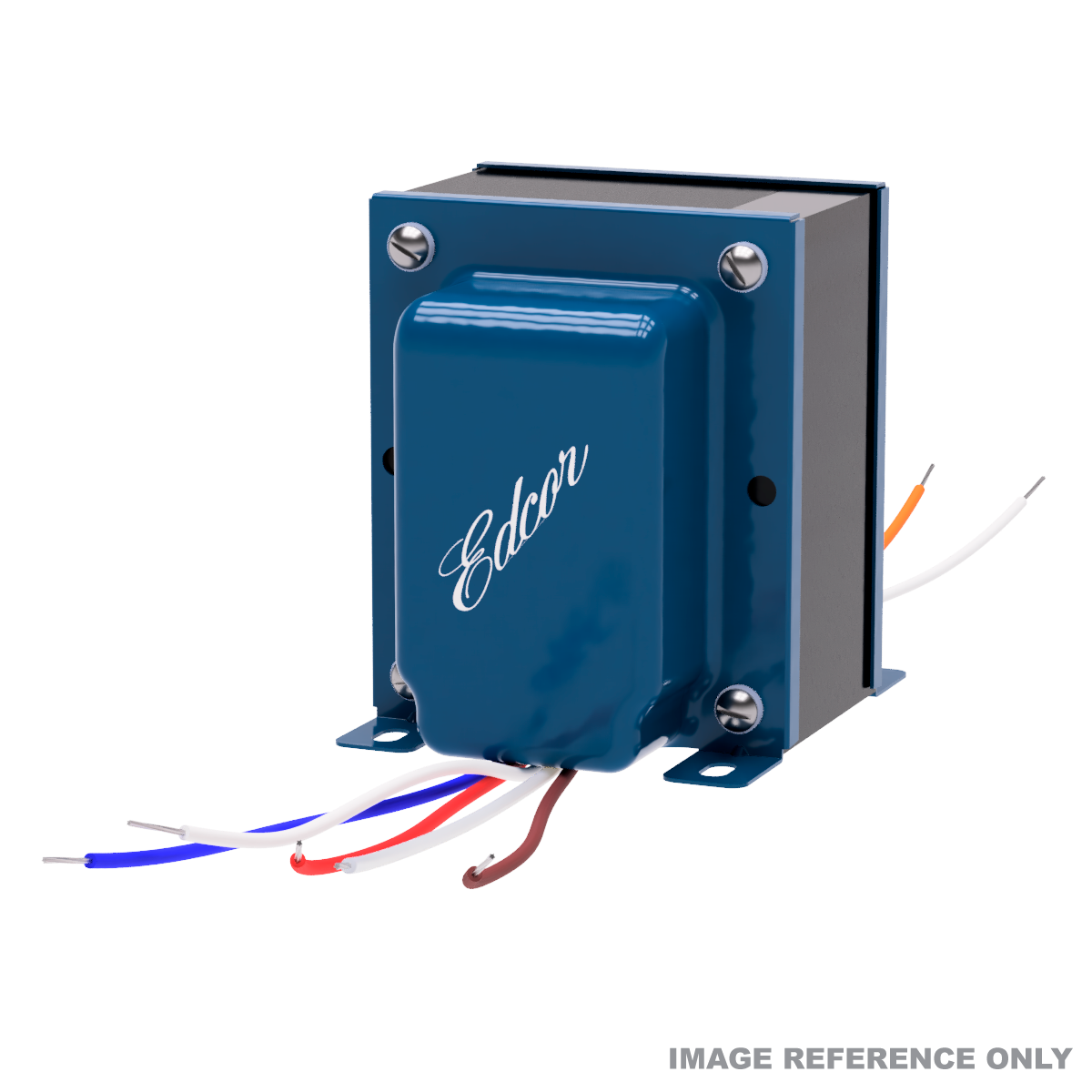

CXPP50-5.2K/6.6K - 50W, 5.2K & 6.6K Ohms (No Grid Taps) push-pull tube output transformer.
Quantity:
| Quantity Discounts | ||||
|---|---|---|---|---|
| 10 pcs | 25 pcs | 100 pcs | 500+ pcs | |
| 5% off | 10% off | 15% off | 20% off | |
| Orders over 25 pcs may take longer. Please contact us for scheduling and dates. | ||||
Get shipping cost estimate in cart.
| Basic Specifications | |
|---|---|
Series |
|
SKU Model Number/Unit Name
|
CXPP50-MS-5.2K/6.6K
|
Wattage Symbol: (P)
Total power
|
|
Primary Input
|
|
Secondary Output
|
|
Termination Such as lead wires, terminals, PCB pins, etc.
|
|
Mounting |
|
Mounting Orientation Direction of mounting.
|
|
Mounting Hardware Coating |
|
| Primary (p) | |
Voltage Symbol: Ep
|
574.456V and 509.902V
|
Impedance Symbol: Zp
AC resistance
|
105.042H and 82.761H
|
Grid/Screen Tap Ultra Leaner Tap
|
None
|
Current Symbol: Ip
Maximum primary current
|
0.087A and 0.098A
|
DC Resistance Symbol: Rp
|
299.373Ω and 265.317Ω
|
Inductance Symbol: Lp
|
105.042H and 82.761H
|
| Secondary | |
Other Voltage(s) Symbol: Es
|
28.284V, 20V, and 14.142V
|
Impedance Symbol: Zs
AC Resistance
|
4Ω, 8Ω, and 16Ω
|
Current(s) Symbol: Is
Maximum secondary current(s)
|
1.768A, 2.5A, and 3.536A
|
DC Resistance Symbol: Rs
DC Resistance
|
0.67Ω, 0.311Ω, and 0.188Ω
|
Inductance (Ls) Calculated value. Actual value may vary.
|
105.042H and 82.761H
|
| Other Specifications | |
Total Volt Amperes Symbol: VA
|
|
Frequency Response Symbol: ƒ
Magnitude of difference between the rated Low Frequency (ƒlo) and the High Frequency (ƒhi).
|
|
THD+Noise Threshold Distortion add to the noise. Measured "A" weighted.
|
|
Winding Configuration Type of winding pattern.
|
|
Leakage Inductance Symbol: LI
Imperfect magnetic link of one winding to another.
|
|
Temperature Rise Symbol: Tr
The temperature rise above the ambient temperature at rated power.
|
65.77°F (18.76°C)
|
Efficiency Symbol: η
The efficiency of the transfer of energy from the primary to the secondary.
|
|
| Physical | |
Weight Symbol: Wt
|
6.2 lb
|
Dimensions (Width) X (Height) X (Depth)
|
|
Dimensional Drawing (#) |
|
Dimension Drawing (PDF) Free Adobe Acrobat Reader can be downloaded at Adobe.com.
|
|
3D Model (STEP) STEP (Standard for the Exchange of Product Data), an ISO standard exchange format.
|
|
| Material | |
Bobbin Material |
|
Bobbin Flammability Rating |
|
Magnet Wire |
|
Coil Finish Wrapper |
|
Termination |
|
Core Material |
|
Core Material Size |
|
Core Stack Size |
|
Core Stack Type |
|
Secondary Insulation |
|
Dielectric Strength |
|
Temperature Range |
|
HIPOT Primary-Secondary |
|
| Compliance | |
RoHS Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment.
|
|
REACH Registration, Evaluation, Authorization and Restriction of Chemicals in EU.
|
|
CMRT RMI Conflict Metals Reporting Template
|
|
*Some specification values care calculated, and actual values may vary.*
