EDCOR Electronics Corporation

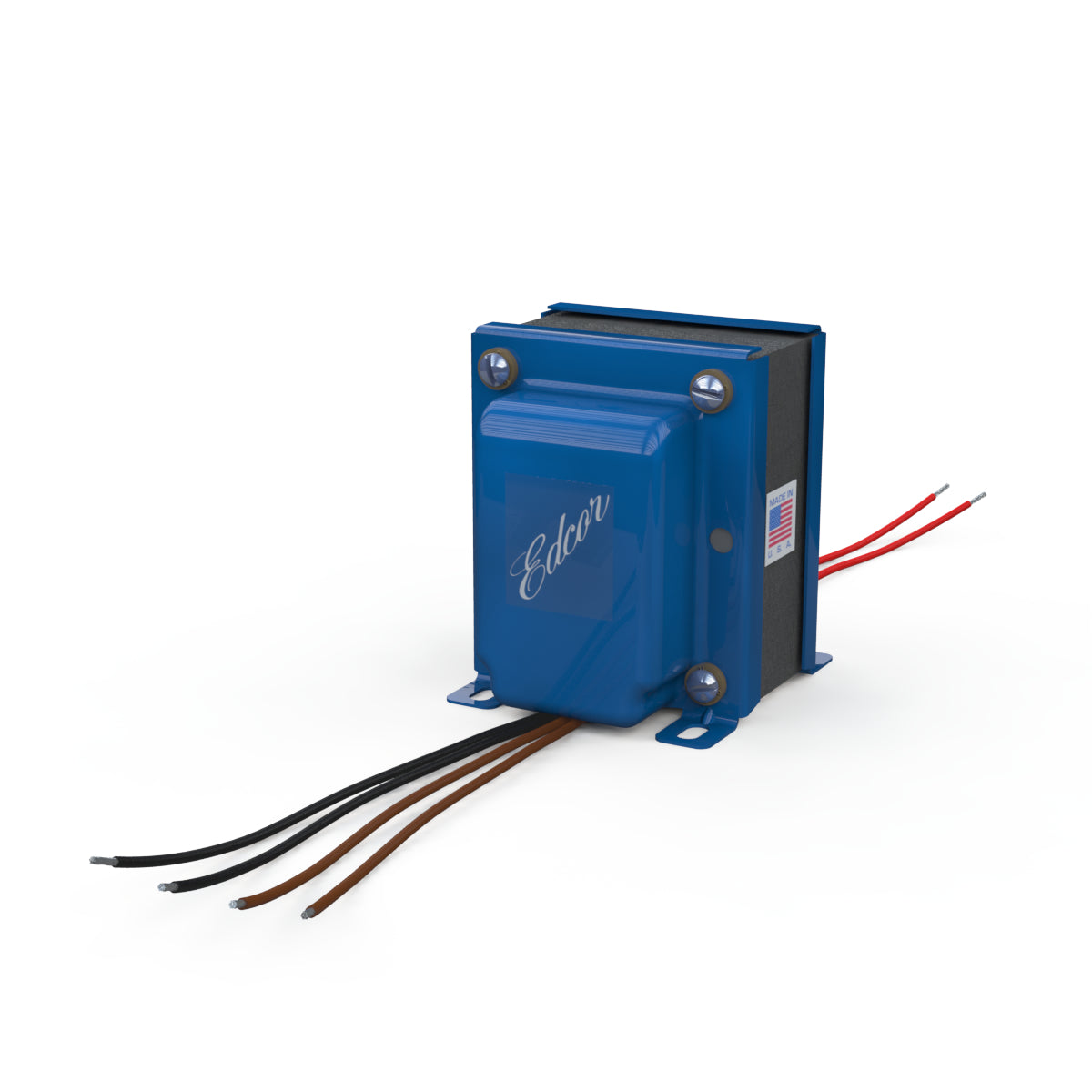

XPWR152 - 225V@200mA & 6.3V@3.5A
Quantity:
| Quantity Discounts | ||||
|---|---|---|---|---|
| 10 pcs | 25 pcs | 100 pcs | 500+ pcs | |
| 5% off | 10% off | 15% off | 20% off | |
| Orders over 25 pcs may take longer. Please contact us for scheduling and dates. | ||||
Get shipping cost estimate in cart.
| Specifications | |
|---|---|
Series |
|
Model (SKU) Part/Model Number
|
XPWR152-120
|
Primary |
|
Secondary |
|
Total Volt Amperes |
|
Termination |
|
Mounting |
|
Mounting Orientation |
|
End Bell Color |
|
Winding Configuration |
|
Leakage Inductance Calculated value. Actual value may very.
|
|
Temperature Rise Calculated value. Actual value may very.
|
83.48°F (28.6°C)
|
| Primary | |
Voltage |
120V
|
Operational Frequency |
|
Current Maximum current.
|
0.587A
|
DC Resistance Calculated value. Actual value may very.
|
5.901Ω
|
Inductance Calculated value. Actual value may very.
|
1.139H
|
| Secondary | |
Tube Voltage |
225V
|
Other Voltage(s) |
6.3V
|
Unloaded Voltage(s) Calculated voltage when no loaded is applied to the secondary. Actual value may very.
|
235.784V and 6.486V
|
Current Maximum current for each secondary.
|
0.2A and 3.5A
|
DC Resistance Calculated value. Actual value may very.
|
32.49Ω and 0.052Ω
|
Inductance Calculated value. Actual value may very.
|
1.139H
|
| Physical | |
Weight |
4.5 lb
|
Dimensions (Width) X (Height) X (Depth)
|
|
Dimensional Drawing (#) |
|
Dimension Drawing (PDF) Free Adobe Acrobat Reader can be downloaded at Adobe.com.
|
|
| Material | |
Bobbin Material |
|
Bobbin Flammability Rating |
|
Magnet Wire |
|
Coil Finish Wrapper |
|
Termination |
|
Core Material |
|
Core Material Size |
|
Core Stack Size |
|
Core Stack Type |
|
Secondary Insulation |
|
Dielectric Strength |
|
Temperature Range |
|
HIPOT Primary-Secondary |
|
| Compliance | |
RoHS Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment.
|
|
REACH Registration, Evaluation, Authorization and Restriction of Chemicals in EU.
|
|
CMRT RMI Conflict Metals Reporting Template
|
|
