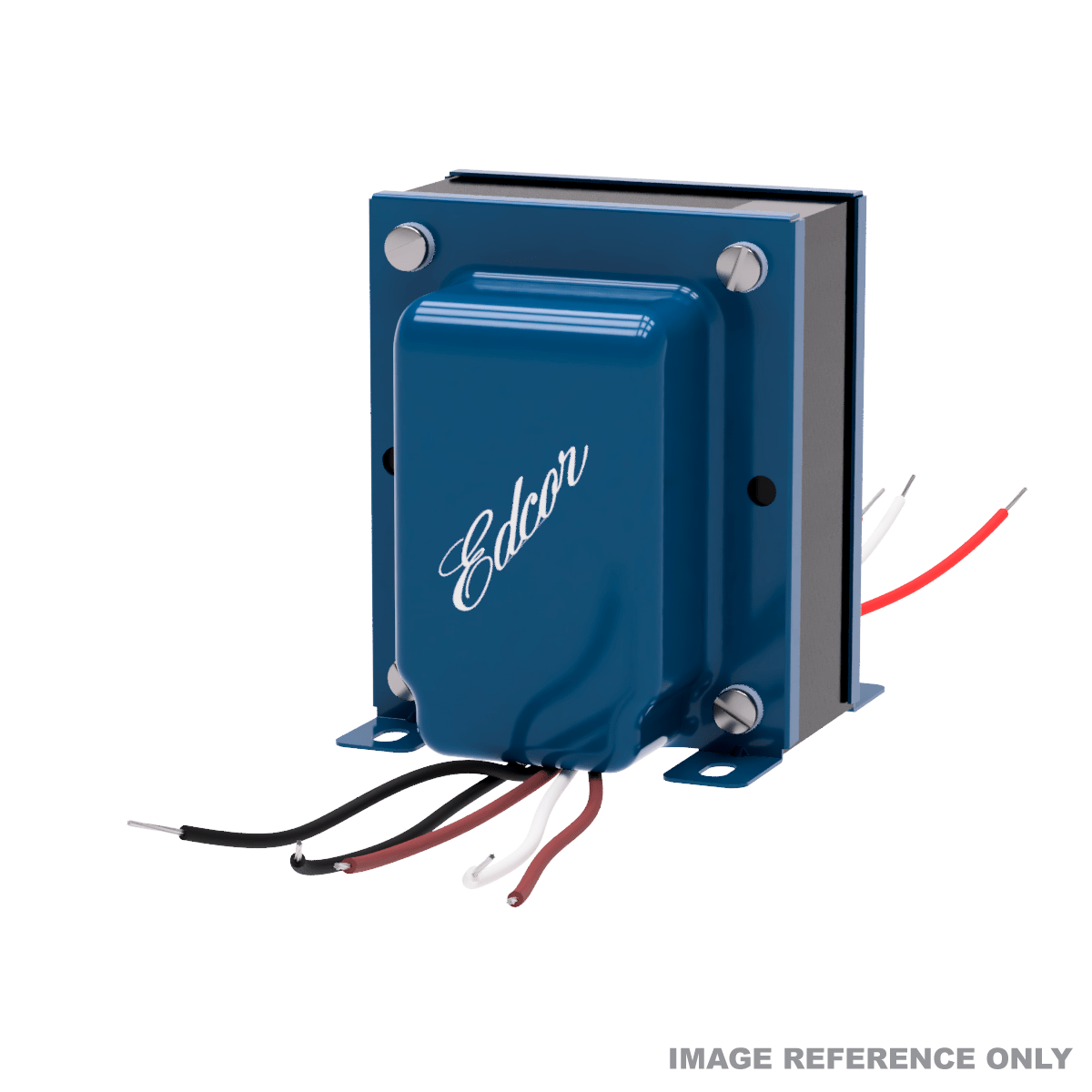

XPWR309 - 600V (300-0-300)@150mA, 6.3V(3.15-0-3.15)@3A, 5V@3A, & 5V@3A
Primary Voltage:
Primary Voltage
Stock:
loading..
loading..
Quantity:
| Quantity Discounts | ||||
|---|---|---|---|---|
| 10 pcs | 25 pcs | 100 pcs | 500+ pcs | |
| 5% off | 10% off | 15% off | 20% off | |
| Orders over 25 pcs may take longer. Please contact us for scheduling and dates. | ||||
Get shipping cost estimate in cart.
| Specifications | |
|---|---|
Series |
|
Model (SKU) Part/Model Number
|
XPWR309-100
|
Primary |
|
Secondary |
|
Total Volt Amperes |
|
Termination |
|
Mounting |
|
Mounting Orientation |
|
End Bell Color |
|
Winding Configuration |
|
Leakage Inductance Calculated value. Actual value may very.
|
|
Temperature Rise Calculated value. Actual value may very.
|
89.87°F (32.15°C)
|
| Primary | |
Voltage |
100V
|
Operational Frequency |
|
Current Maximum current.
|
1.493A
|
DC Resistance Calculated value. Actual value may very.
|
1.77Ω
|
Inductance Calculated value. Actual value may very.
|
0.458H
|
| Secondary | |
Tube Voltage |
600V
|
Other Voltage(s) |
6.3V, 5V, and 5V
|
Unloaded Voltage(s) Calculated voltage when no loaded is applied to the secondary. Actual value may very.
|
645.059V, 6.719V, 5.534V, and 5.534V
|
Current Maximum current for each secondary.
|
0.15A, 3A, 3A, and 3A
|
DC Resistance Calculated value. Actual value may very.
|
137.242Ω, 0.065Ω, 0.052Ω, and 0.051Ω
|
Inductance Calculated value. Actual value may very.
|
0.458H
|
| Physical | |
Weight |
5.0 lb
|
Dimensions (Width) X (Height) X (Depth)
|
|
Dimensional Drawing (#) |
|
Dimension Drawing (PDF) Free Adobe Acrobat Reader can be downloaded at Adobe.com.
|
|
3D Model (STEP) |
|
| Material | |
Bobbin Material |
|
Bobbin Flammability Rating |
|
Magnet Wire |
|
Coil Finish Wrapper |
|
Termination |
|
Core Material |
|
Core Material Size |
|
Core Stack Size |
|
Core Stack Type |
|
Secondary Insulation |
|
Dielectric Strength |
|
Temperature Range |
|
HIPOT Primary-Secondary |
|
| Compliance | |
RoHS Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment.
|
|
REACH Registration, Evaluation, Authorization and Restriction of Chemicals in EU.
|
|
CMRT RMI Conflict Metals Reporting Template
|
|
