PC Series

Previous productUMM Series

Next productPCW Series

1/4W balanced or unbalanced to balanced or unbalanced line level matching transformer.

Availability: Product is built to order.

Ship date: 5 to 6 weeks

1 review(s) | Add your review

Transformer Impedance * The primary and secondary transformer impedance.

$11.02

Qty:

Design
Mathematically designed to match line level signals.

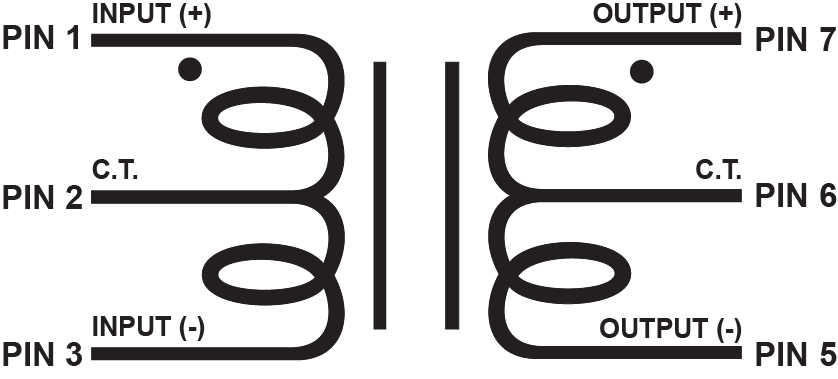

Primary (Input)
Designed for a balanced or unbalanced line level signal.

Secondary (Output)
Designed for a balanced or unbalanced line level signal.

Magnet Wire
All units are wound with the finest virgin copper magnet wire. All windings use heavy insulated wire to provide excellent manufacturing yield, lower customer cost and superior life.

The Core
EDCOR uses the finest M6 line grain oriented steel cores. Each unit is hand stacked to assure at least 92% stack.

The Bobbin
EDCOR's royal blue bobbin with black finishing tape.

Termination/Mounting
This unit is designed for printed circuit board mounting. For footprint and suggested hole and pad size please see the dimensional drawing.

Overview
Specifications
Reviews
Product Files

Design
Mathematically designed to match line level signals.

Primary (Input)
Designed for a balanced or unbalanced line level signal.

Secondary (Output)
Designed for a balanced or unbalanced line level signal.

Magnet Wire
All units are wound with the finest virgin copper magnet wire. All windings use heavy insulated wire to provide excellent manufacturing yield, lower customer cost and superior life.

The Core
EDCOR uses the finest M6 line grain oriented steel cores. Each unit is hand stacked to assure at least 92% stack.

The Bobbin
EDCOR's royal blue bobbin with black finishing tape.

Termination/Mounting
This unit is designed for printed circuit board mounting. For footprint and suggested hole and pad size please see the dimensional drawing.

Products specifications

Wattage	0.25W
Input Maximum Voltage	5Vrms
Turns Ratio	Depends on model.
Primary (input) Impedance	Depends on model.
Secondary (output) Impedance	Depends on model.
Frequency Response	20~20K Hz., <1dBu
THD+Noise	<0.05% @ 1K Hz.
Insertion Loss	0.5 dB
Bobbin Material	Nylon 6/6 GF-30
Flammability Rating	Class B 130°C
Core Material	M-6 29 ga. grain oriented lamination steel
Secondary Insulation (transformer)	Clear air dry polyester varnish
Termination	8 pin PCB
Mounting	Printed circuit board mounted (PCB)
Weight	0.2 lbs.
Compliance	RoHS & REACH

Write your own review

Only registered users can write reviews

Review title:

Review text:

Rating:

Bad
Excellent

Existing reviews

Useful in multiple projects from music to ham radio.

This worked in a club project where we used these for a PC adapter box to run new digital modes for QRP (low power, with a very narrow band width) to transmit messages over 2000 miles with less than 4 Watts of power. The other project utilized a multiplexer, and a delay to produce an octave up echo to reproduce the OLD country

From: Seth Burgin | Date: 11/14/2017 7:53 AM

Was this review helpful? Yes No (0/0)

Product Files

Dimensional Drawings

15000-EI050-025-P08.pdf

Frequency Response/THD+N

Products specifications

Wattage	0.25W
Input Maximum Voltage	5Vrms
Turns Ratio	Depends on model.
Primary (input) Impedance	Depends on model.
Secondary (output) Impedance	Depends on model.
Frequency Response	20~20K Hz., <1dBu
THD+Noise	<0.05% @ 1K Hz.
Insertion Loss	0.5 dB
Bobbin Material	Nylon 6/6 GF-30
Flammability Rating	Class B 130°C
Core Material	M-6 29 ga. grain oriented lamination steel
Secondary Insulation (transformer)	Clear air dry polyester varnish
Termination	8 pin PCB
Mounting	Printed circuit board mounted (PCB)
Weight	0.2 lbs.
Compliance	RoHS & REACH
