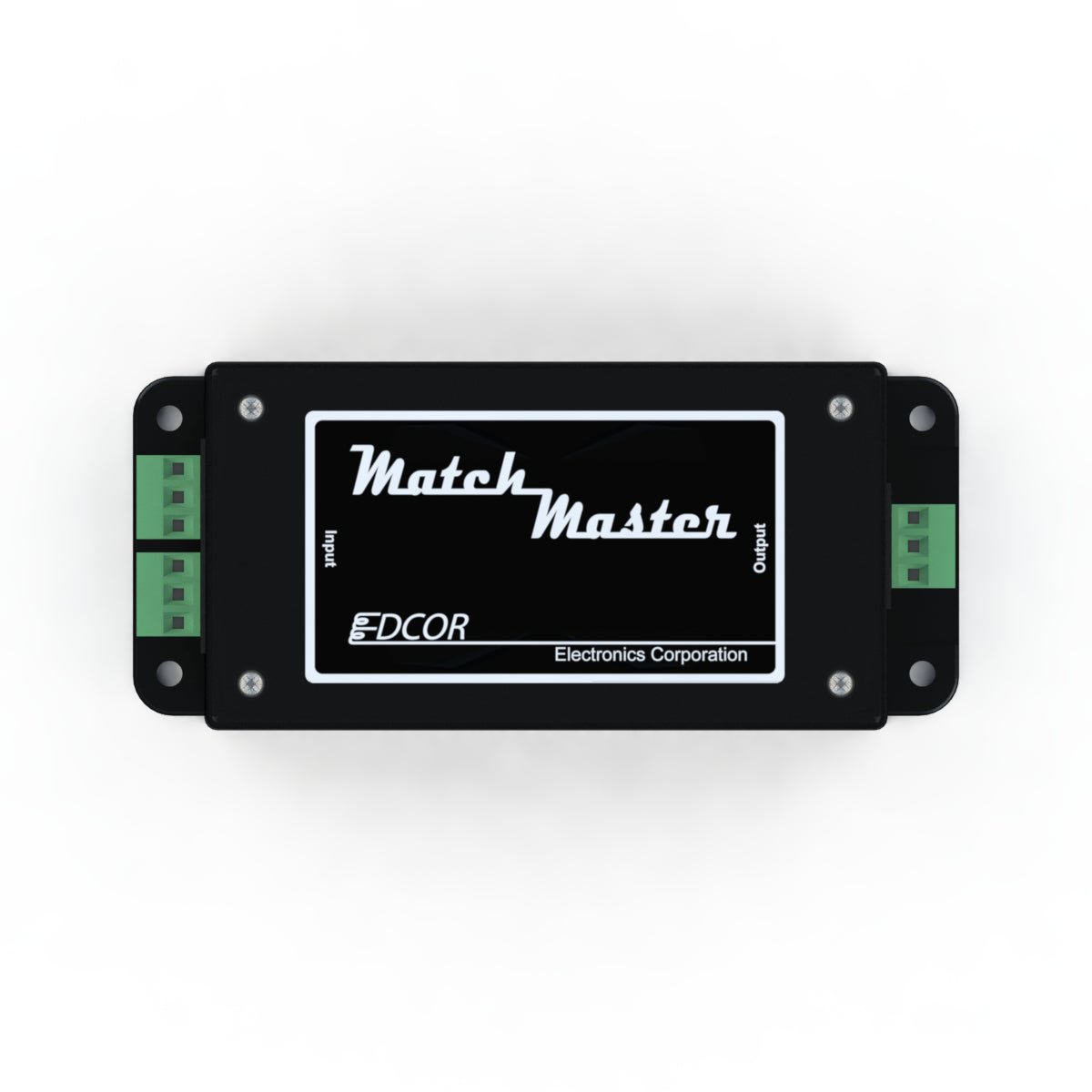

CB-LL-T - Balanced line level audio combiner.
CB-LL-T - Balanced line level audio combiner.

EDCOR Electronics Corporation

CB-LL-T - Balanced line level audio combiner.

Sale price$81.62 USD

Shipping calculated at checkout


Quantity Discounts
10 pcs 25 pcs 100 pcs 500+ pcs
5% off 10% off 15% off 20% off
Orders over 25 pcs may take longer. Please contact us for scheduling and dates.

Get shipping cost estimate in cart.

These audio combiners use high quality low noise components to deliver broadcast and recording quality sound.

Continuous Quality Sound
Each unit is a designed passive combiner that can be used to operate continuously without degradation of sound.

Dual Balanced Line Input
Each unit has two balanced 600 Ohms line level inputs. The connectors are 3 pin screw Eurostyle connector.

Balanced Line Output
This is a balanced 600 Ohms line level output. The connector is a 3 pin screw Eurostyle connector. This output is ideal for telephone lines. signal processors, amplifiers, or any other units that have a balanced line input.

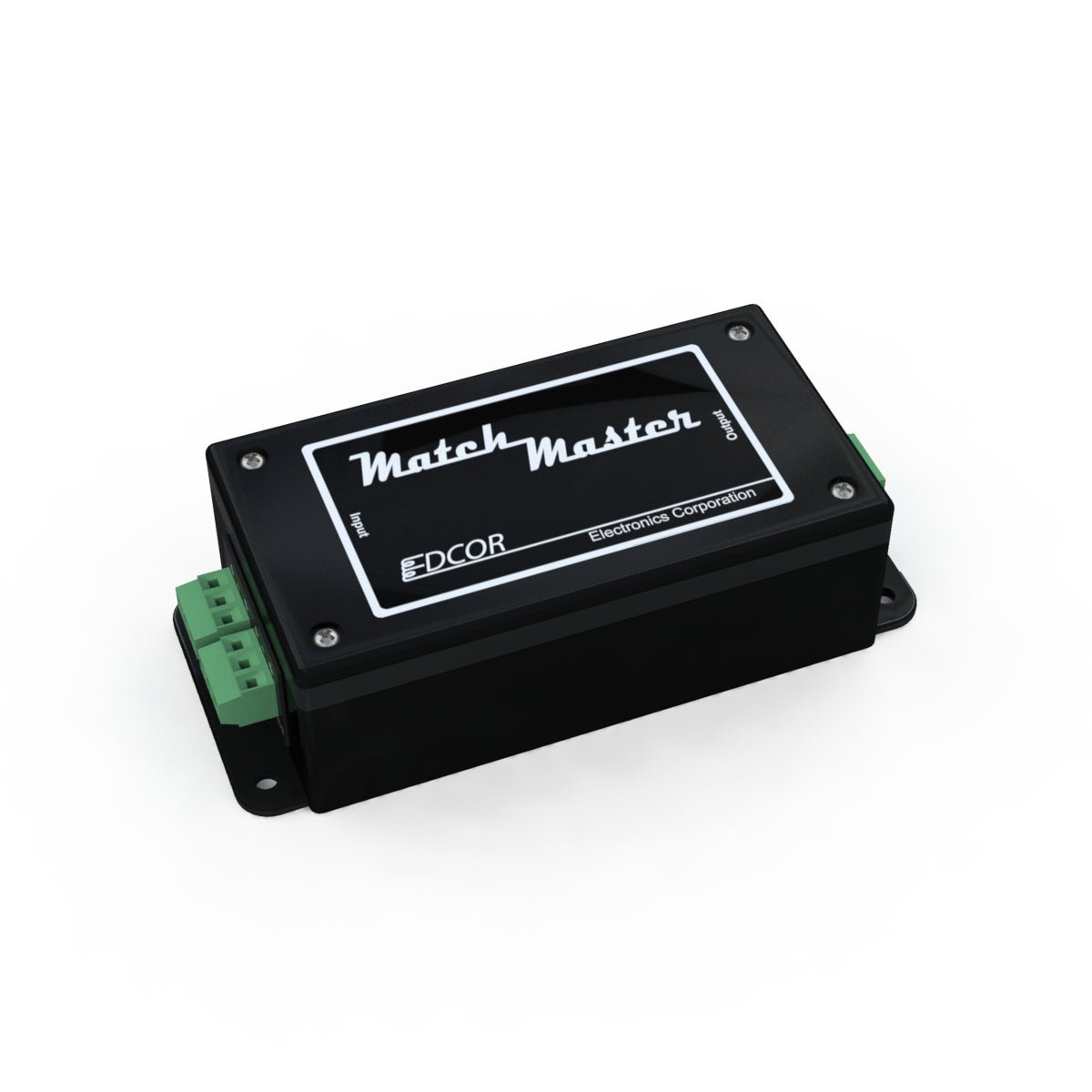

The enclosure is a rugged black ABS plastic molded box for a clean look.

Surface Mounting
The unit is designed for surface mounting with the use of four screws or with double back tape (not provided). See dimensional drawing.


Input Maximum Voltage 5Vrms
Input Dual Line Level
Input Impedance
600 Ω
Output Line Level
Output Impedance
600 Ω
Turns Ratio 1:1:1
Winding Configuration Tri-filer Winding
Frequency Response 20~20K Hz., <1dBu
THD+Noise <0.05% @ 1K Hz.
Frequency Response/THD+Noise Plot CB-LL-T
Enclosure ABS Plastic Molded Box
Termination Eurostyle connectors
Surface Mounted
Weight 0.75 lbs.
Compliance RoHS REACH
User Manual CB Series
Dimensional Drawing 12000-CBT0-03
