COM 200mW Series - Communication audio/signal matching transformer.

Sale price$16.07 USD

Shipping calculated at checkout

SKU: COM10

Impedance (Turns Ratio):

Impedance (Turns Ratio)

Stock:
loading..
Quantity:
Quantity Discounts
10 pcs 25 pcs 100 pcs 500+ pcs
5% off 10% off 15% off 20% off
Orders over 25 pcs may take longer. Please contact us for scheduling and dates.

Get shipping cost estimate in cart.

Design
These communication matchers are designed to produce the turns ratio for line level signal needed.

Primary (Input)
Designed for a balanced or unbalanced low level line signal.

Secondary (Output)
Designed for a balanced or unbalanced low level line signal.

Magnet Wire
All units are wound with the finest virgin copper magnet wire. All windings use heavy insulated wire to provide excellent manufacturing yield, lower customer cost and superior life.

The Core
EDCOR uses the finest M6 line grain oriented steel cores. Each unit is hand stacked to assure at least 92% stack.

The Bobbin
Injection molded Nylon 6/6 with the addition of 30%-35% glass fibers. The addition of glass fibers allows a higher heat deflection temperature and it brings the material to a class HB UL temperature classification.

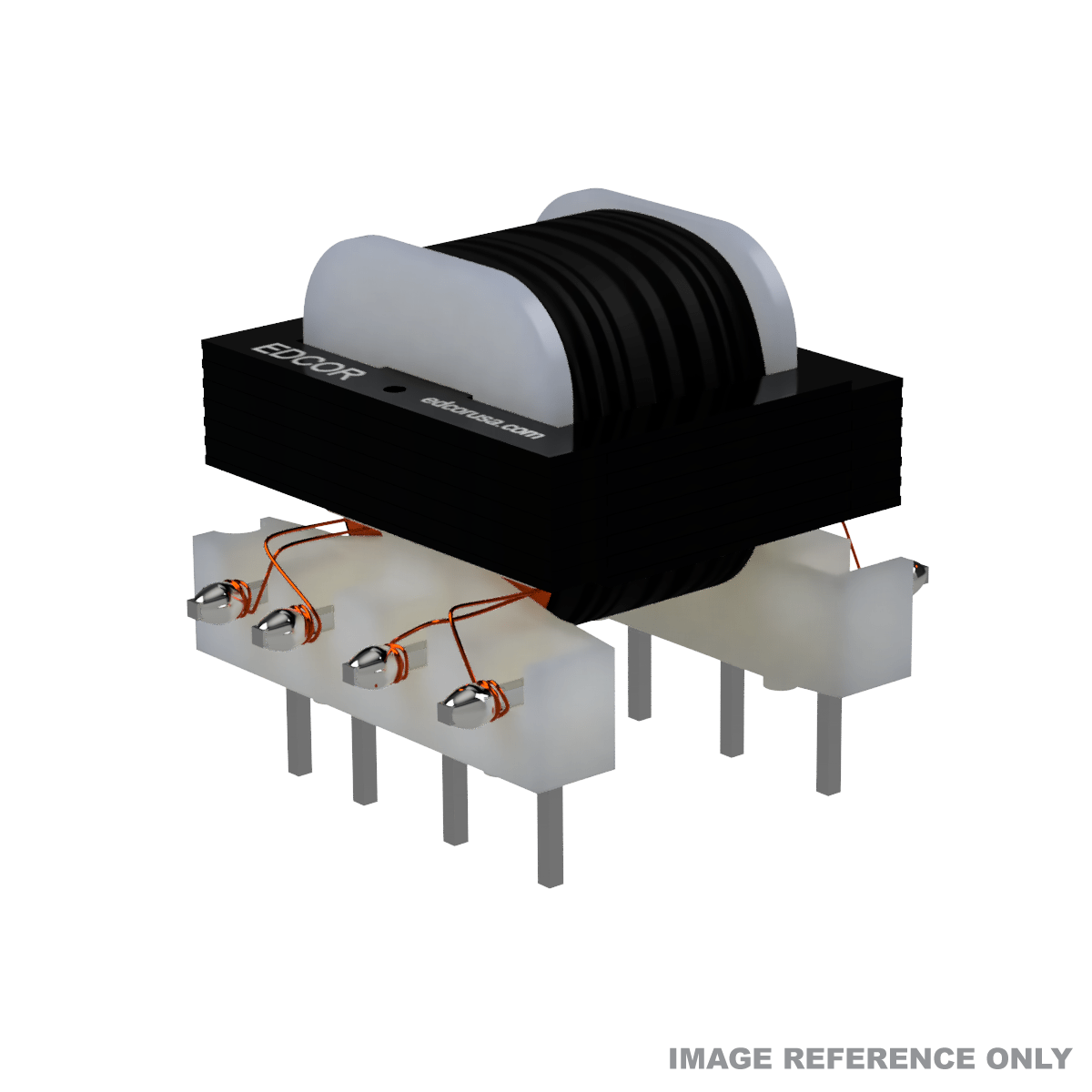

Termination/Mounting
This unit is designed for mounting on a printed circuit board. For footprint and suggested hole and pad size, see dimensional drawing.

Specifications

Wattage 200mW
Input Balanced or Unbalanced
Primary (input) Impedance Depends on model.
Output Balanced or Unbalanced
Secondary (output) Impedance Depends on model.
Turns Ratio Depends on model.

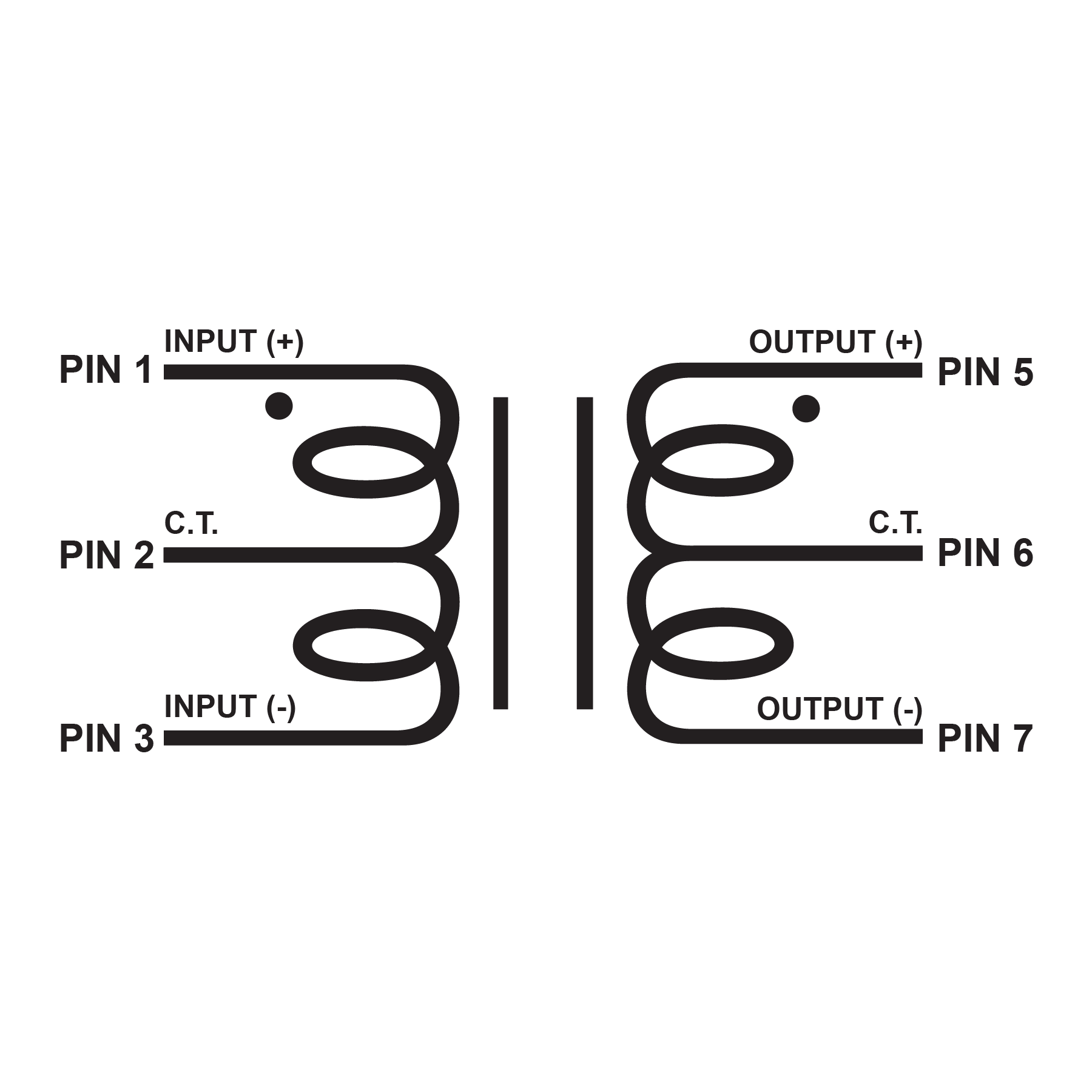

Winding Configuration Interleave Winding
Frequency Response/THD+Noise Plot COM18, COM22, COM23, COM24
Frequency Response 50~15K Hz., <1dBu
THD+Noise <0.1% @ 1K Hz.
Insertion Loss <1 dB
Bobbin Material Nylon 6/6 GF-30
Flammability Rating Class HB
Coil Finish Wrapping Polyester Film Electrical Insulating Tape
Core Size
EI18 (0.187" x 0.187")
Core Material M-6 29 ga. grain oriented lamination steel
Secondary Insulation Clear air dry polyester varnish
Termination 8 pin PCB
Mounting
Printed circuit board (PCB)
Mounting Orientation Laydown
Weight 0.07 lbs.
Compliance RoHS REACH

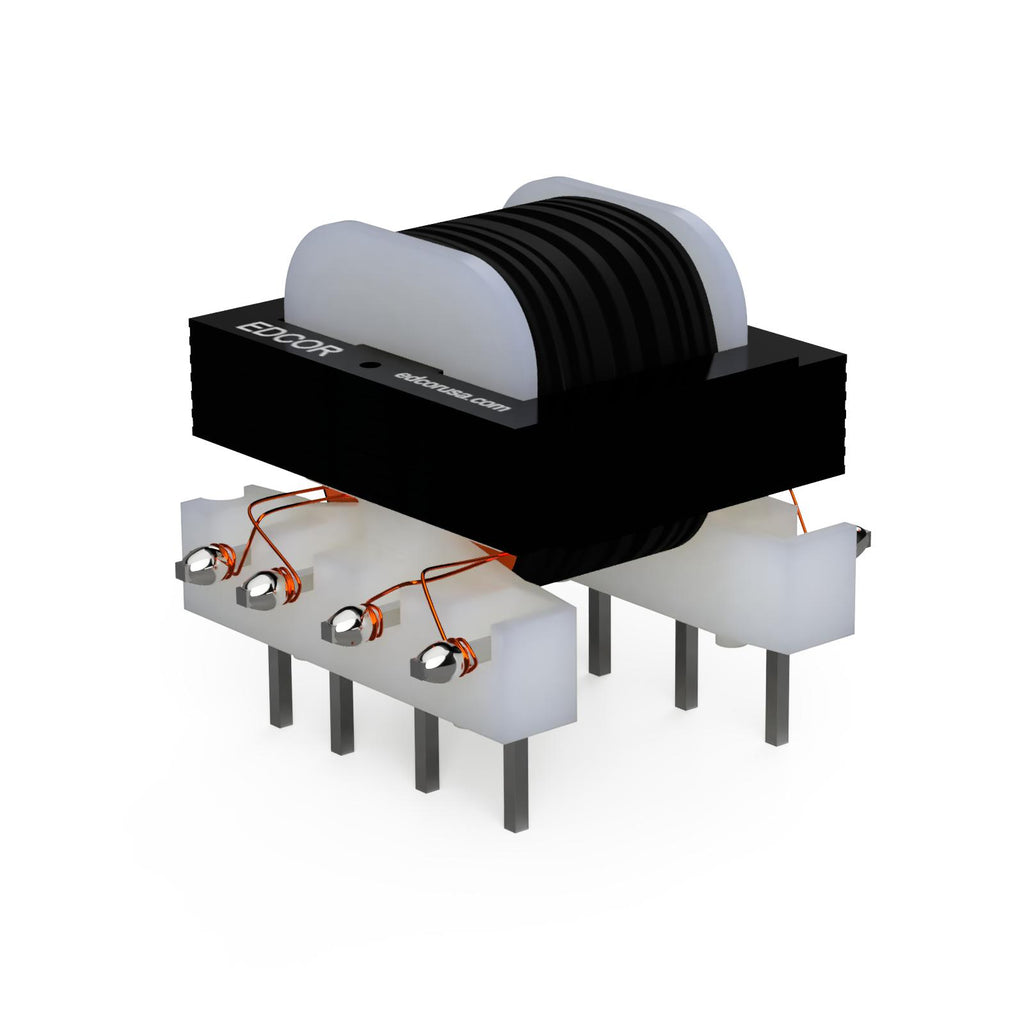

Dimensional Drawing 15000-EI187-187-P08
3D Model (STEP)
15000-EI187-187-P08
