COM 400mW Coupling Series - PC mounted stereo to mono coupling matching transformers.

SKU: COM80
filler

Price:
Sale price$13.41

Shipping calculated at checkout

Description

Design
Specially designed to  to couple a stereo line level signal to a mono signal.

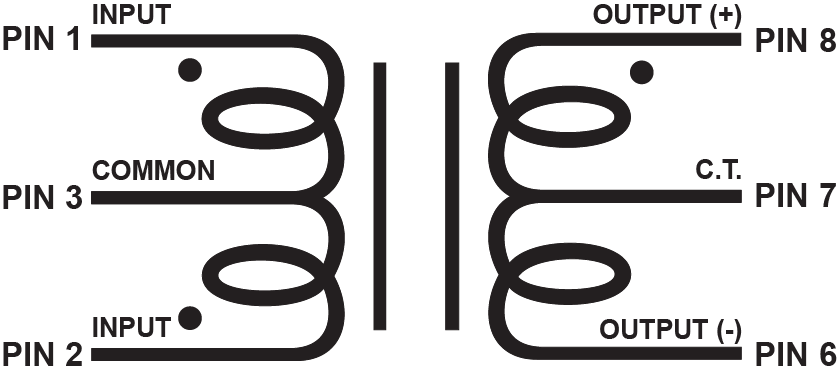

Primary (Input)
This is a stereo unbalanced 10K Ohms auxiliary line input. This input is ideal for stereo CD players, tape decks, tuners or other stereo unbalanced auxiliary level inputs.

Secondary (Output)
This is a balanced 600 Ohms or unbalanced 10K Ohms line level. This line level output is ideal for telephone lines. signal processors, amplifiers, or any other units that have a balanced or unbalanced line input.

Magnet Wire
All units are wound with the finest virgin copper magnet wire. All windings use heavy insulated wire to provide excellent manufacturing yield, lower customer cost and superior life.

The Core
EDCOR uses the finest M6 line grain oriented steel cores. Each unit is hand stacked to assure at least 92% stack.

The Bobbin
Injection molded Nylon 6/6 with the addition of 30%-35% glass fibers. The addition of glass fibers allows a higher heat deflection temperature and it brings the material to a class HB UL temperature classification.

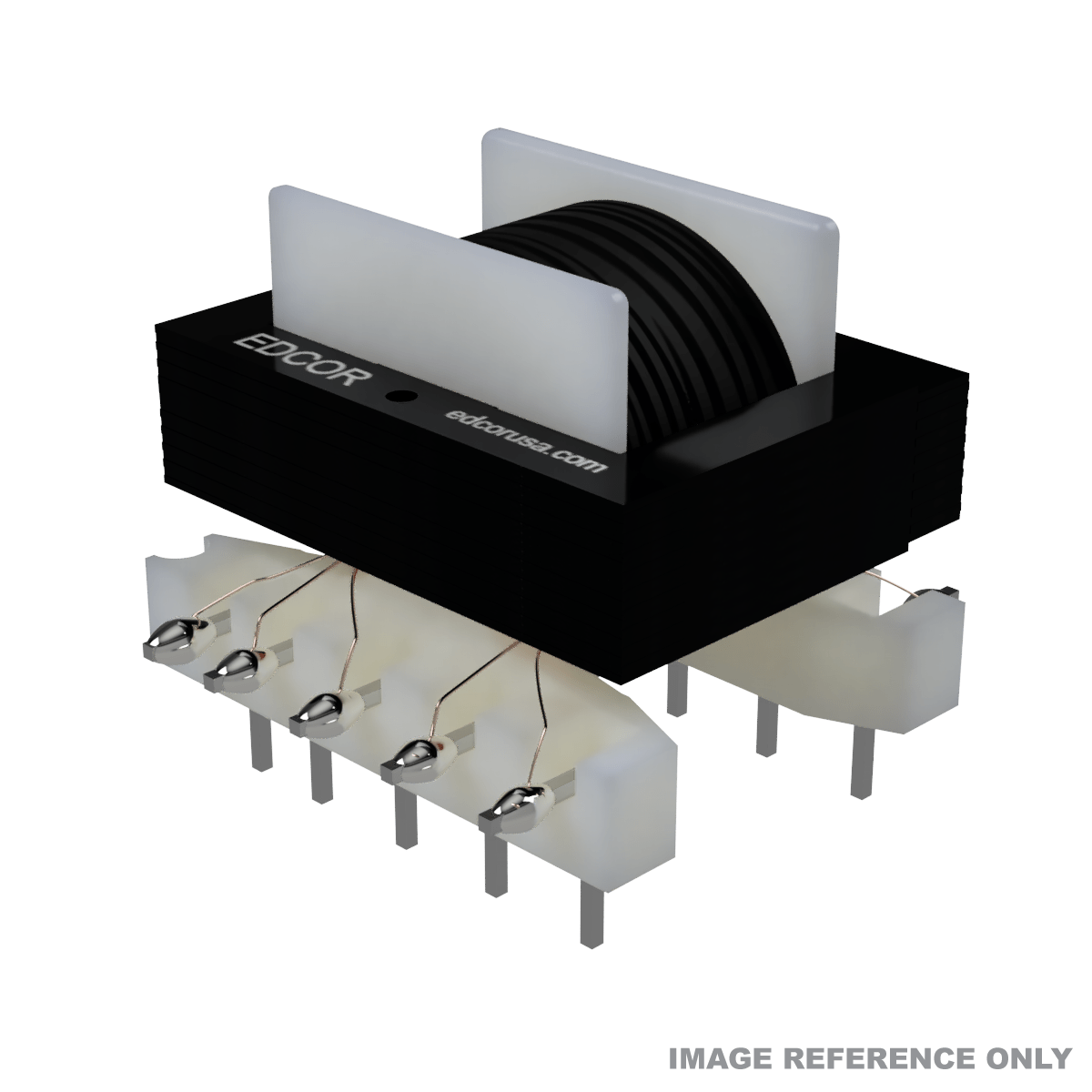

Termination/Mounting
This unit is designed for mounting on a printed circuit board. For footprint and suggested hole and pad size, see dimensional drawing.

Specifications

Wattage 400mW
Input Stereo Unbalanced Auxiliary Level
Primary (input) Impedance 10K Ω
Output Balanced or Unbalanced Line level or Balanced Mic Level
Secondary (output) Impedance 600 Ω (Balanced)
10K Ω (Unbalanced)
Winding Configuration Interleave Winding
Frequency Response 50~15K Hz., <1dBu
THD+Noise <0.1% @ 1K Hz.
Insertion Loss <1 dB
Bobbin Material Nylon 6/6 GF-30
Flammability Rating Class HB
Coil Finish Wrapping Polyester Film Electrical Insulating Tape
Core Size
EI25 (0.25" x 0.25")
Core Material M-6 29 ga. grain oriented lamination steel
Secondary Insulation Clear air dry polyester varnish
Termination 10 pin PCB
Mounting
Printed circuit board (PCB)
Mounting Orientation Laydown
Weight 0.08 lbs.
Compliance RoHS REACH
Dimensional Drawing 15000-EI025-025-P10
3D Model (STEP) 15000-EI025-025-P10
