TBPWR-HV2 - multi tapped 900V (450-425-400-375-350-0 0-350-375-400-425-450)@300mA CT.

SKU: TBPWR-HV2-100

Price:
Sale price$125.43

Shipping calculated at checkout

Description

Design
Mathematically designed to produce the specified voltage(s) when loaded.

Primary (Input)
Designed for 100V 50/60Hz., 120V 60Hz., 230V 50/60Hz., or 240V 50/60Hz.

Secondary (Output)

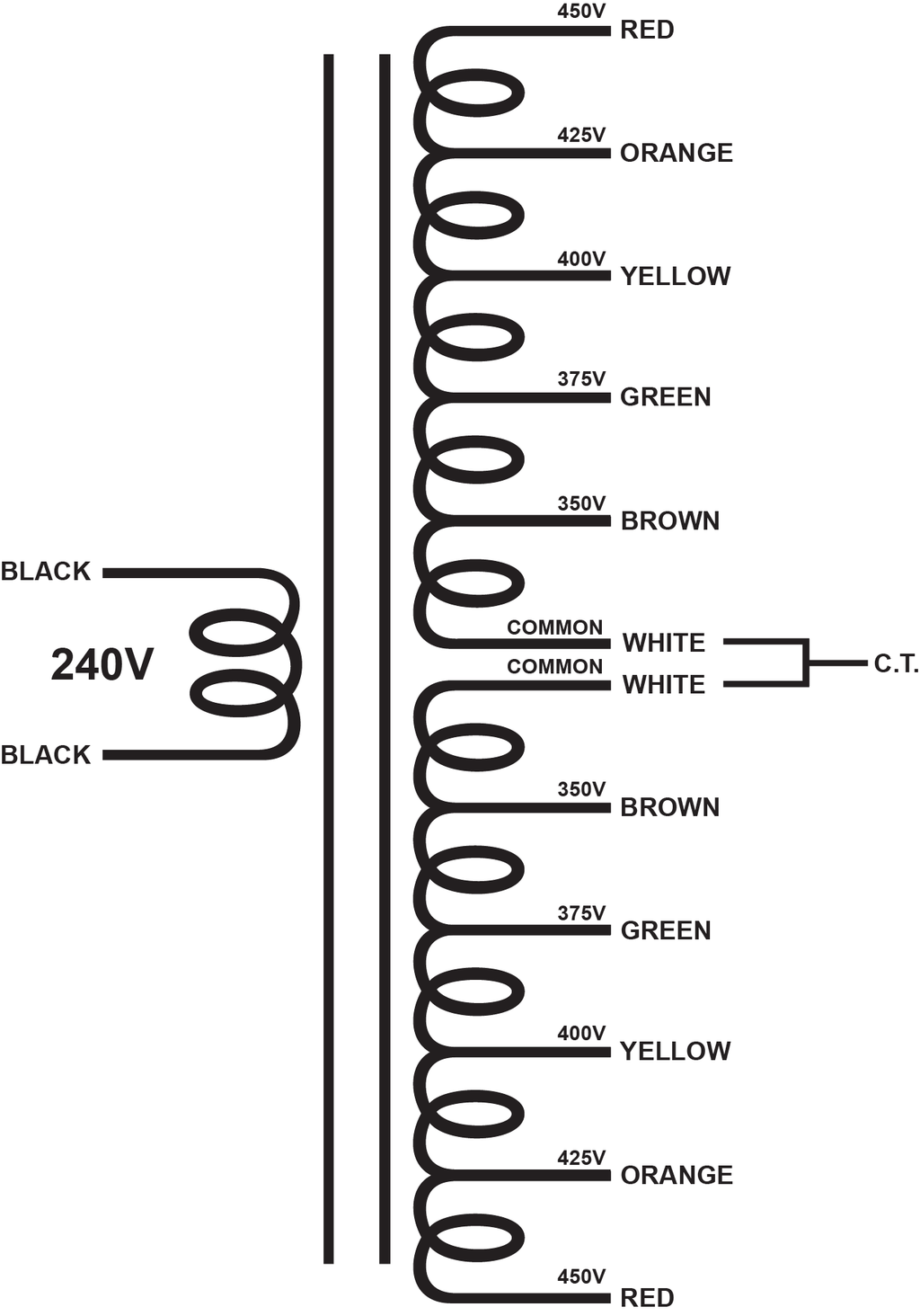

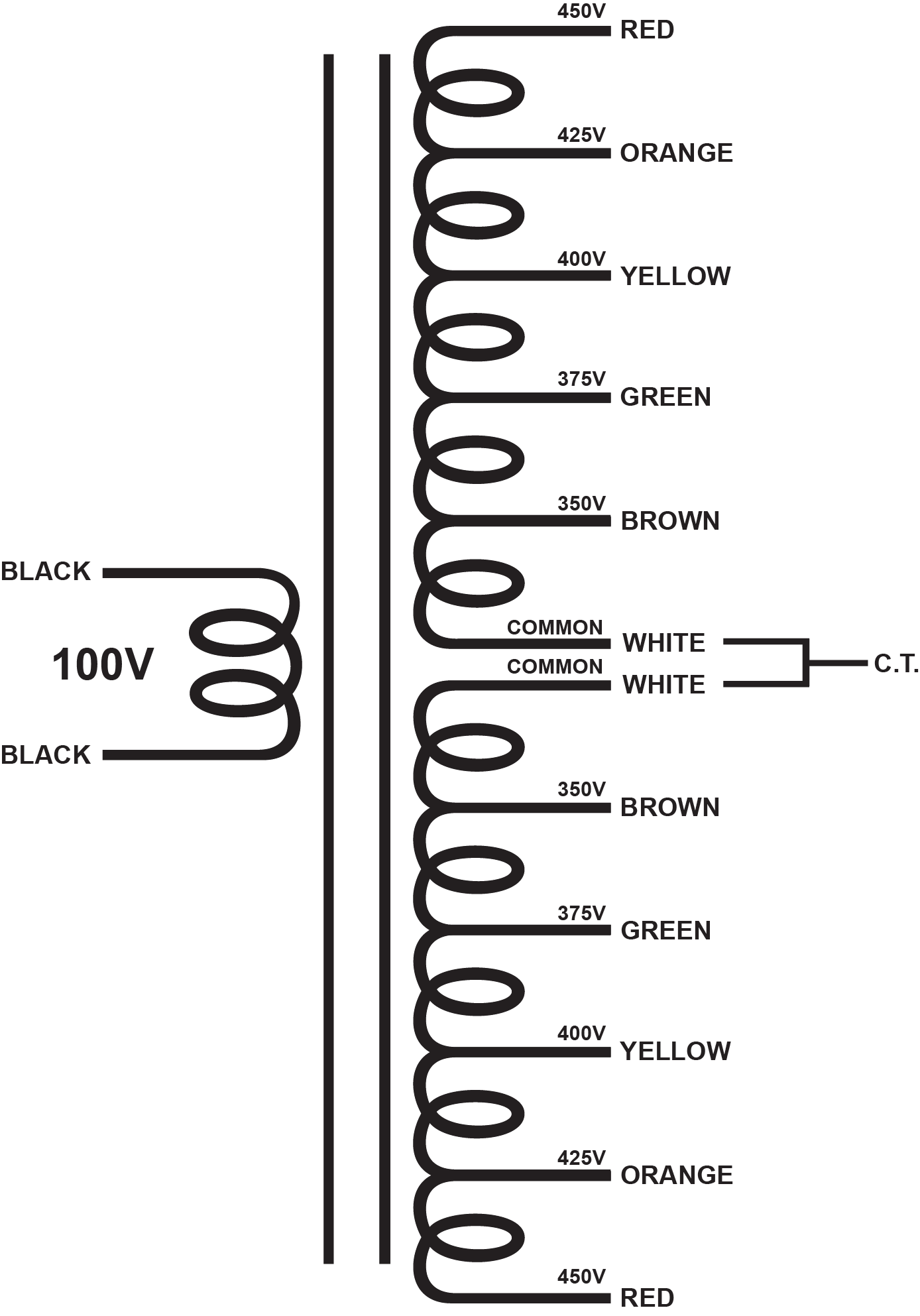

This transformer has multiple voltage windings, 900V (450-425-400-375-350-0 0-350-375-400-425-450) at 300mA center tapped.

Magnet Wire
All units are wound with the finest virgin copper magnet wire. All windings use heavy insulated wire to provide excellent manufacturing yield, lower customer cost and superior life.

The Core
EDCOR uses the finest M6 line grain oriented steel cores. Each unit is hand stacked to assure at least 92% stack.

The Bobbin
Injection molded Nylon 6/6 with the addition of 30%-35% glass fibers. The addition of glass fibers allows a higher heat deflection temperature and it brings the material to a class HB UL temperature classification.

Termination

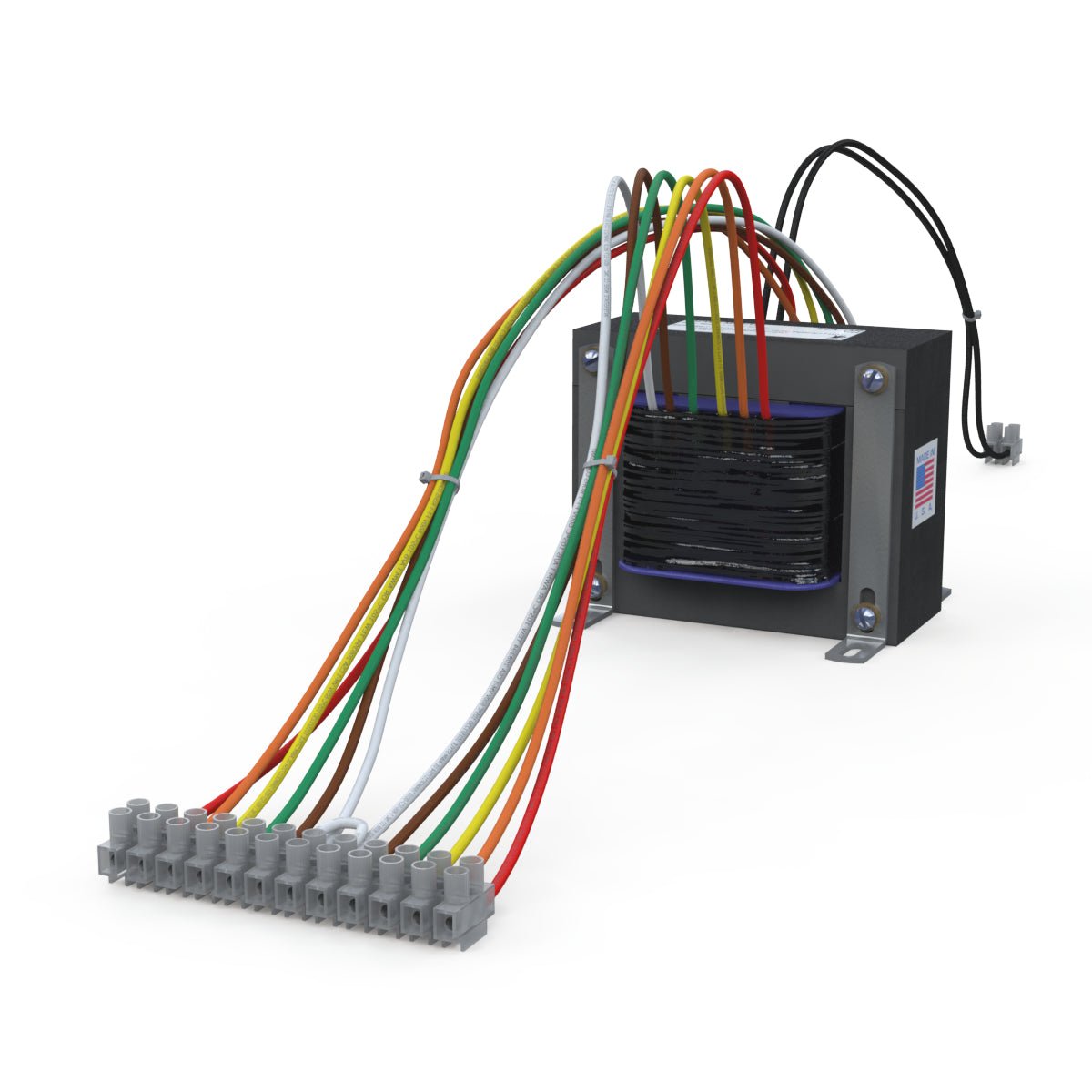

The terminations are UL1015 18 ga. color coded lead wire around 15 inches (38cm) long with Molex two-screw terminal strips

Mounting
This unit comes with zinc plated steel brackets for mounting with the use of four screws. See dimensional drawing.

Specifications

Primary (input) Voltage 100Vrms 50/60Hz, 120Vrms 60Hz, 230Vrms 50/60Hz., or 240Vrms 50/60Hz.
Secondary (output) Voltage 900Vrms (450-425-400-375-350-0 0-350-375-400-425-450)@300mA
Winding Configuration Primary-Secondary
Bobbin Material Nylon 6/6 GF-30
Flammability Rating Class HB
Coil Finish Wrapping Polyester Film Electrical Insulating Tape
Core Size
EI150 (1.5" x 2")
Core Material M-6 29 ga. grain oriented lamination steel
Secondary Insulation Clear air dry polyester varnish
Termination 15" (38cm) UL1015, 18 ga. lead wire with Molex two-screw terminal strips
Mounting Zinc plated steel brackets
Mounting Orientation Horizontal
Weight 10 lbs.
Compliance RoHS & REACH
Dimensional Drawing 15000-EI150-200-02A
