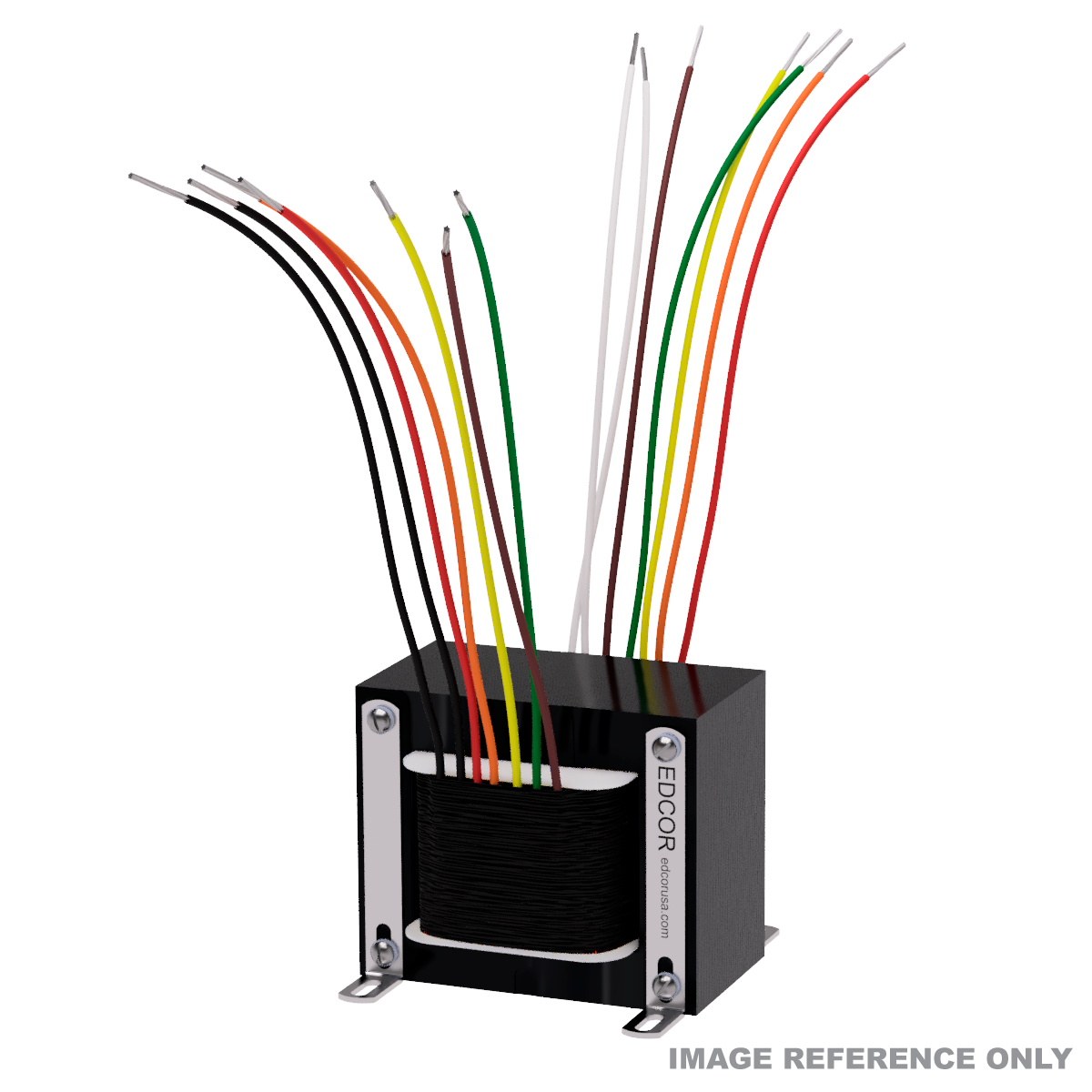

EA300 - 300W bidirectional audio distribution transformer.
EA300 - 300W bidirectional audio distribution transformer.

EDCOR Electronics Corporation

EA300 - 300W bidirectional audio distribution transformer.

Sale price$145.31 USD

Shipping calculated at checkout

SKU: EA300

Stock:
loading..
Quantity:
Quantity Discounts
10 pcs 25 pcs 100 pcs 500+ pcs
5% off 10% off 15% off 20% off
Orders over 25 pcs may take longer. Please contact us for scheduling and dates.

Get shipping cost estimate in cart.

Design
The EA series audio distribution transformers are designed for the amplifier or the speaker side of a voltage speaker distribution system. Because they are bidirectional they can be used in either direction. This series are similar to the Altec and Electro Voice 15000* series audio transformers and meet or exceed their specifications.

Continuous Use Design
This series is designed to operate continuously.

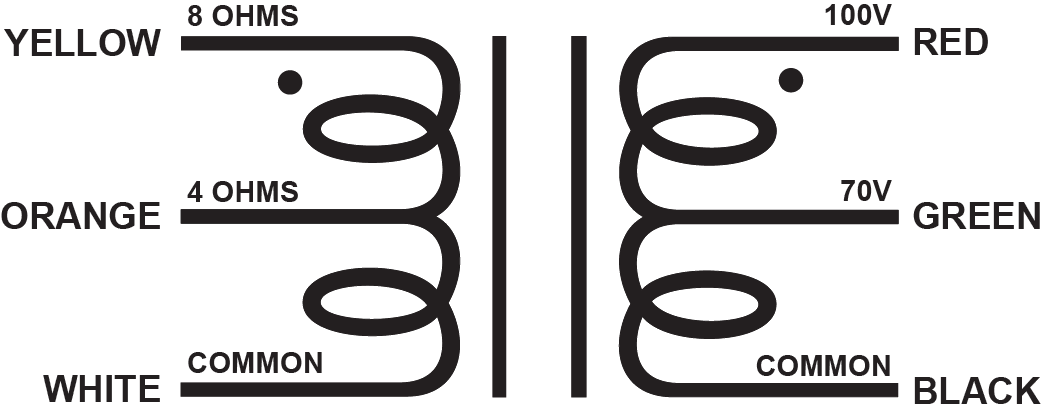

Primary (Input)
The primary is designed for a 4 or 8 Ohms speaker.

Secondary (Output)
The secondary is designed for a 70V or 100V audio distribution line.

Magnet Wire
All units are wound with the finest virgin copper magnet wire. All windings use heavy insulated wire to provide excellent manufacturing yield, lower customer cost and superior life.

The Core
EDCOR uses the finest M6 line grain oriented steel cores. Each unit is hand stacked to assure at least 92% stack.

The Bobbin
Injection molded Nylon 6/6 with the addition of 30%-35% glass fibers. The addition of glass fibers allows a higher heat deflection temperature and it brings the material to a class HB UL temperature classification.

Termination
The terminations are UL1015 18 ga. color coded lead wire around 15 inches (38cm) long.

Mounting
This unit comes with zinc plated steel brackets for mounting with the use of four screws. See dimensional drawing.

Specifications

Wattage 300W
Primary (input) Impedance 4 Ω or 8 Ω
Secondary (output) Distribution Voltage 70V or 100V
Winding Configuration Interleave Winding
Frequency Response 35~20K Hz., <1dBu
THD+Noise <0.1% @ 1K Hz.
Insertion Loss <1 dB
Bobbin Material Nylon 6/6 GF-30
Flammability Rating Class HB
Coil Finish Wrapping Polyester Film Electrical Insulating Tape
Core Size
EI150 (1.5" x 2.5")
Core Material M-6 29 ga. grain oriented lamination steel
Secondary Insulation Clear air dry polyester varnish
Termination 15" (38cm) UL1015, 18 ga. lead wire
Mounting Zinc plated steel brackets
Mounting Orientation Horizontal
Weight 11.8 lbs.
Compliance RoHS & REACH
Dimensional Drawing 15000-EI150-250-02A
