LVP12.6-1.25 (12.6V@1.25A CT)
Primary Voltage
Quantity Discounts | ||||
---|---|---|---|---|
10 pcs | 25 pcs | 100 pcs | 500+ pcs | |
5% off | 10% off | 15% off | 20% off | |
Orders over 25 pcs may take longer. Please contact us for scheduling and dates. |
Get shipping cost estimate in cart.
Design
Mathematically designed to produce the specified voltage(s) when loaded.
Primary (Input)
Designed for 115V 60Hz., 120V 60Hz., 230V 50/60Hz., or 240V 50/60Hz.
Secondary (Output)

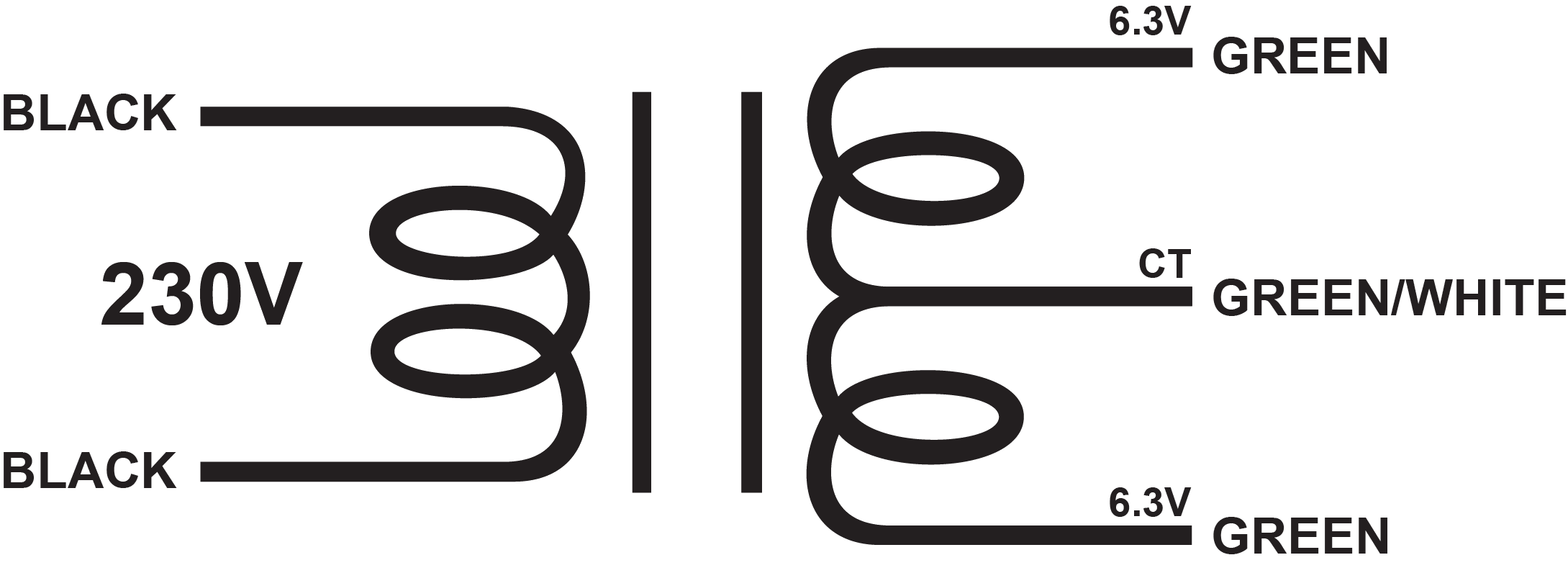

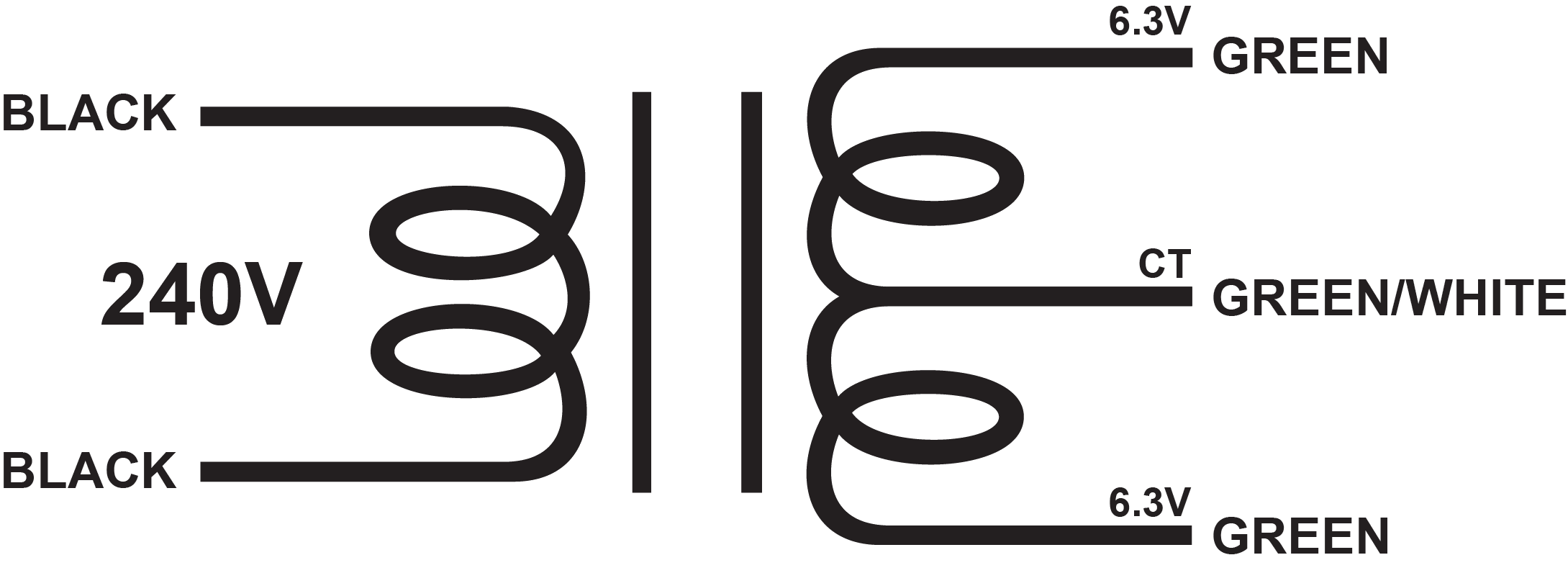

This transformer has a voltage winding of 12.6V (6.3-0-6.3) at 1.25A center tapped.
Magnet Wire
All units are wound with the finest virgin copper magnet wire. All windings use heavy insulated wire to provide excellent manufacturing yield, lower customer cost and superior life.
The Core
EDCOR uses the finest M6 line grain oriented steel cores. Each unit is hand stacked to assure at least 92% stack.
The Bobbin
Injection molded Nylon 6/6 with the addition of 30%-35% glass fibers. The addition of glass fibers allows a higher heat deflection temperature and it brings the material to a class HB UL temperature classification.
Termination
The terminations are UL1015 20 ga. color coded lead wire around 15 inches (38cm) long.
Mounting

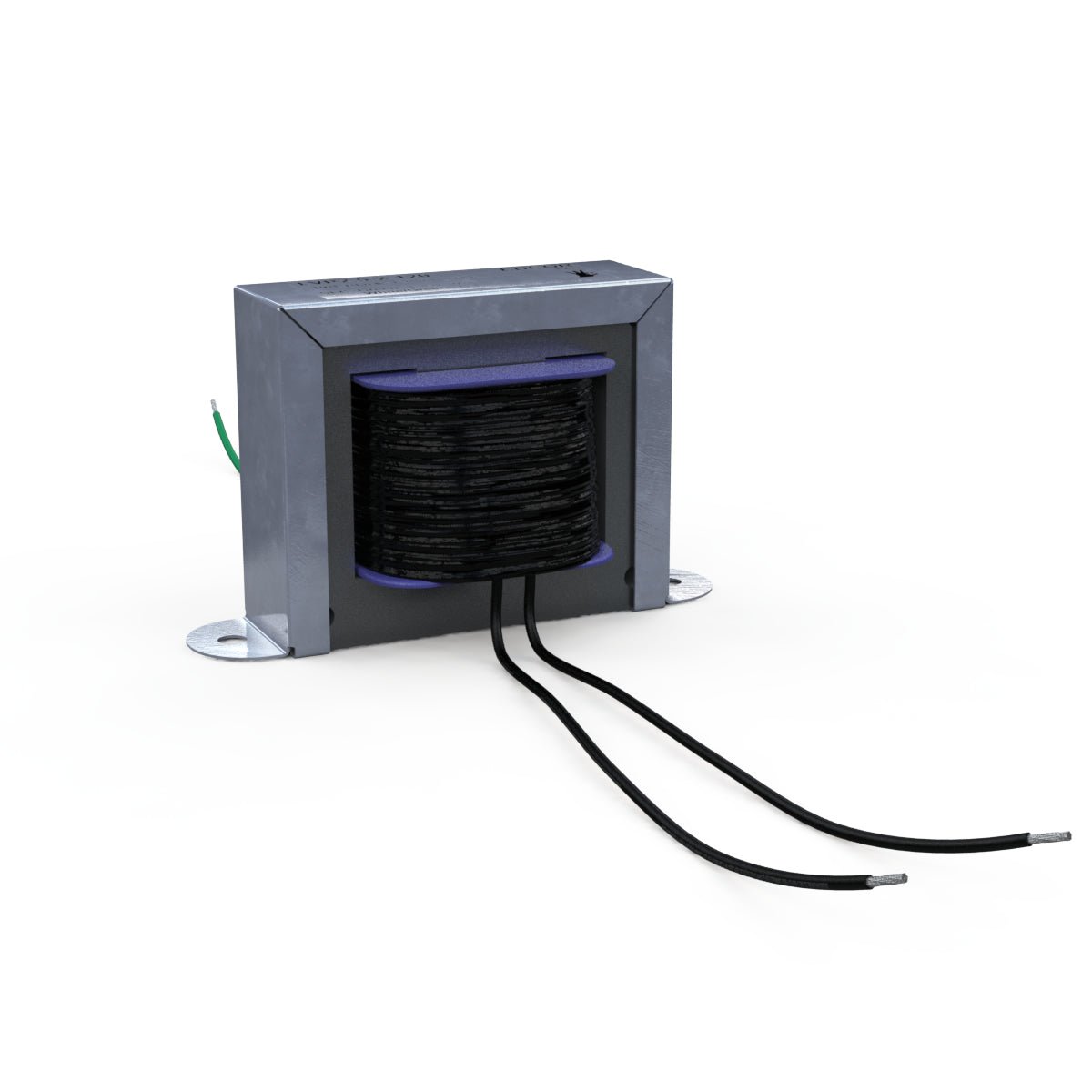

This unit comes with steel zinc plated channel/frame for mounting with the use of two screws. See dimensional drawing.
Specifications
Primary (input) Voltage | Depends on Model |
Secondary (output) Voltage | 12.6V(6.3-0-6.3)@1.25A |
Winding Configuration | Primary-Secondary |
Bobbin Material | Nylon 6/6 GF-30 |
Flammability Rating | Class HB |
Coil Finish Wrapping | Polyester Film Electrical Insulating Tape |
Core Size |
EI87 (0.875" x 1") |
Core Material | M-6 29 ga. grain oriented lamination steel |
Secondary Insulation | Clear air dry polyester varnish |
Termination | 15" (38cm) UL1015, 20 ga. lead wire |
Mounting | Zinc plated channel/frame |
Mounting Orientation | Horizontal |
Weight | 1.6 lbs. |
Compliance | RoHS & REACH |
Dimensional Drawing | 15000-EI087-100-01 |
