LVP4-2 (4V@2A CT)
Quantity:
| Quantity Discounts | ||||
|---|---|---|---|---|
| 10 pcs | 25 pcs | 100 pcs | 500+ pcs | |
| 5% off | 10% off | 15% off | 20% off | |
| Orders over 25 pcs may take longer. Please contact us for scheduling and dates. | ||||
The LVP4-2 is a low voltage power transformer. It has a primary of 120V 60Hz. to a secondary of 4V(2-0-2) at 2A center tapped.
| Basic Specifications | |
|---|---|
Type |
|
Series |
|
SKU Model Number/Unit Name
|
LVP4-2-120
|

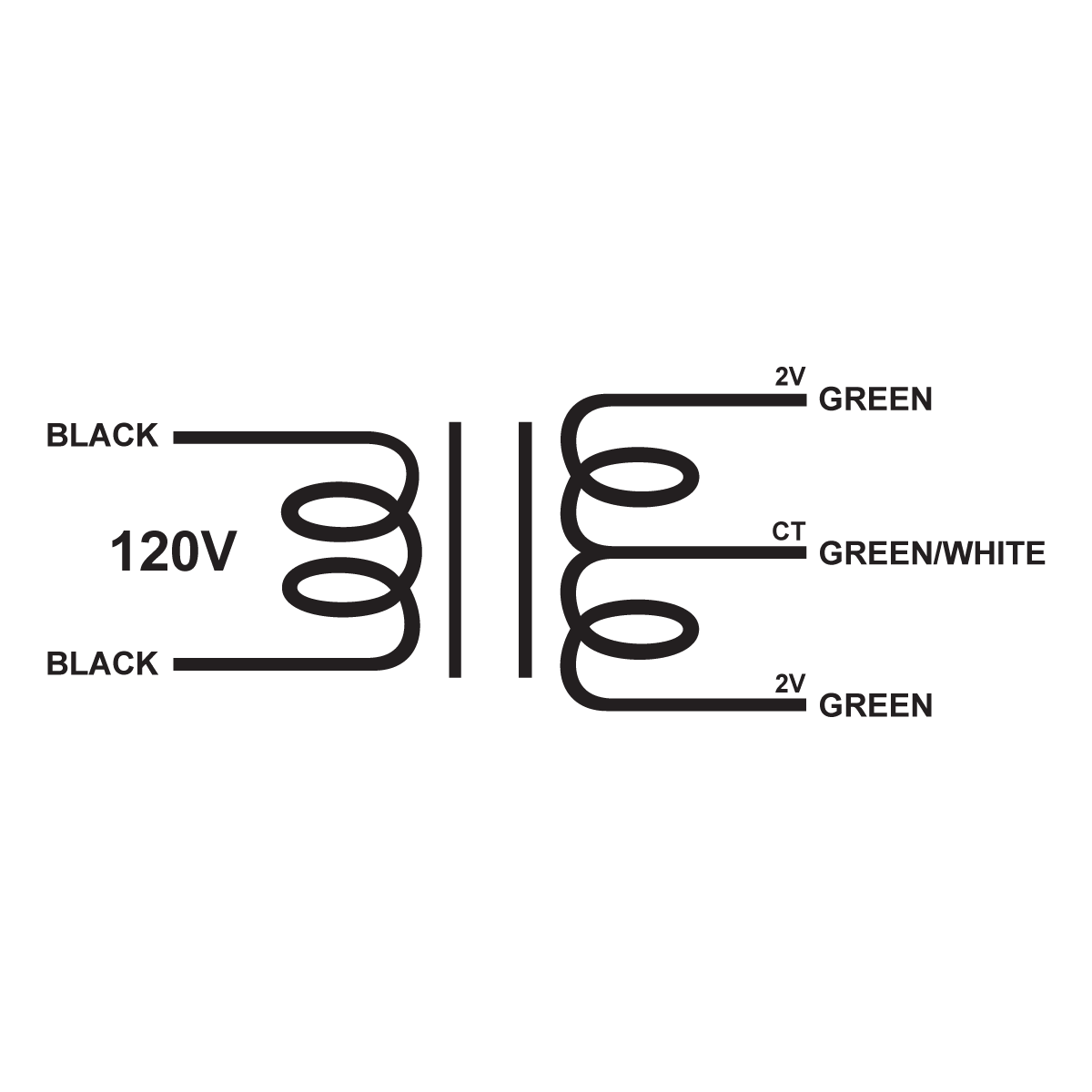

 SchematicFree Adobe Acrobat Reader can be downloaded at Adobe.com.
|
|
 Spec SheetFree Adobe Acrobat Reader can be downloaded at Adobe.com.
|
|
Primary (input) |
|
Secondary (output) |
|
Termination Such as lead wires, terminals, PCB pins, etc.
|
|
Mounting Orientation Direction of mounting.
|
|
Mounting Hardware |
|
Mounting Hardware Coating |
|
Mounting Hardware Color |
#bac4c8
|
Mounting Hardware Color ID |
|
| Primary (input) | |
Voltage Symbol: Ep
|
120V
|
Operational Frequency Symbol: ƒop
|
|
Current Symbol: Ip
Maximum primary current
|
0.067A
|
DC Resistance Symbol: Rp
|
66.858Ω
|
Inductance Symbol: Lp
|
4.775H
|
| Secondary (output) | |
Other Voltage(s) Symbol: Es
|
4V
|
Unloaded Voltage(s) Symbol: NL(Es)
Calculated voltage when no loaded is applied to the secondary.
|
4.149V
|
Current(s) Symbol: Is
Maximum secondary current(s)
|
2A
|
DC Resistance Symbol: Rs
DC Resistance
|
0.155Ω
|
Inductance Calculated value. Actual value may vary. Symbol (Ls)
|
4.775H
|
| Other Specifications | |
Total Volt Amperes Symbol: VA
|
|
Winding Configuration Type of winding pattern.
|
|
Leakage Inductance Symbol: LI
Imperfect magnetic link of one winding to another.
|
|
Temperature Rise Symbol: Tr
The temperature rise above the ambient temperature at rated power.
|
68.49°F (20.27°C)
|
Efficiency Symbol: η
The efficiency of the transfer of energy from the primary to the secondary.
|
|
| Physical | |
Weight Symbol: Wt
|
1.2 lb
|
Dimensions (Width) X (Height) X (Depth)
|
|
Dimensional Drawing (#) |
|
Dimension Drawing (PDF) Free Adobe Acrobat Reader can be downloaded at Adobe.com.
|
|
| Material | |
Bobbin Material |
|
Bobbin Flammability Rating |
|
Magnet Wire |
|
Coil Finish Wrapper |
|
Termination |
|
Core Material |
|
Core Material Size |
|
Core Stack Size |
|
Core Stack Type |
|
Secondary Insulation |
|
Dielectric Strength |
|
Temperature Range |
|
HIPOT Primary-Secondary |
|
| Compliance | |
RoHS Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment.
|
|
REACH Registration, Evaluation, Authorization and Restriction of Chemicals in EU.
|
|
CMRT RMI Conflict Metals Reporting Template
|
|
GPSR The General Product Safety Regulation (GPSR) is a legislative framework established by the European Union.
|
|
| Other | |
Country of Origin Where the product was manufactured or assembled.
|
|
Harmonized System (HS) Code Standardized numerical system classifying traded products.
|
|
