PC Distribution Series - 1/4W distribution voltage matching transformers.

SKU: PC2570/600

Price:
Sale price$17.96

Shipping calculated at checkout

Description

Design
These audio matching transformers are designed for matching a 25V, 70V, or 100V speaker distribution line to a balanced or unbalanced 600 Ohms line level.

Primary (Input)

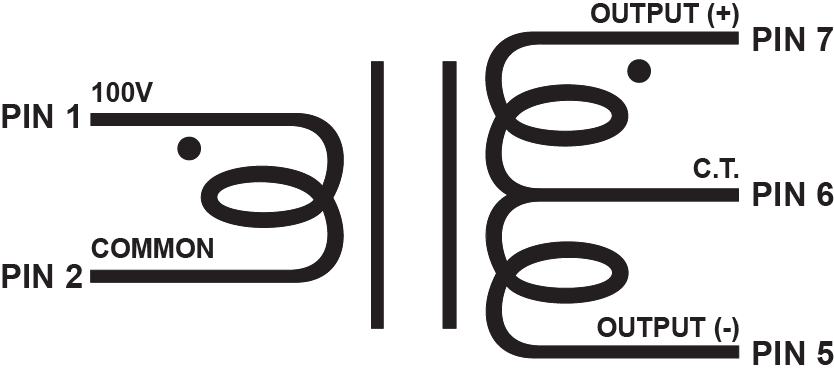

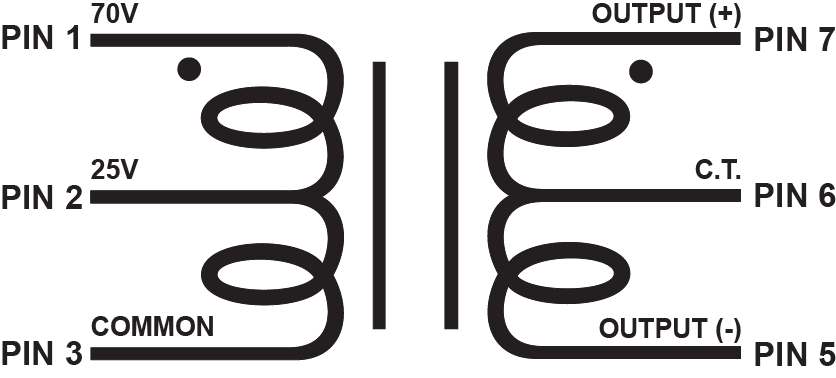

Designed for a 25V, 70V, or 100V speaker distribution line.

Secondary (Output)
Designed for a balanced or unbalanced 600 Ohms line level signal.

Magnet Wire
All units are wound with the finest virgin copper magnet wire. All windings use heavy insulated wire to provide excellent manufacturing yield, lower customer cost and superior life.

The Core
EDCOR uses the finest M6 line grain oriented steel cores. Each unit is hand stacked to assure at least 92% stack.

The Bobbin
Injection molded Nylon 6/6 with the addition of 30%-35% glass fibers. The addition of glass fibers allows a higher heat deflection temperature and it brings the material to a class HB UL temperature classification.

Termination/Mounting

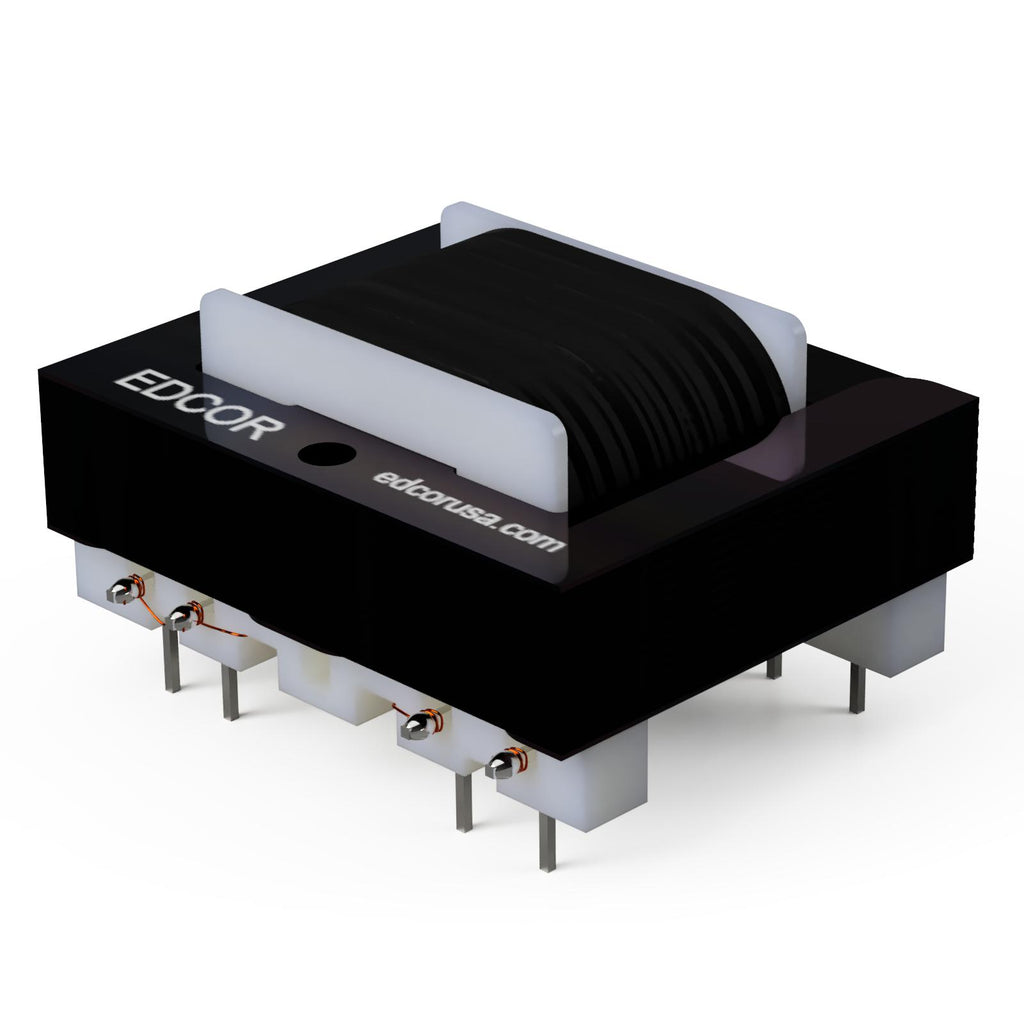

This unit is designed for mounting on a printed circuit board. For footprint and suggested hole and pad size, see dimensional drawing.

Specifications

Wattage 0.25W
Primary (input) Distribution Voltage Depends on model.
Output Balanced or Unbalanced
Secondary (output) Impedance 600 Ohms
Winding Configuration Interleave Winding
Frequency Response 20~20K Hz., <1dBu
THD+Noise <0.05% @ 1K Hz.
Insertion Loss <0.5 dB
Bobbin Material Nylon 6/6 GF-30
Flammability Rating Class HB
Coil Finish Wrapping Polyester Film Electrical Insulating Tape
Core Size
EI50 (0.5" x 0.375")
Core Material M-6 29 ga. grain oriented lamination steel
Secondary Insulation Clear air dry polyester varnish
Termination 8 pin PCB
Mounting
Printed circuit board (PCB)
Mounting Orientation Laydown
Weight 0.25 lbs.
Compliance RoHS REACH
Dimensional Drawing 15000-EI050-037-P08
3D Model (STEP)
15000-EI050-037-P08
