EDCOR Electronics Corporation

TPC Distribution Series - 1/4W PC mounted balanced or unbalanced line matching transformers.

Sale price$46.94 USD

Shipping calculated at checkout

SKU: TPC2570/600

Distribution Voltage:

Distribution Voltage

Stock:
loading..
Quantity:
Quantity Discounts
10 pcs 25 pcs 100 pcs 500+ pcs
5% off 10% off 15% off 20% off
Orders over 25 pcs may take longer. Please contact us for scheduling and dates.

Get shipping cost estimate in cart.

Design

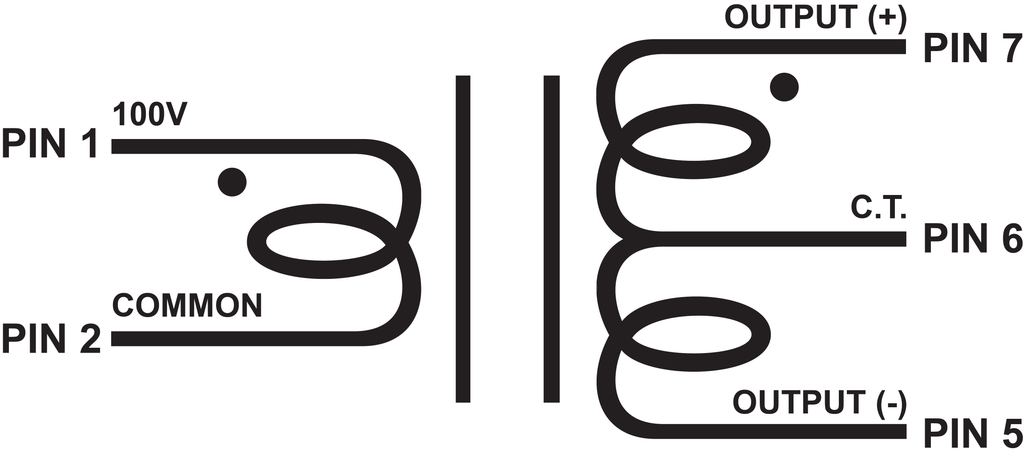

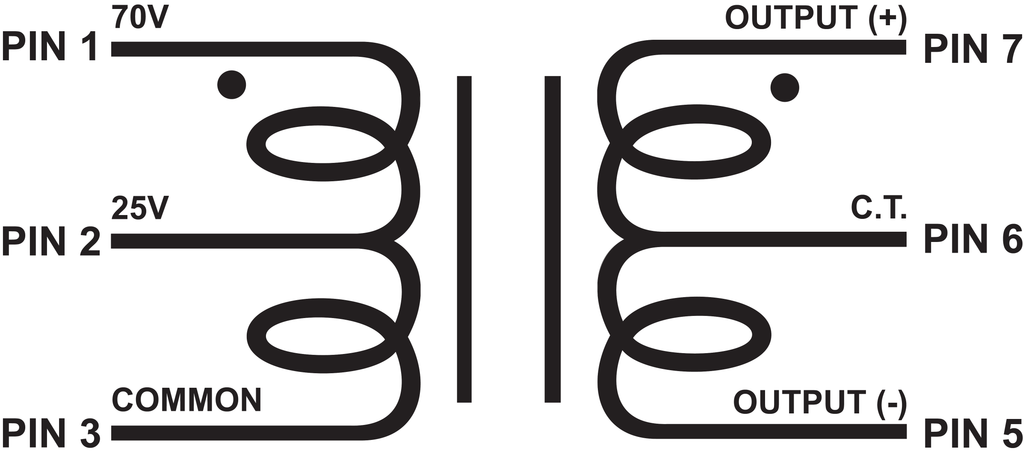

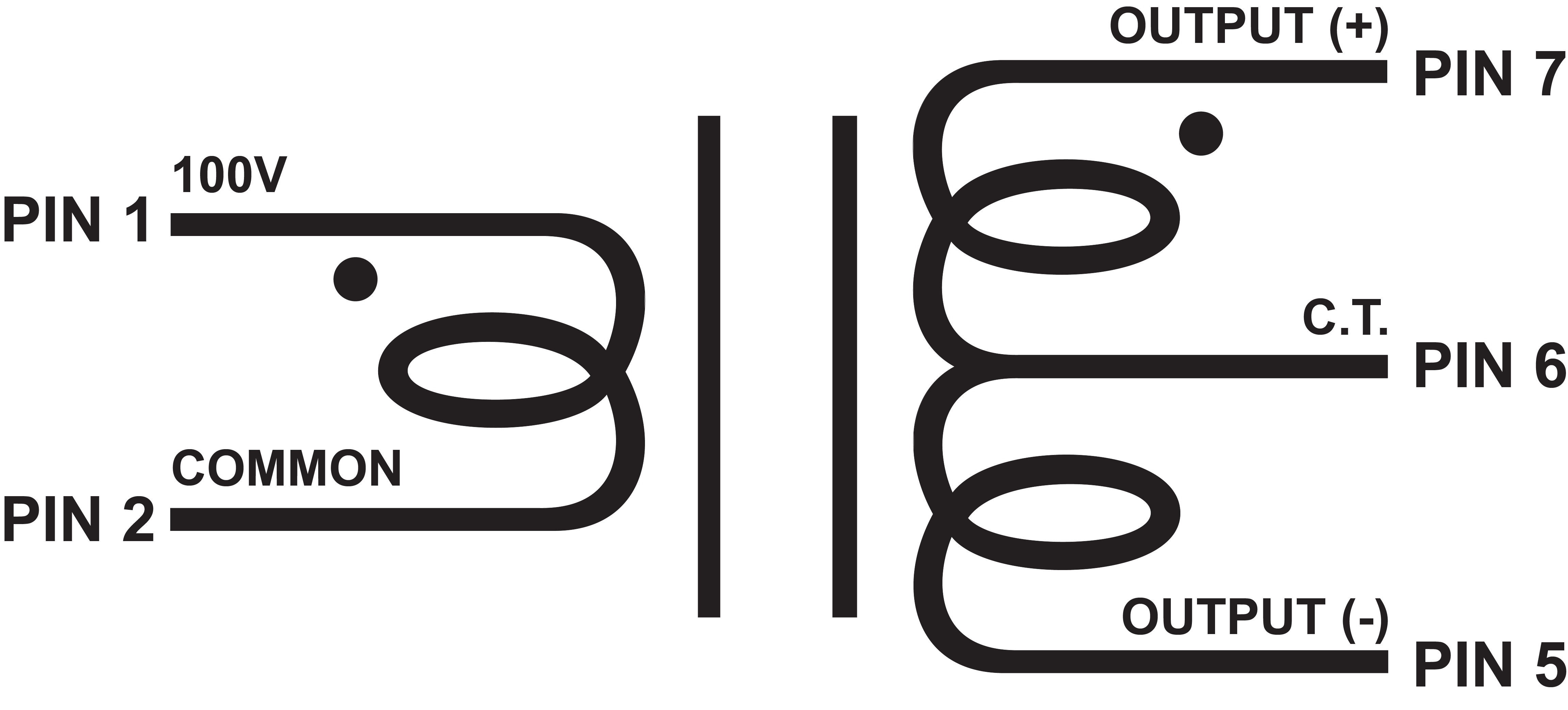

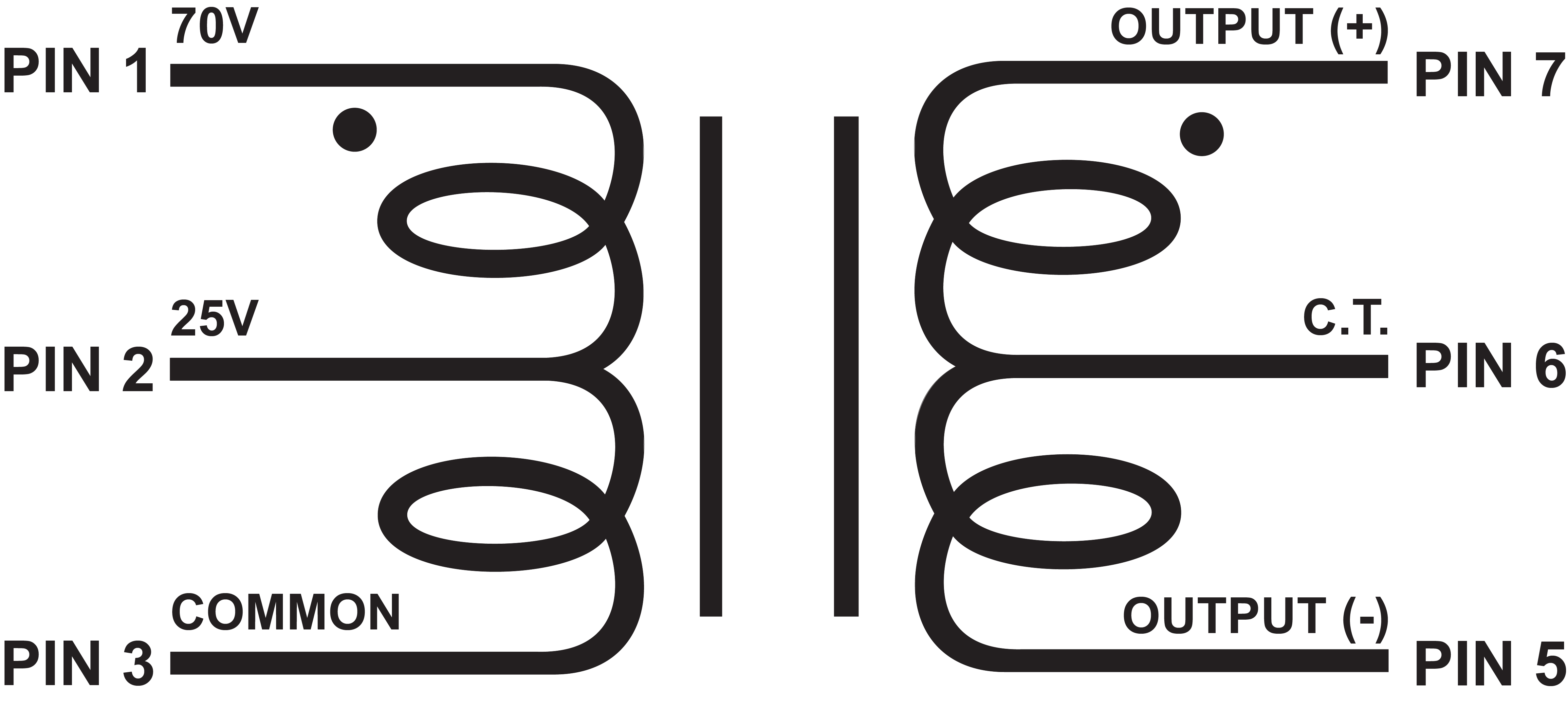

These audio matching transformers are designed for matching a 25V, 70V, or 100V speaker distribution line to a balanced or unbalanced 600 Ohms line level.

Primary (Input)
Designed for a 25V, 70V, or 100V speaker distribution line.

Secondary (Output)
Designed for a balanced or unbalanced 600 Ohms line level signal.

Magnet Wire
All units are wound with the finest virgin copper magnet wire. All windings use heavy insulated wire to provide excellent manufacturing yield, lower customer cost and superior life.

The Core
EDCOR uses the finest M6 line grain oriented steel cores. Each unit is hand stacked to assure at least 92% stack.

The Bobbin
Injection molded Nylon 6/6 with the addition of 30%-35% glass fibers. The addition of glass fibers allows a higher heat deflection temperature and it brings the material to a class HB UL temperature classification.

Surface Mounting
The transformer is mounted on a printed circuit board. The board is designed for surface mounting with the use of four screws (not provided) or with double back tape (not provided). See dimensional drawing.

Specifications

Wattage 0.25W
Primary (input) Distribution Voltage Depends on model.
Output Balanced or Unbalanced
Secondary (output) Impedance 600 Ohms
Winding Configuration Interleave Winding
Frequency Response 20~20K Hz., <1dBu
THD+Noise <0.05% @ 1K Hz.
Insertion Loss <0.5 dB
Bobbin Material Nylon 6/6 GF-30
Flammability Rating Class HB
Coil Finish Wrapping Polyester Film Electrical Insulating Tape
Core Size
EI50 (0.5" x 0.375")
Core Material M-6 29 ga. grain oriented lamination steel
Secondary Insulation Clear air dry polyester varnish
Termination 8 pin PCB
Mounting
Printed circuit board mounted (PCB)
Mounting Orientation Surface Mounted
Weight 0.3 lbs.
Compliance RoHS REACH
Dimensional Drawing 15000-EI050-037-T
3D Model (STEP)
15000-EI050-037-T
