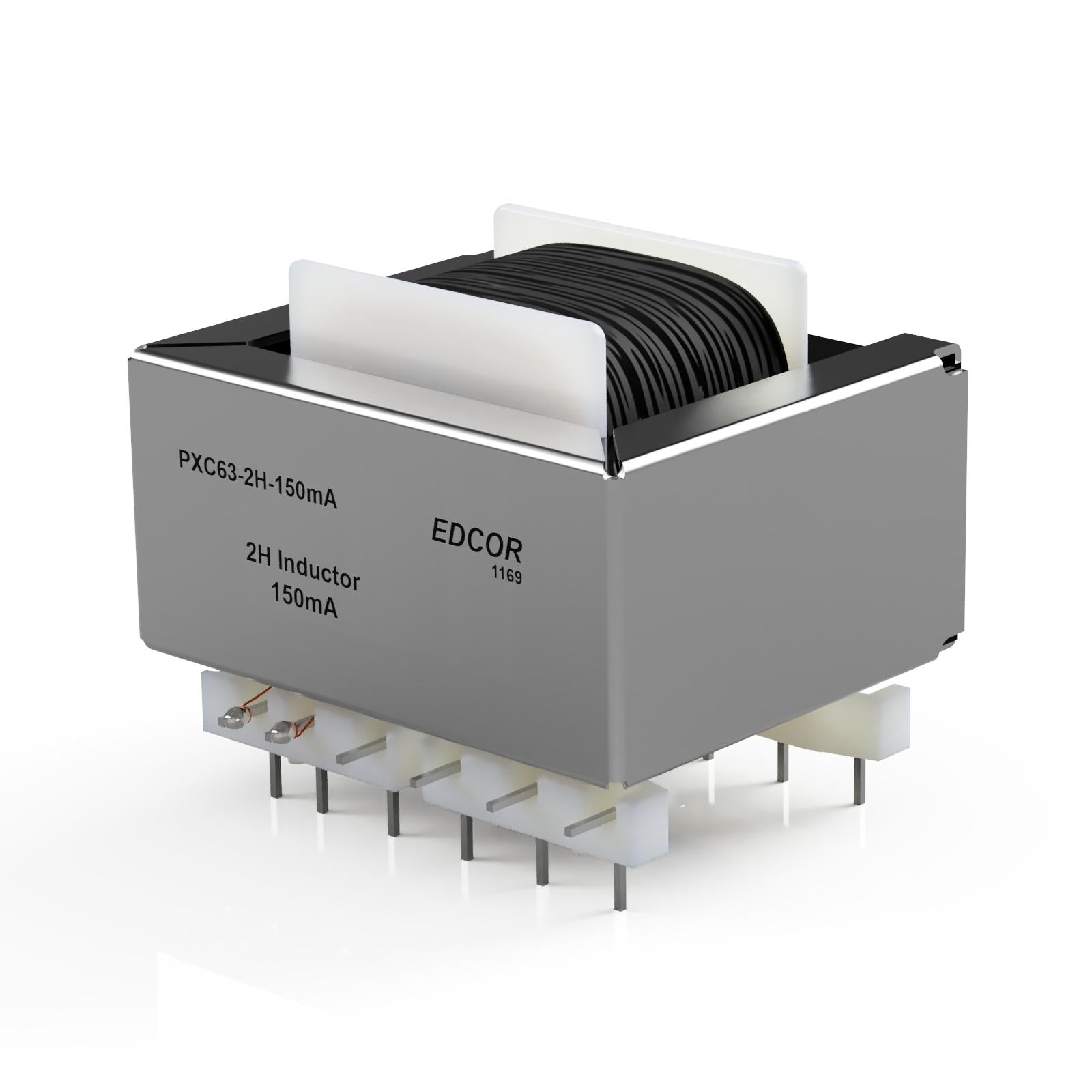

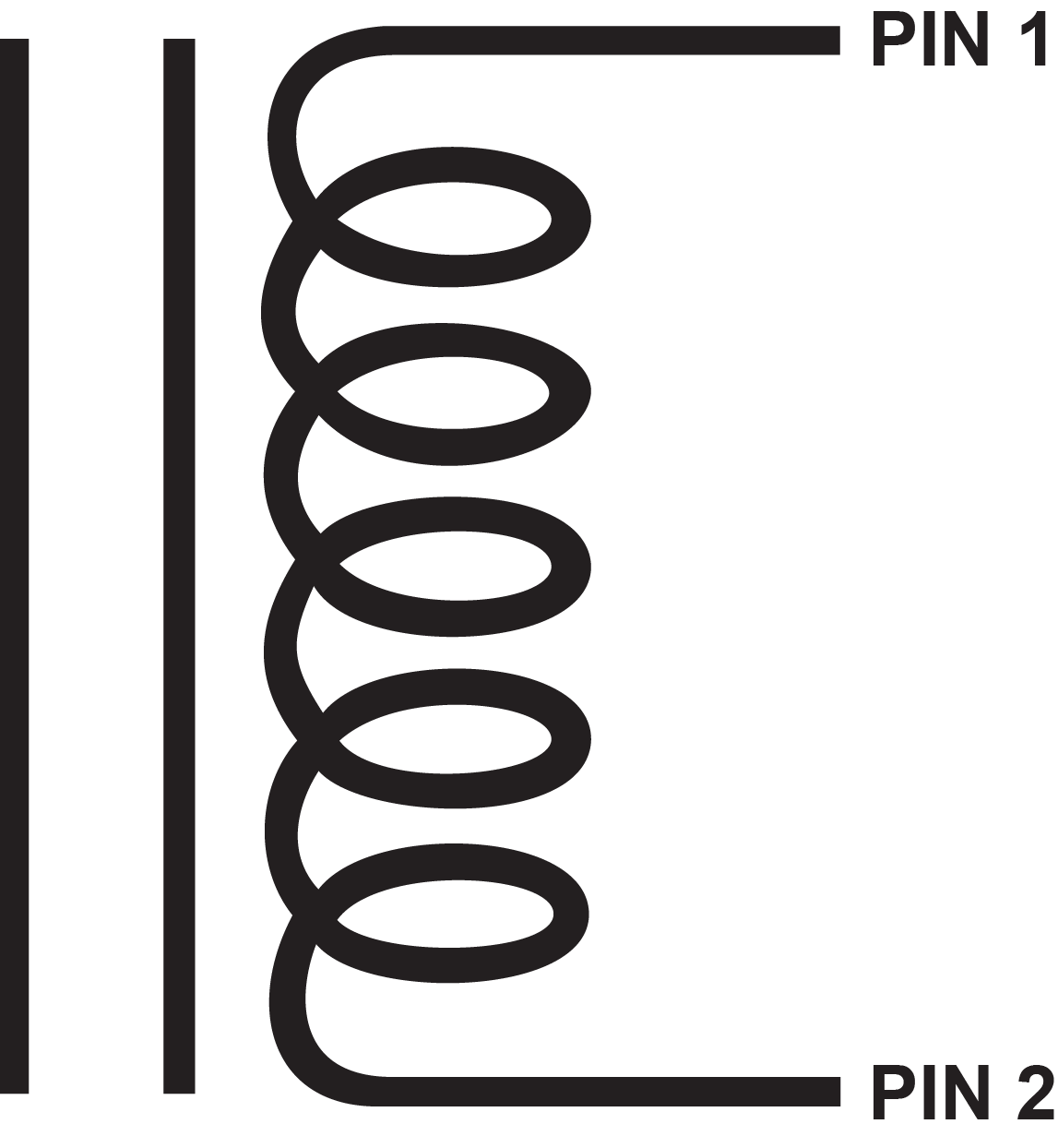

PXC63-2H-150mA - 2H, 150mA choke.
PXC63-2H-150mA - 2H, 150mA choke.

EDCOR Electronics Corporation

PXC63-2H-150mA - 2H, 150mA choke.

Sale price$28.13 USD

Shipping calculated at checkout

SKU: PXC63-2H-150mA

Stock:
loading..
Quantity:
Quantity Discounts
10 pcs 25 pcs 100 pcs 500+ pcs
5% off 10% off 15% off 20% off
Orders over 25 pcs may take longer. Please contact us for scheduling and dates.

Get shipping cost estimate in cart.

Design
Mathematically designed to produce 2H at 150mA DC. A lower DC current will slightly increase inductance.

Magnet Wire
All units are wound with the finest virgin copper magnet wire. All windings use heavy insulated wire to provide excellent manufacturing yield, lower customer cost and superior life.

The Core
EDCOR uses the finest M6 line grain oriented steel cores. Each unit is hand stacked to assure at least 92% stack.

The Bobbin
Injection molded Nylon 6/6 with the addition of 30%-35% glass fibers. The addition of glass fibers allows a higher heat deflection temperature and it brings the material to a class HB UL temperature classification.

Termination/Mounting
This unit is designed for mounting on a printed circuit board. For footprint and suggested hole and pad size, see dimensional drawing.

Specifications

Inductance 4H
Maximum Current 50mA
DC Resistance 50 Ω
Frequency 120 Hz.
Bobbin Material Nylon 6/6 GF-30
Flammability Rating Class HB
Coil Finish Wrapping Polyester Film Electrical Insulating Tape
Core Size
EI63 (0.625" x 0.875")
Core Material M-6 29 ga. grain oriented lamination steel
Secondary Insulation Clear air dry polyester varnish
Termination 12 pin PCB
Mounting Printed circuit board (PCB)
Mounting Orientation Laydown
Weight 0.85 lbs.
Compliance RoHS REACH
Dimensional Drawing 15000-EI625-087-00P12
3D Model (STEP)
15000-EI625-087-00P12
