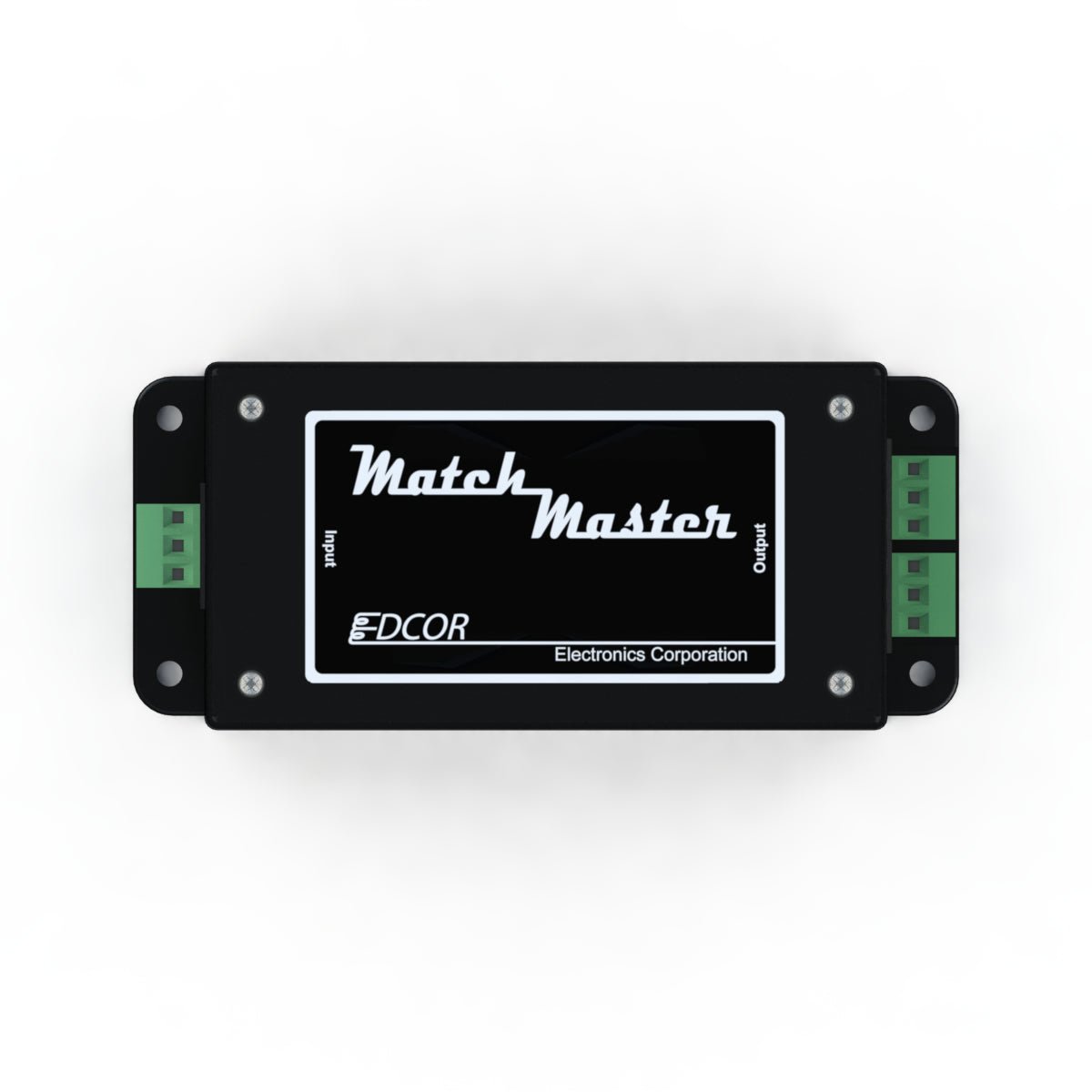

SP-LL-T - Balanced line level audio splitter.
| Quantity Discounts | ||||
|---|---|---|---|---|
| 10 pcs | 25 pcs | 100 pcs | 500+ pcs | |
| 5% off | 10% off | 15% off | 20% off | |
| Orders over 25 pcs may take longer. Please contact us for scheduling and dates. | ||||
Design
These audio splitters use high quality low noise components to deliver broadcast and recording quality sound.
Continuous Quality Sound
Each unit is a designed passive splitter that can be used to operate continuously without degradation of sound.
Balanced Line Input
This is a balanced 600 Ohms line level inputs. The connectors are 3 pin screw Eurostyle connector.
Balanced Line Output
Each unit has two balanced 600 Ohms line level output. The connector is a 3 pin screw Eurostyle connector. This output is ideal for telephone lines. signal processors, amplifiers, or any other units that have a balanced line input.
Enclosure
The enclosure is a rugged black ABS plastic molded box for a clean look.
Surface Mounting
The unit is designed for surface mounting with the use of four screws or with double back tape (not provided). See dimensional drawing.
Specifications
| Input Maximum Voltage | 5Vrms |
| Input | Line Level |
| Input Impedance |
600 Ω |
| Output | Dual Line Level |
| Output Impedance |
600 Ω |
| Turns Ratio | 1:1:1 |
| Winding Configuration | Tri-filer Winding |
| Frequency Response | 20~20K Hz., <1dBu |
| THD+Noise | <0.05% @ 1K Hz. |
| Frequency Response/THD+Noise Plot | SP-LL-T |
| Enclosure | ABS Plastic Molded Box |
| Termination | Eurostyle connectors |
| Mounting |
Surface Mounted |
| Weight | 0.75 lbs. |
| Compliance | RoHS & REACH |
| User Manual | SP Series |
| Dimensional Drawing | 12000-SPT0-03 |
