Mathematically designed to produce the specified voltage(s) when loaded.
Designed for 100V 50/60Hz., 120V 60Hz., 230V 50/60Hz., or 240V 50/60Hz.

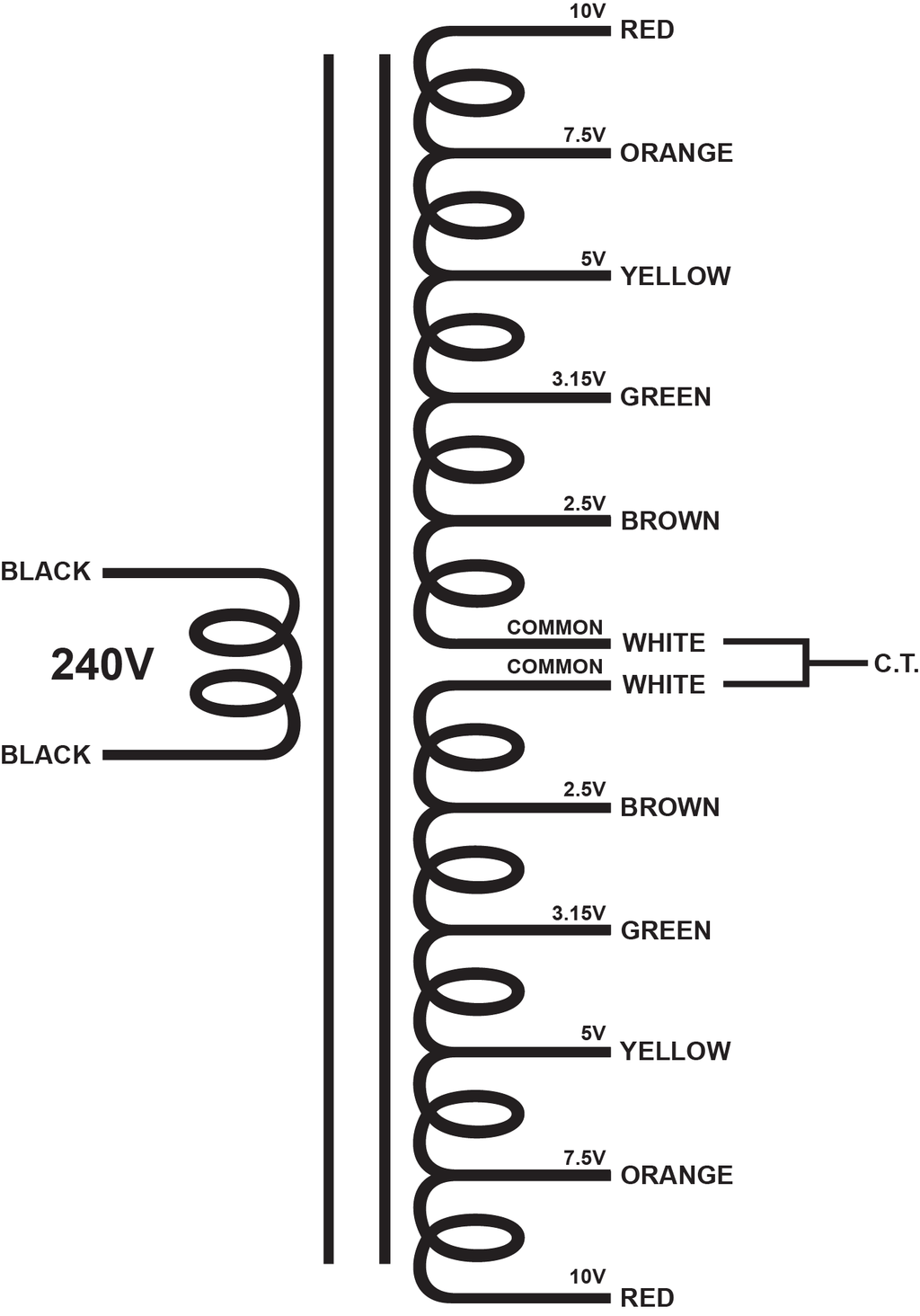

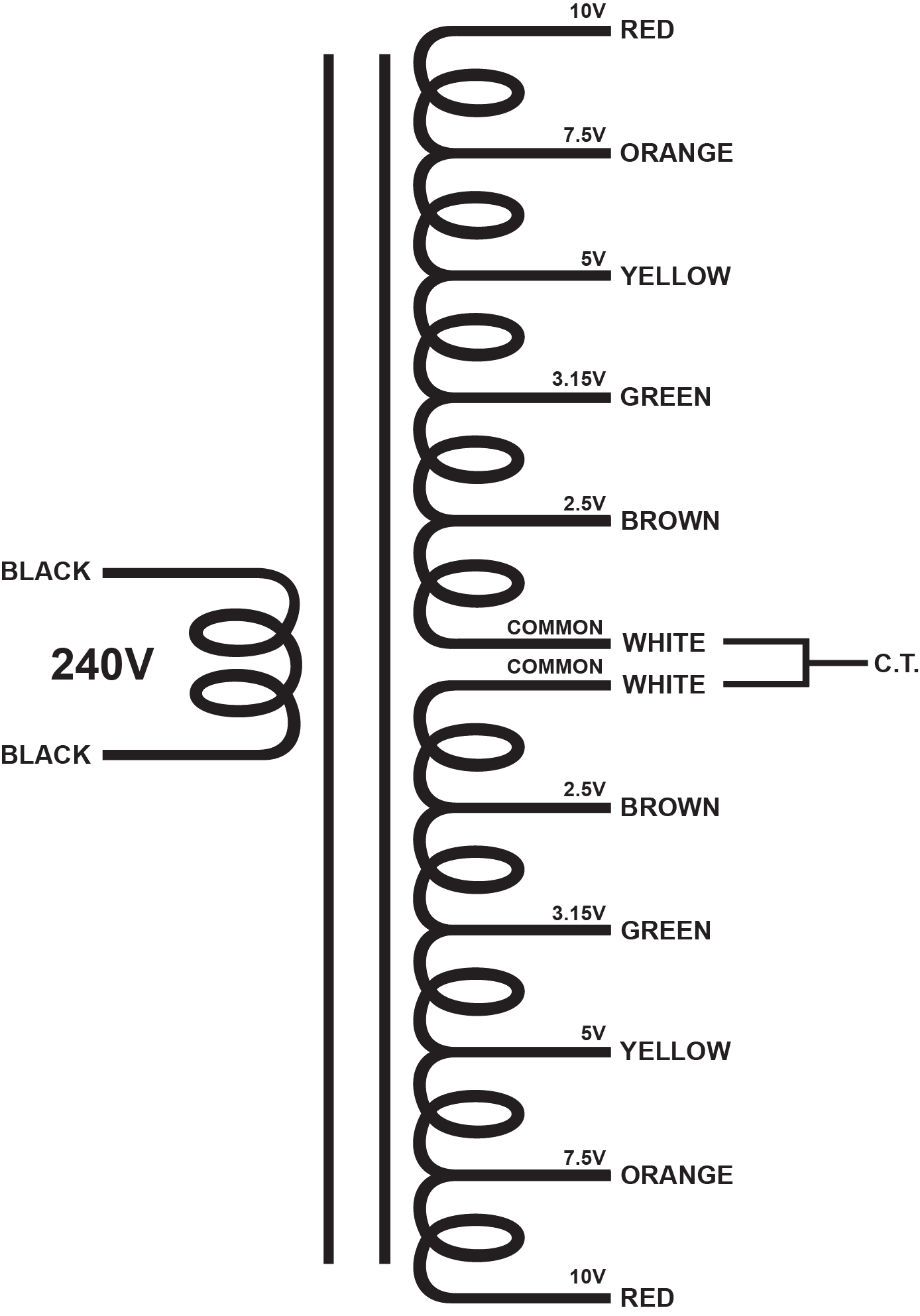

This transformer has multiple voltage windings, 20V (10-7.5-5-3.15-2.5-0 0-2.5-3.15-5-7.5-10) at 4A center tapped.
All units are wound with the finest virgin copper magnet wire. All windings use heavy insulated wire to provide excellent manufacturing yield, lower customer cost and superior life.
EDCOR uses the finest M6 line grain oriented steel cores. Each unit is hand stacked to assure at least 92% stack.
Injection molded Nylon 6/6 with the addition of 30%-35% glass fibers. The addition of glass fibers allows a higher heat deflection temperature and it brings the material to a class HB UL temperature classification.

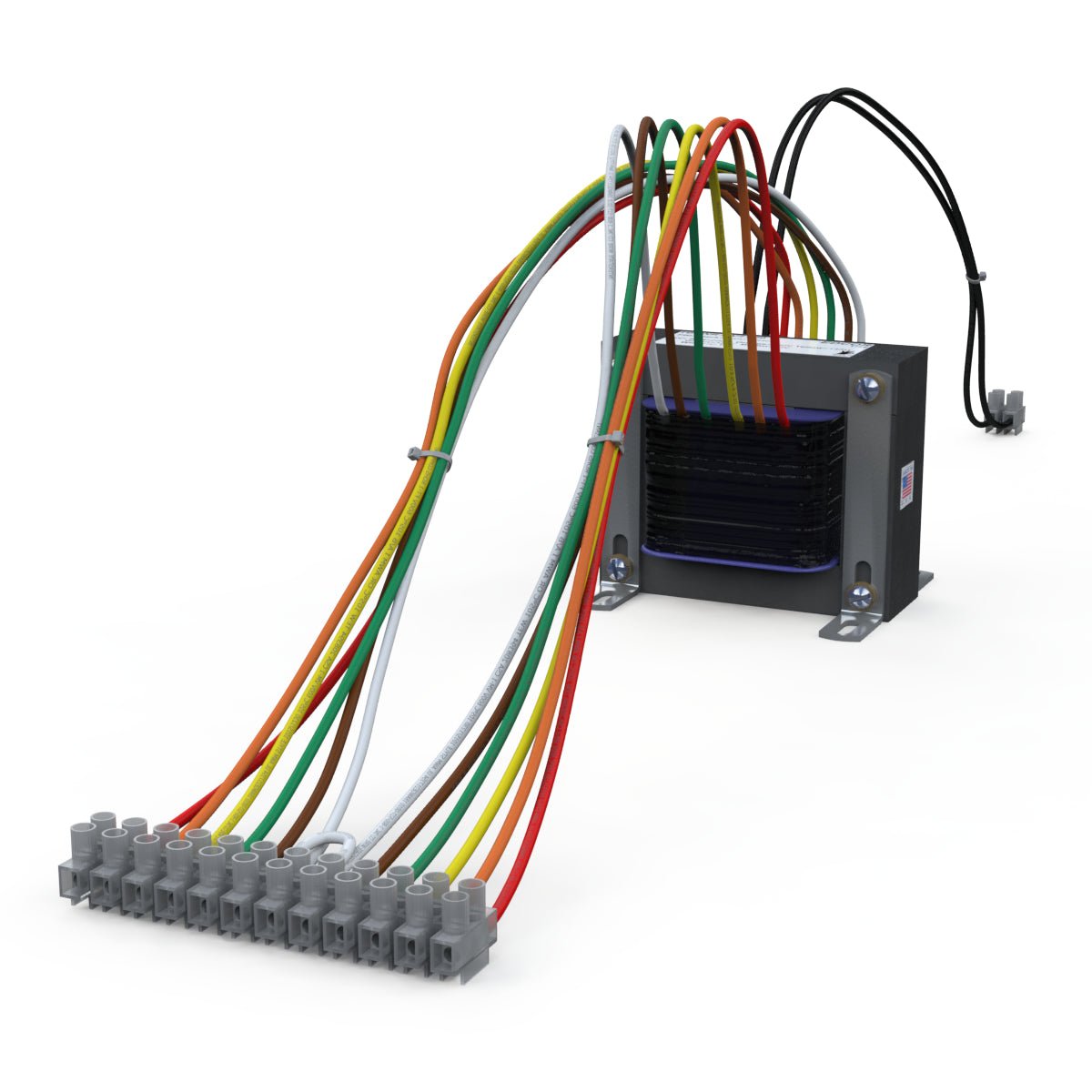

This unit comes with zinc plated steel brackets for mounting with the use of four screws. See dimensional drawing.
|Primary (input) Voltage||100Vrms 50/60Hz, 120Vrms 60Hz, 230Vrms 50/60Hz., or 240Vrms 50/60Hz.
|Secondary (output) Voltage||20V (10-7.5-5-3.15-2.5-0 0-2.5-3.15-5-7.5-10)@4A|
|Bobbin Material||Nylon 6/6 GF-30|
|Flammability Rating||Class HB|
|Coil Finish Wrapping||Polyester Film Electrical Insulating Tape|
||EI125 (1.25" x 1.25")|
|Core Material||M-6 29 ga. grain oriented lamination steel|
|Secondary Insulation||Clear air dry polyester varnish|
|Termination||15" (38cm) UL1015, 18 ga. lead wire with Molex two-screw terminal strips|
|Mounting||Zinc plated steel brackets|
|Compliance||RoHS & REACH|
