TPC Stereo to Mono Coupler Series - 1/4W PC mounted stereo to mono coupling matching transformers.

SKU: TPC6400

Sale price$41.09

Shipping calculated at checkout

Built to order. Estimated to ship 4 to 6 weeks.
Quantity Discounts
10~24 pcs 5% off
25~99 pcs 10% off
100~499 pcs 15% off
500+ pcs 20% off
Orders over 25 pcs may take longer. Please contact us for scheduling and dates.


Specially designed to to couple a stereo line level signal to a mono signal.

Primary (Input)
This is a stereo unbalanced 10K Ohms auxiliary line input. This input is ideal for stereo CD players, tape decks, tuners or other stereo unbalanced auxiliary level inputs.

Secondary (Output)
This is a balanced 600 Ohms, unbalanced 10K Ohms line level or a balanced 1K Ohms microphone level output. This line level is output is ideal for telephone lines. signal processors, amplifiers, or any other units that have a balanced or unbalanced line input. The microphone level output Is good for low level microphones inputs on amplifier and mixers.

Magnet Wire
All units are wound with the finest virgin copper magnet wire. All windings use heavy insulated wire to provide excellent manufacturing yield, lower customer cost and superior life.

The Core
EDCOR uses the finest M6 line grain oriented steel cores. Each unit is hand stacked to assure at least 92% stack.

The Bobbin
Injection molded Nylon 6/6 with the addition of 30%-35% glass fibers. The addition of glass fibers allows a higher heat deflection temperature and it brings the material to a class HB UL temperature classification.

Surface Mounting

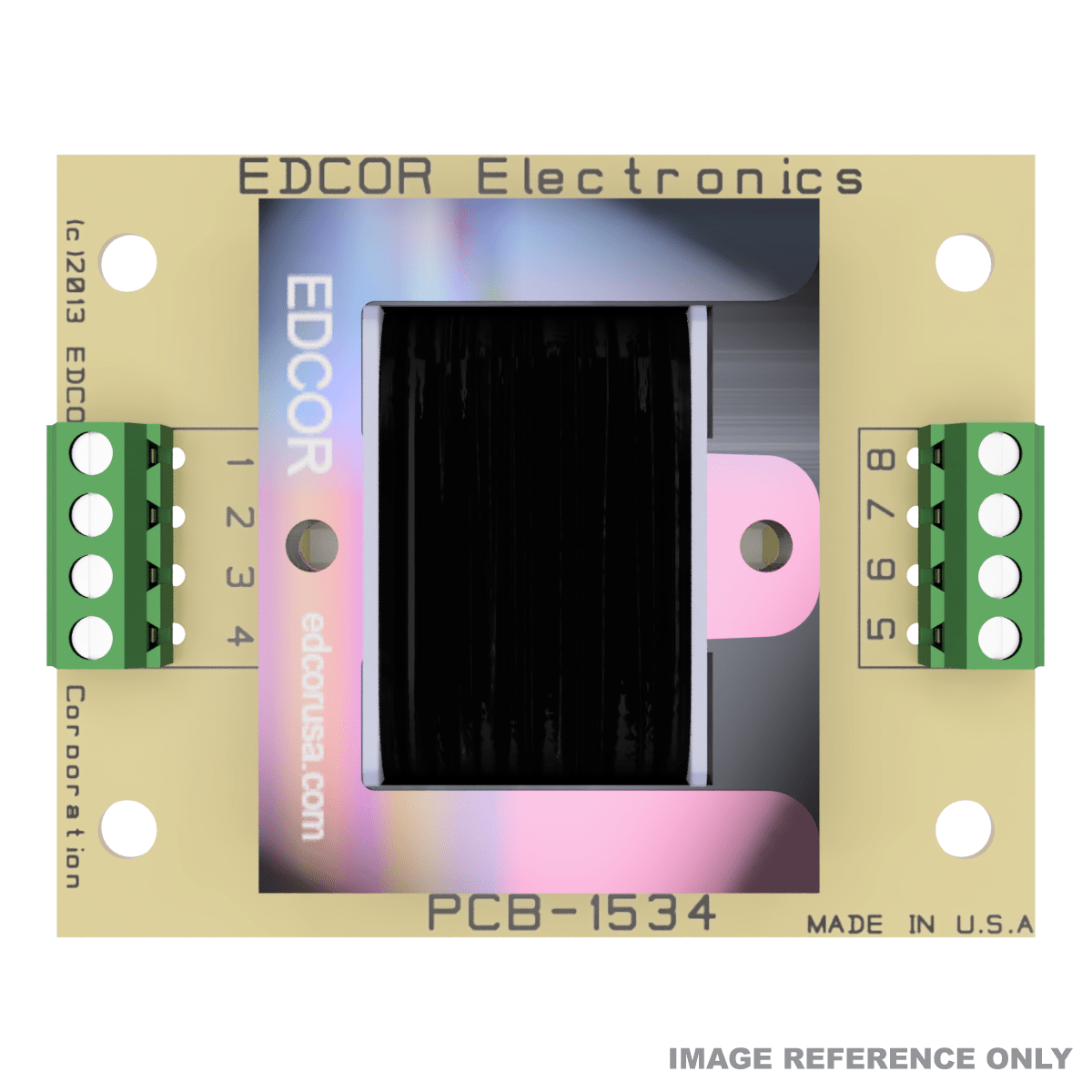

The transformer is mounted on a printed circuit board. The board is designed for surface mounting with the use of four screws (not provided) or with double back tape (not provided). See dimensional drawing.

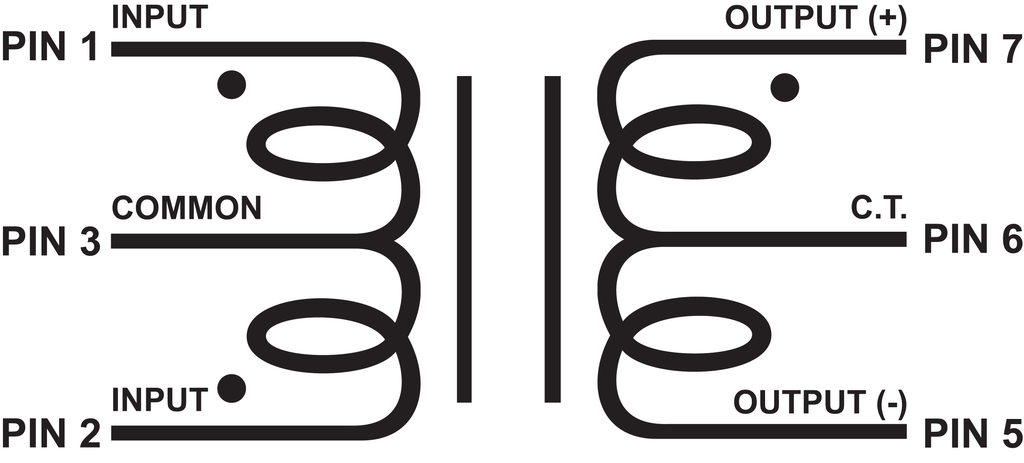

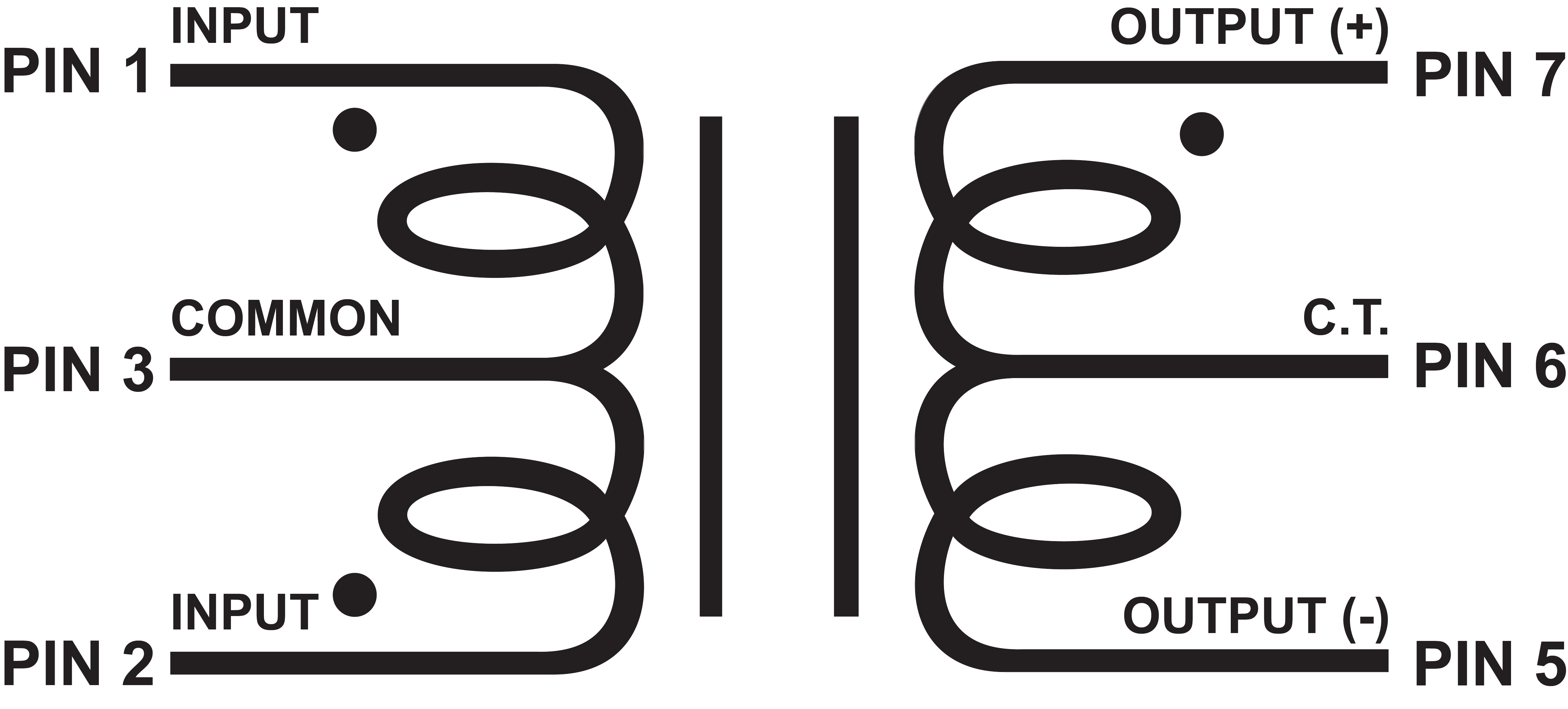

Transformer PC6400 or PC6415
Wattage 0.25W
Input Maximum Voltage 5Vrms
Input Stereo Unbalanced Auxiliary Level
Primary (input) Impedance 10K Ω
Output Balanced or Unbalanced Line level or Balanced Mic Level
Secondary (output) Impedance 600 Ω (Balanced)
10K Ω (Unbalanced)
1K Ω (Balanced Mic. Level)
Winding Configuration Interleave Winding
Frequency Response 20~20K Hz., <1dBu
THD+Noise <0.05% @ 1K Hz.
Frequency Response/THD+Noise Plot PC6400
Insertion Loss <0.5 dB
Bobbin Material Nylon 6/6 GF-30
Flammability Rating Class HB
Coil Finish Wrapping Polyester Film Electrical Insulating Tape
Core Size
EI50 (0.5" x 0.375")
Core Material M-6 29 ga. grain oriented lamination steel
Secondary Insulation Clear air dry polyester varnish
Termination Eurostyle connectors
Printed circuit board mounted (PCB)
Mounting Orientation Surface Mounted
Weight 0.3 lbs.
Compliance RoHS REACH
Dimensional Drawing 15000-EI050-037-T
3D Model (STEP)
