These audio matchers use high quality low noise components to deliver broadcast and recording quality sound.
Designed for an unbalanced line level signal.

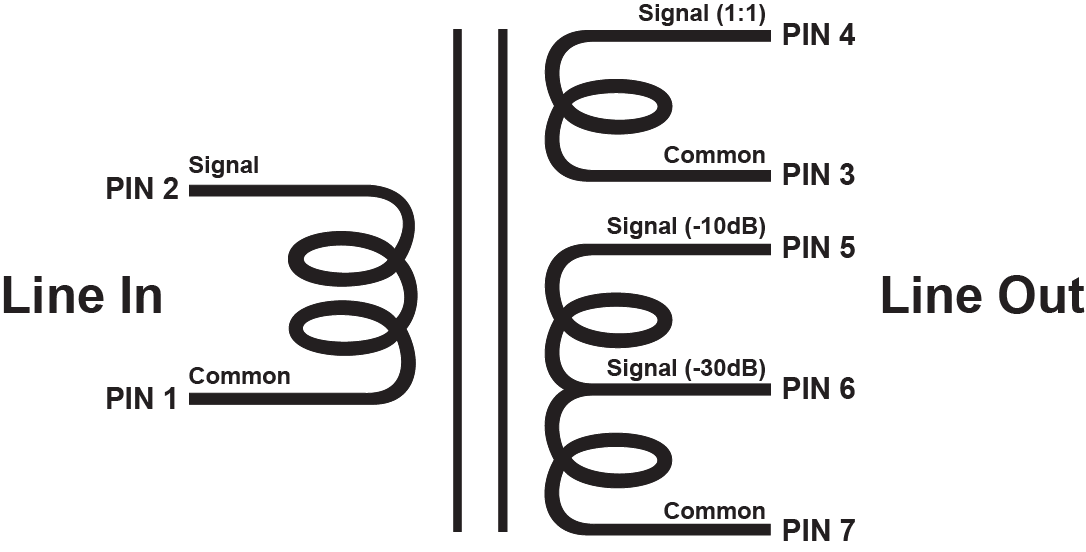

Designed for an unbalanced line level signal. It has a 1:1 ratio winding and gain drop winding at -10dB and -30dB.
All units are wound with the finest virgin copper magnet wire. All windings use heavy insulated wire to provide excellent manufacturing yield, lower customer cost and superior life.
EDCOR uses the finest M6 line grain oriented steel cores. Each unit is hand stacked to assure at least 92% stack.
Injection molded Nylon 6/6 with the addition of 30%-35% glass fibers. The addition of glass fibers allows a higher heat deflection temperature and it brings the material to a class HB UL temperature classification.
This unit is designed for mounting on a printed circuit board. For footprint and suggested hole and pad size, see dimensional drawing.
|Primary (input) Impedance||Line Level
|Secondary (output) Impedance||Unbalanced, gain drop 0dB, -10dB, & -30dB|
|Turns Ratio||(1:1) and drops of -10dB & -30dB
|Winding Configuration||Interleave Winding|
|Frequency Response||20~20K Hz., <1dBu|
|THD+Noise||<0.05% @ 1K Hz.|
|Insertion Loss||<0.5 dB|
|Bobbin Material||Nylon 6/6 GF-30|
|Flammability Rating||Class HB|
|Coil Finish Wrapping||Polyester Film Electrical Insulating Tape|
||EI38 (0.375" x 0.375")|
|Core Material||M-6 29 ga. grain oriented lamination steel|
|Secondary Insulation||Clear air dry polyester varnish|
|Termination||8 pin PCB|
||Printed circuit board (PCB)|
|Compliance||RoHS & REACH|
|3D Model (STEP)||15000-EI037-037-P08|
