EDCOR Electronics Corporation

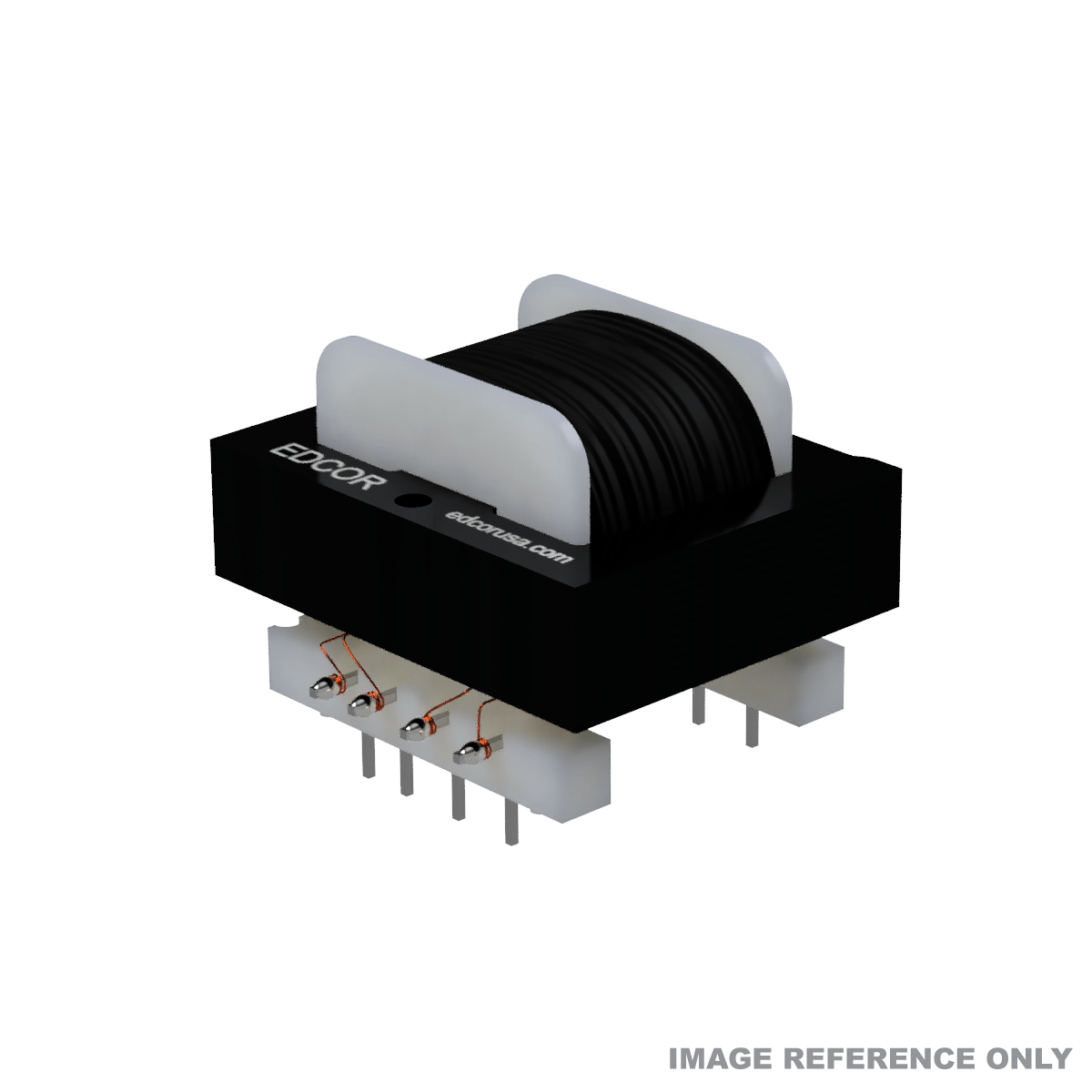

UMM Distribution Series - 1/2W distribution voltage matching transformers.
Distribution Voltage
loading..
| Quantity Discounts | ||||
|---|---|---|---|---|
| 10 pcs | 25 pcs | 100 pcs | 500+ pcs | |
| 5% off | 10% off | 15% off | 20% off | |
| Orders over 25 pcs may take longer. Please contact us for scheduling and dates. | ||||
Get shipping cost estimate in cart.
Design

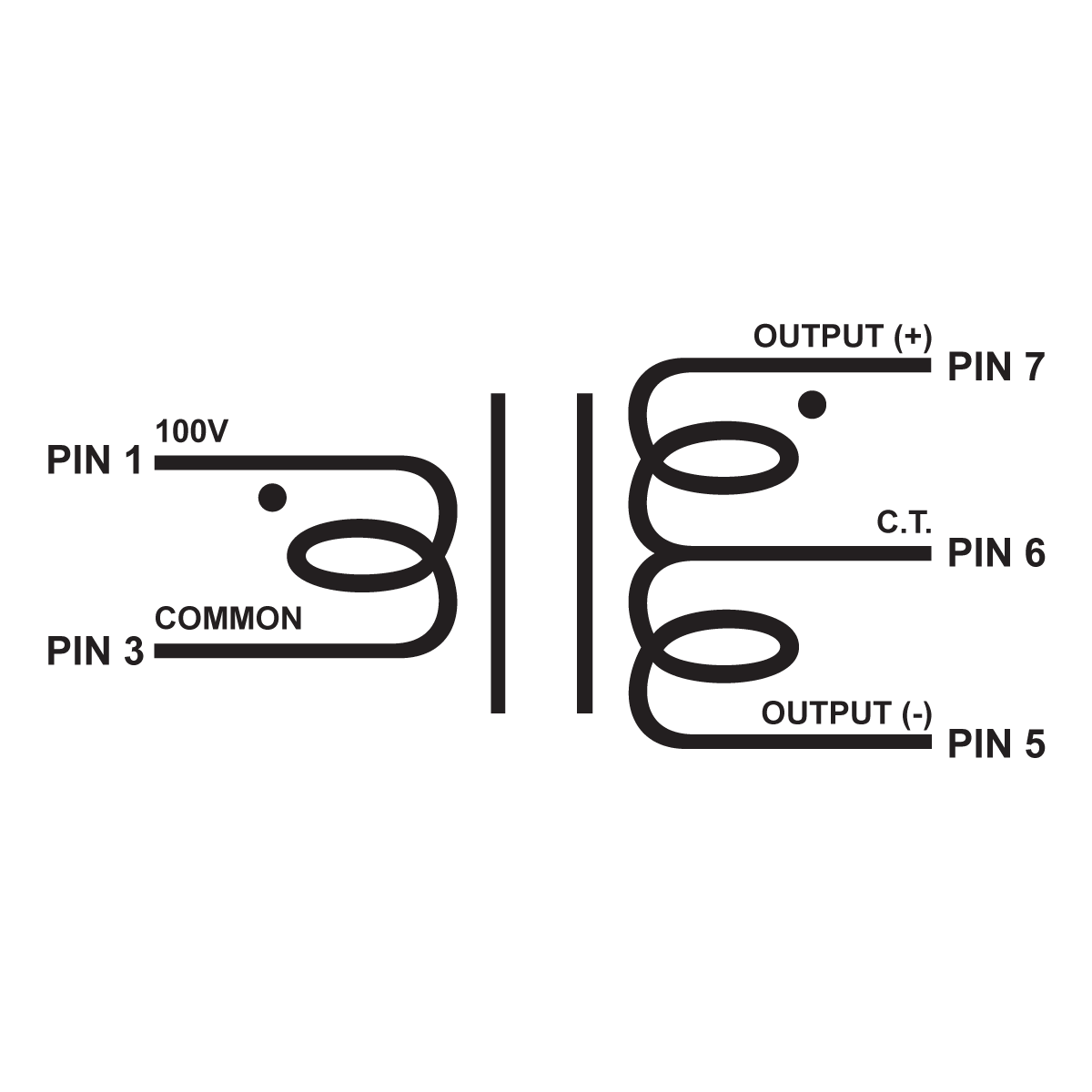

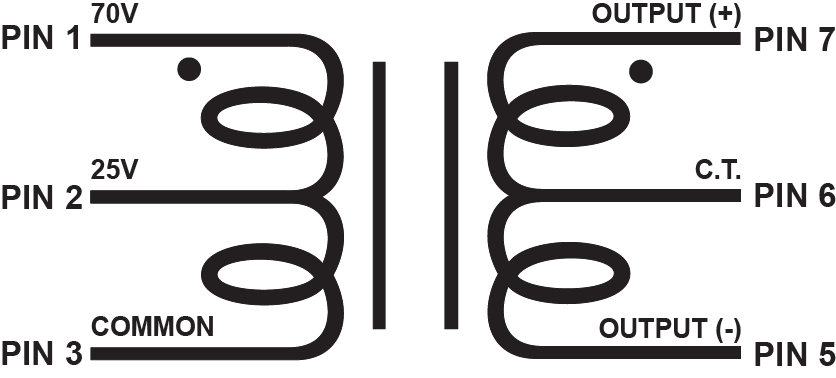

These audio matching transformers are designed for matching a 25V, 70V, or 100V speaker distribution line to a balanced or unbalanced 600 Ohms line level.
Primary (Input)
Designed for a 25V, 70V, or 100V speaker distribution line.
Secondary (Output)
Designed for a balanced or unbalanced 600 Ohms line level signal.
Magnet Wire
All units are wound with the finest virgin copper magnet wire. All windings use heavy insulated wire to provide excellent manufacturing yield, lower customer cost and superior life.
The Core
EDCOR uses the finest M6 line grain oriented steel cores. Each unit is hand stacked to assure at least 92% stack.
The Bobbin
Injection molded Nylon 6/6 with the addition of 30%-35% glass fibers. The addition of glass fibers allows a higher heat deflection temperature and it brings the material to a class HB UL temperature classification.
Termination/Mounting
This unit is designed for mounting on a printed circuit board. For footprint and suggested hole and pad size, see dimensional drawing.
Specifications
| Wattage | 0.5W |
| Primary (input) Distribution Voltage | Depends on model. |
| Output | Balanced or Unbalanced |
| Secondary (output) Impedance | 600 Ohms |
| Winding Configuration | Interleave Winding |
| Frequency Response | 20~20K Hz., <1dBu |
| THD+Noise | <0.05% @ 1K Hz. |
| Insertion Loss | <0.5 dB |
| Bobbin Material | Nylon 6/6 GF-30 |
| Flammability Rating | Class HB |
| Coil Finish Wrapping | Polyester Film Electrical Insulating Tape |
| Core Size |
EI38 (0.375" x 0.375") |
| Core Material | M-6 29 ga. grain oriented lamination steel |
| Secondary Insulation | Clear air dry polyester varnish |
| Termination | 8 pin PCB |
| Mounting |
Printed circuit board (PCB) |
| Mounting Orientation | Laydown |
| Weight | 0.18 lbs. |
| Compliance | RoHS & REACH |
| Dimensional Drawing | 15000-EI037-037-P08 |
| 3D Model (STEP) |
15000-EI037-037-P08 |
