The WA15 series 15W audio distribution transformers are designed for the amplifier side of a voltage audio distribution system.
Continuous Use Design
This series is designed to operate continuously.
The primary is designed for a 4 or 8 Ohms speaker.

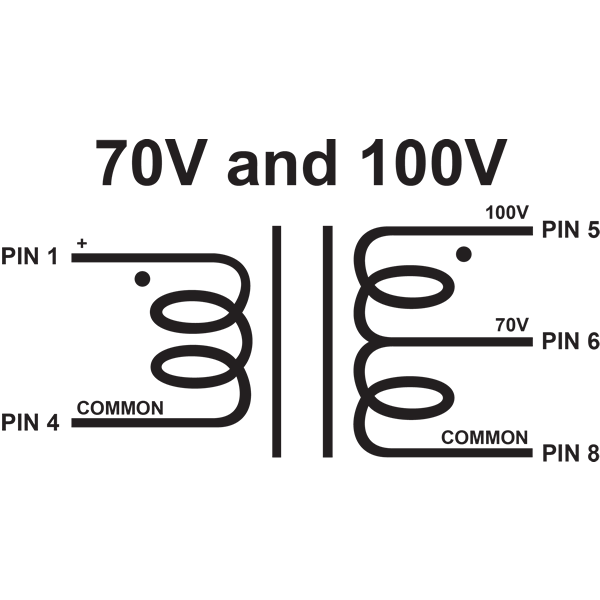

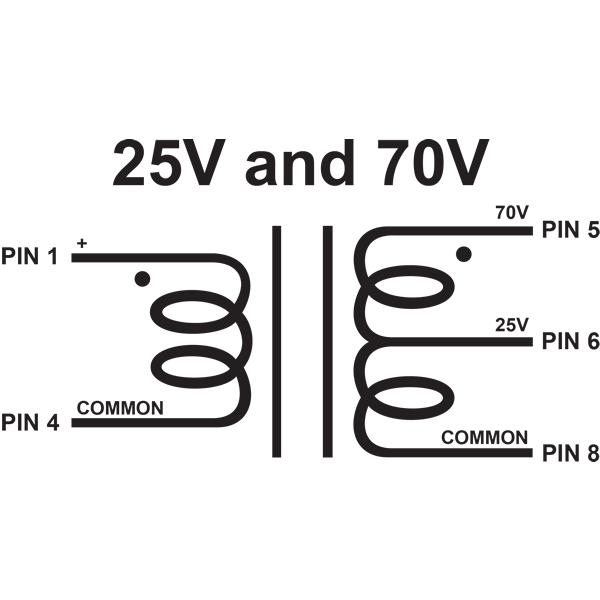

The secondary is designed for a 25V, 70V, 100V or 140V speaker distribution line.
All units are wound with the finest virgin copper magnet wire. All windings use heavy insulated wire to provide excellent manufacturing yield, lower customer cost and superior life.
EDCOR uses the finest M6 line grain oriented steel cores. Each unit is hand stacked to assure at least 92% stack.
Injection molded Nylon 6/6 with the addition of 30%-35% glass fibers. The addition of glass fibers allows a higher heat deflection temperature and it brings the material to a class HB UL temperature classification.
The terminations are 0.187" (3/16") spade terminals. These terminals can be connected with 0.187" (3/16") quick disconnects or can be soldered to.

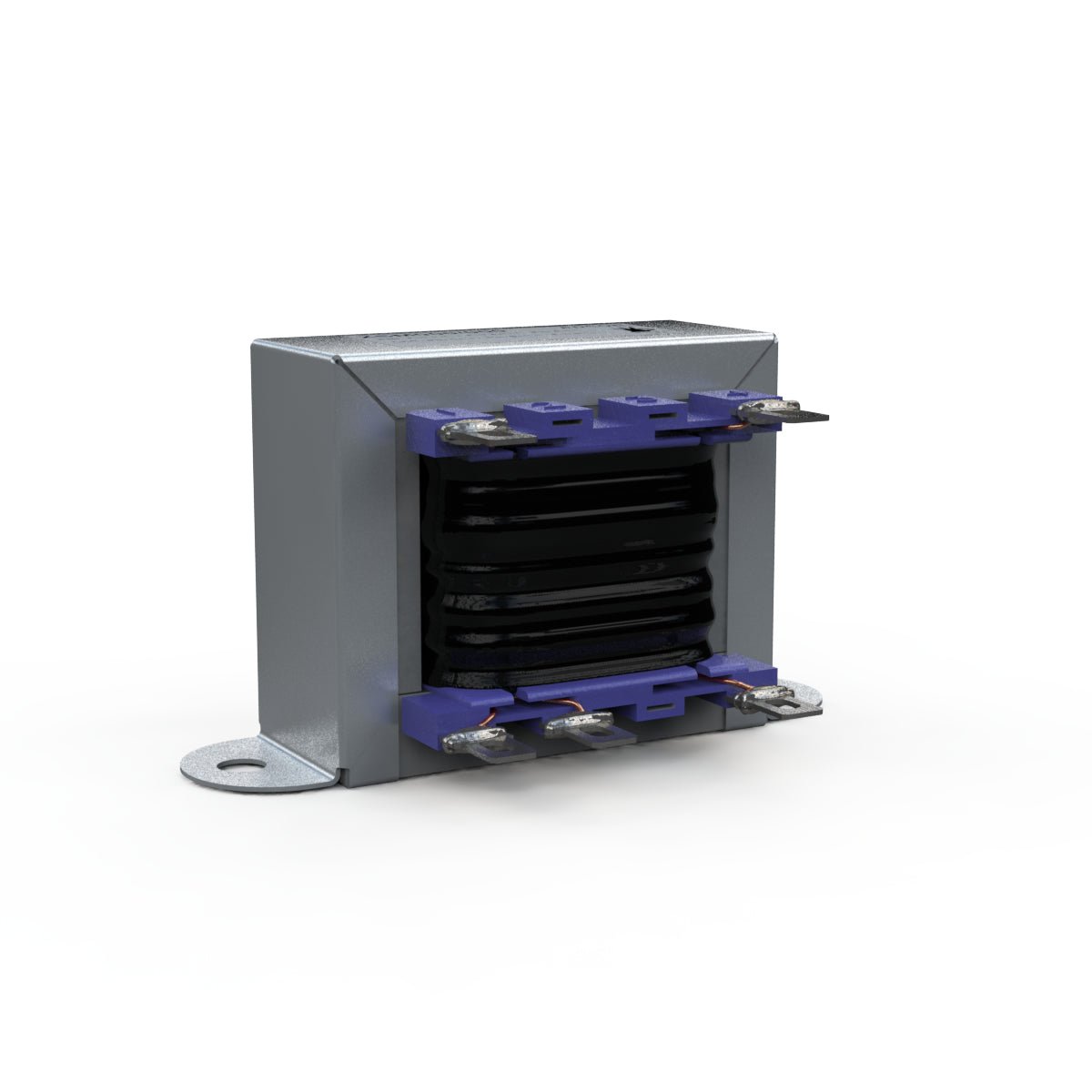

This unit comes with steel zinc plated channel/frame for mounting with the use of two screws. See dimensional drawing.
|Primary (input) Impedance||4 Ω & 8 Ω|
|Secondary (output) Distribution Voltage||25V, 70V, 100V, or 140V|
|Winding Configuration||Interleave Winding|
|Frequency Response||40~20K Hz., <1dBu|
|THD+Noise||<0.1% @ 1K Hz.|
|Insertion Loss||<1 dB|
|Bobbin Material||Nylon 6/6 GF-30|
|Flammability Rating||Class HB|
|Coil Finish Wrapping||Polyester Film Electrical Insulating Tape|
||EI63 (0.625" x 0.75")|
|Core Material||M-6 29 ga. grain oriented lamination steel|
|Secondary Insulation||Clear air dry polyester varnish|
|Termination||0.187" (3/16") quick disconnects spade terminals|
|Mounting||Zinc plated channel/frame|
|Compliance||RoHS & REACH|
