EDCOR Electronics Corporation

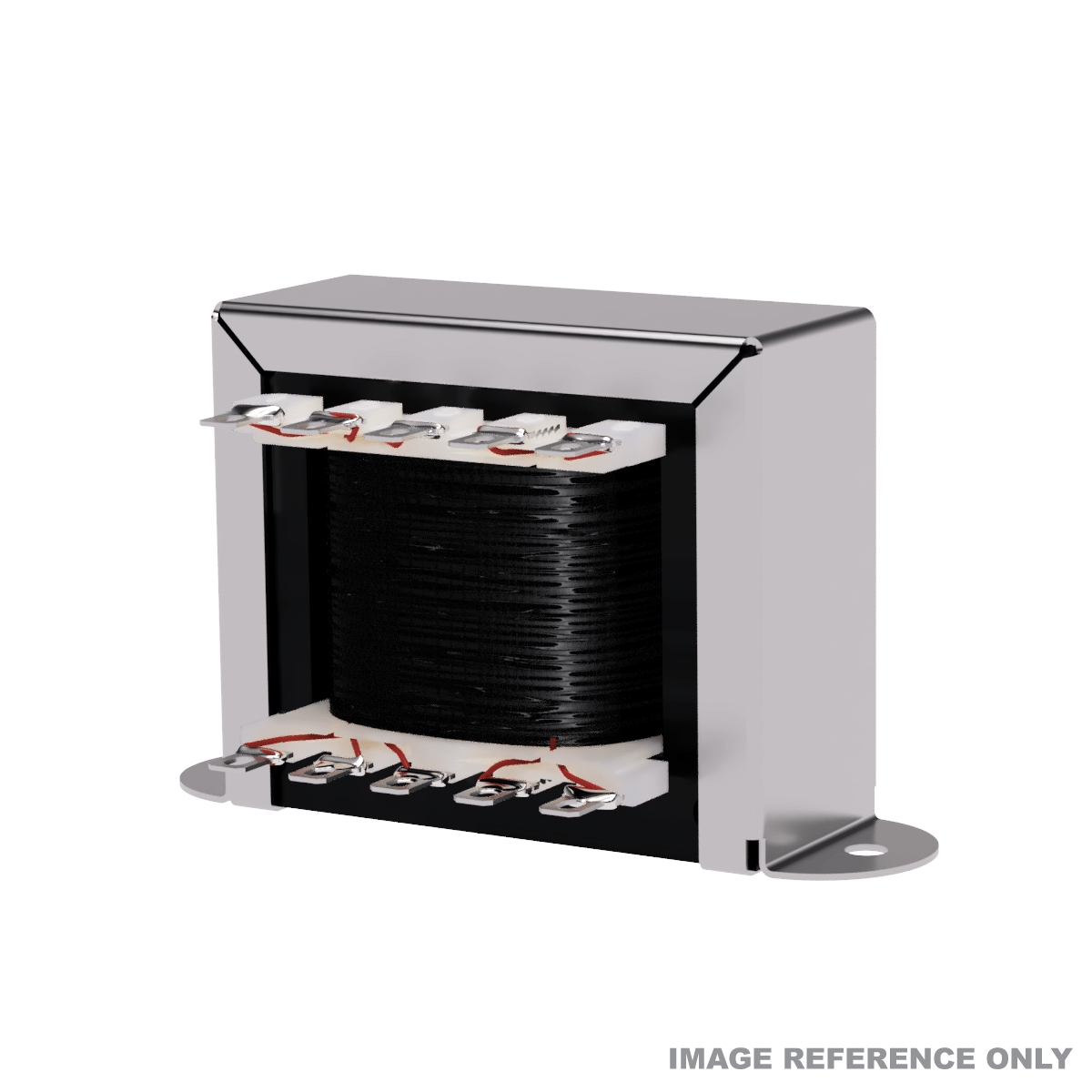

WA40 - 40W amplifier side audio distribution transformer.
Quantity:
| Quantity Discounts | ||||
|---|---|---|---|---|
| 10 pcs | 25 pcs | 100 pcs | 500+ pcs | |
| 5% off | 10% off | 15% off | 20% off | |
| Orders over 25 pcs may take longer. Please contact us for scheduling and dates. | ||||
WA40 40W audio amplifier speaker voltage distribution output transformer.
Primary 8 ohms to secondary audio distribution voltage of 100V or 70V.
| Basic Specifications | |
|---|---|
Series |
|
SKU Model Number/Unit Name
|
WA40-8-100
|

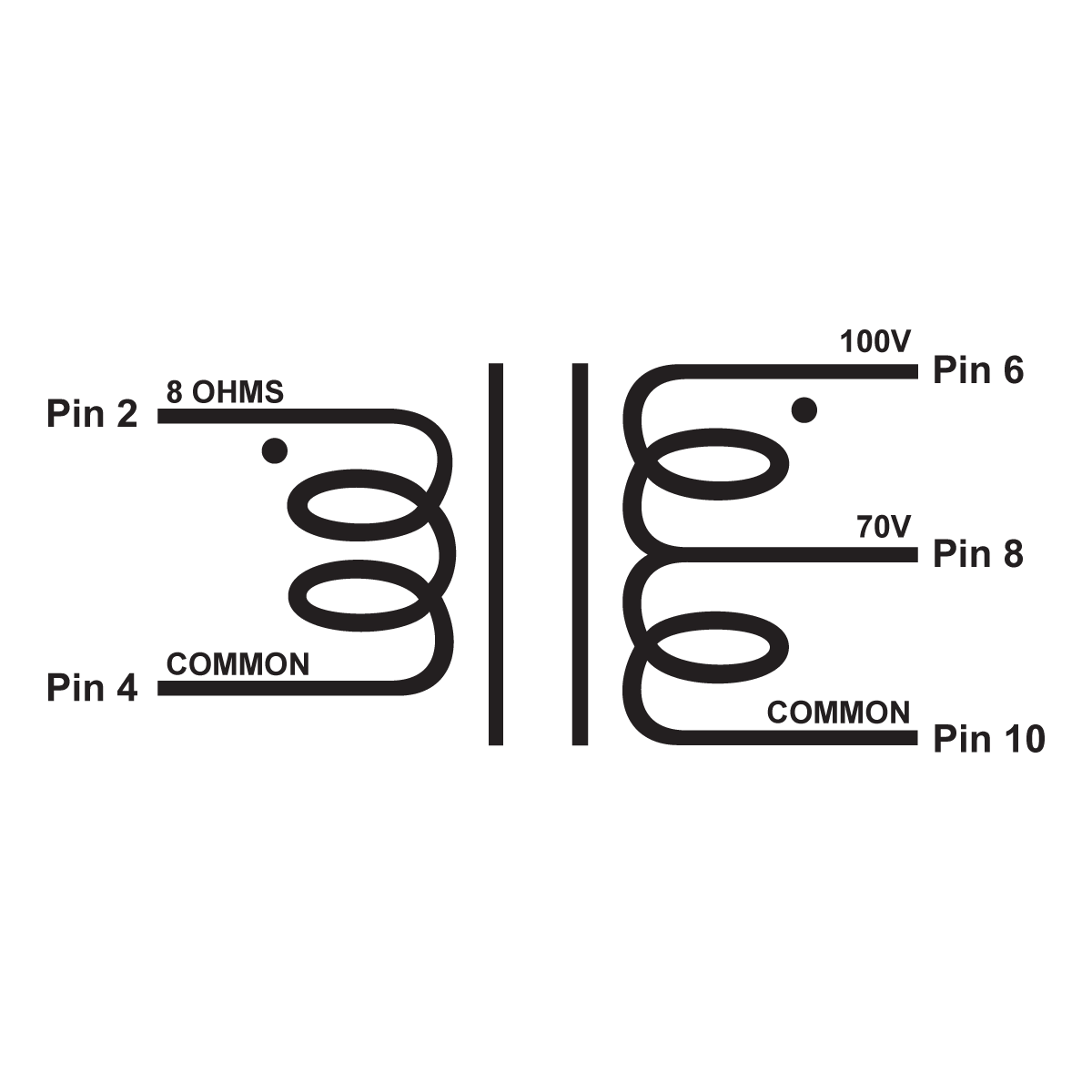

 SchematicFree Adobe Acrobat Reader can be downloaded at Adobe.com.
|
|
 Spec SheetFree Adobe Acrobat Reader can be downloaded at Adobe.com.
|
|
Wattage Symbol: (P)
Total power
|
|
Primary (input) |
|
Secondary (output) |
|
Termination Such as lead wires, terminals, PCB pins, etc.
|
|
Mounting |
|
Mounting Orientation Direction of mounting.
|
|
| Primary (input) | |
Voltage Symbol: Ep
|
17.889V
|
Impedance Symbol: Zp
AC resistance
|
8Ω
|
Current Symbol: Ip
Maximum primary current
|
2.236A
|
DC Resistance Symbol: Rp
|
0.516Ω
|
Inductance Symbol: Lp
|
0.051H
|
| Secondary (output) | |
Other Voltage(s) Symbol: Es
|
100V and 70V
|
Impedance Symbol: Zs
AC Resistance
|
250Ω and 122.5Ω
|
Current(s) Symbol: Is
Maximum secondary current(s)
|
0.4A and 0.571A
|
DC Resistance Symbol: Rs
DC Resistance
|
13.759Ω and 7.575Ω
|
Inductance Calculated value. Actual value may vary. Symbol (L)
|
0.051H
|
| Other Specifications | |
Frequency Response Symbol: ƒ
Magnitude of difference between the rated Low Frequency (ƒlo) and the High Frequency (ƒhi).
|
|
THD+Noise Threshold Distortion add to the noise. Measured "A" weighted.
|
|
Insertion Loss Symbol: IL
The loss between the ideal voltage output and the real voltage output.
|
<0.5dB
|
Winding Configuration Type of winding pattern.
|
|
Efficiency Symbol: η
The efficiency of the transfer of energy from the primary to the secondary.
|
|
| Physical | |
Weight Symbol: Wt
|
1.6 lb
|
Dimensions (Width) X (Height) X (Depth)
|
|
Dimensional Drawing (#) |
|
Dimension Drawing (PDF) Free Adobe Acrobat Reader can be downloaded at Adobe.com.
|
|
3D Model (STEP) STEP (Standard for the Exchange of Product Data), an ISO standard exchange format.
|
|
| Material | |
Bobbin Material |
|
Bobbin Flammability Rating |
|
Magnet Wire |
|
Coil Finish Wrapper |
|
Termination |
|
Core Material |
|
Core Material Size |
|
Core Stack Size |
|
Core Stack Type |
|
Secondary Insulation |
|
Dielectric Strength |
|
Temperature Range |
|
| Compliance | |
RoHS Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment.
|
|
REACH Registration, Evaluation, Authorization and Restriction of Chemicals in EU.
|
|
CMRT RMI Conflict Metals Reporting Template
|
|
GPSR The General Product Safety Regulation (GPSR) is a legislative framework established by the European Union.
|
|
| Other | |
Country of Origin Where the product was manufactured or assembled.
|
|
Harmonized System (HS) Code Standardized numerical system classifying traded products.
|
|
