EDCOR Electronics Corporation

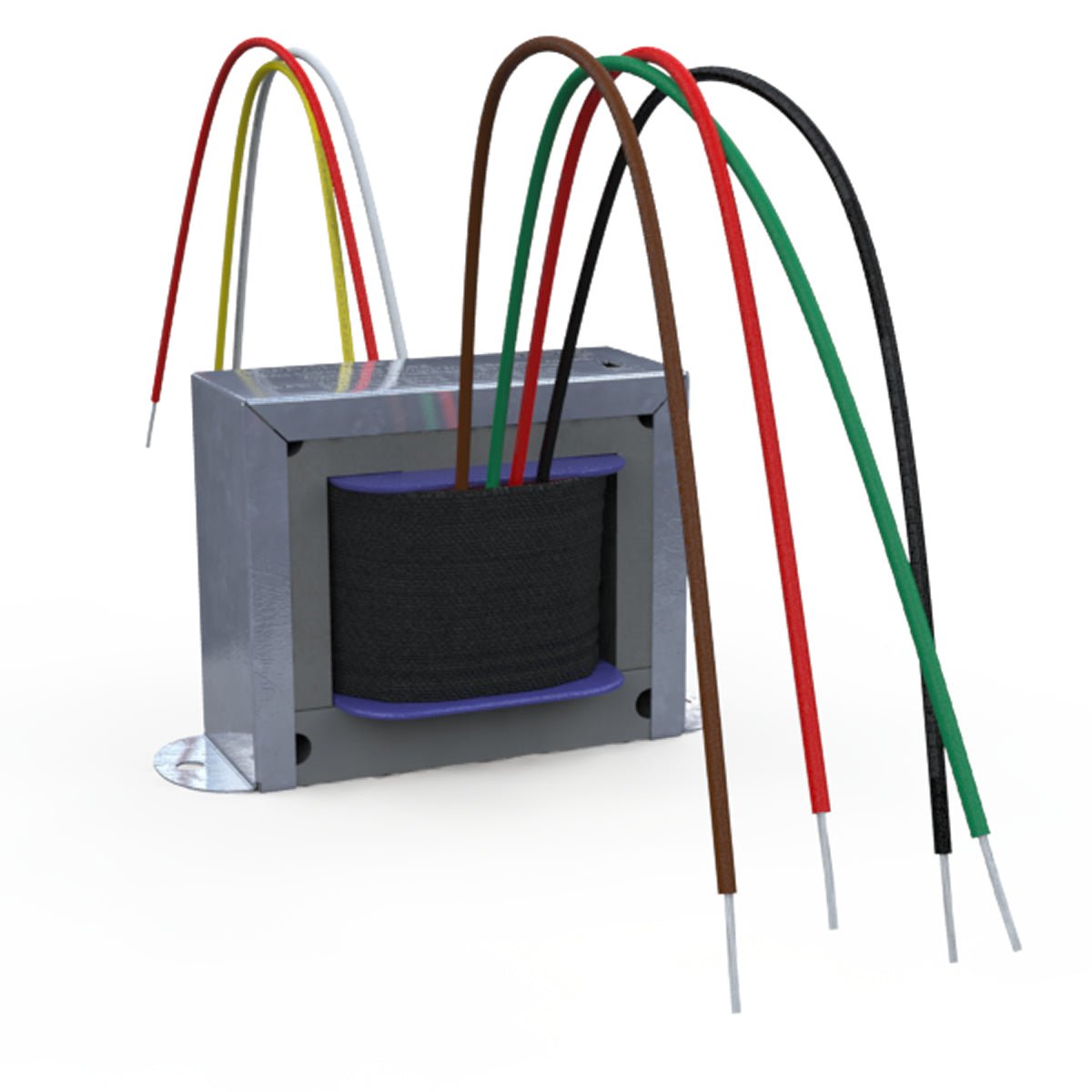

WS60 - 60W speaker side audio distribution transformer.
Distribution Voltage
| Quantity Discounts | ||||
|---|---|---|---|---|
| 10 pcs | 25 pcs | 100 pcs | 500+ pcs | |
| 5% off | 10% off | 15% off | 20% off | |
| Orders over 25 pcs may take longer. Please contact us for scheduling and dates. | ||||
Get shipping cost estimate in cart.
Design
The WS60 series 60W audio distribution transformers are designed for the speaker side of a voltage speaker distribution system.
Continuous Use Design
This series is designed to operate continuously.
Primary (Input)
Designed for a 25V, 70V, 100V, or 140V speaker distribution line.
Secondary (Output)
Designed for a 4 or 8 Ohms speaker.
Magnet Wire
All units are wound with the finest virgin copper magnet wire. All windings use heavy insulated wire to provide excellent manufacturing yield, lower customer cost and superior life.
The Core
EDCOR uses the finest M6 line grain oriented steel cores. Each unit is hand stacked to assure at least 92% stack.
The Bobbin
Injection molded Nylon 6/6 with the addition of 30%-35% glass fibers. The addition of glass fibers allows a higher heat deflection temperature and it brings the material to a class HB UL temperature classification.
Termination

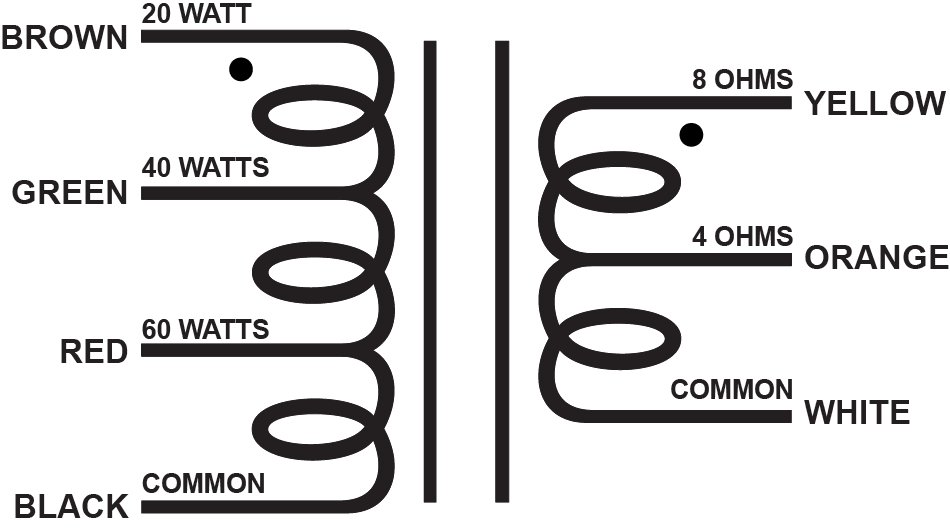

The terminations are UL1015 18 ga. color coded lead wire around 15 inches (38cm) long.
Mounting
This unit comes with steel zinc plated channel/frame for mounting with the use of two screws. See dimensional drawing.
Specifications
| Wattage | 60W |
| Primary (input) Distribution Voltage | 25V, 70V, 100V, or 140V |
| Secondary (output) Impedance | 4 Ω & 8 Ω |
| Winding Configuration | Interleave Winding |
| Frequency Response | 40~20K Hz., <1dBu |
| THD+Noise | <0.1% @ 1K Hz. |
| Insertion Loss | <1 dB |
| Bobbin Material | Nylon 6/6 GF-30 |
| Flammability Rating | Class HB |
| Coil Finish Wrapping | Polyester Film Electrical Insulating Tape |
| Core Size |
EI100 (1" x 1.25") |
| Core Material | M-6 29 ga. grain oriented lamination steel |
| Secondary Insulation | Clear air dry polyester varnish |
| Termination | 15" (38cm) UL1015, 18 ga. lead wire |
| Mounting | Zinc plated channel/frame |
| Mounting Orientation | Horizontal |
| Weight | 2.6 lbs. |
| Compliance | RoHS & REACH |
| Dimensional Drawing | 15000-EI100-125-01 |
